Oil Nozzle Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
- Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
- Remove the battery cover.
- Disconnect the negative battery cable.
- Remove the battery, battery box, and battery tray.
- Remove extension manifold. (upper, lower). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)

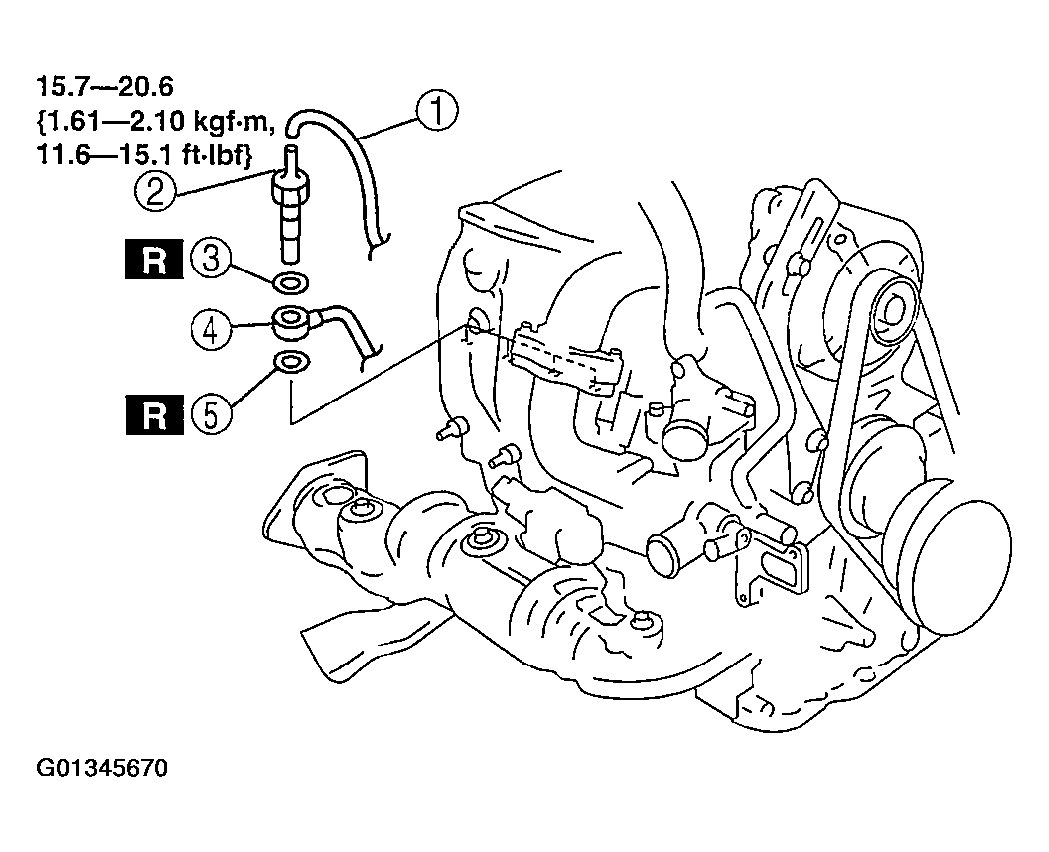

- Remove in the order indicated. See Fig 1 .
- Install in the reverse order of removal.
- Start the engine and confirm that there is no oil leakage from areas worked on.
- If there is any oil leakage, find the cause and repair or replace the applicable part.
