Removal & Installation: Camshaft: Installation

WARNING: This page is about a different car, the 2001 Mazda Millenia and 2001 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install camshaft gear, if removed. Apply oil onto camshaft journals, lobes and gears. Install camshafts so reference mark on intake camshaft gear and exhaust camshaft gear align. See Fig 1. Using a screwdriver, adjust gear position so HLA's are not lifted by cam lobes.

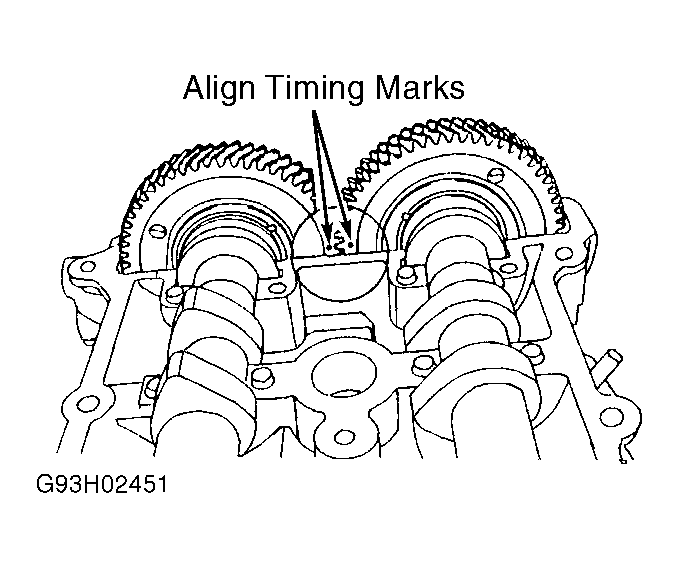

    Fig 1: Installing Camshafts
    G93H02451Courtesy of MAZDA MOTORS CORP.
  2. Coat hydraulic lash adjuster, camshaft journals and camshaft journals cylinder head surfaces with engine oil. Install HLA into original location (if removed).
  3. CAUTION: Install thrust caps first to prevent damage to camshaft.
    CAUTION: DO NOT allow sealant to contact camshaft. Ensure camshaft remains horizontal when installing thrust caps or thrust clearance surface will be damaged.
    NOTE: Thrust caps on right cylinder head are identified by numbers, with "5" at timing belt end of engine on Millenia, and "4" on 626. Thrust caps on left cylinder head are identified by letters, with "B" at timing belt end of engine on all models.

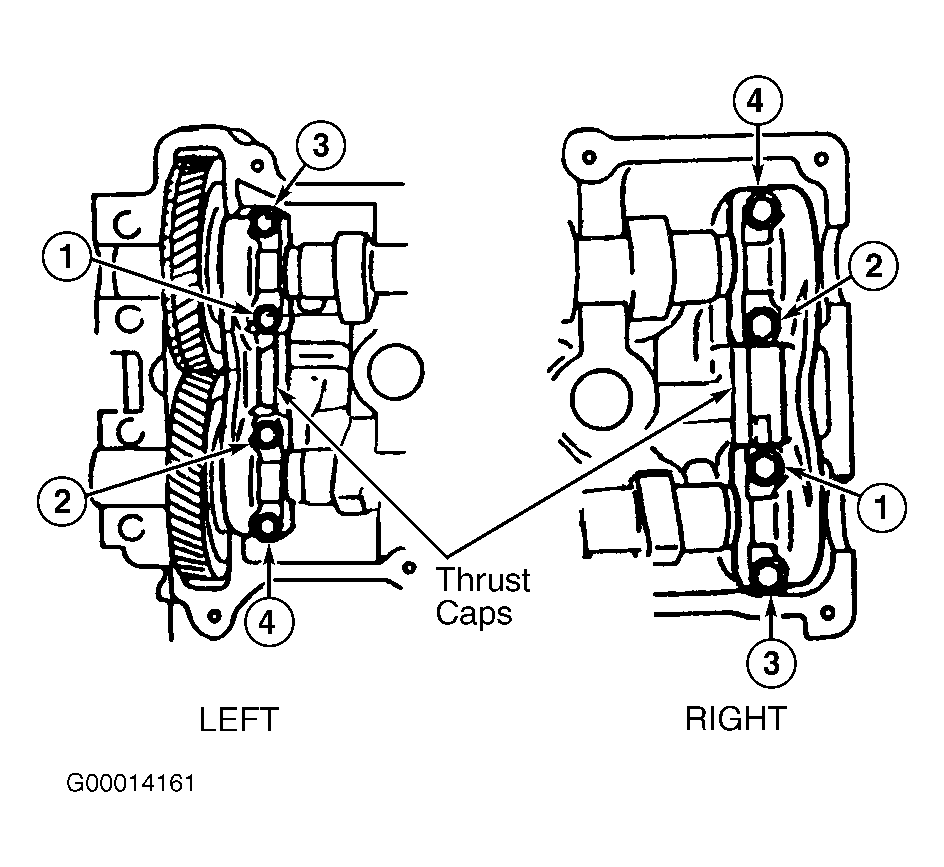

    Fig 2: Camshaft Thrust Cap Bolt Tightening Sequence
    G00014161Courtesy of MAZDA MOTORS CORP.

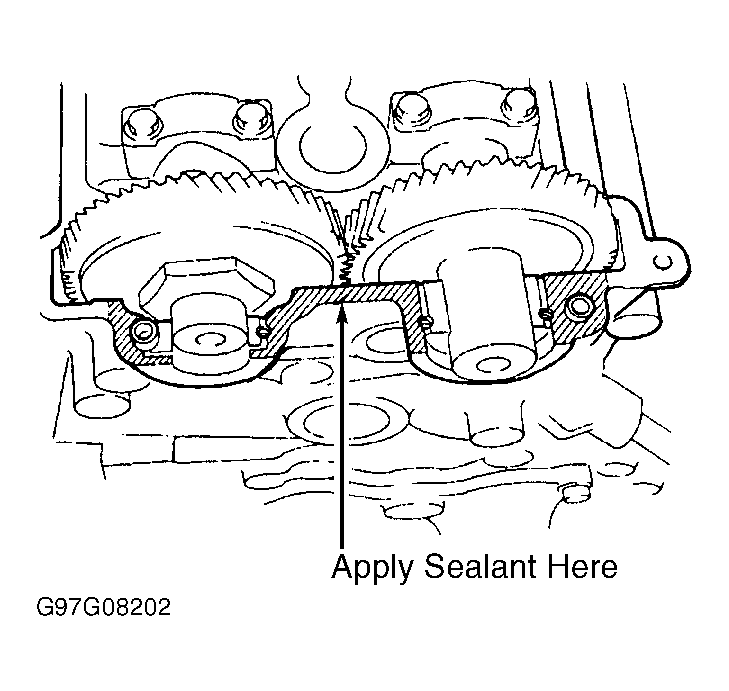

    Fig 3: Identifying Camshaft Bearing Sealant Application Areas
    G97G08202Courtesy of MAZDA MOTORS CORP.
  4. Install thrust caps onto cylinder head. Hand tighten cap bolts in sequence, using several steps, until caps are fully seated on cylinder head. See Fig 2. Apply sealant at designated areas on cylinder head. See Fig 3.
  5. NOTE: Camshaft bearing caps on right cylinder head are identified by numbers, with No. 1 at timing belt end of engine. Camshaft bearing caps on left cylinder head are identified by letters, with "A" at timing belt end of engine.
  6. Install remaining camshaft bearing caps (with bolts) loosely. Tighten camshaft bearing cap bolts in sequence to specification using several steps. See Figure or Figure . See TORQUE SPECIFICATIONS . DO NOT allow camshafts to bind.
  7. Lubricate NEW camshaft oil seal and push in by hand. Using hammer and suitable diameter pipe, tap camshaft oil seal into cylinder head. Apply sealant onto NEW blind cap. Using soft-face hammer, tap blind cap into cylinder head.
  8. Install coolant outlet. Tighten retaining bolts to specification. See TORQUE SPECIFICATIONS . Install seal plate. Tighten retaining bolts to specification. See TORQUE SPECIFICATIONS .
  9. Hold camshaft from turning by using a wrench on camshaft hex. Install left and right camshaft pulleys as identified by "L" and "R" stamped on them. Ensure camshafts pulleys are installed so identification marks can be seen, and timing marks align with camshaft knock pins. Tighten camshaft pulley bolts to specification. See TORQUE SPECIFICATIONS .
  10. Before installing valve cover and gasket, apply sealant onto specified areas on cylinder head. See Figure. Apply sealant onto valve cover, and install NEW gasket into valve cover. Install valve cover and gasket.
  11. Install and tighten valve cover bolts in sequence to specification using several steps. See Figure. See TORQUE SPECIFICATIONS . To install remaining components, reverse removal procedure. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS . Fill and bleed cooling system. See COOLING SYSTEM BLEEDING .
  12. Rotate crankshaft so No. 1 cylinder is at TDC on compression stroke. Ensure timing mark on crankshaft pulley aligns with TDC mark on timing belt cover. Coat distributor "O" ring and drive blade on distributor with engine oil. Align groove on distributor body drive blade. Install distributor and hold-down bolt.
