On-Vehicle Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine cover.
(See ENGINE COVER REMOVAL/INSTALLATION ).
Remove the battery cover.
Disconnect the negative battery cable.
Remove the catalytic converter.
(See EXHAUST SYSTEM .)
Remove the insulator.

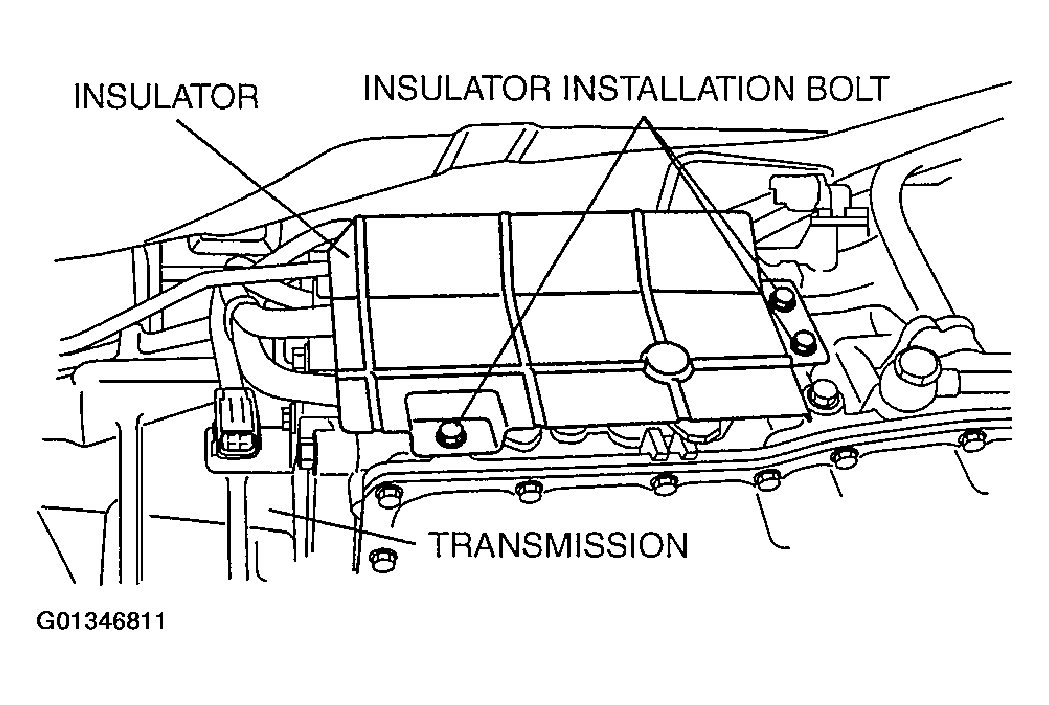

Fig 1: Locating Insulator Installation Bolts
Courtesy of MAZDA MOTORS CORP.
Disconnect the solenoid valve connector.

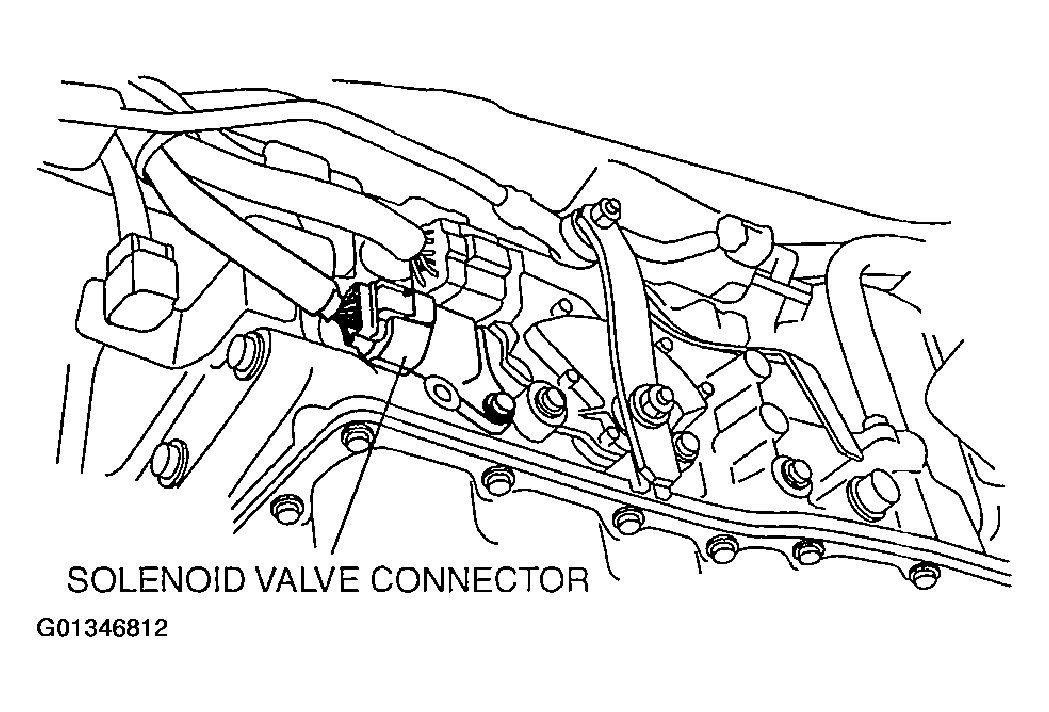

Fig 2: Disconnecting Solenoid Valve Connector
Courtesy of MAZDA MOTORS CORP.
Measure resistance between the terminals C and D.

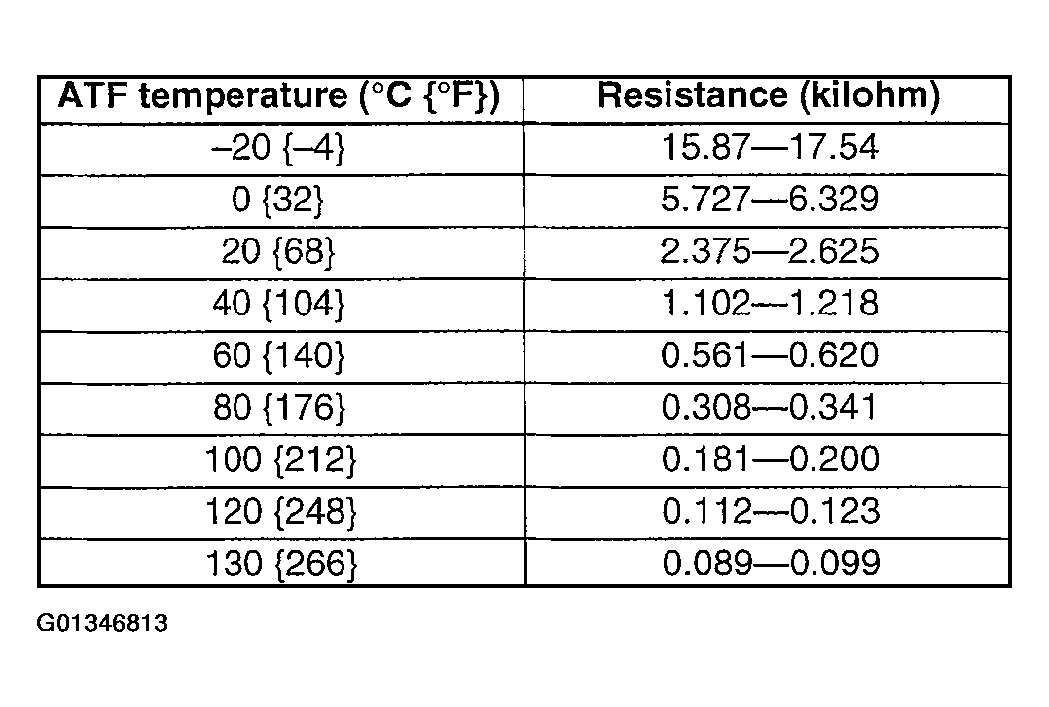

Fig 3: TFT Sensor Resistance
Courtesy of MAZDA MOTORS CORP.
- If there is any malfunction, perform the off vehicle inspection for TFT sensor. (See OFF-VEHICLE INSPECTION .)

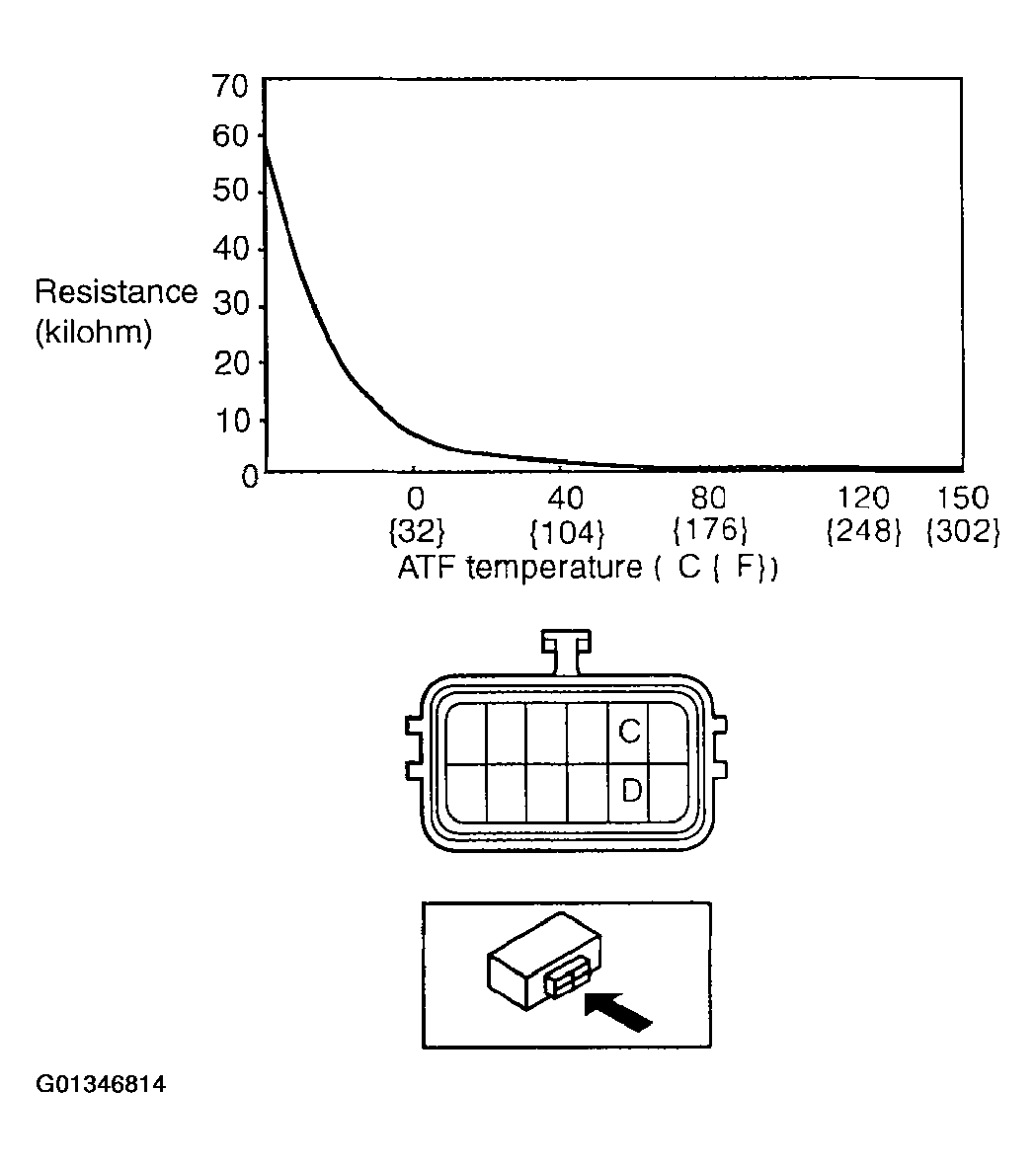

Fig 4: Resistance V/S Graph Of TFT Sensor
Courtesy of MAZDA MOTORS CORP.
Connect the solenoid valve connector.
Install the insulator.
Tightening torque

8-11 N.m {82-112 kgf.cm, 72-97 in.lb}
Install the catalytic converter.
(See EXHAUST SYSTEM .)
Connect the negative battery cable.
Install the battery cover.
Install the engine cover.
(See ENGINE COVER REMOVAL/INSTALLATION .)
