Inspection Using An Oscilloscope (Reference)

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Turbine sensor

TCM terminal: 2G (+)-2M (-)
Oscilloscope setting: 5 V/DIV (Y) 250 microseconds/DIV (X)
Measuring condition: Vehicle speed at 20 km/h {12 mph} (M range 1 GR)

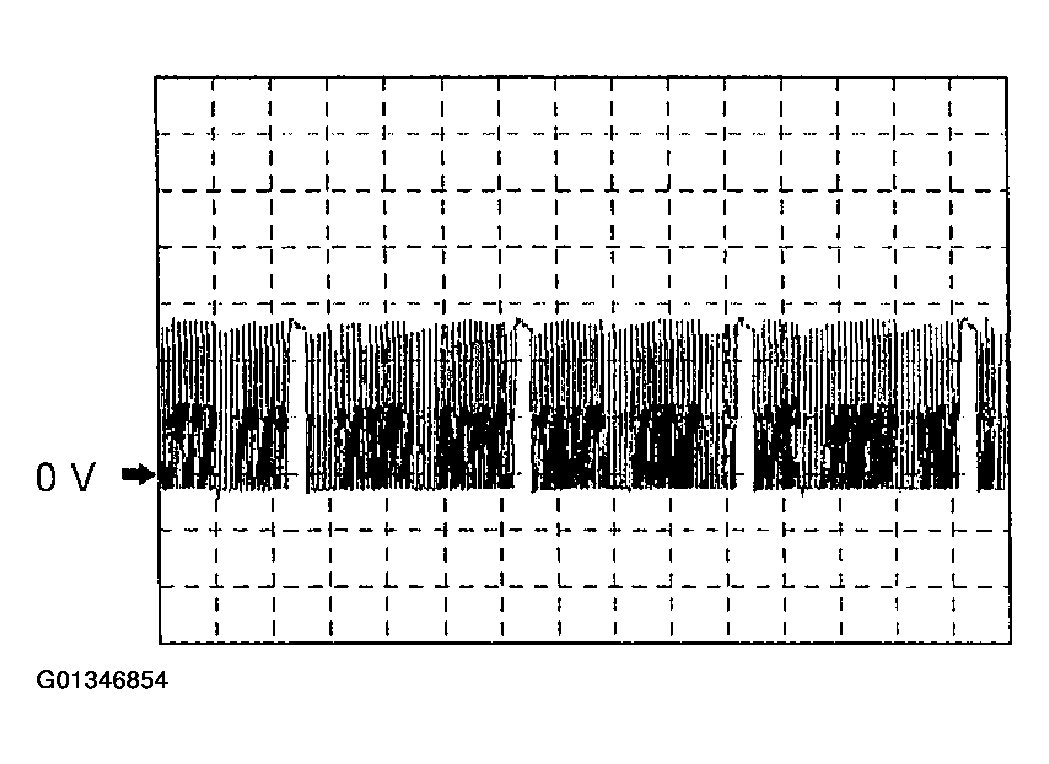

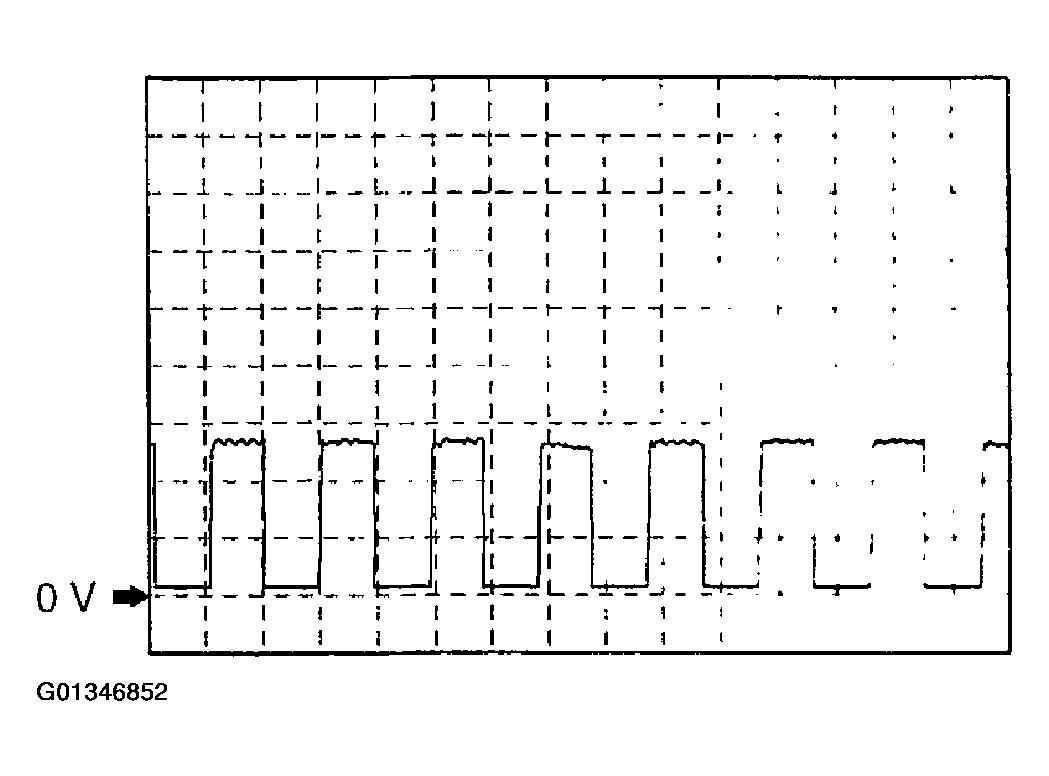

Fig 1: Inspecting Turbine Sensor Using Oscilloscope (Reference)
Courtesy of MAZDA MOTORS CORP.

Vehicle speed

TCM terminal: 2K (+)-2M (-)
Oscilloscope setting: 5 V/DIV (Y) 2.5 ms/DIV (X)
Measuring condition: Vehicle speed at 20 km/h {12 mph} (M range 1GR)

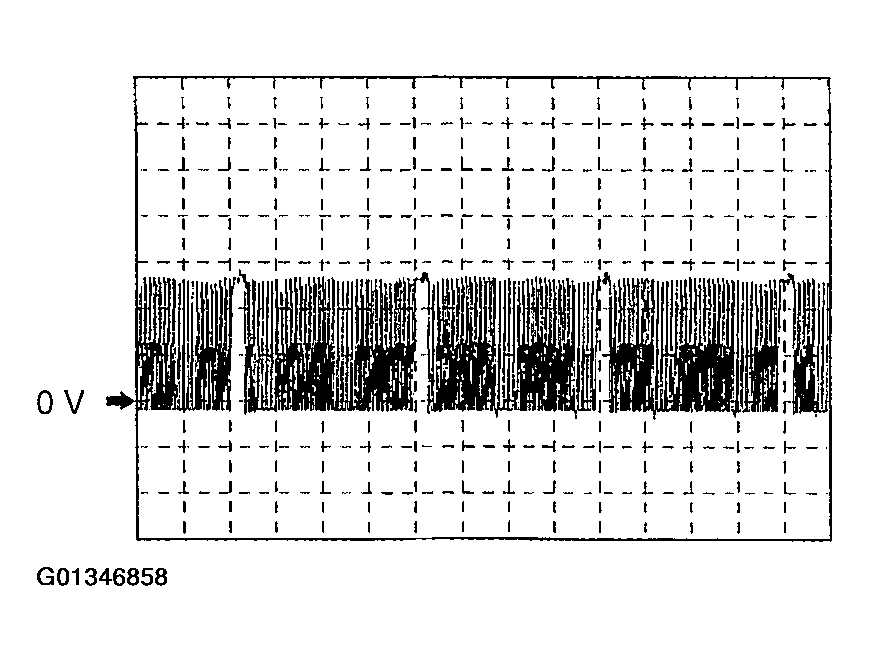

Fig 2: Inspecting Vehicle Speed Using Oscilloscope (Reference)
Courtesy of MAZDA MOTORS CORP.

Shift solenoid F control

TCM terminal: 2P (+)-2U (-)
Oscilloscope setting: 5 V/DIV (Y) 10 ms/DIV (X)
Measuring condition: P, N position, Idle

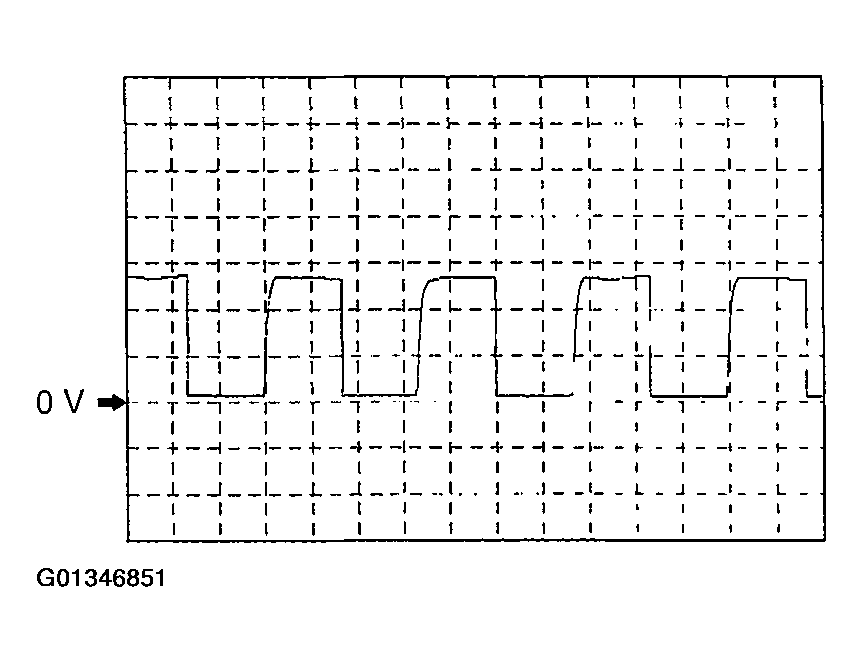

Fig 3: Inspecting Shift Solenoid F Control Using Oscilloscope (Reference)
Courtesy of MAZDA MOTORS CORP.

Shift solenoid B control

TCM terminal: 2S (+)-2U (-)
Oscilloscope setting: 5 V/DIV (Y) 10 ms/DIV (X)
Measuring condition: P, N position, Idle

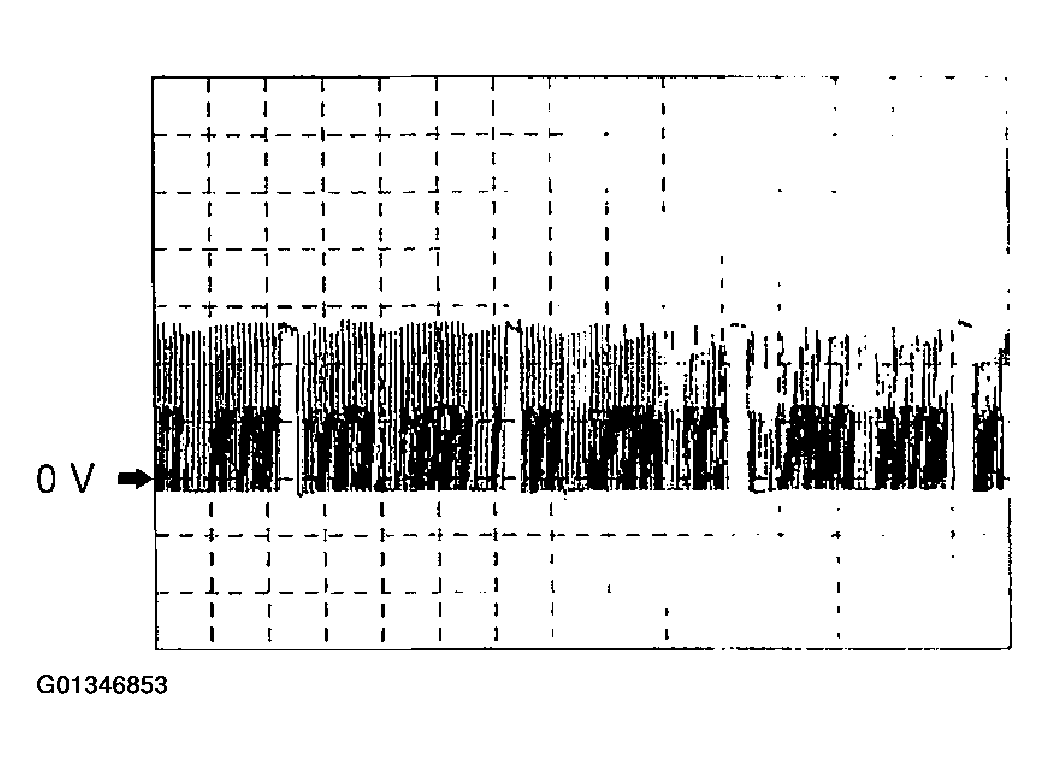

Fig 4: Inspecting Shift Solenoid B Control Using Oscilloscope (Reference)
Courtesy of MAZDA MOTORS CORP.

Shift solenoid C control

TCM terminal: 2V (+)-2U (-)
Oscilloscope setting: 5 V/DIV (Y) 10 ms/DIV (X)
Measuring condition: P, N position, Idle

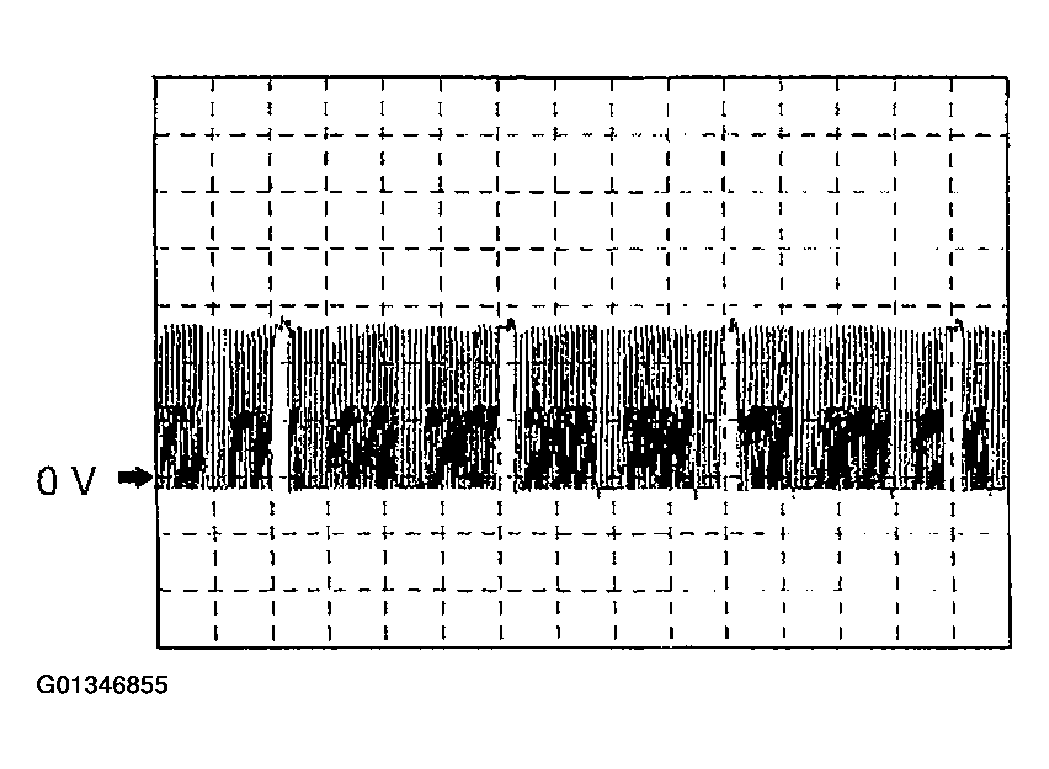

Fig 5: Inspecting Shift Solenoid C Control Using Oscilloscope (Reference)
Courtesy of MAZDA MOTORS CORP.

TCC solenoid control (TCC on)

TCM terminal: 2W (+)-2M (-)
Oscilloscope setting: 5 V/DIV (Y) 5 ms/DIV (X)
Measuring condition: D range, TCC on (60 km/h {37 mph} or more)

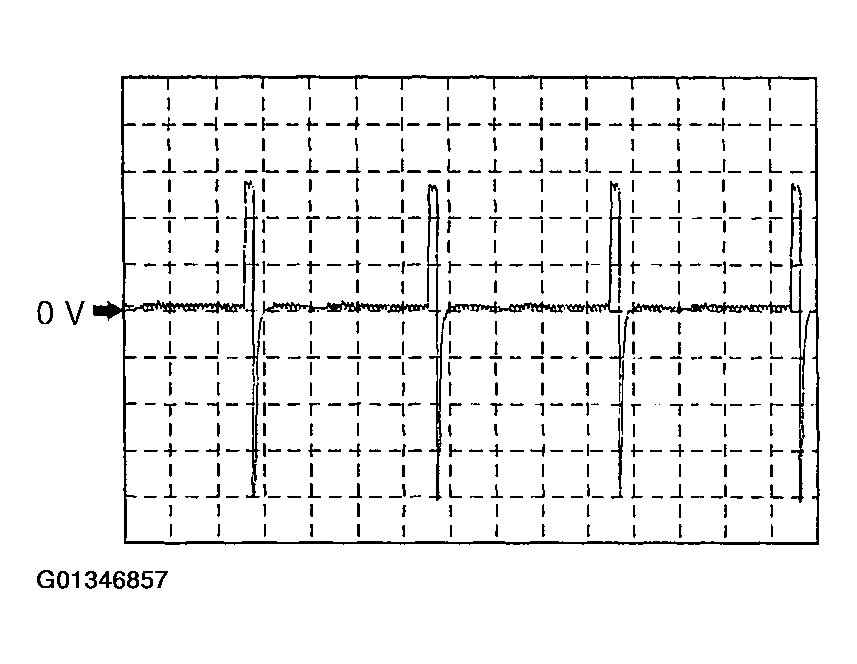

Fig 6: Inspecting TCC Solenoid Control (TCC On) Using Oscilloscope (Reference)
Courtesy of MAZDA MOTORS CORP.

TCC solenoid control (TCC off)

TCM terminal: 2W (+)-2M (-)
Oscilloscope setting: 5 V/DIV (Y) 5 ms/DIV (X)
Measuring condition: P, N position, Idle

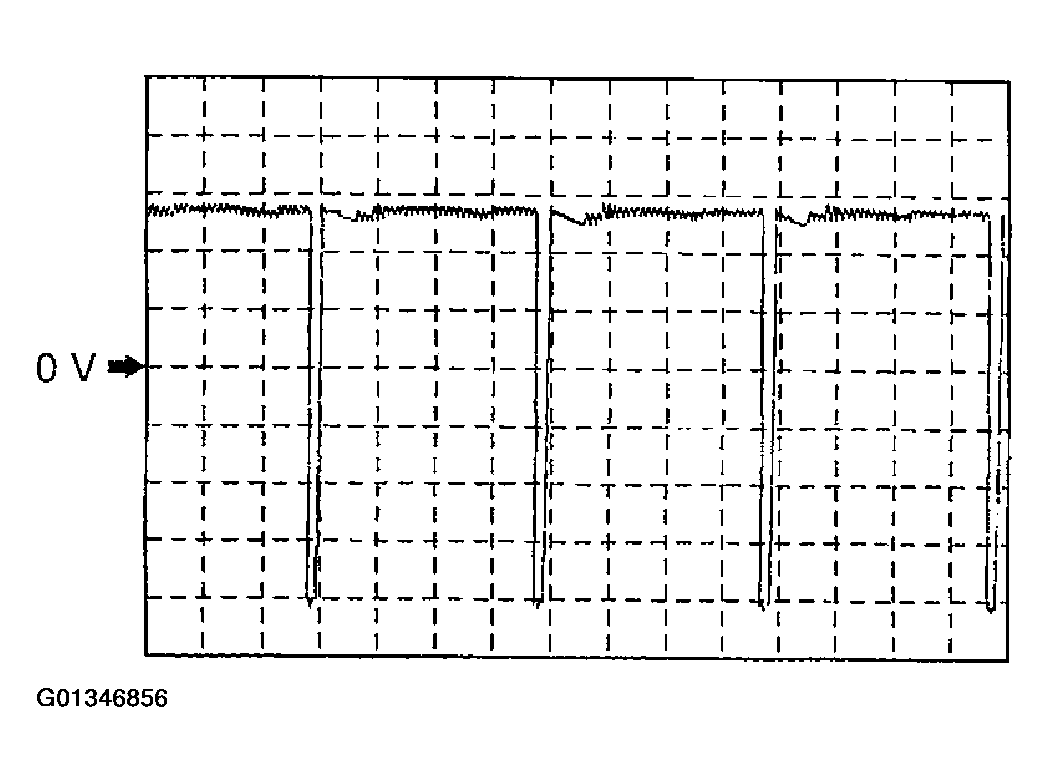

Fig 7: Inspecting TCC Solenoid Control (TCC Off) Using Oscilloscope (Reference)
Courtesy of MAZDA MOTORS CORP.

Shift solenoid A control

TCM terminal: 2Y (+)-2U (-)
Oscilloscope setting: 5 V/DIV (Y) 10 ms/DIV (X)
Measuring condition: D range, 4GR

Fig 8: Inspecting Shift Solenoid A Control Using Oscilloscope (Reference)
Courtesy of MAZDA MOTORS CORP.

TCM REMOVAL/INSTALLATION

Remove the engine cover.
(See ENGINE COVER REMOVAL/INSTALLATION .)
Remove the battery cover.
Disconnect the negative battery cable.
Remove in the order indicated. See Fig 9.
Install in the reverse order of removal.

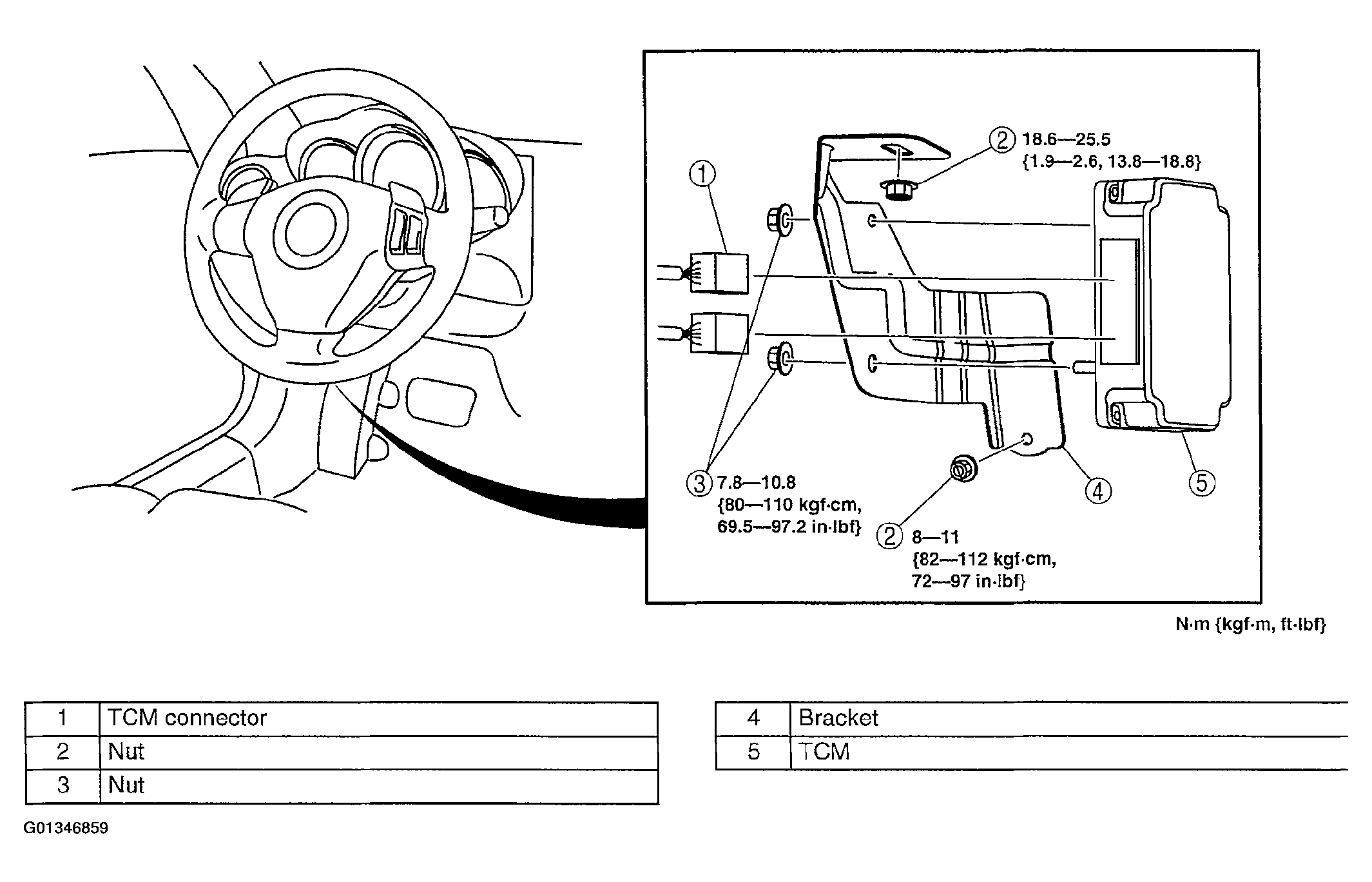

Fig 9: Removing/Installing TCM
Courtesy of MAZDA MOTORS CORP.
