D Range Test
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Perform road test preparation. (See ROAD TEST PREPARATION .)
- Shift the selector lever to the D range.
- Accelerate with the throttle half and then wide open.

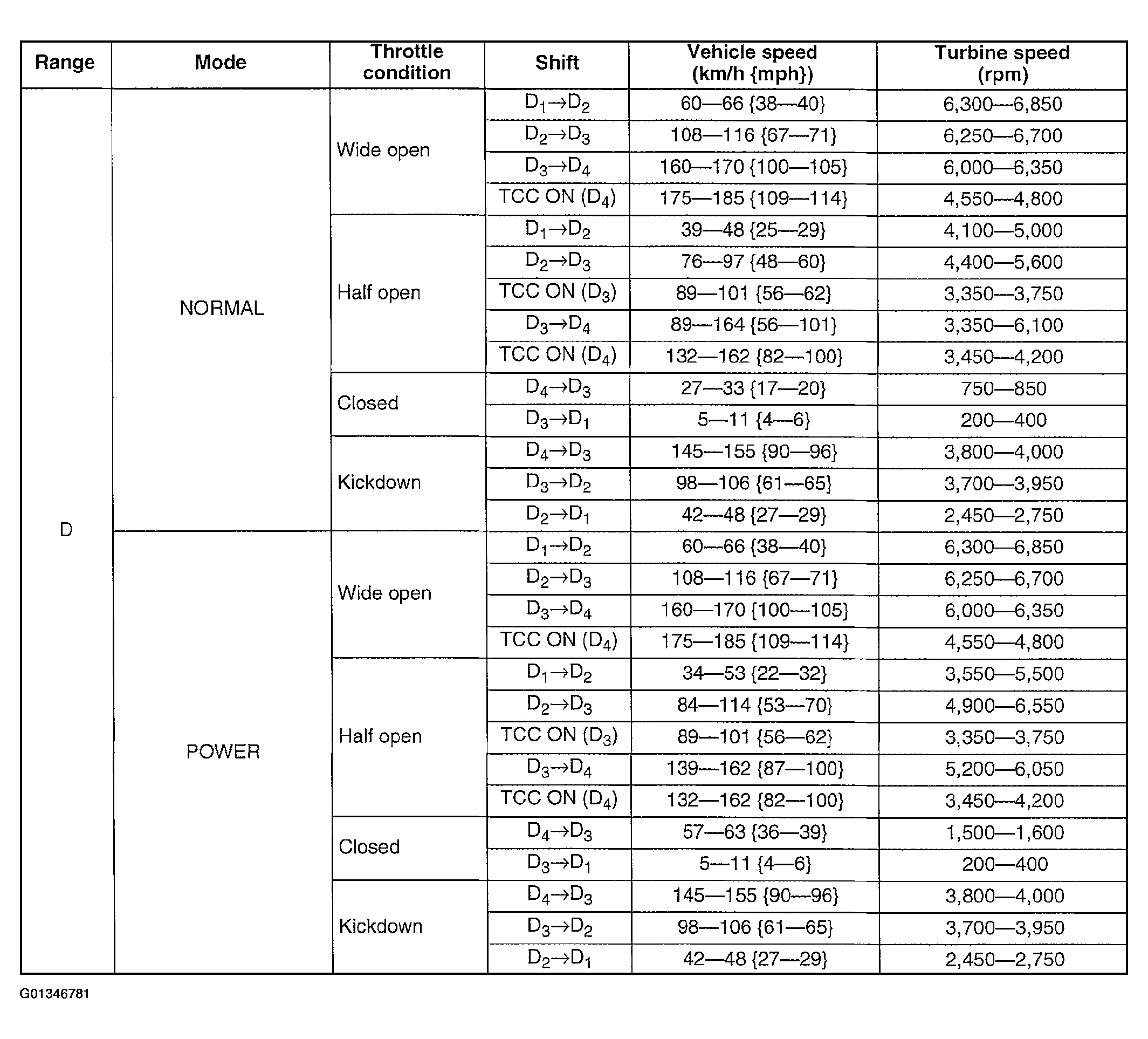

- Verify that 1-->2, 2-->3, and 3-->4 upshifts can be obtained. The shift points must be as shown. See Fig 1.
- If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE .)
- Drive the vehicle in 4GR, 3GR, and 2GR and verify that kickdown occurs for 4-->3, 3-->2, 2-->1 downshifts, and that the shift points are as shown in the figure below. See Fig 1.
- If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE .)
- Decelerate the vehicle and verify that engine braking effect is felt in 2GR, 3GR, and 4GR.
- If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE .)
- Drive the vehicle and verify that TCC operation is obtained. The operation points must be as shown in the figure below. See Fig 1.
- If there is any malfunction, inspect the TCM and AT. (See SYMPTOM TROUBLESHOOTING ITEM TABLE .)
