Symptom Troubleshooting Item Table

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Use the charts below to verify the symptoms of the trouble in order to diagnose the appropriate area.

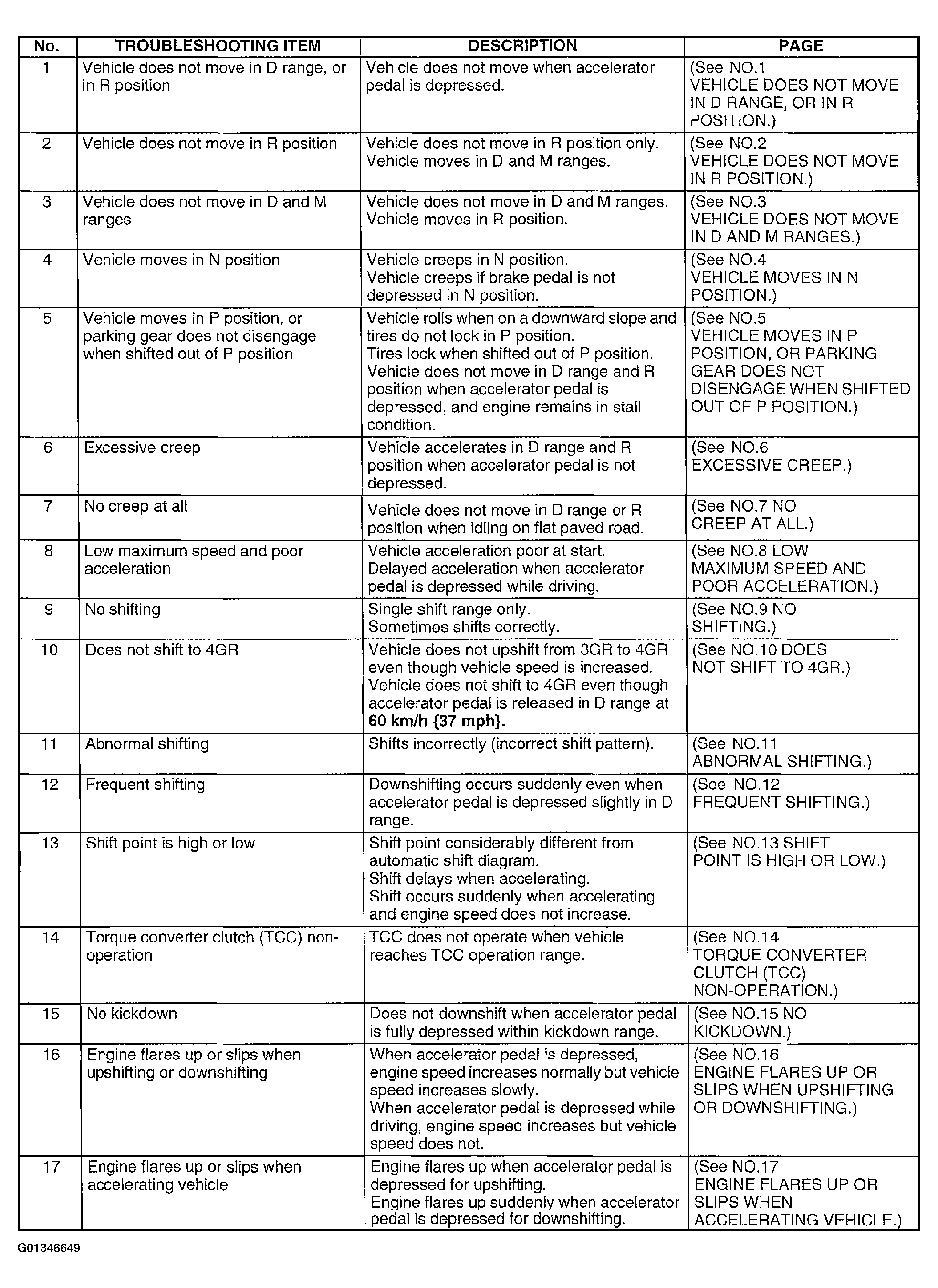

Fig 1: Symptom Troubleshooting Items (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

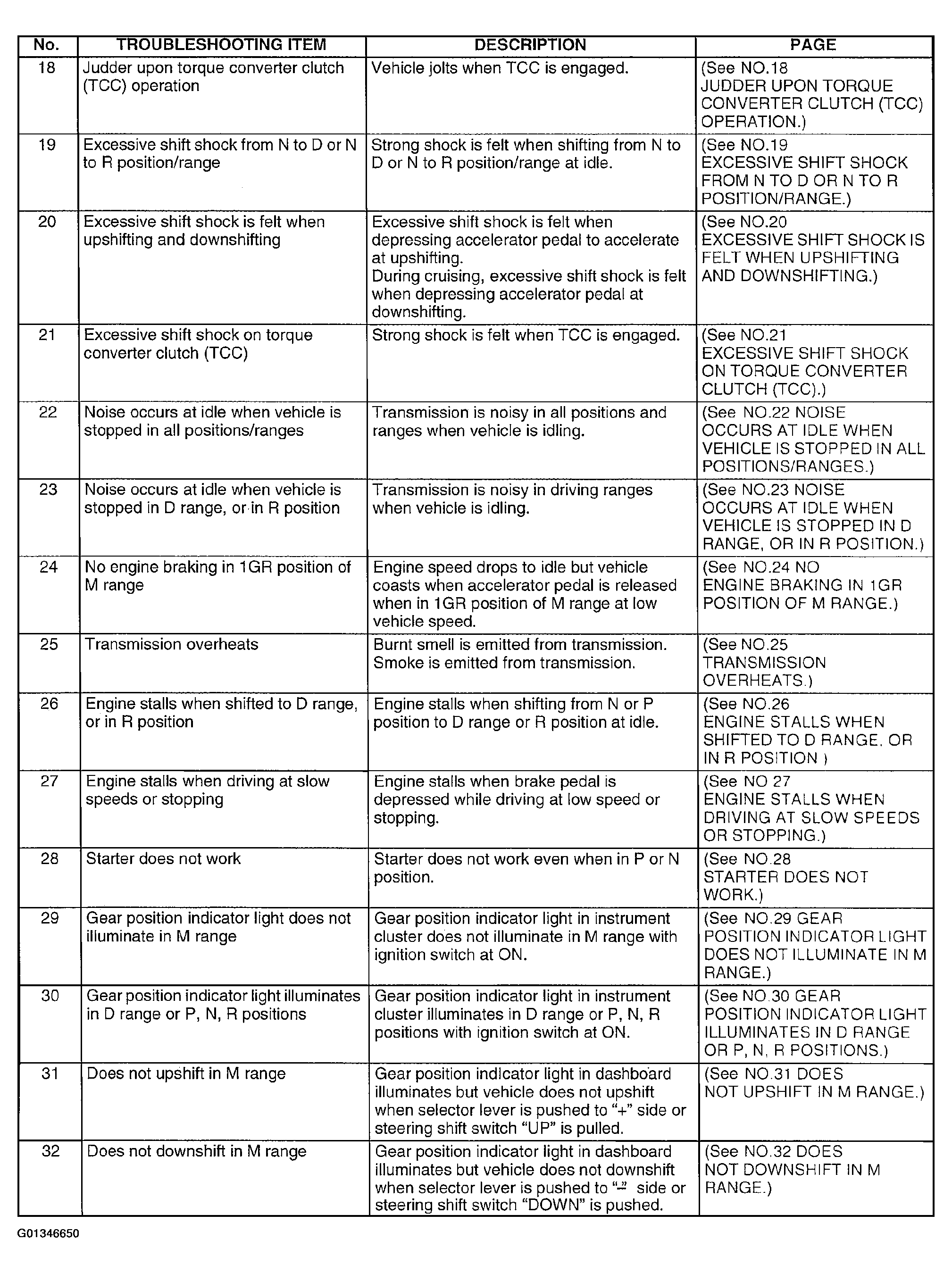

Fig 2: Symptom Troubleshooting Items (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
