Inspection of Continuity

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the TR switch connector.

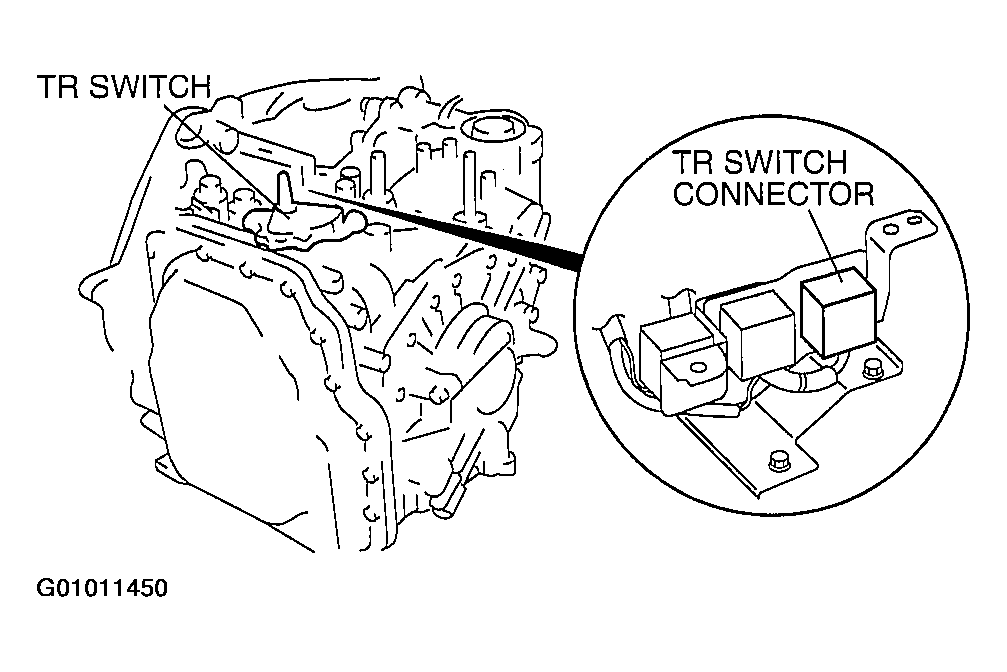

Fig 1: Locating TR Switch And Identifying Its Connectors
Courtesy of MAZDA MOTORS CORP.
Inspect for continuity at the TR switch.
- If not as specified, adjust the TR switch, then reinspect the TR switch. (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT .)
Fig 2: TR Switch Continuity Check
Courtesy of MAZDA MOTORS CORP.

Fig 3: Identifying TR Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
Connect the TR switch connector.
