Transaxle Range (Tr) Switch Adjustment

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
  1. Disconnect the TR switch connector.
  2. Remove the clip and disconnect the selector cable.
    NOTE:
    • Do not reuse the clip when any of the hooks are deformed.

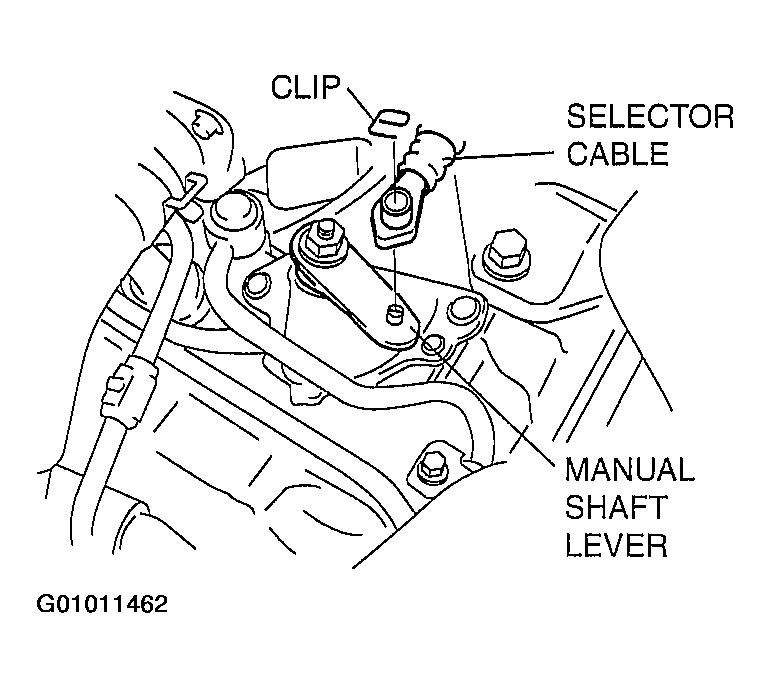

    Fig 1: Disconnecting Selector Cable
    G01011462Courtesy of MAZDA MOTORS CORP.
  3. Remove the selector cable and clips together from the bracket as shown in Fig 2.
    Fig 2: Removing Selector Cable And Clips Together From Bracket
    G01011463Courtesy of MAZDA MOTORS CORP.
  4. Rotate the manual shaft to the right fully, then return 2 notches to set the N position.
    Fig 3: Setting Manual Shaft To N Position
    G01011464Courtesy of MAZDA MOTORS CORP.
  5. Loosen the TR switch mounting bolts.
    CAUTION:
    • Improper adjustment of the TR switch will cause abnormal operation of the automatic transaxle. Be sure to use the SST to adjust the TR switch correctly.
  6. Using the SST  and by turning the TR switch, adjust the positions of the manual shaft and the TR switch neutral hole.
  7. Tighten the TR switch mounting bolts.

    Tightening torque

    4.9-6.9 N.m

    (50-70 kgf.cm, 44-61 in.lb)

    Fig 4: Adjusting Positions Of Manual Shaft And TR Switch Neutral Hole
    G01011465Courtesy of MAZDA MOTORS CORP.
  8. Remove the SST.
  9. Inspect for continuity at the TR switch. (See INSPECTION OF CONTINUITY .)
  10. Connect the TR switch connector.
  11. Connect the selector cable and install a clip and clip.
  12. Inspect operation of the TR switch. (See INSPECTION OF OPERATION .)
