Transaxle Fluid Temperature (TFT) Sensor Inspection

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the terminal component No. 2 connector.
Remove the oil dipstick.

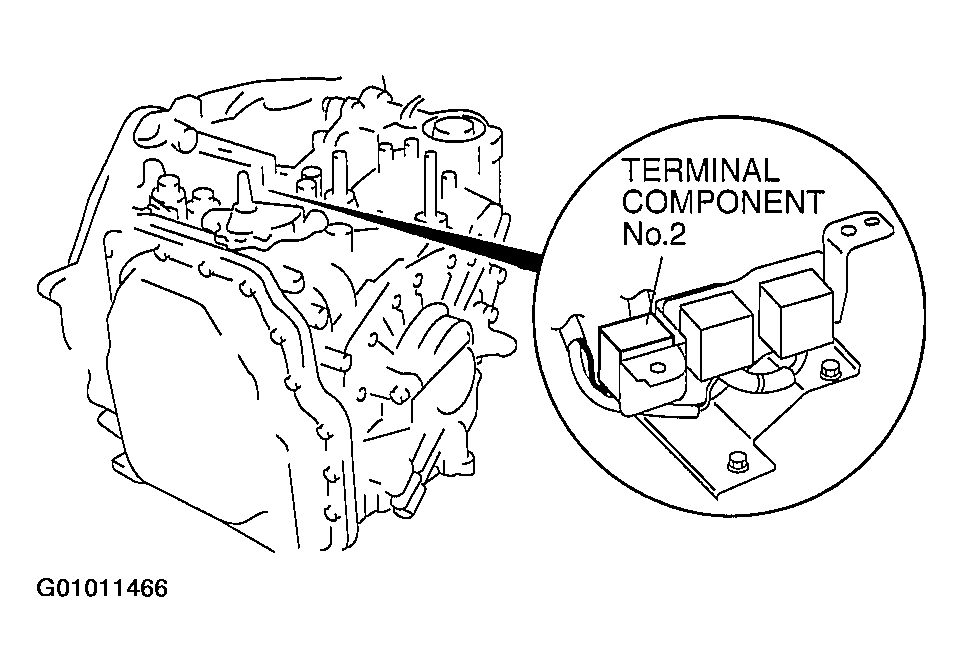

Fig 1: Locating Terminal Component No. 2 Connector
Courtesy of MAZDA MOTORS CORP.
Insert the thermometer probe into the filler tube.
Start the engine.

Fig 2: Identifying Thermometer Probe
Courtesy of MAZDA MOTORS CORP.
Measure resistance between terminals G and F.
- If not as specified, replace the TFT sensor. See DISASSEMBLY COMPONENTS .
Fig 3: Identifying Terminals G And F
Courtesy of MAZDA MOTORS CORP.

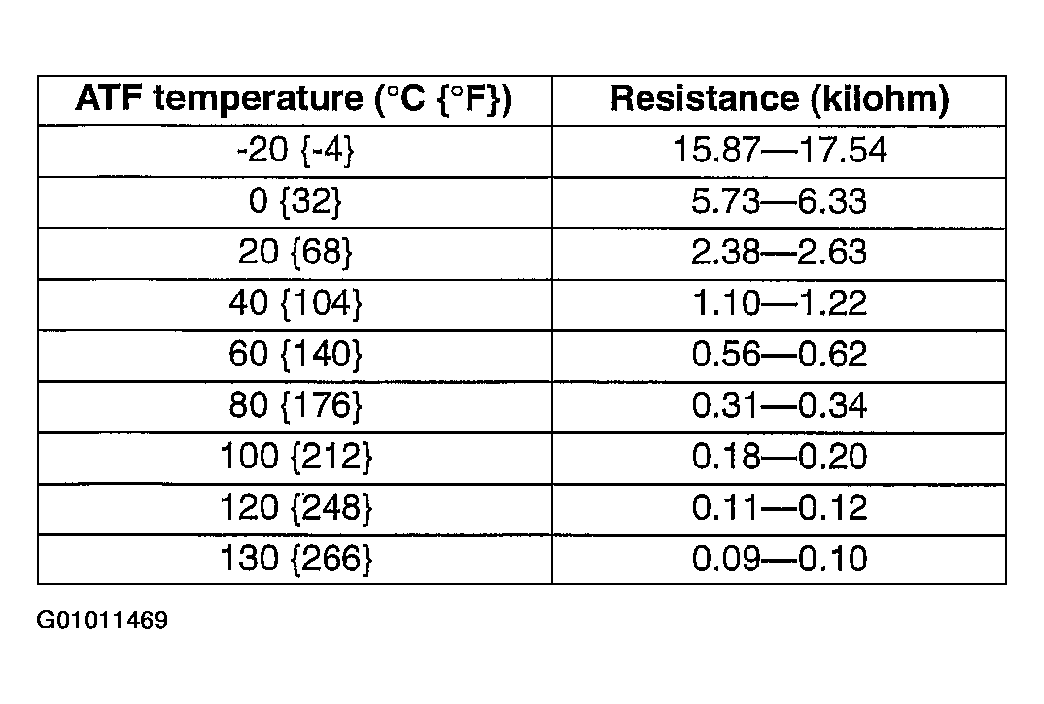

Fig 4: TFT Sensor Temperature/Resistance Specification
Courtesy of MAZDA MOTORS CORP.

Fig 5: TFT Sensor Temperature/Resistance Characteristic
Courtesy of MAZDA MOTORS CORP.
Connect the terminal component No.2 connector.
Clear the DTC.
(See AFTER REPAIR PROCEDURE [JA5A-EL]
