On-Vehicle Inspection

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the terminal component No. 2 connector.

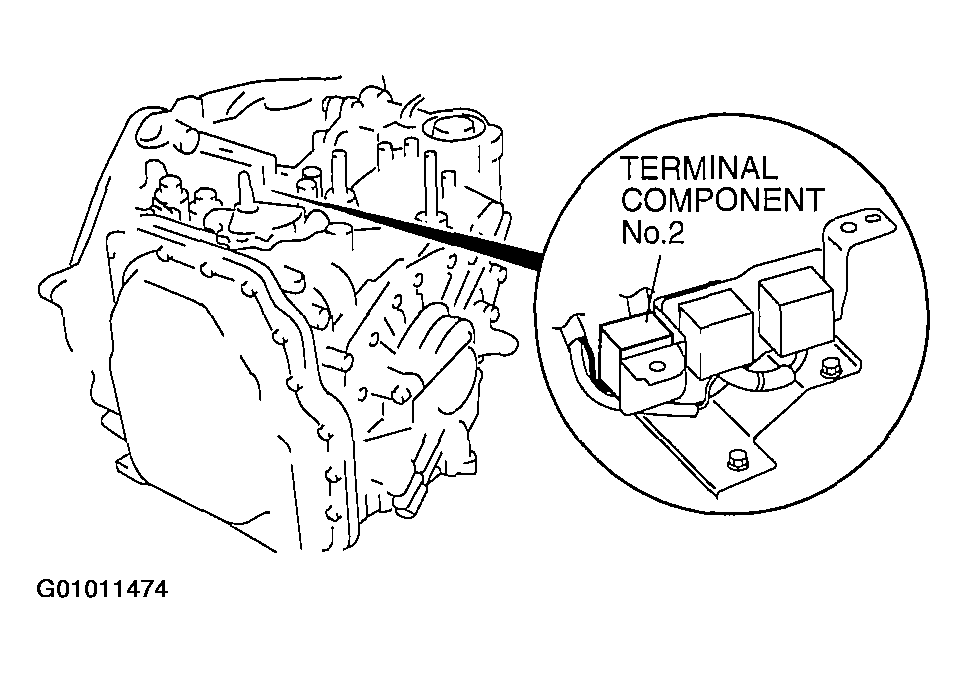

Fig 1: Disconnecting Terminal Component No. 2 Connector
Courtesy of MAZDA MOTORS CORP.
Measure resistance between terminals C and D.
- If not as specified, inspect individual part. (See INSPECTION OF INDIVIDUAL PART .)
Resistance (ATF temperature: 20°C (68°F))

513-627 ohms

Fig 2: Identifying Connector Terminal C And D
Courtesy of MAZDA MOTORS CORP.
Connect the terminal component No. 2 connector.
