On-Vehicle Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the manual valve so that it protrudes from the control valve body end by 3.0 mm (0.12 in).
  2. Install the control valve body while holding the manual valve in the position.

    Tightening torque

    6.9-8.8 N.m

    (71-89 kgf.cm, 62-77 in.lb)

  3. Connect the solenoid connectors, then install harness clips.
  4. Apply a light coat of silicon sealant to the contact surfaces of the control valve body cover and transaxle case.
  5. Install the control valve body cover.

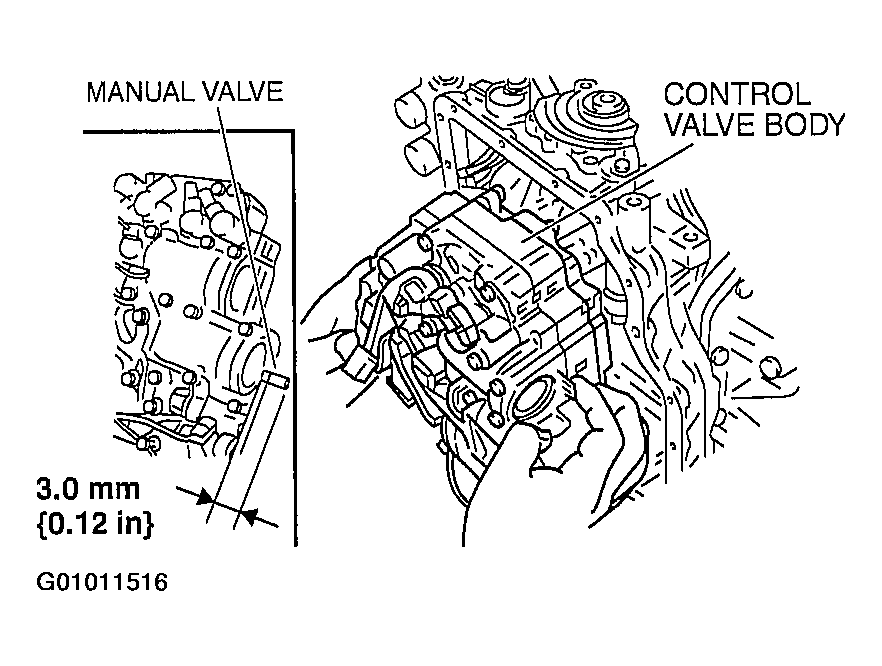

    Fig 1: Installing Control Valve Body
    G01011516Courtesy of MAZDA MOTORS CORP.

    Tightening torque

    6.9-8.8 N.m

    (71-89 kgf.cm, 62-77 in.lb)

  6. Install the heater hose of engine side.
  7. Install the heater pipe bracket.
  8. Install the oil pipe bracket.
  9. Install the oil hose. (See OIL COOLER REMOVAL/INSTALLATION .)

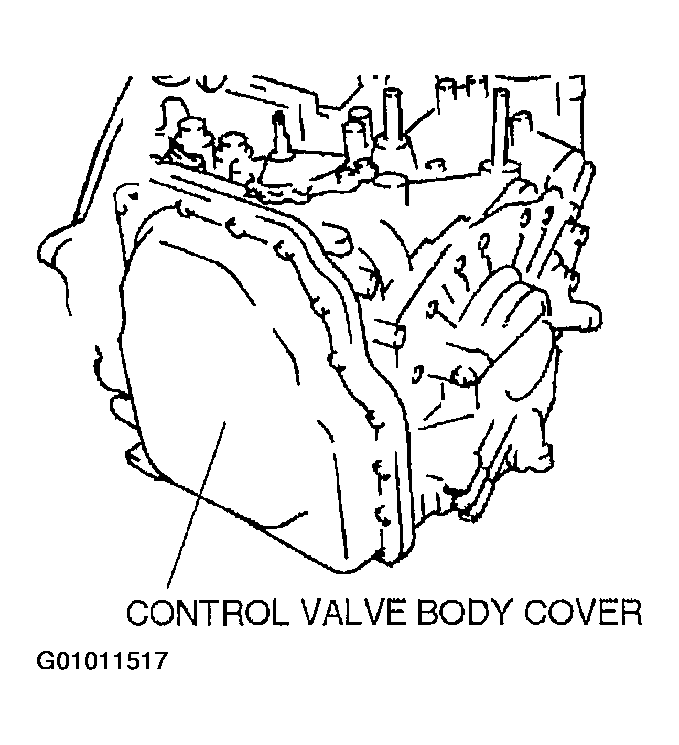

    Fig 2: Locating Control Valve Body Cover
    G01011517Courtesy of MAZDA MOTORS CORP.
  10. Install the thermostat case.
  11. Install the air cleaner component and air cleaner bracket. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  12. Install the battery tray and battery.
  13. Connect the negative battery cable.
  14. Fill the transaxle with the specified ATF (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  15. Inspect for leakage of ATF from the oil pan or the oil hose connecting points.
  16. Carry out the mechanical system test. (See MECHANICAL SYSTEM TEST .)
  17. Carry out the road test. (See ROAD TEST .)
