Automatic Transaxle Fluid (ATF) Replacement
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until they are cool before changing the ATF.
- Remove the oil dipstick.

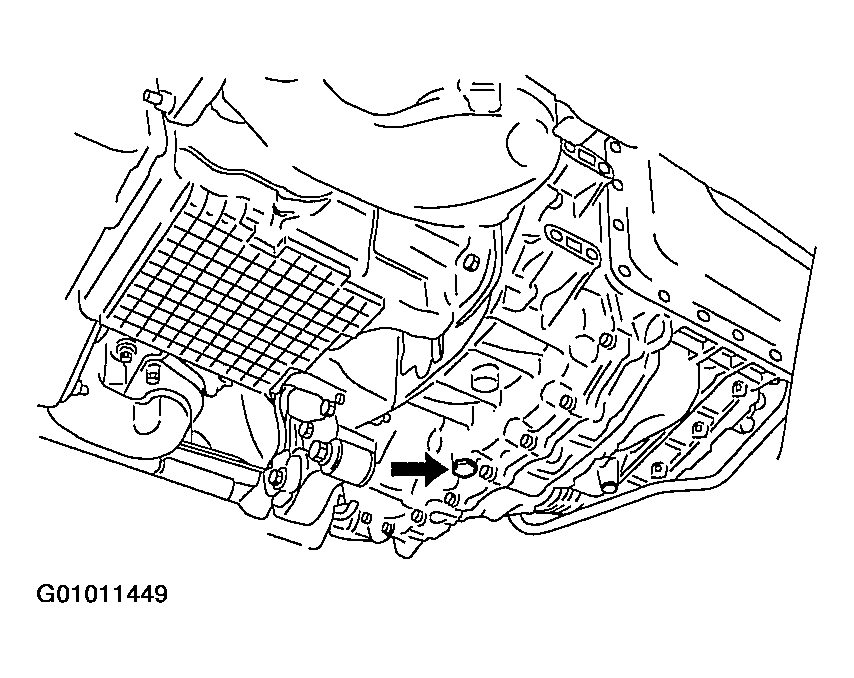

- Remove the oil drain plug and washer.
- Drain the ATF into a container.
- Install a new washer and drain plug.
Tightening torque
39-54 N.m (3.9-5.6 kgf.m, 29-40 ft.lb)
- Add the specified type of ATF through the oil filler tube, until ATF level reaches lower notch of dipstick.
ATF type
ATF M-V
Capacity (Approximate quantity)
9.2 L (9.7 US qt, 8.1 Imp qt)
- Verify that the ATF level is in the HOT (65°C (149°F))
range.
- Add ATF to the specified level as necessary.
