Front Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the plug hole plate.

    (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)

  3. Remove the spark plugs. (See SPARK PLUG REMOVAL/INSTALLATION .)
  4. Remove the cylinder head cover. (See Cylinder Head Cover Installation Note .)
  5. Remove the drive belt. (See DRIVE BELT REPLACEMENT .)
  6. Remove the front drive shaft (RH) from the joint shaft. (See REMOVAL & INSTALLATION .)
  7. Remove the crankshaft position (CKP) sensor.

    (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .)

  8. Remove in the order indicated in the figure.
  9. Install in the reverse order of removal.

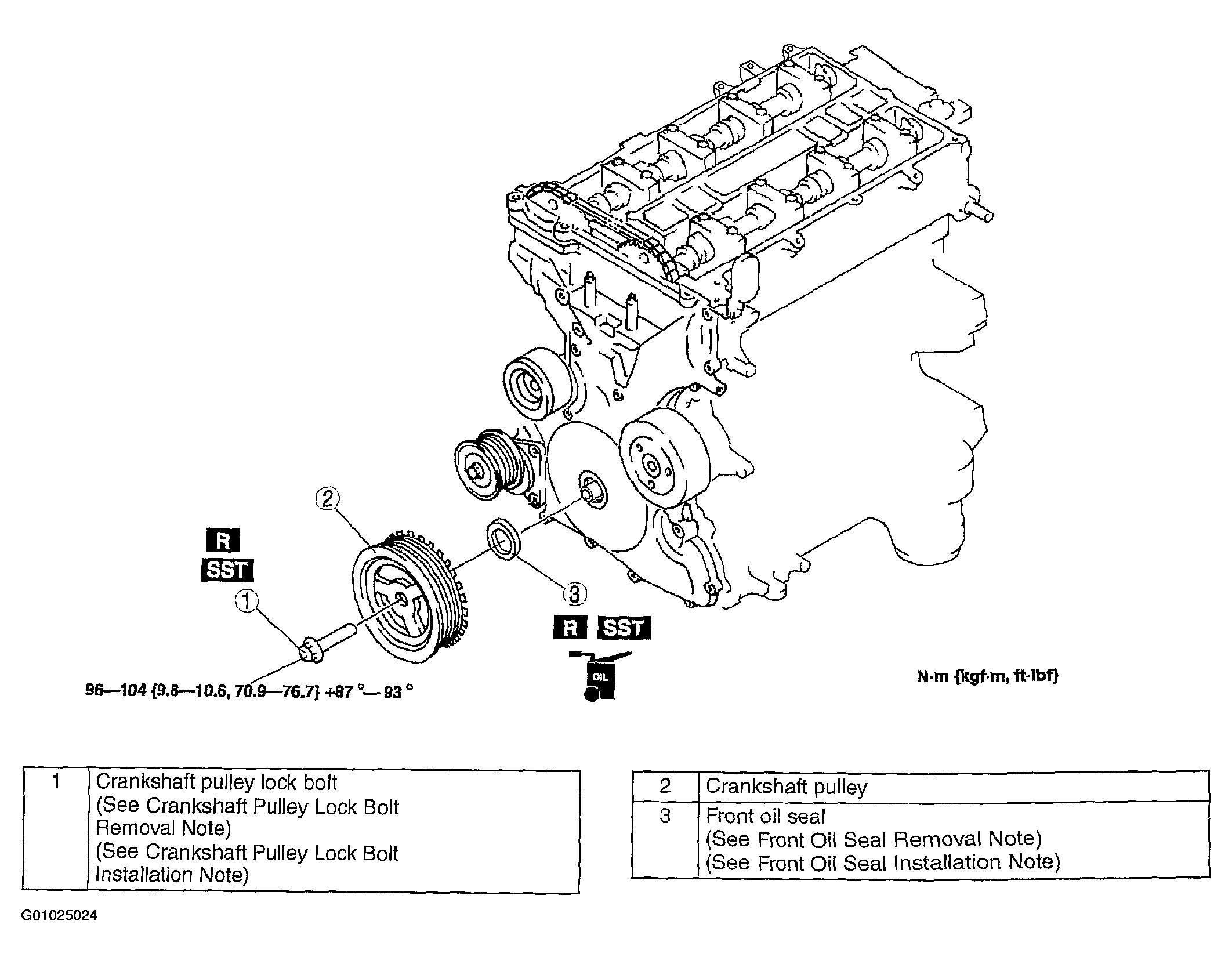

Fig 1: Replacing Front Oil Seal
G01025024Courtesy of MAZDA MOTORS CORP.
