Cylinder Head Cover Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Apply silicone sealant to the mating faces as shown in the figure.
CAUTION:
- Install the cylinder head cover within 10 min of applying the silicone sealant.
Thickness

4.0-6.0 mm {0.16-0.23 in}

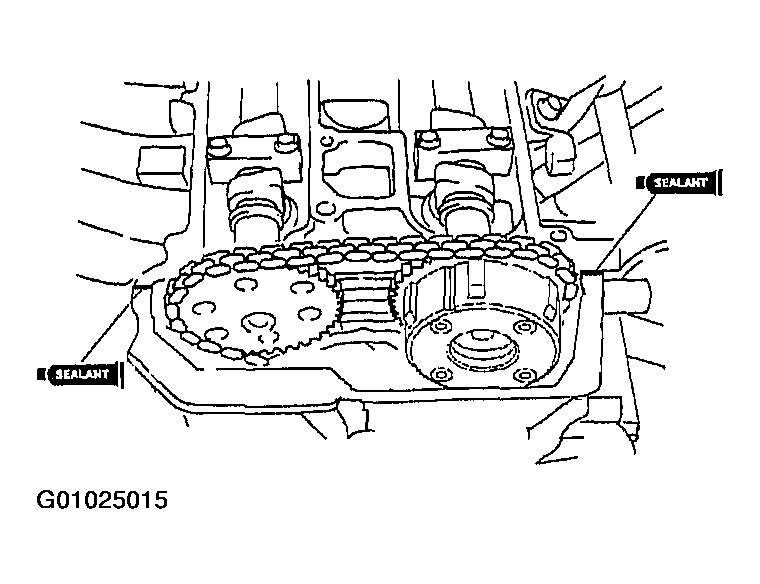

Fig 1: Applying Silicone Sealant To Cylinder Head Cover Mating Faces
Courtesy of MAZDA MOTORS CORP.
Install the cylinder head cover with a new gasket.
Tighten the bolts in the order shown in the figure.
Tightening torque

8.0-11.5 N.m {81.6-117.2 kgf.cm, 70.9-101.7 in.lbf}

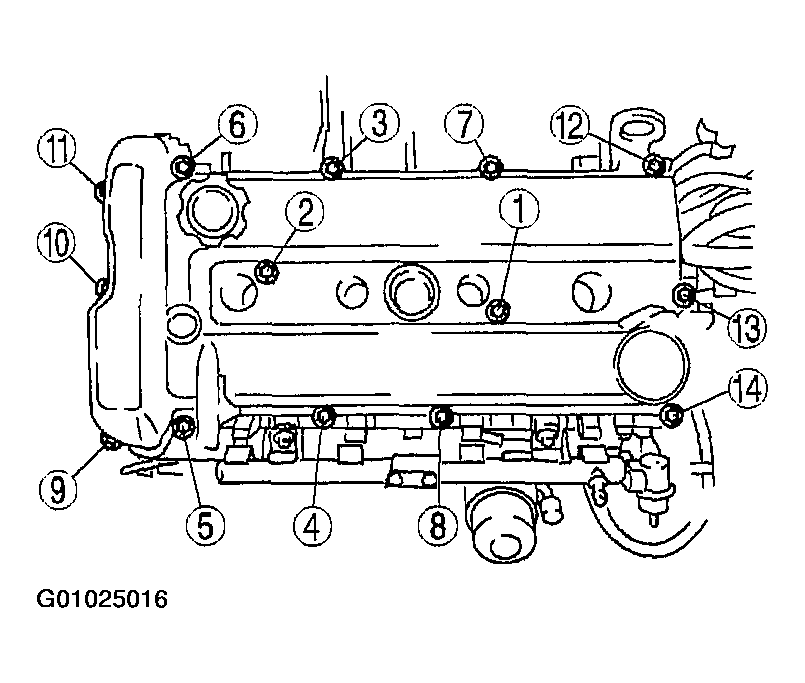

Fig 2: Tightening Sequence Of Cylinder Head Cover Bolts

Courtesy of MAZDA MOTORS CORP.
