Floor Covering Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front seat. See FRONT SEAT REMOVAL/INSTALLATION.
  3. Remove the rear seat cushion.
  4. Remove the dashboard. See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
  5. Remove the B-pillar lower trim. See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION  .
  6. Remove the selector cable and the interlock cable if equipped with ATX. See SHIFT MECHANISM REMOVAL/INSTALLATION .
  7. Remove the SAS control module bracket.
  8. Remove the set plate. See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .
  9. Remove the audio amplifier.
  10. Remove the fasteners.
  11. Disengage the side hooks to remove the floor covering.

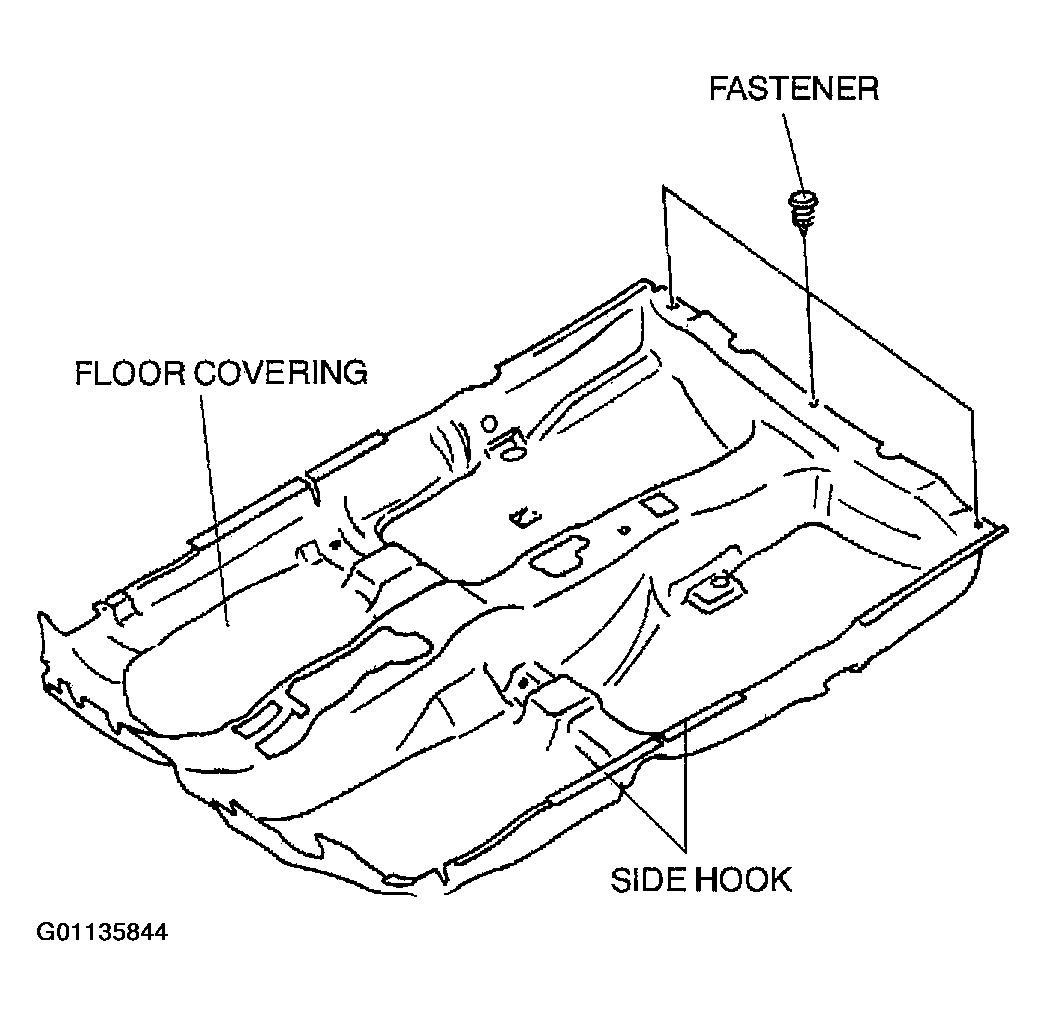

    Fig 1: Removing/Installing Floor Covering
    G01135844Courtesy of MAZDA MOTORS CORP.
  12. Install in the reverse order of removal.
