Shift Mechanism Removal/Installation
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the three way catalytic converter.

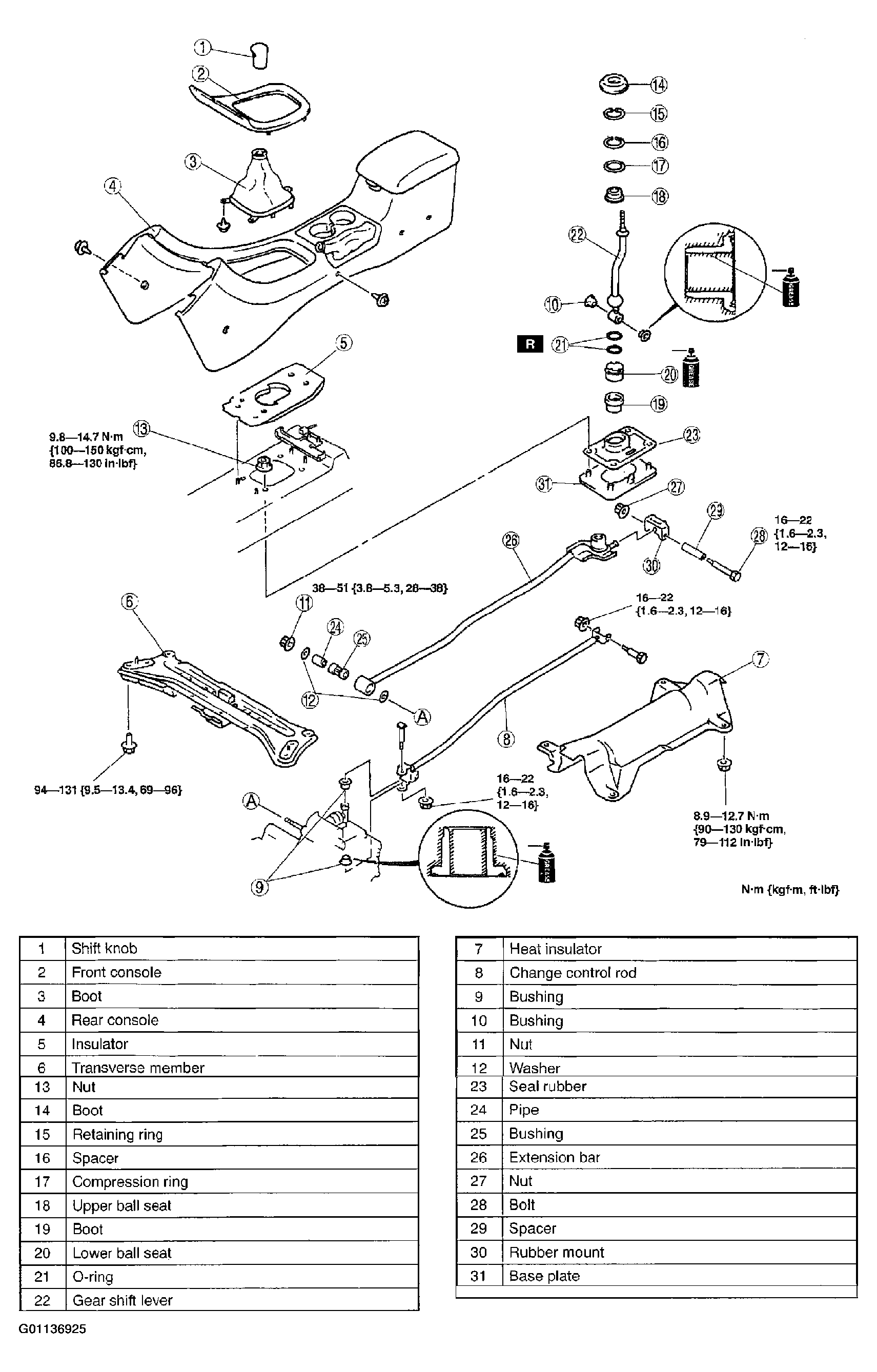

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, verify that the gear shift lever operates smoothly when the clutch pedal is depressed.
Courtesy of MAZDA MOTORS CORP.
