B-Pillar Upper Trim Removal/Installation
WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the upper anchor of the front seat belt. See FRONT SEAT BELT REMOVAL/INSTALLATION .
- Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .
- Turn the seaming welt over.

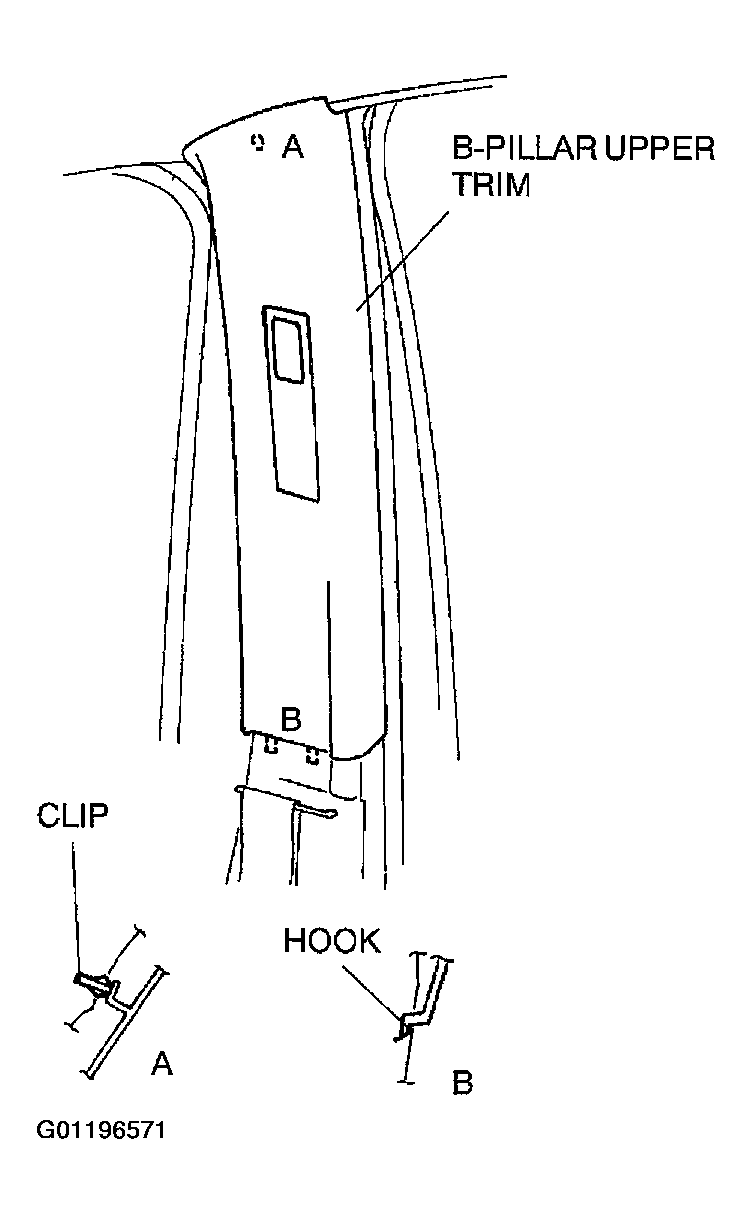

- Disengage clip A using a fastener remover.
- Pull the B-pillar upper trim upward, then disengage hooks B from the body, and remove the B-pillar upper trim.
- Install in the reverse order of removal.
