Lower Cylinder Block Disassembly Note

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before removing the lower cylinder block, inspect the crankshaft end play. (See CRANKSHAFT END PLAY INSPECTION .)
  2. Remove the lower cylinder block bolts in the order indicated in the figure in several passes.

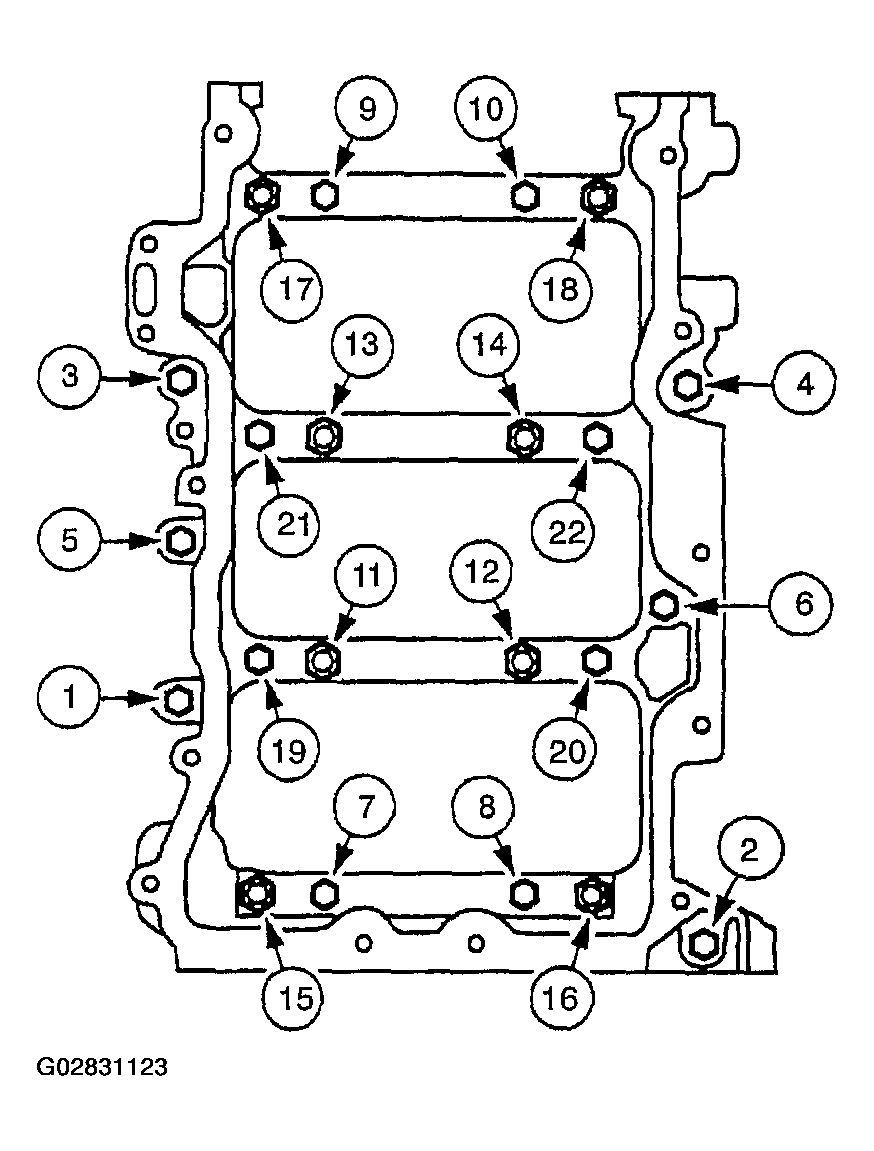

    Fig 1: Lower Cylinder Block Bolt Removal Sequence
    G02831123Courtesy of MAZDA MOTORS CORP.
