Engine Mechanical - 3.0L: Engine: Removal

Remove the battery tray.
Remove the air cleaner outlet tube and air cleaner.
Discharge and recover the refrigerant. For additional information, refer to the following:
- For 2001 models, see MANUAL A/C-HEATER SYSTEMS - TRIBUTE .
- For 2002 models, see MANUAL A/C-HEATER SYSTEMS .
- For 2003 models, see DISCHARGING AND RECOVERY .
Raise and support the vehicle.
Remove the lower radiator air deflectors.
Drain the engine cooling system.
Drain the engine oil.
- Install a new drain plug gasket and tighten the drain plug.

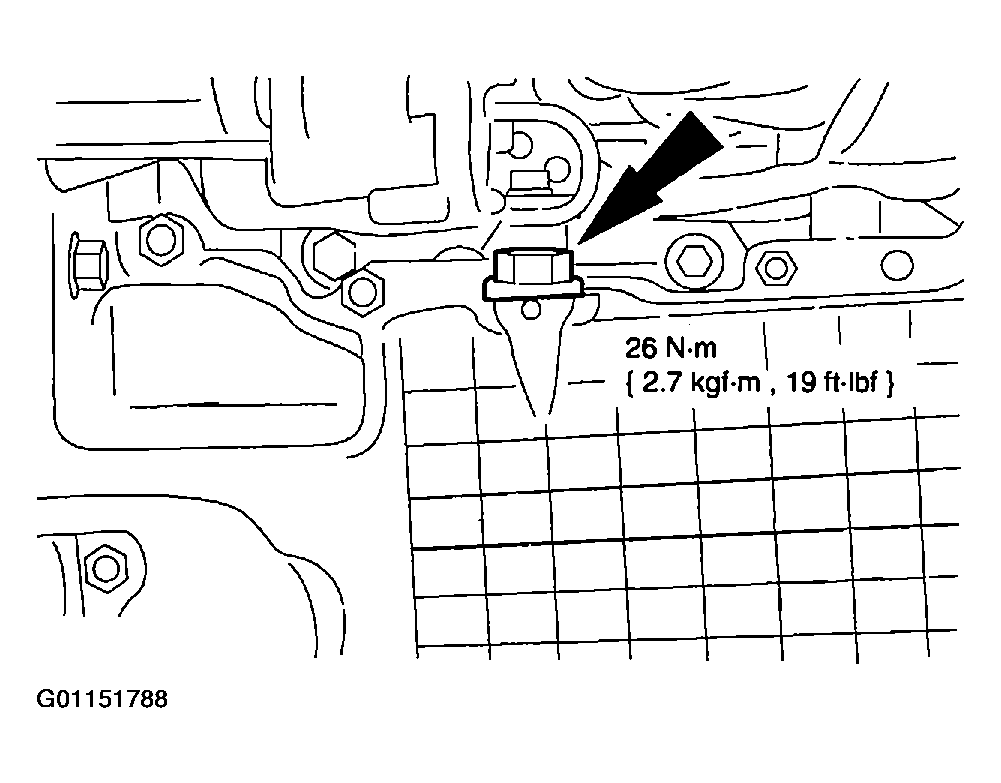

Fig 1: Identifying Drain Plug
Courtesy of MAZDA MOTORS CORP.
Lower the vehicle.
Disconnect the fuel line. Refer to the following:
- For 2001 models, see FUEL SYSTEM PRESSURE RELEASE .
- For 2002 models, see FUEL SYSTEM PRESSURE RELEASE .
- For 2003 models, see FUEL SYSTEM PRESSURE RELEASE .
Remove the water pump drive belt.

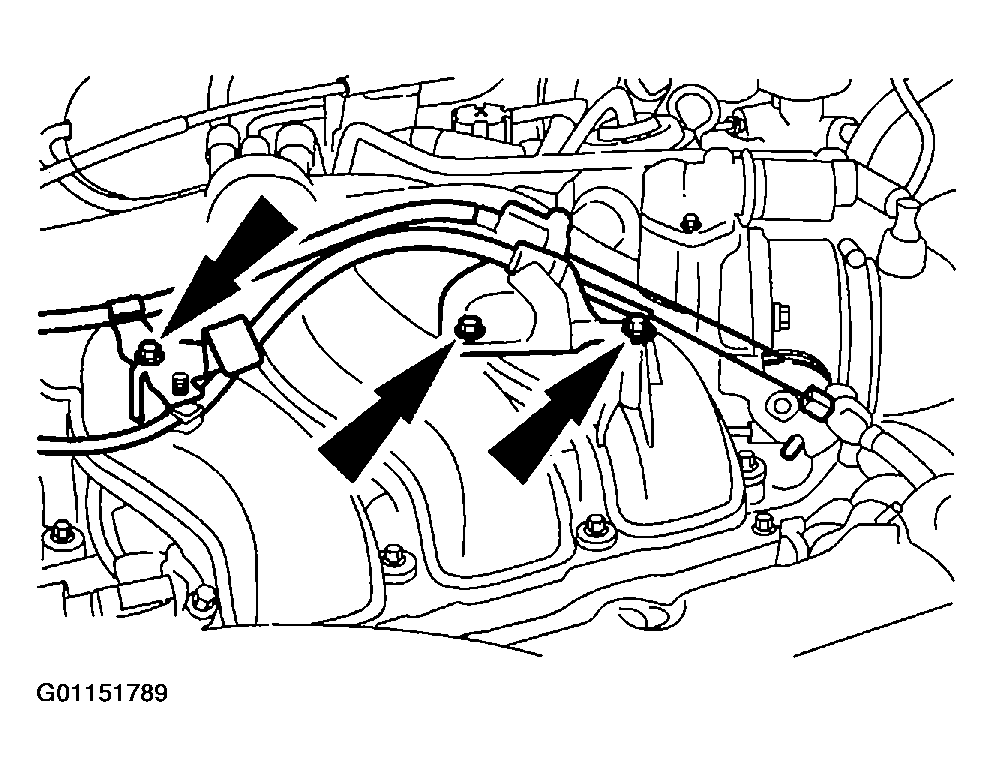

Disconnect the accelerator cable and if equipped cruise control actuator cable.

Fig 2: Disconnecting Accelerator Cable & Cruise Control Actuator Cable
Courtesy of MAZDA MOTORS CORP.

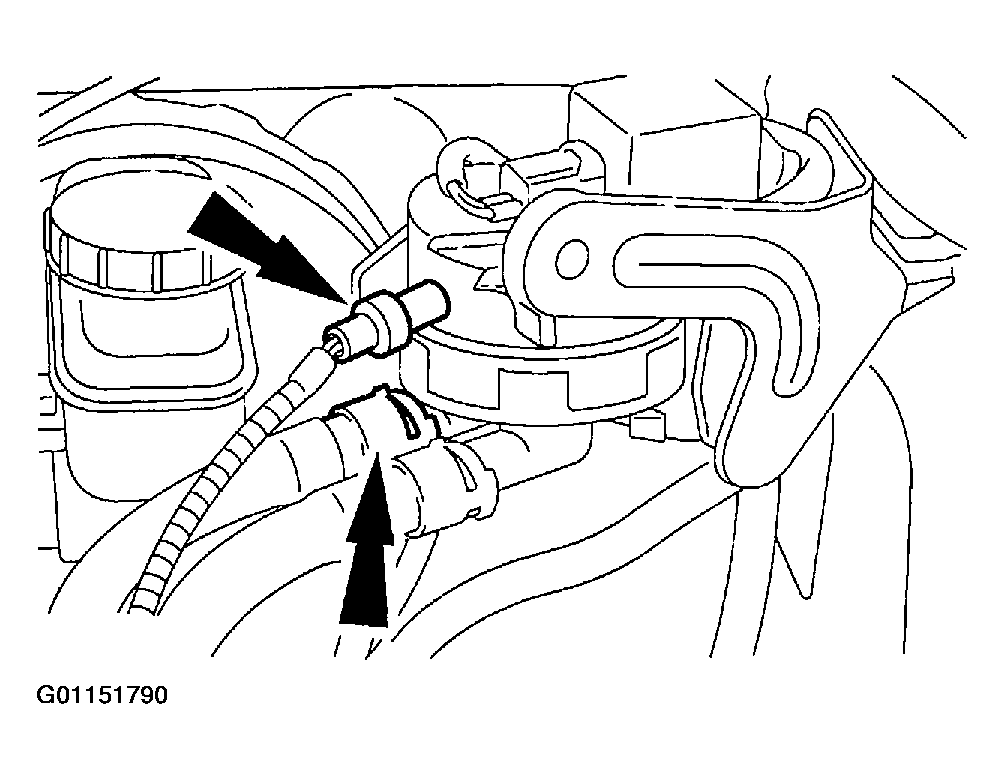

Disconnect the Vapor Management Valve (VMV).

Fig 3: Disconnecting Vapor Management Valve
Courtesy of MAZDA MOTORS CORP.

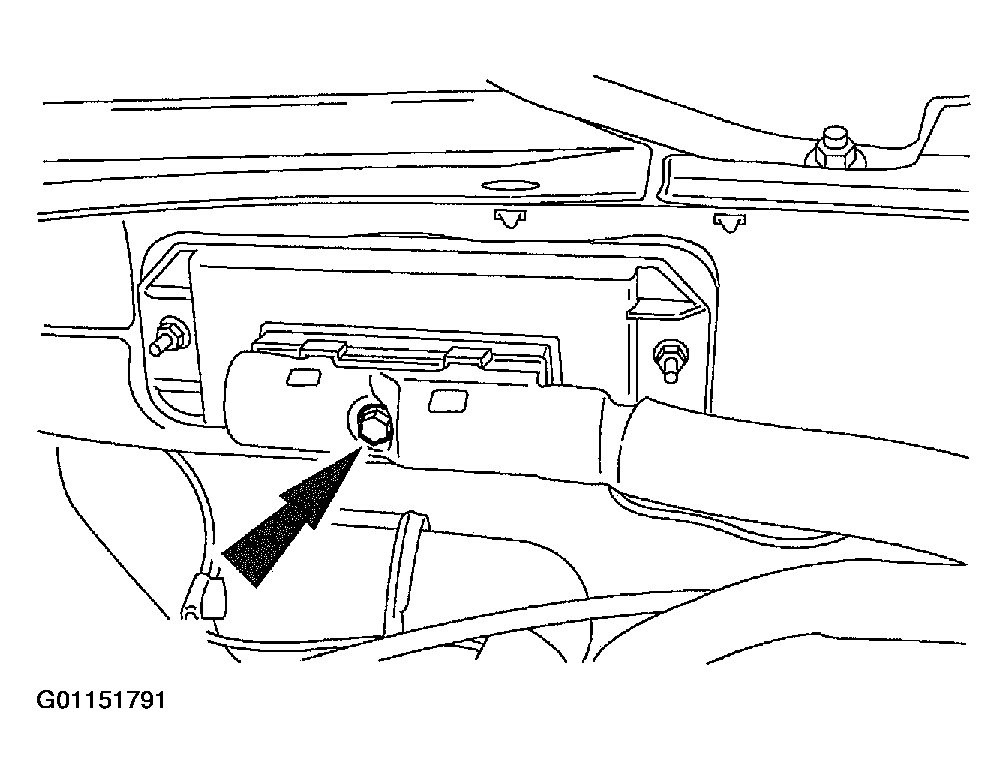

Disconnect the Powertrain Control Module (PCM).

Fig 4: Disconnecting Powertrain Control Module
Courtesy of MAZDA MOTORS CORP.

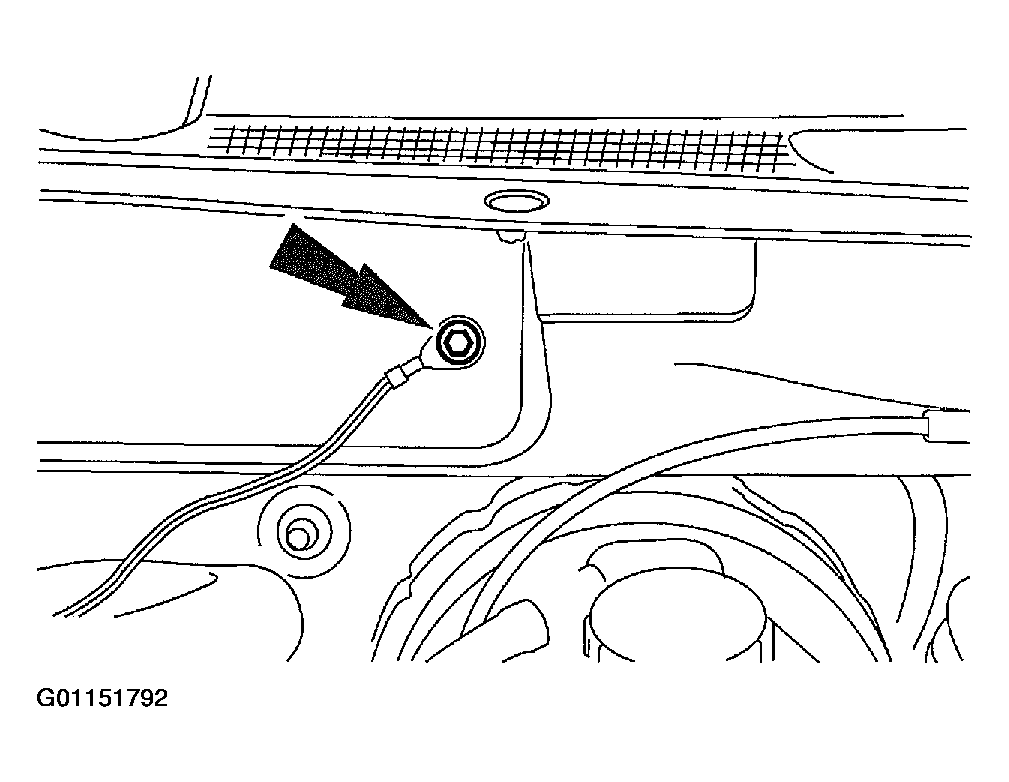

Disconnect the ground wire.

Fig 5: Disconnecting Ground Wire
Courtesy of MAZDA MOTORS CORP.

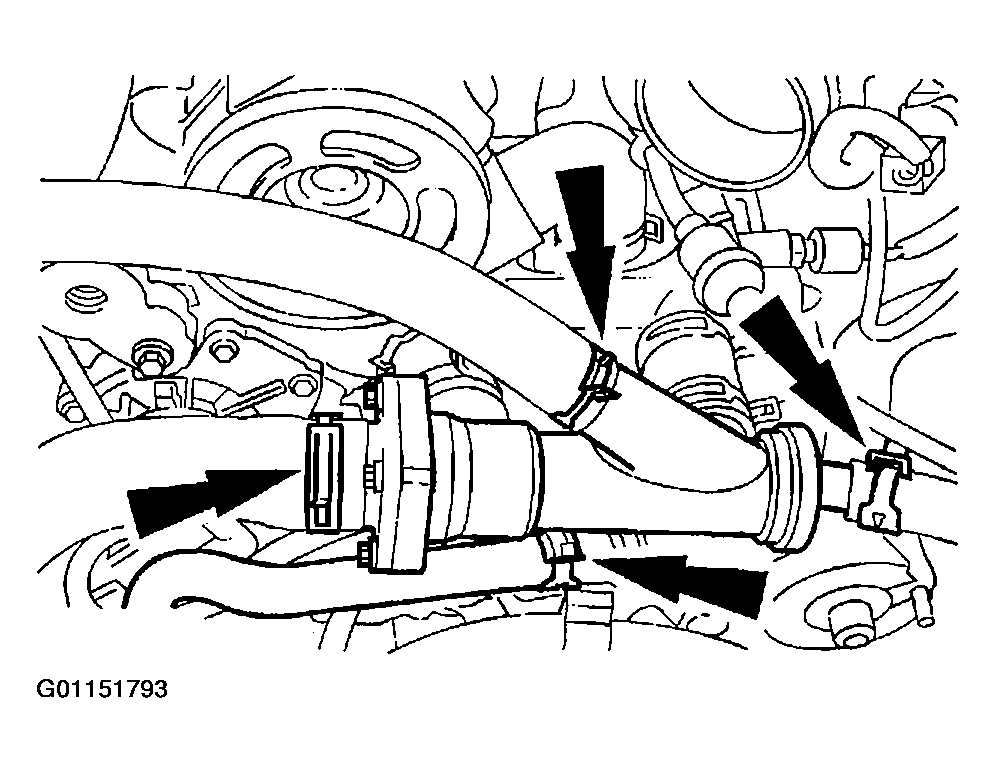

Disconnect the hoses.

Fig 6: Disconnecting Hoses
Courtesy of MAZDA MOTORS CORP.

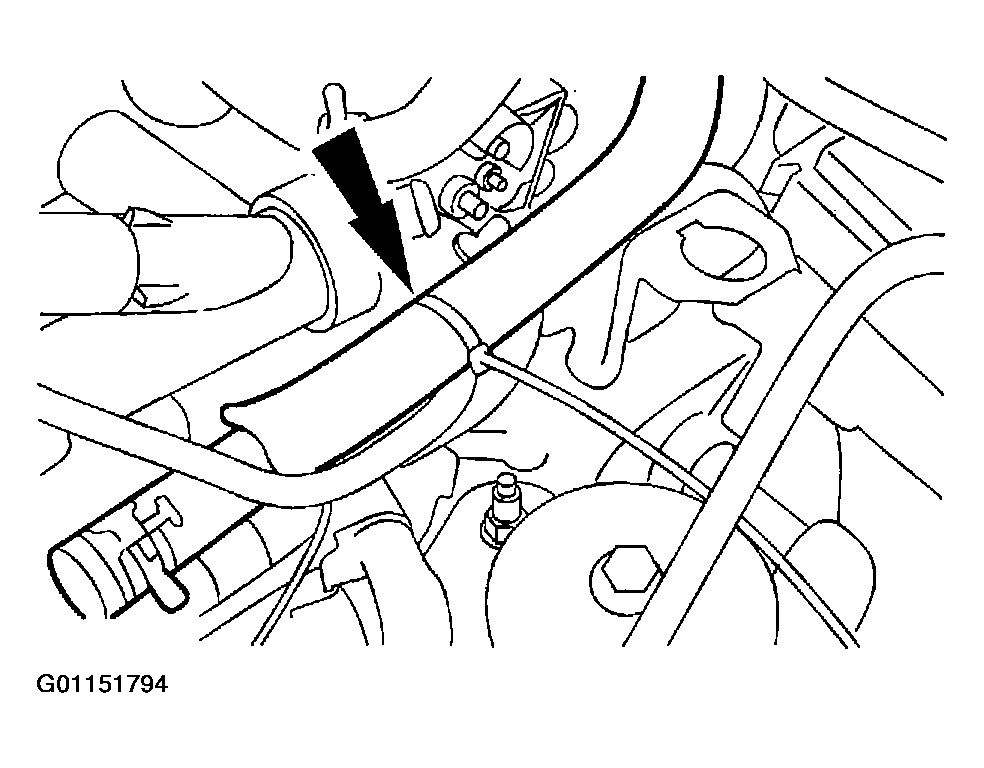

Remove the tie-strap and position the hose out of the way.

Fig 7: Removing Tie-Strap
Courtesy of MAZDA MOTORS CORP.

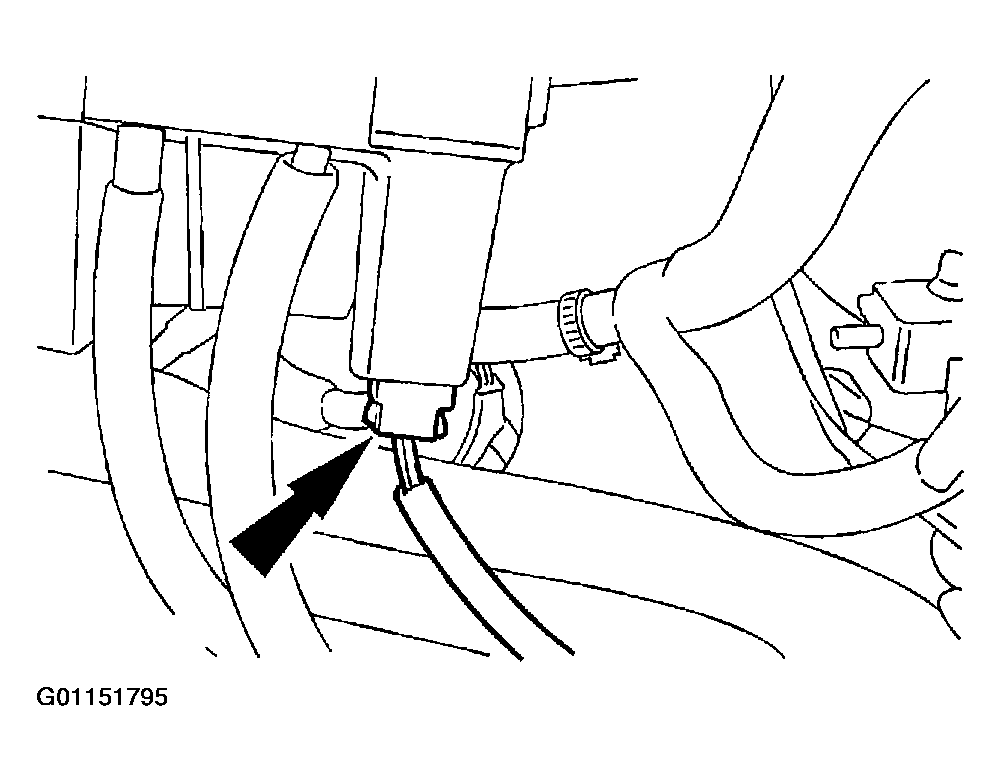

Disconnect the connector from the power distribution box.

Fig 8: Disconnecting Power Distribution Box Connector
Courtesy of MAZDA MOTORS CORP.

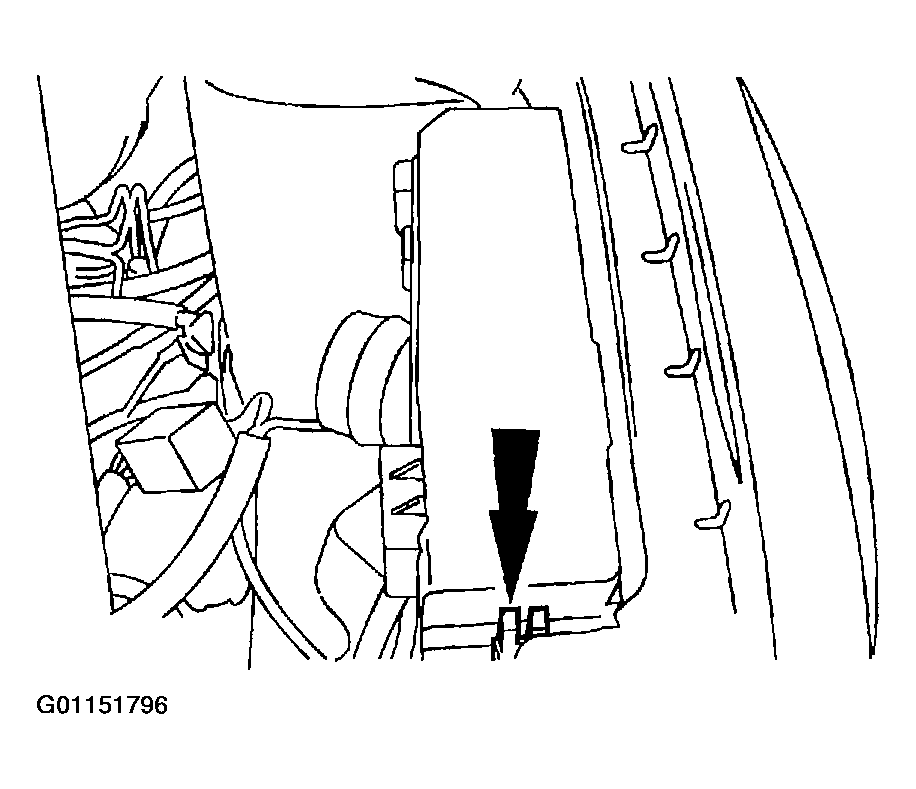

Remove the power distribution box cover.

Fig 9: Removing Power Distribution Box Cover
Courtesy of MAZDA MOTORS CORP.

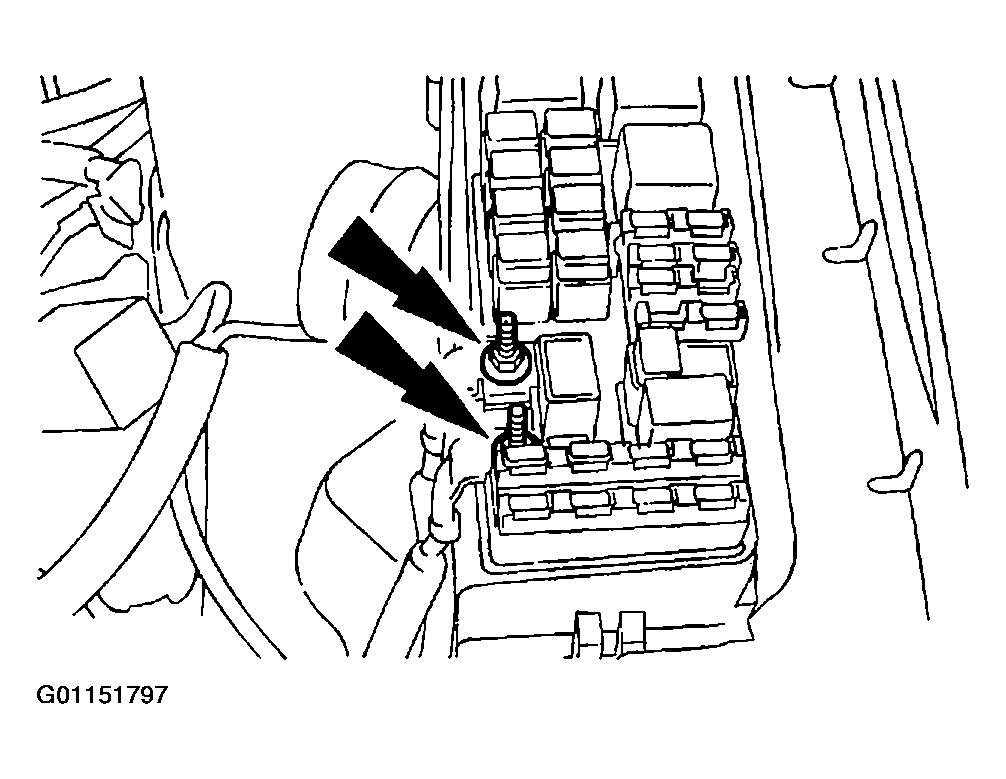

Remove the nuts and the cables.

Fig 10: Removing Power Distribution Box Cables
Courtesy of MAZDA MOTORS CORP.

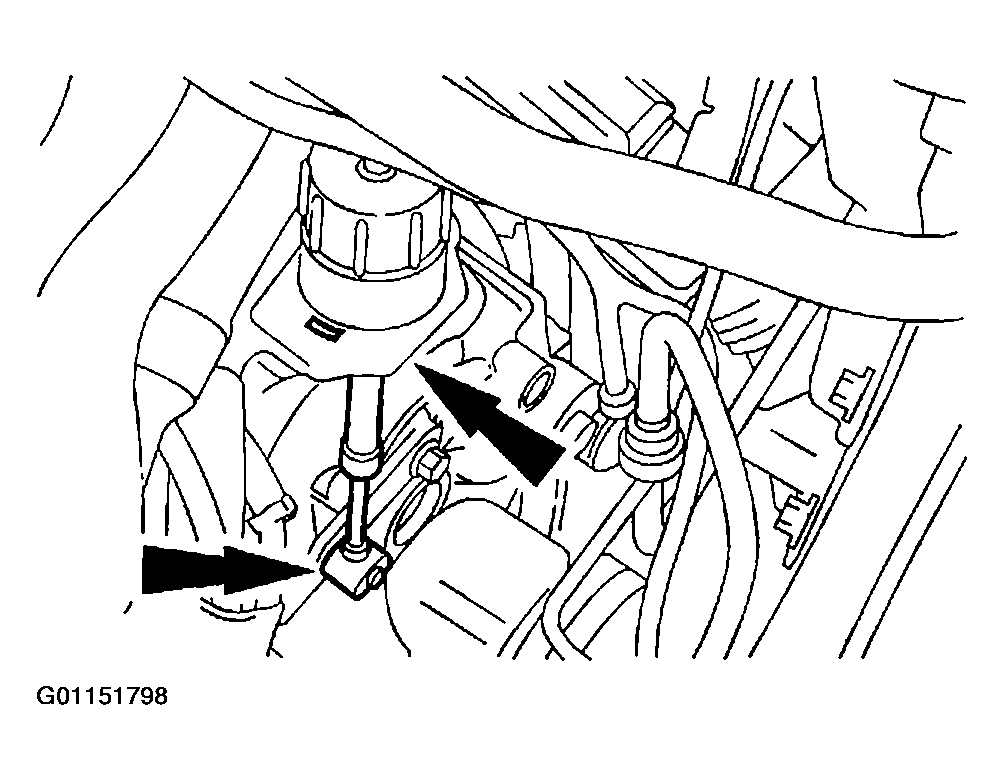

Disconnect the transaxle linkage.

Fig 11: Disconnecting Transaxle Linkage
Courtesy of MAZDA MOTORS CORP.

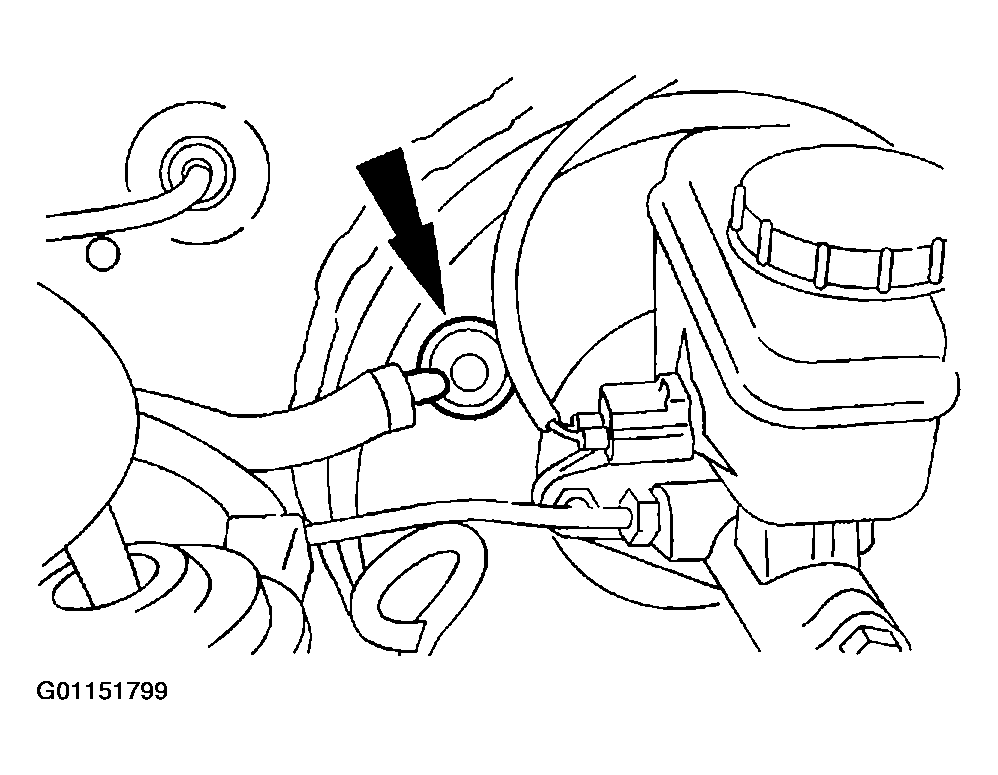

Disconnect the brake booster vacuum hose.

Fig 12: Disconnecting Brake Booster Vacuum Hose
Courtesy of MAZDA MOTORS CORP.

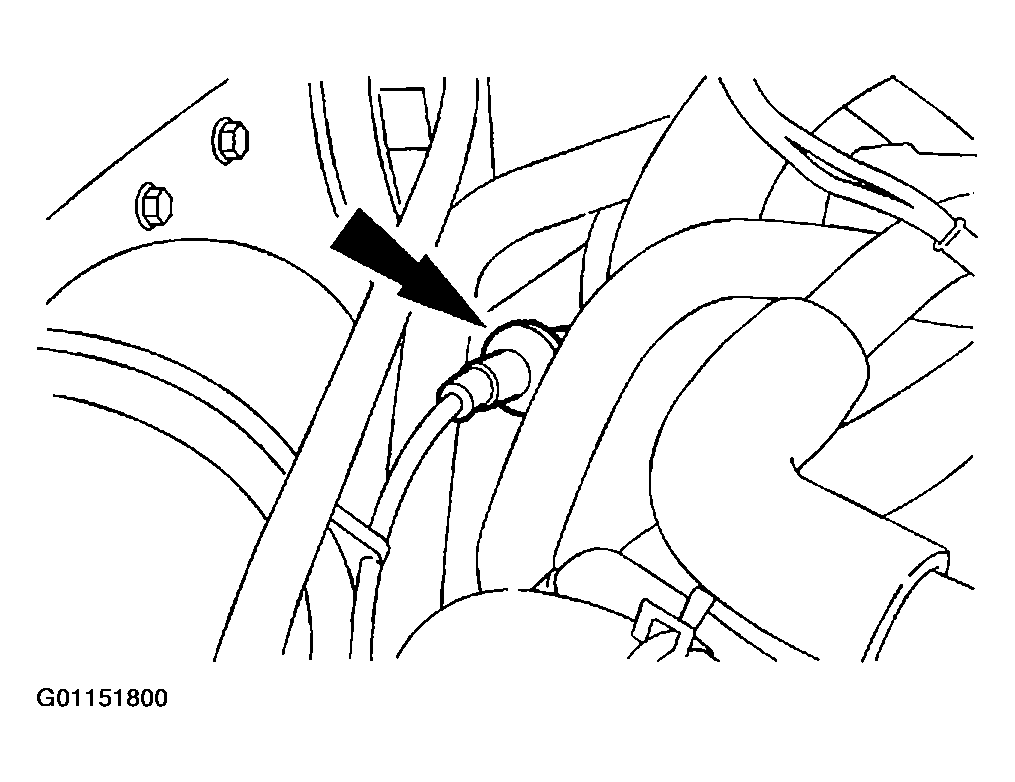

Disconnect the vacuum line.

Fig 13: Disconnecting Vacuum Line
Courtesy of MAZDA MOTORS CORP.

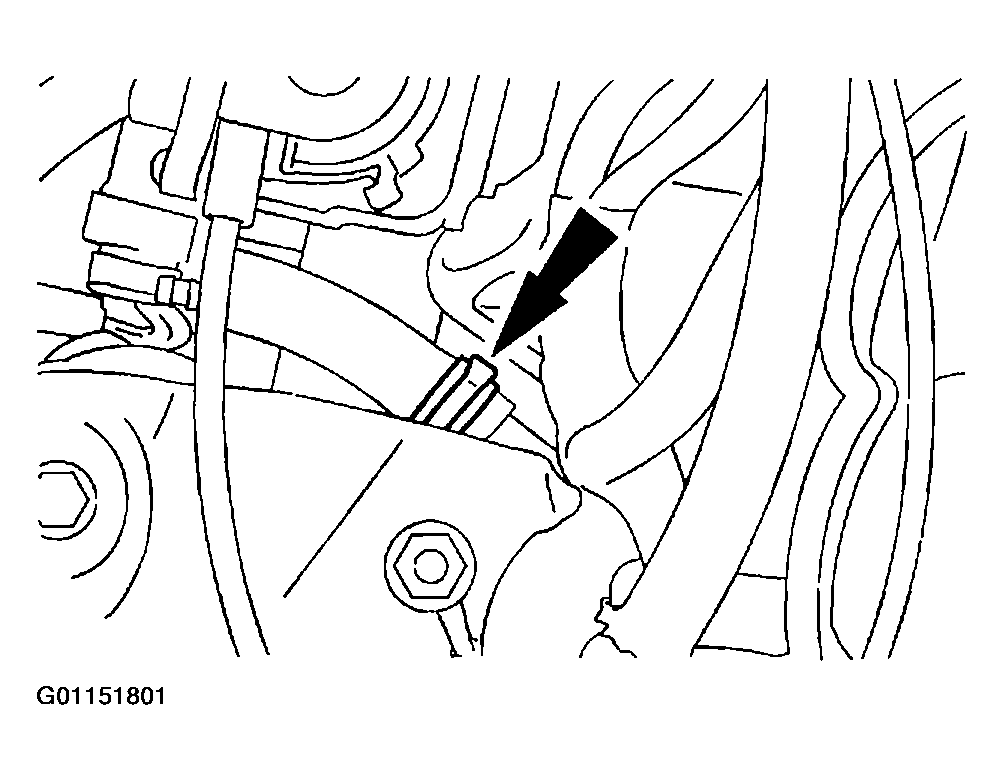

Disconnect the power steering return line.

Fig 14: Disconnecting Power Steering Return Line
Courtesy of MAZDA MOTORS CORP.

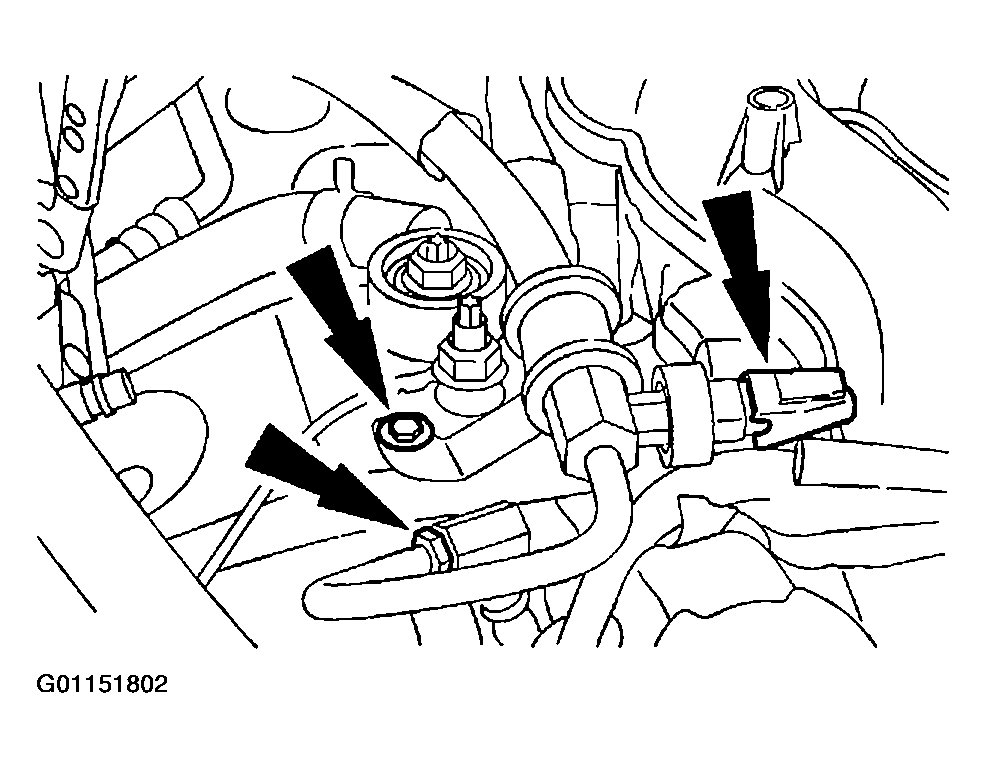

Disconnect the power steering line.
- Disconnect the Power Steering Pressure (PSP) switch electrical connector.
- Remove the bracket bolt.
- Disconnect the power steering line.

  Fig 15: Disconnecting Power Steering Pressure Switch Electrical Connector
  Courtesy of MAZDA MOTORS CORP.

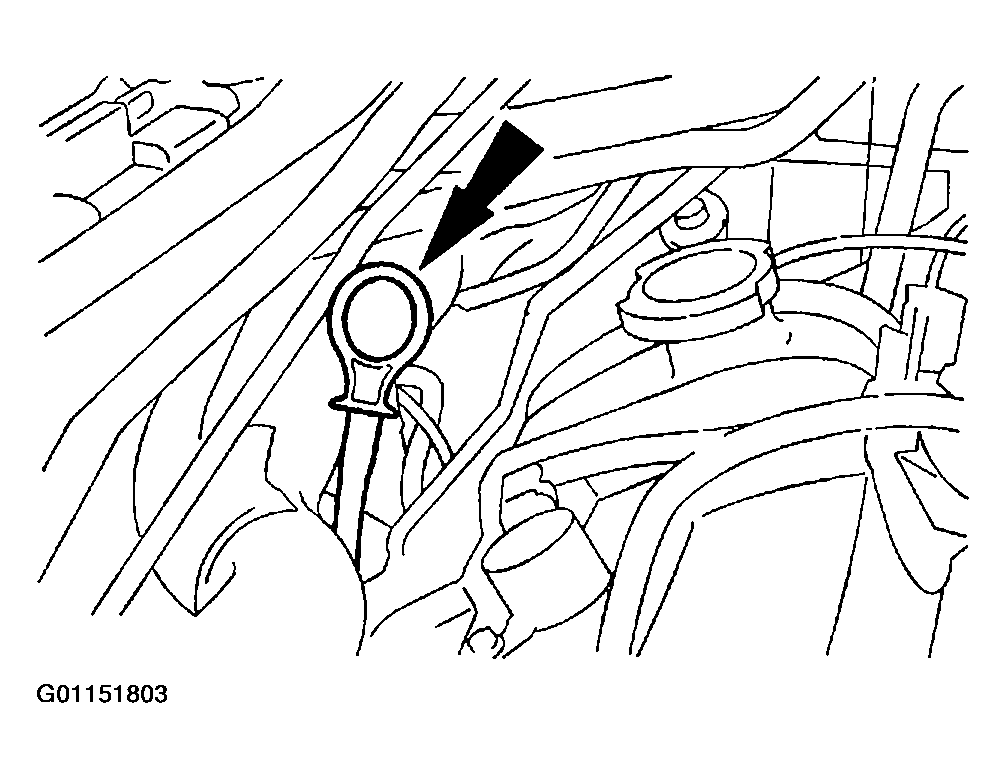

Remove the oil level indicator.

Fig 16: Removing Oil Level Indicator
Courtesy of MAZDA MOTORS CORP.

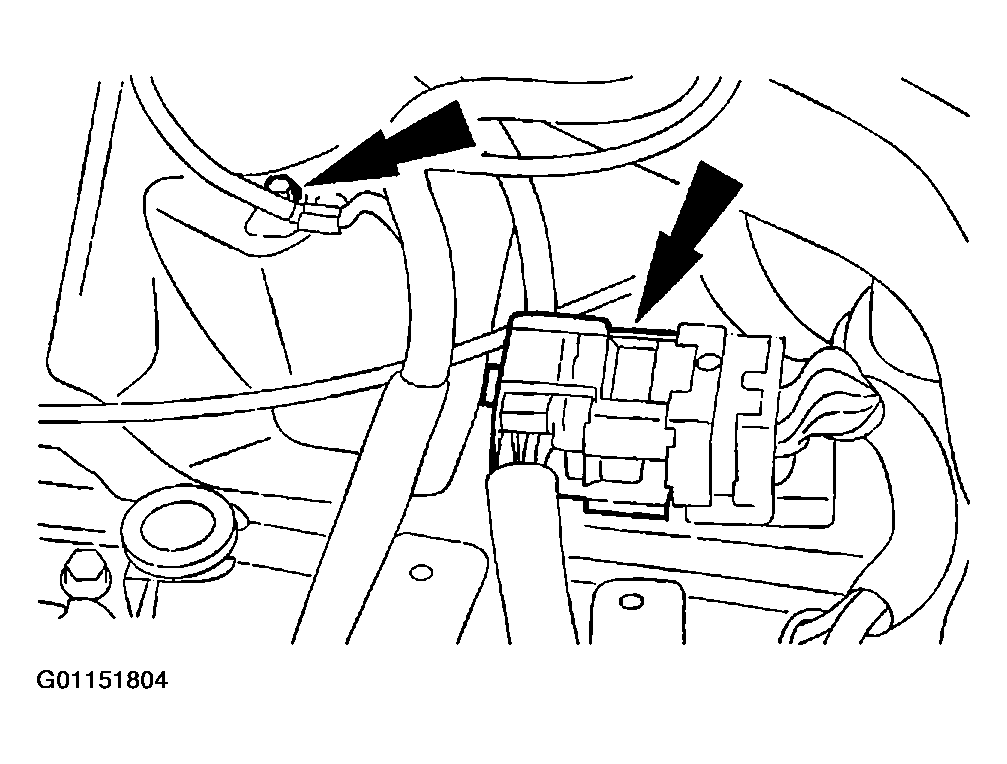

Disconnect the ground strap and the connector.

Fig 17: Disconnecting Ground Strap
Courtesy of MAZDA MOTORS CORP.

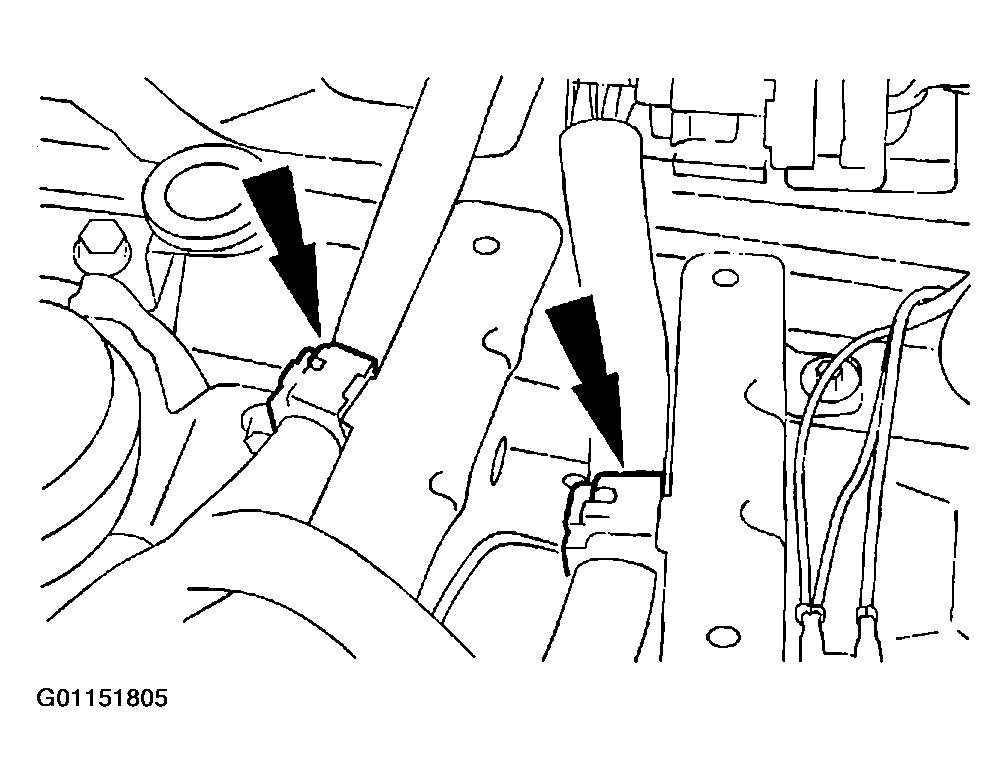

Remove the harness retainers and position the harness out of the way.

Fig 18: Removing Harness Retainers
Courtesy of MAZDA MOTORS CORP.
Remove the exhaust flexible pipe. Refer to EXHAUST FLEXIBLE PIPE .
Remove the A/C compressor. Refer to AIR CONDITIONING (A/C) COMPRESSOR -- 3.0L DURATEC (4V) .
Remove both front wheel and tire assemblies.
If equipped, remove the intermediate drive shaft. Refer to the following:
- For 2001 models, see INTERMEDIATE SHAFT .
- For 2002 models, see INTERMEDIATE SHAFT .
- For 2003 models, see INTERMEDIATE SHAFT .
Separate the LH and RH sway bar links from the strut mount.

Fig 19: Separating Sway Bar Links
Courtesy of MAZDA MOTORS CORP.

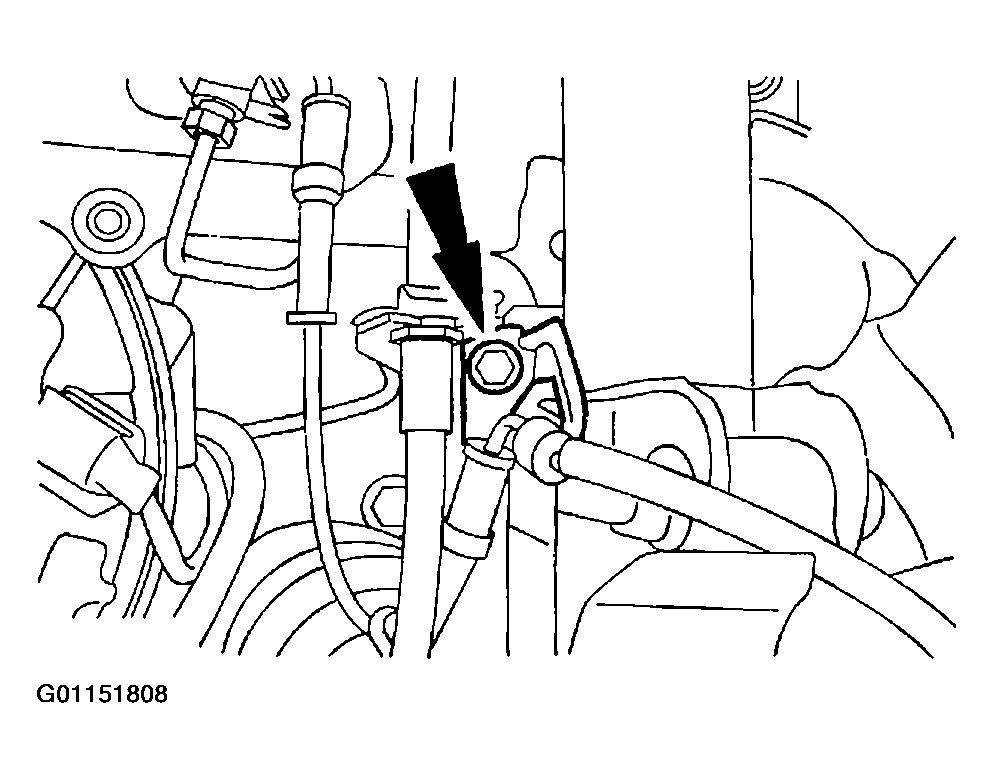

Remove the bolt and position aside the LH and RH wheel speed sensors if equipped.

Fig 20: Removing Wheel Speed Sensor
Courtesy of MAZDA MOTORS CORP.
If equipped, remove the LH and RH wheel speed sensor brackets.

Fig 21: Removing Wheel Speed Sensor Bracket
Courtesy of MAZDA MOTORS CORP.

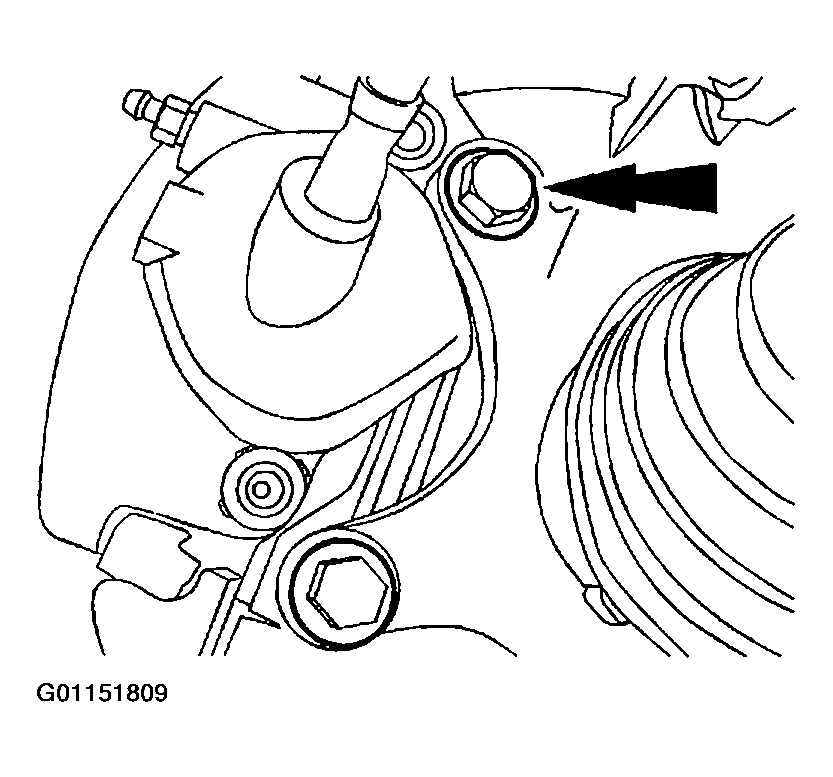

Remove the LH and RH brake calipers from the steering knuckles and support them to the struts.

Fig 22: Removing Brake Calipers
Courtesy of MAZDA MOTORS CORP.

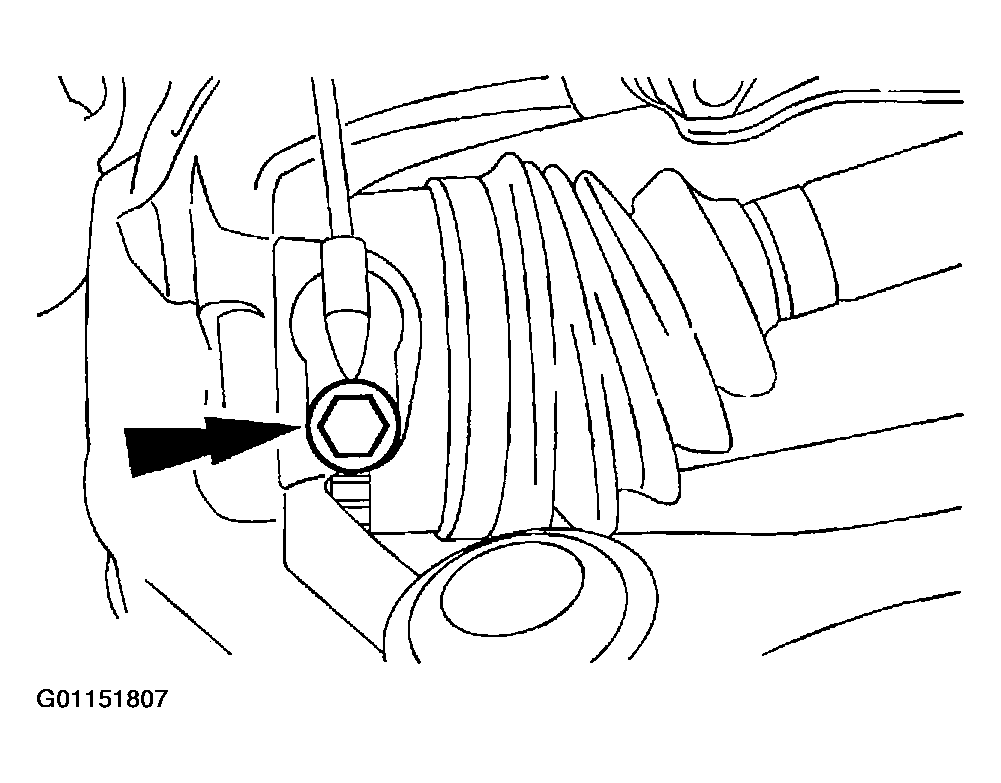

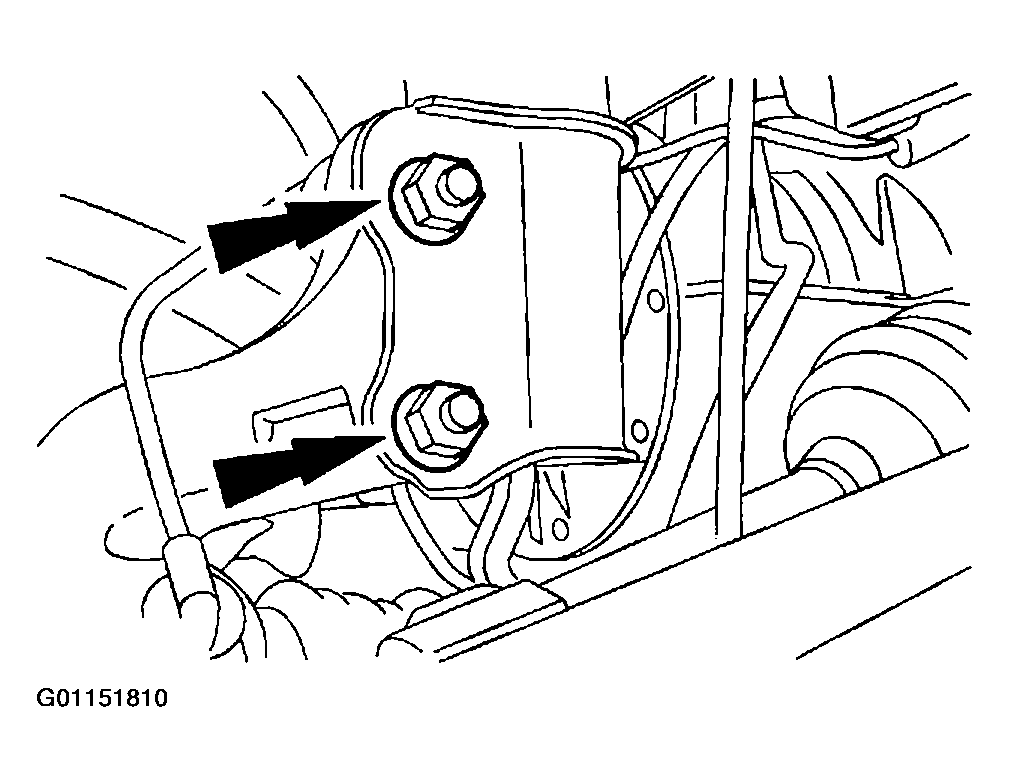

Remove the bolt and separate the struts from the LH and RH steering knuckles.

Fig 23: Removing Struts From Steering Knuckles
Courtesy of MAZDA MOTORS CORP.

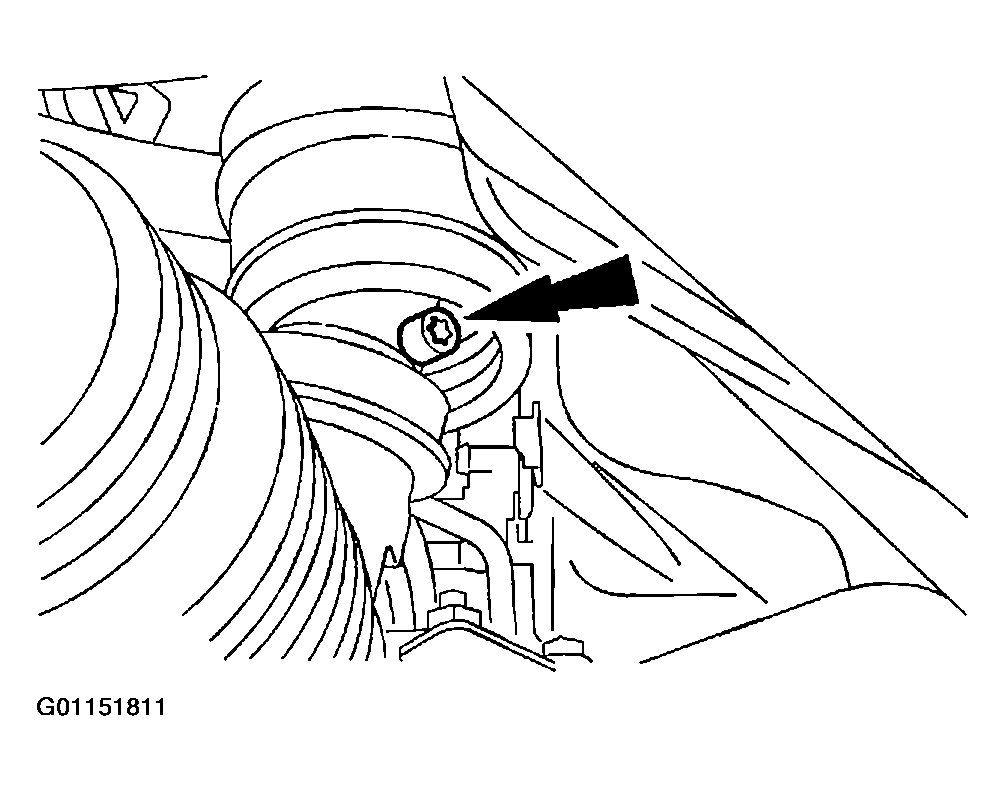

Remove the bolt and separate the steering shaft from the rack.

Fig 24: Removing Steering Shaft From Rack
Courtesy of MAZDA MOTORS CORP.

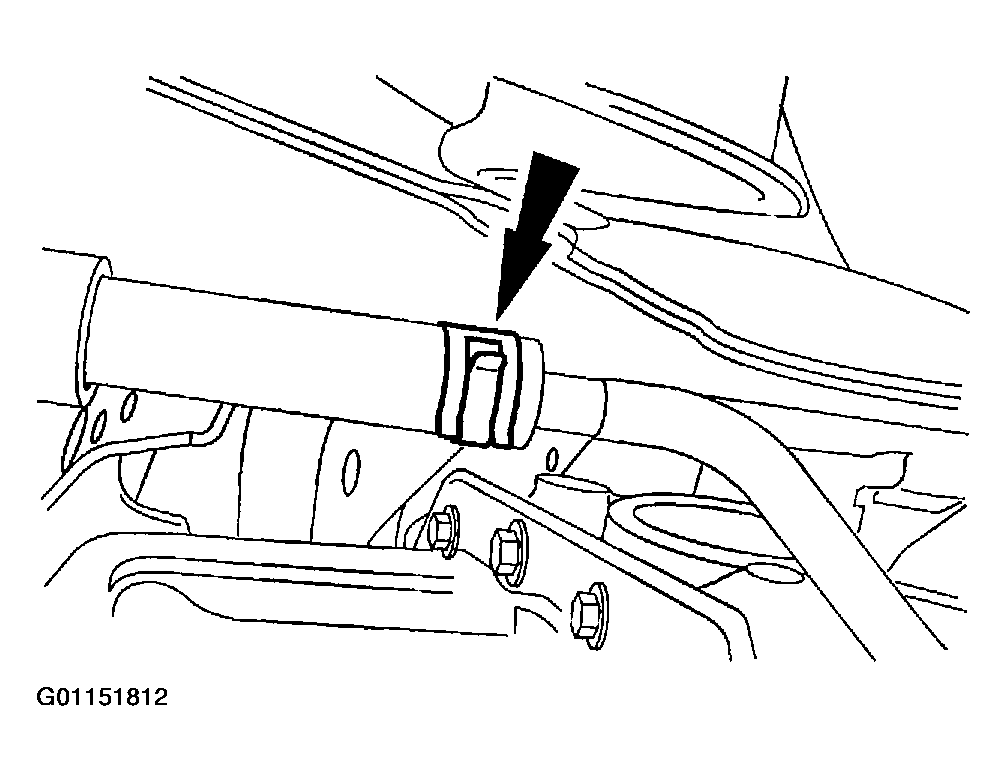

Disconnect the two transaxle cooler lines.

Fig 25: Disconnecting Two Transaxle Cooler Lines
Courtesy of MAZDA MOTORS CORP.

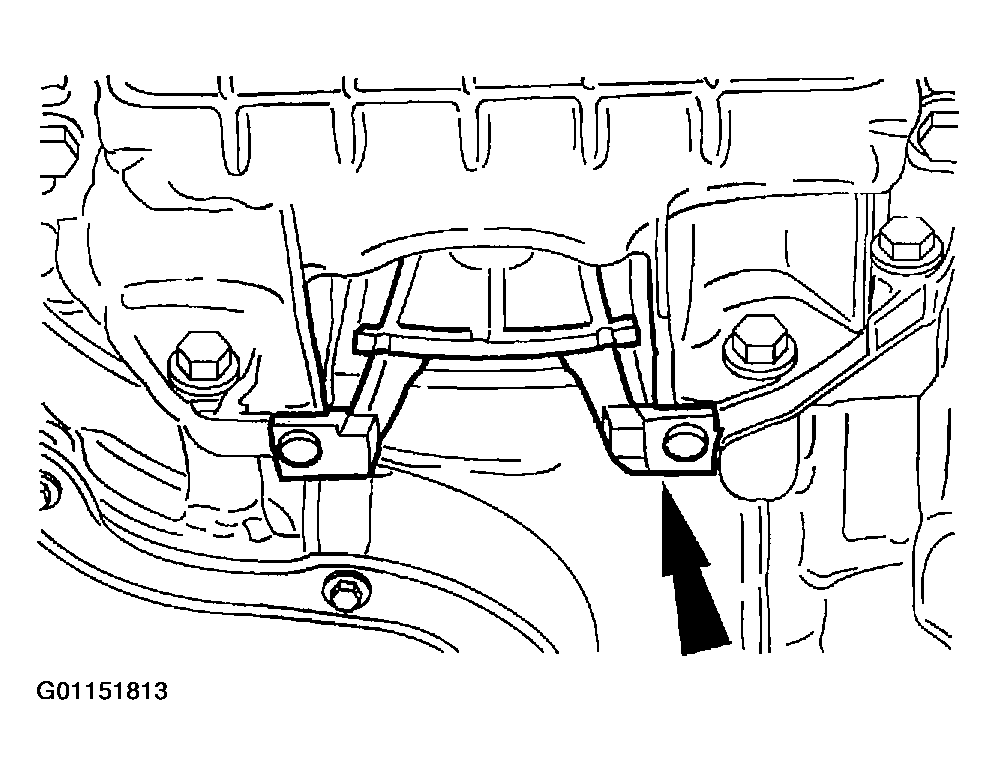

Remove the torque converter inspection cover.

Fig 26: Removing Torque Converter Inspection Cover
Courtesy of MAZDA MOTORS CORP.

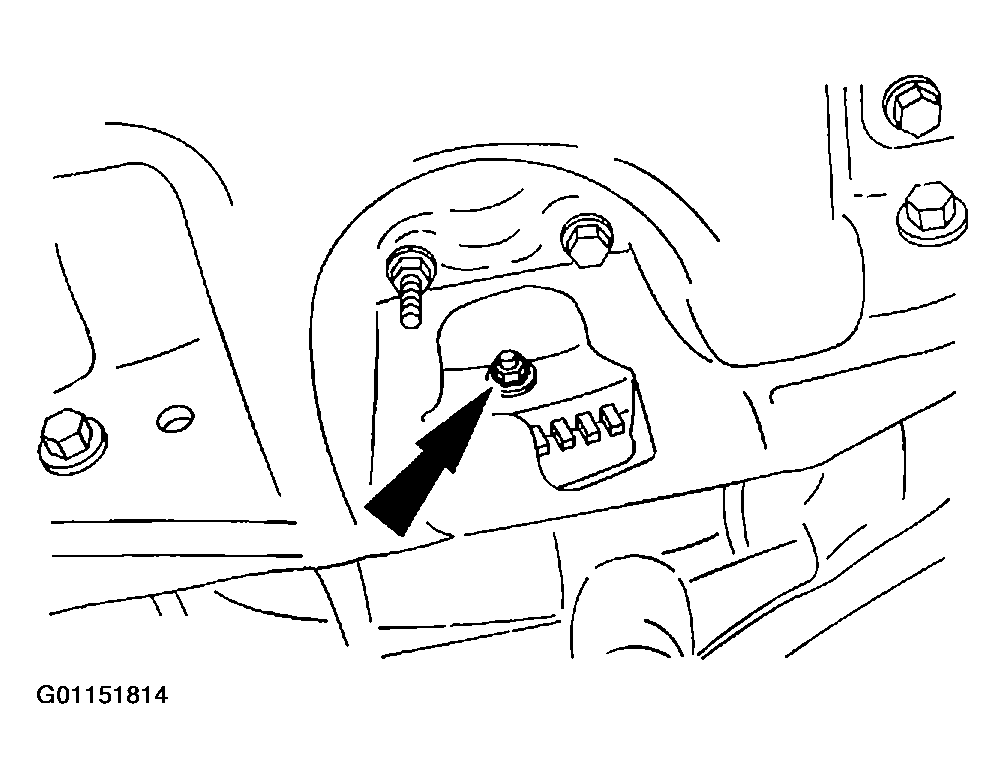

Remove the four torque converter nuts.

Fig 27: Removing Torque Converter Nuts
Courtesy of MAZDA MOTORS CORP.

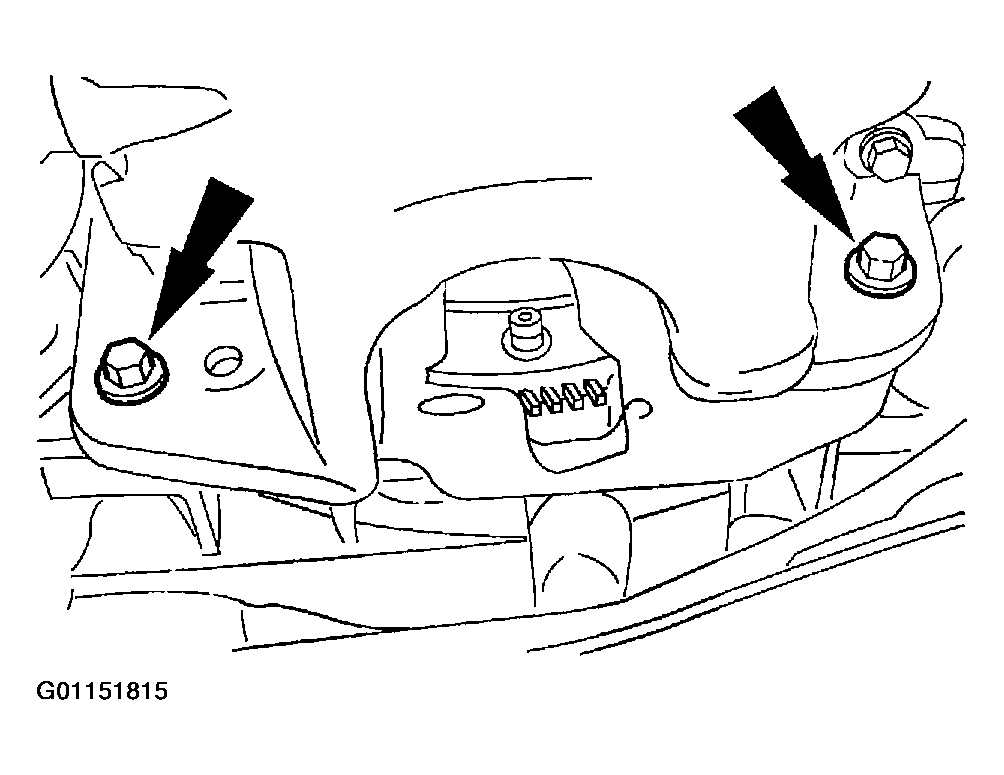

Remove the four bolts.

Fig 28: Removing four Transmission Housing-To-Housing Bolts
Courtesy of MAZDA MOTORS CORP.
If equipped disconnect the block heater wiring.

Fig 29: Disconnecting Block Heater Wiring
Courtesy of MAZDA MOTORS CORP.

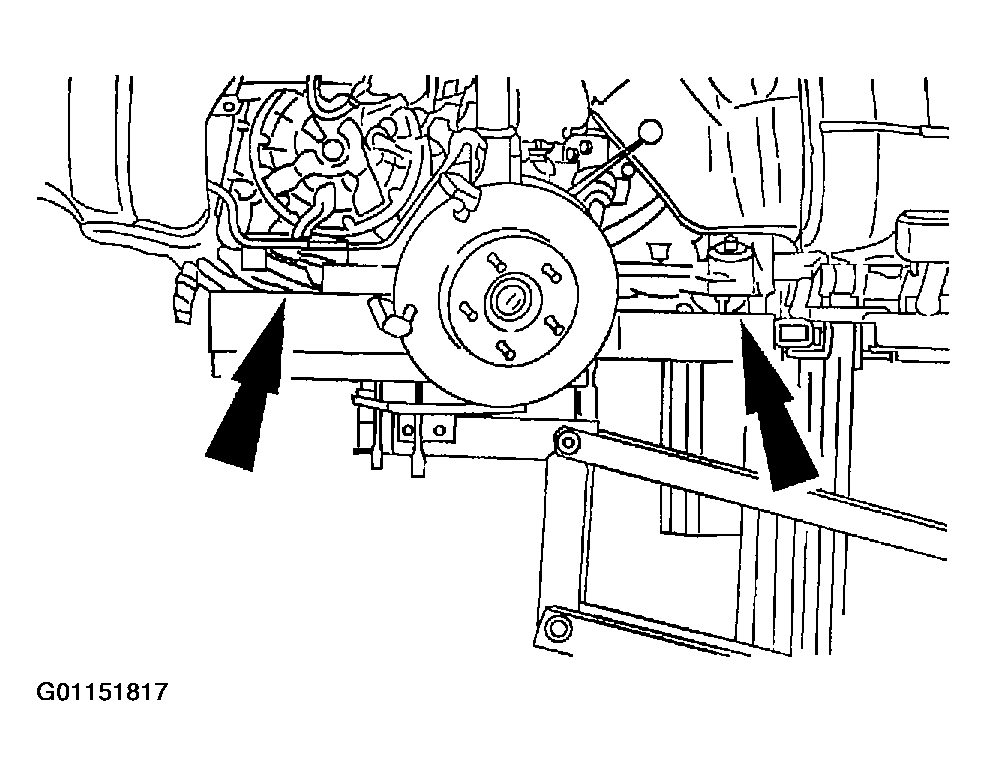

Position the universal powertrain lift.

Fig 30: Positioning Universal Powertrain Lift
Courtesy of MAZDA MOTORS CORP.

CAUTION: Do not allow the engine oil pan to rest on the powertrain lift.

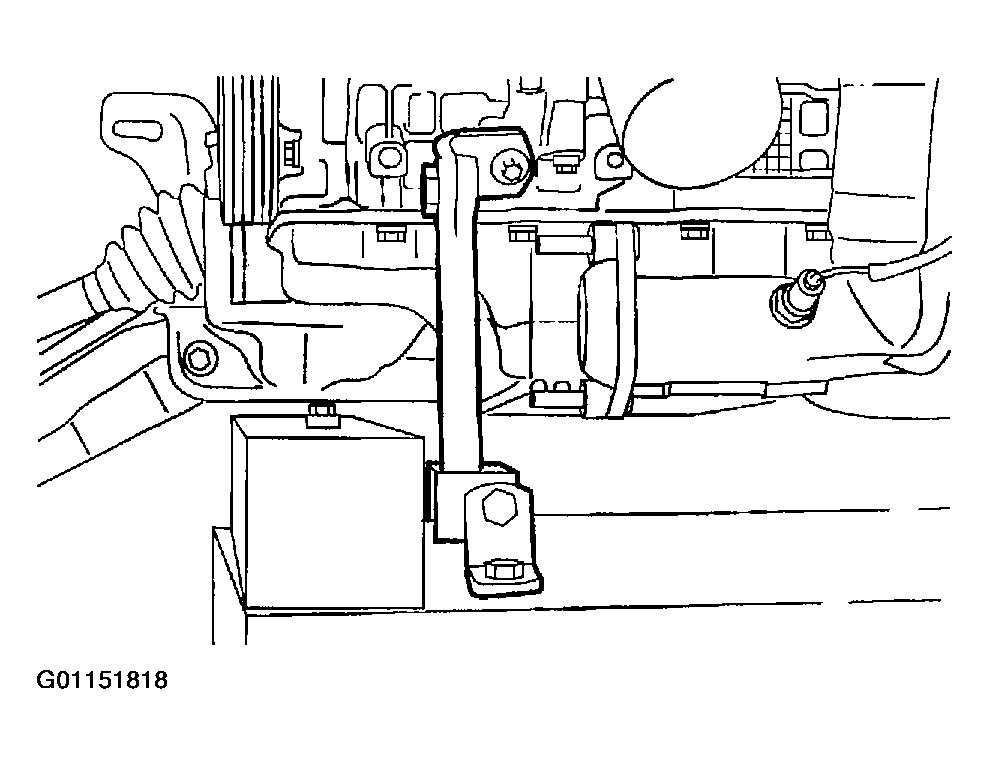

Fig 31: Supporting Front Of Engine

G01151818

Courtesy of MAZDA MOTORS CORP.

Using a bracket from the heavy duty engine stand, support the front of the engine.

NOTE: The next seven steps must be carried out with the vehicle raised and the universal powertrain lift in position.

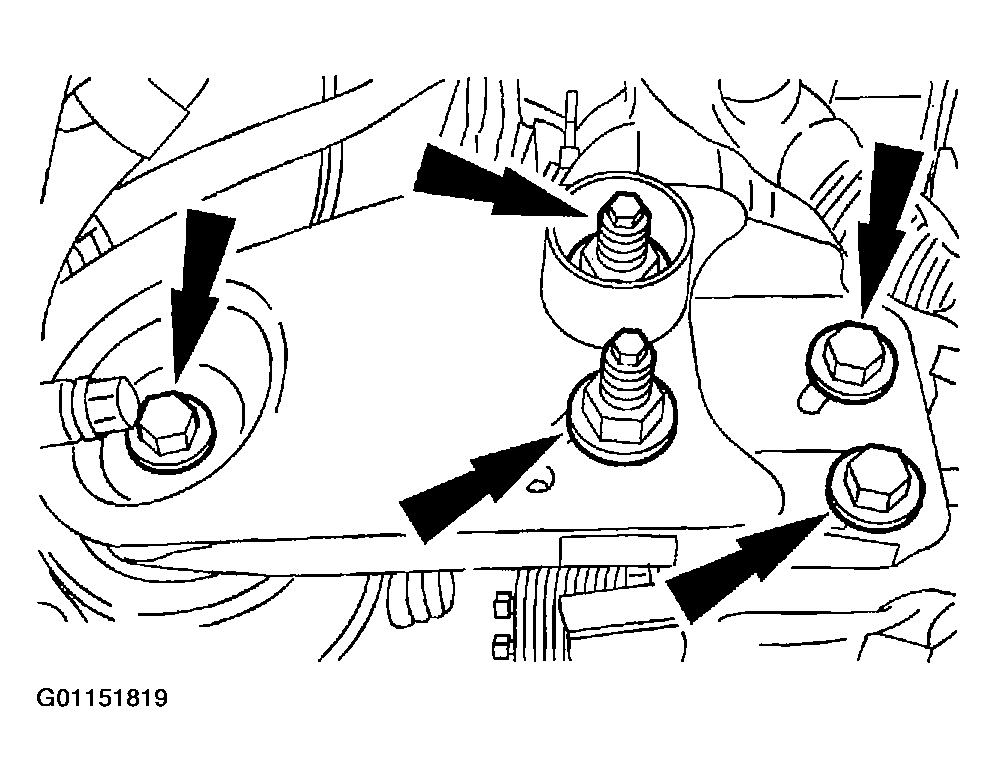

Fig 32: Removing Engine Support Bracket

G01151819

Courtesy of MAZDA MOTORS CORP.

Remove the bolts and the nuts, remove the engine support bracket.

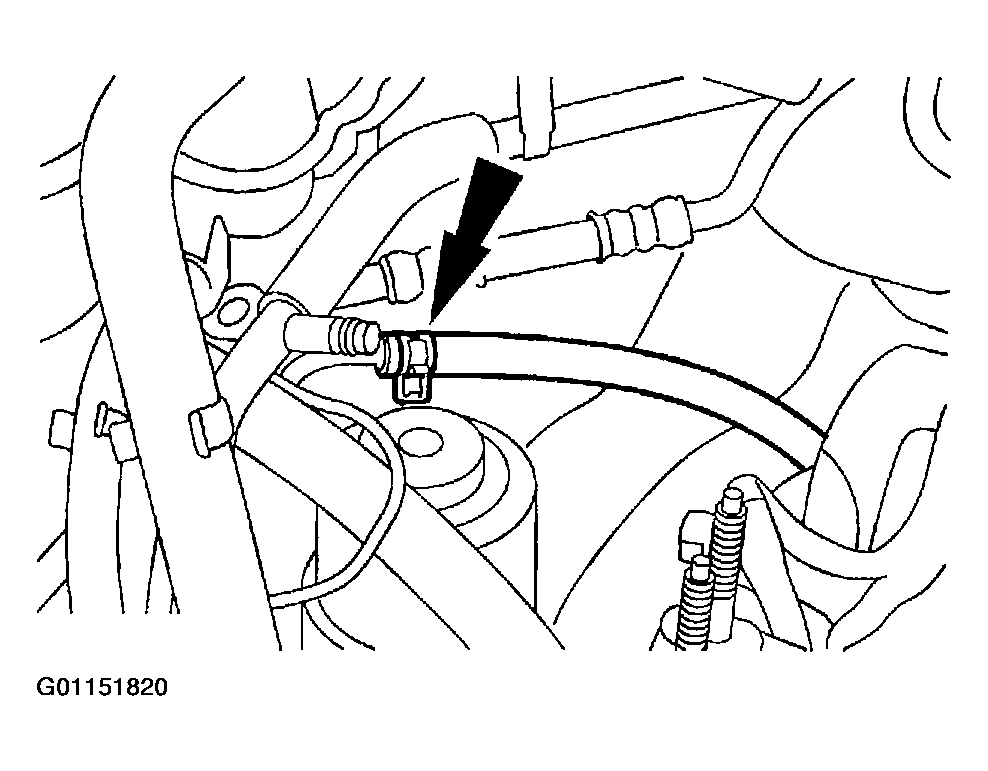

Disconnect the power steering return hose.

Fig 33: Disconnecting Power Steering Return Hose
Courtesy of MAZDA MOTORS CORP.

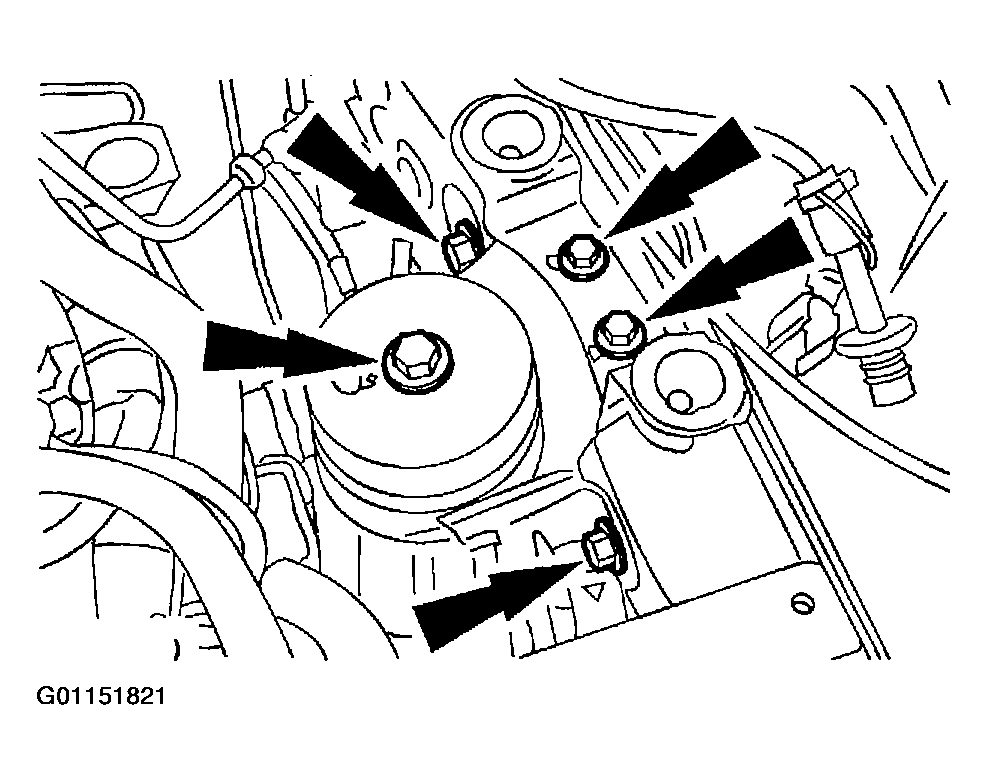

Remove the bolts and the transaxle support.

Fig 34: Removing Transaxle Support
Courtesy of MAZDA MOTORS CORP.
Remove two rear subframe bolts.

Fig 35: Removing Rear Subframe Bolts
Courtesy of MAZDA MOTORS CORP.

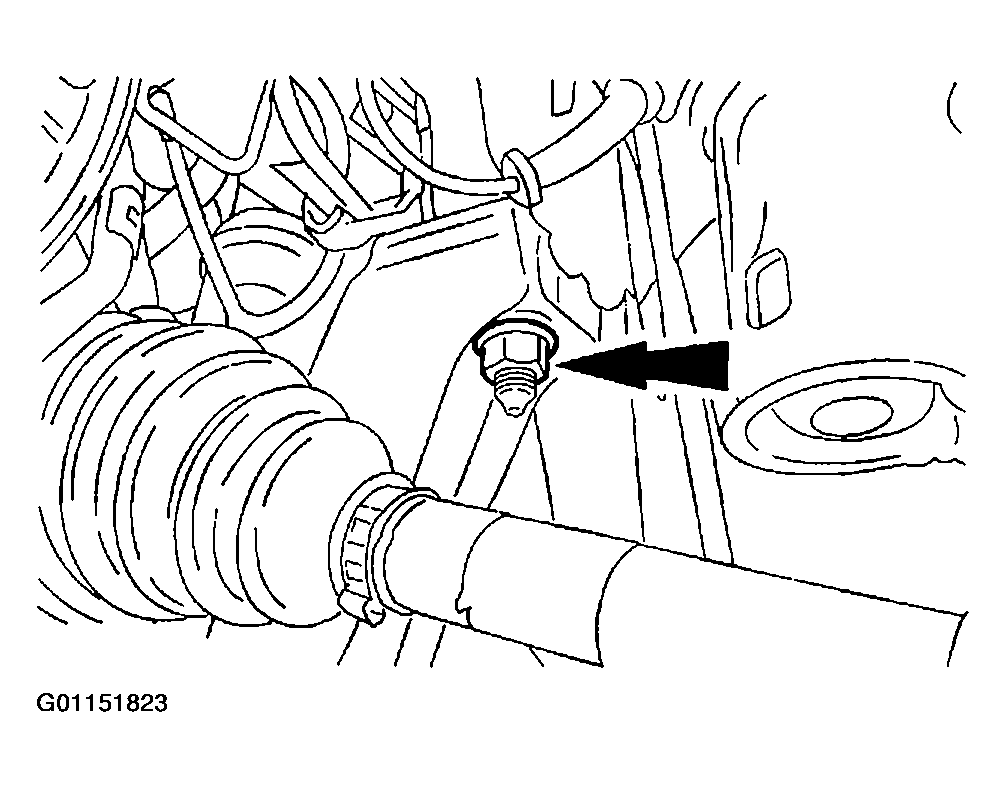

Remove the two subframe side nuts.

Fig 36: Removing Two Subframe Side Nuts
Courtesy of MAZDA MOTORS CORP.

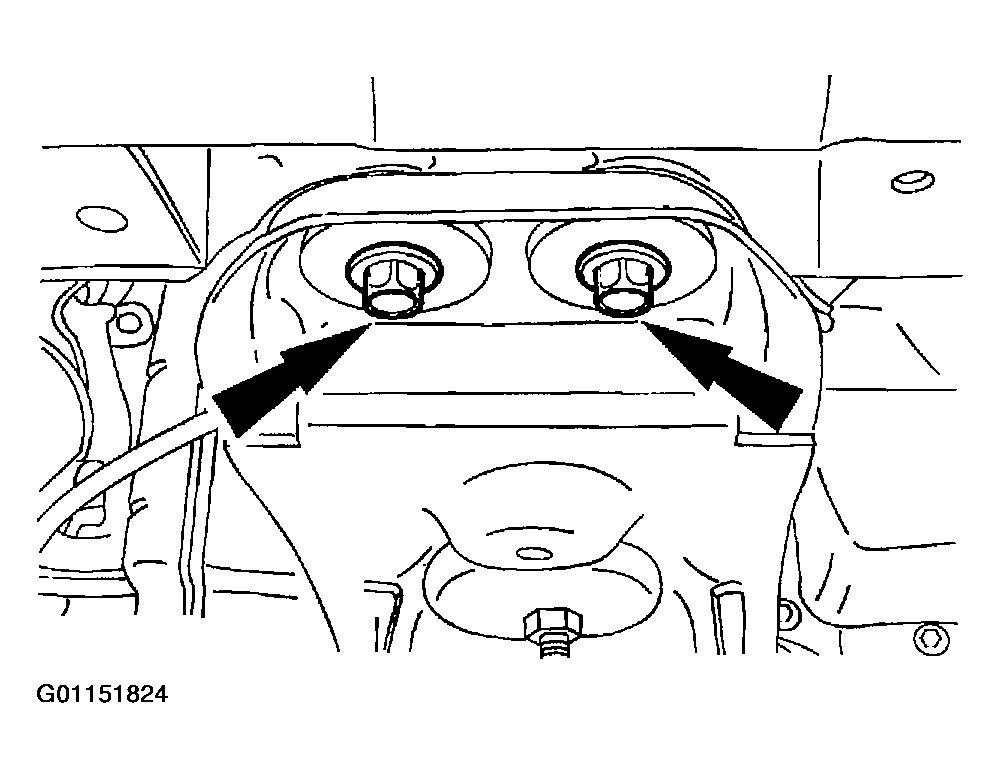

Remove the two bolts from the motor mount support.

Fig 37: Removing Motor Mount Support
Courtesy of MAZDA MOTORS CORP.
Remove the powertrain from the vehicle.

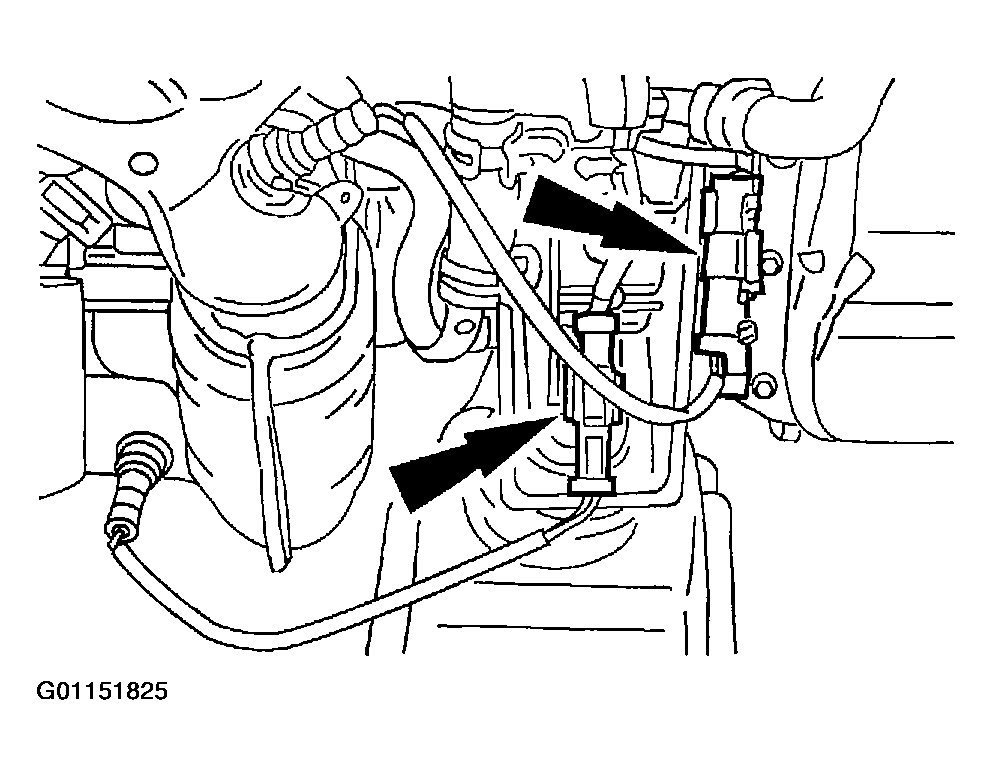

Disconnect the heated oxygen sensors.

Fig 38: Disconnecting Heated Oxygen Sensors
Courtesy of MAZDA MOTORS CORP.

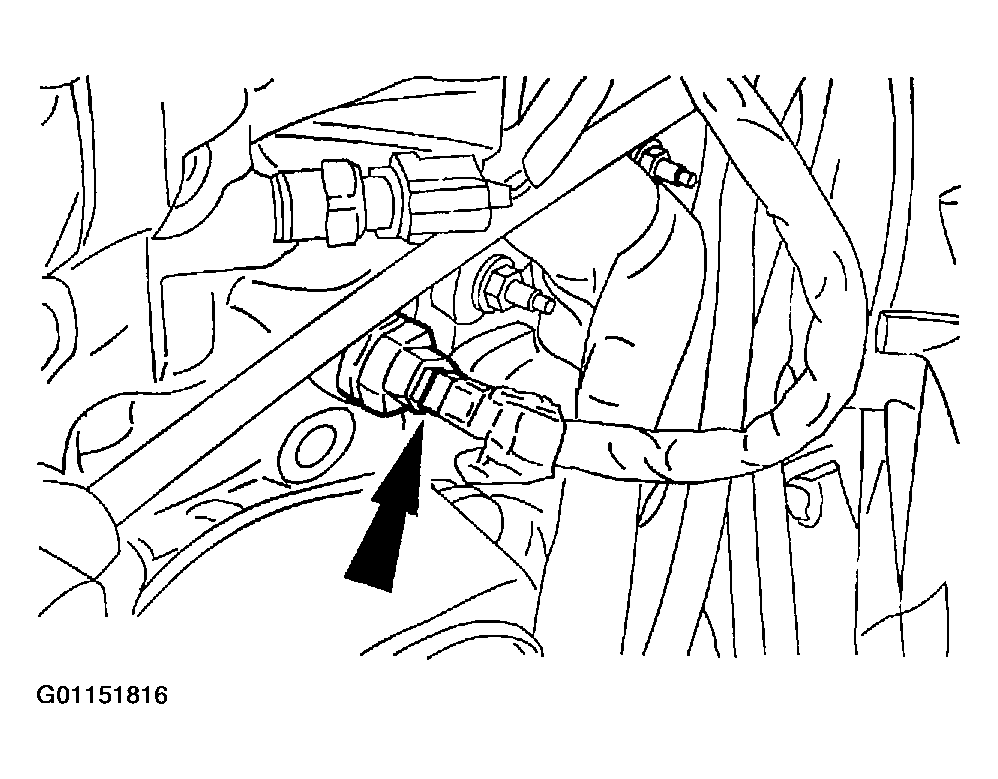

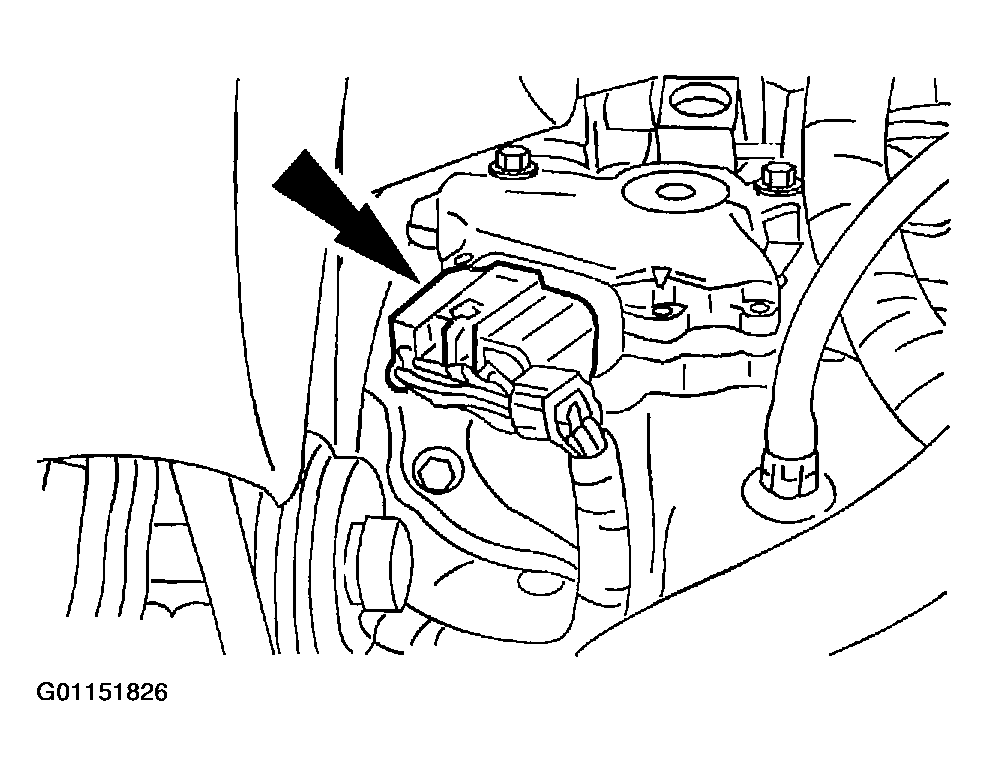

Disconnect the TR sensor.

Fig 39: Disconnecting TR Sensor
Courtesy of MAZDA MOTORS CORP.

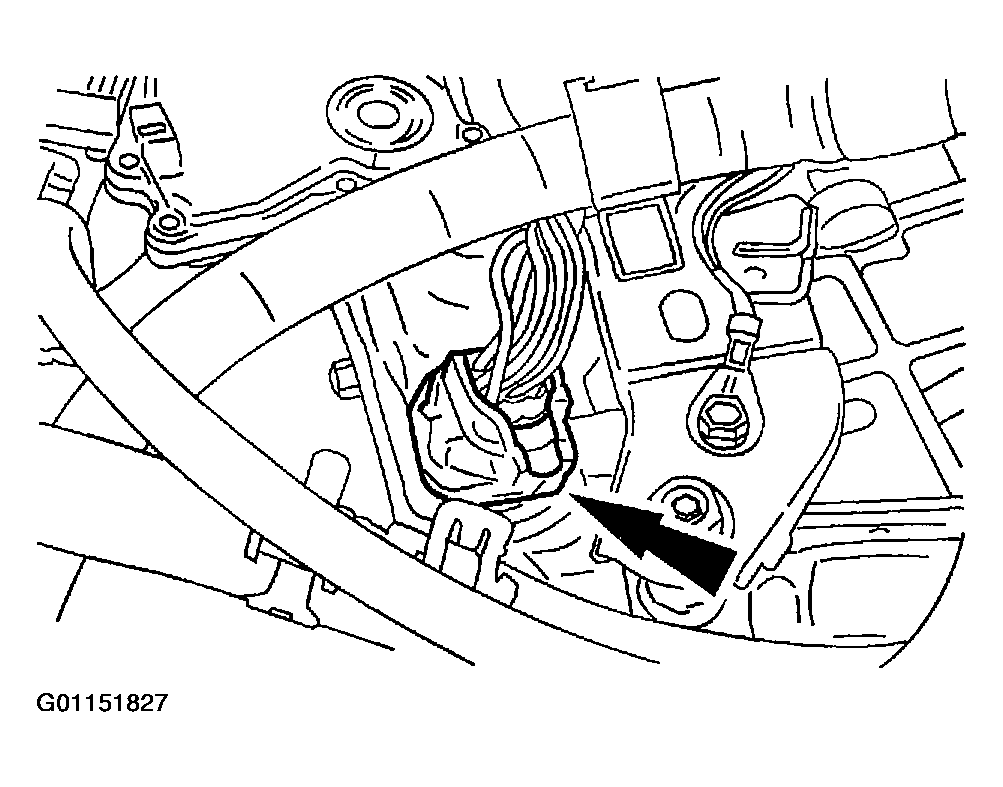

Disconnect the transaxle harness electronic control switch.

Fig 40: Disconnecting Transaxle Harness Electronic Control Switch
Courtesy of MAZDA MOTORS CORP.

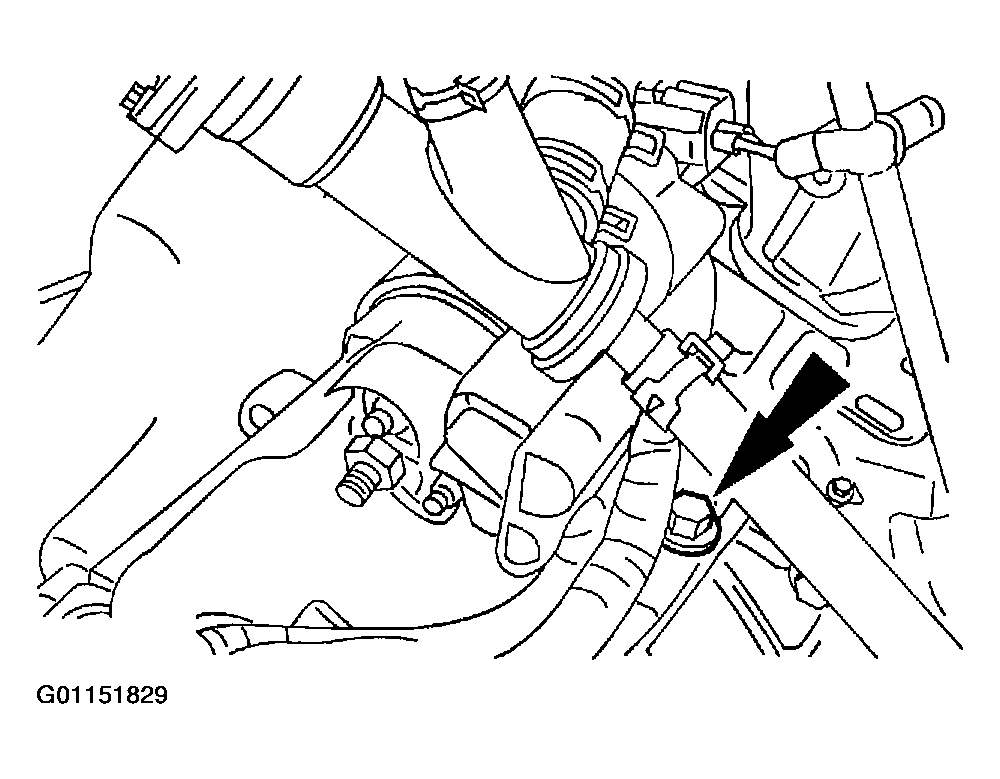

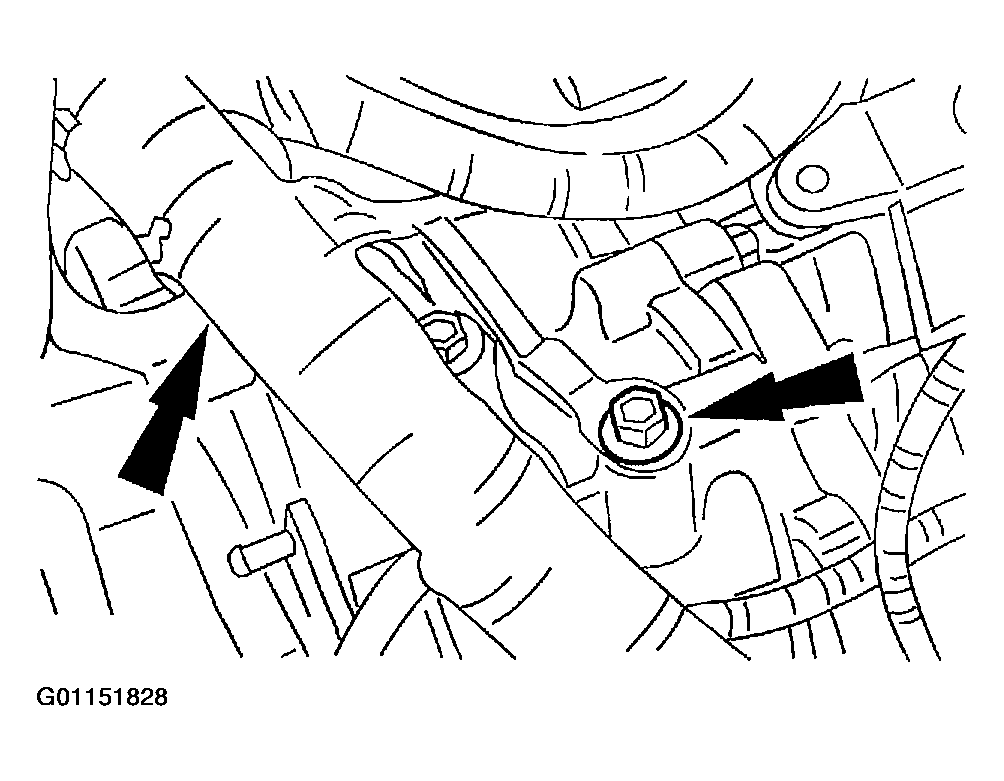

Remove the bolt and separate the transaxle control harness from the bracket.

Fig 41: Separating Transaxle Control Harness From Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the two bolts, the starter and harness as an assembly.

Fig 42: Removing Starter & Harness Assembly
Courtesy of MAZDA MOTORS CORP.

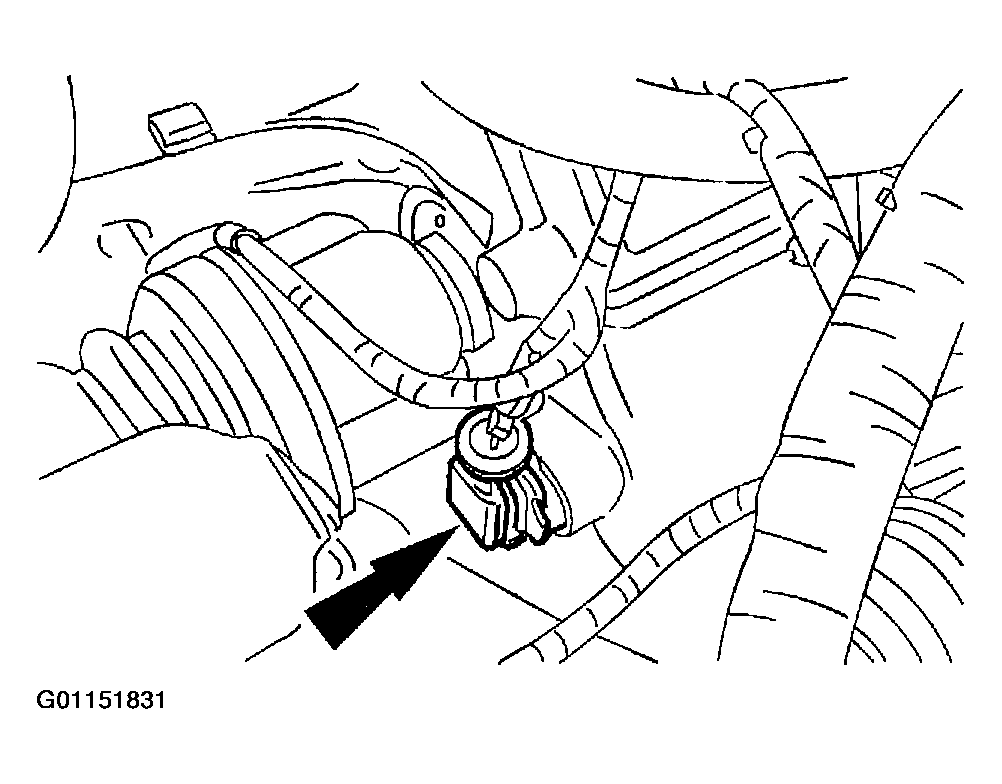

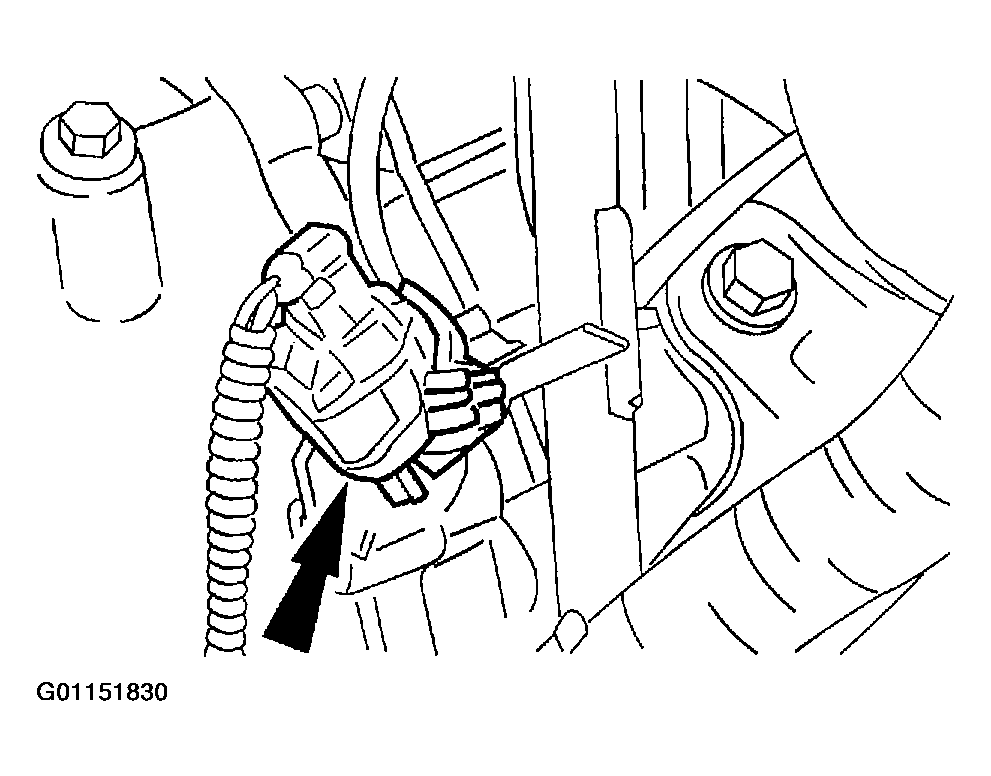

Disconnect the knock sensor jumper electrical connector.

Fig 43: Disconnecting Knock Sensor Jumper Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the Output Shaft Speed (OSS) sensor and the Turbine Shaft Speed (TSS) sensor electrical connectors.

Fig 44: Disconnecting Output Shaft Speed Sensor & Turbine Shaft Speed Sensor Electrical Connectors
Courtesy of MAZDA MOTORS CORP.

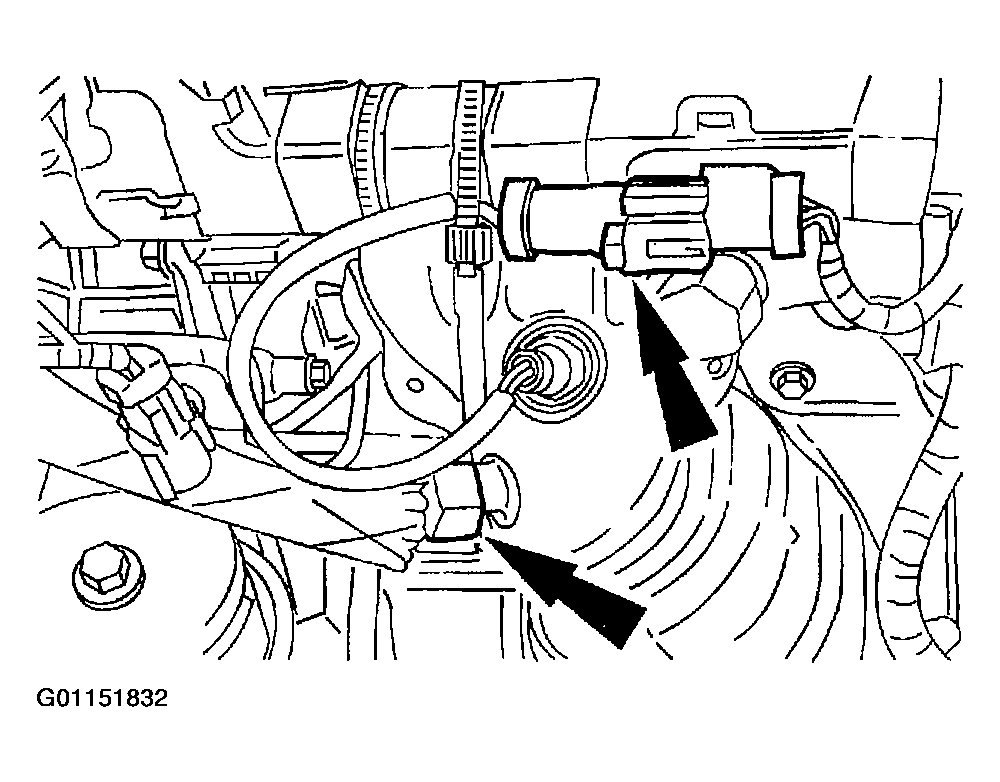

Disconnect the HO2S and the EGR tube from the exhaust manifold.

Fig 45: Disconnecting HO2S & EGR Tube
Courtesy of MAZDA MOTORS CORP.
Disconnect the DPFE hoses and remove the EGR tube from the EGR valve.

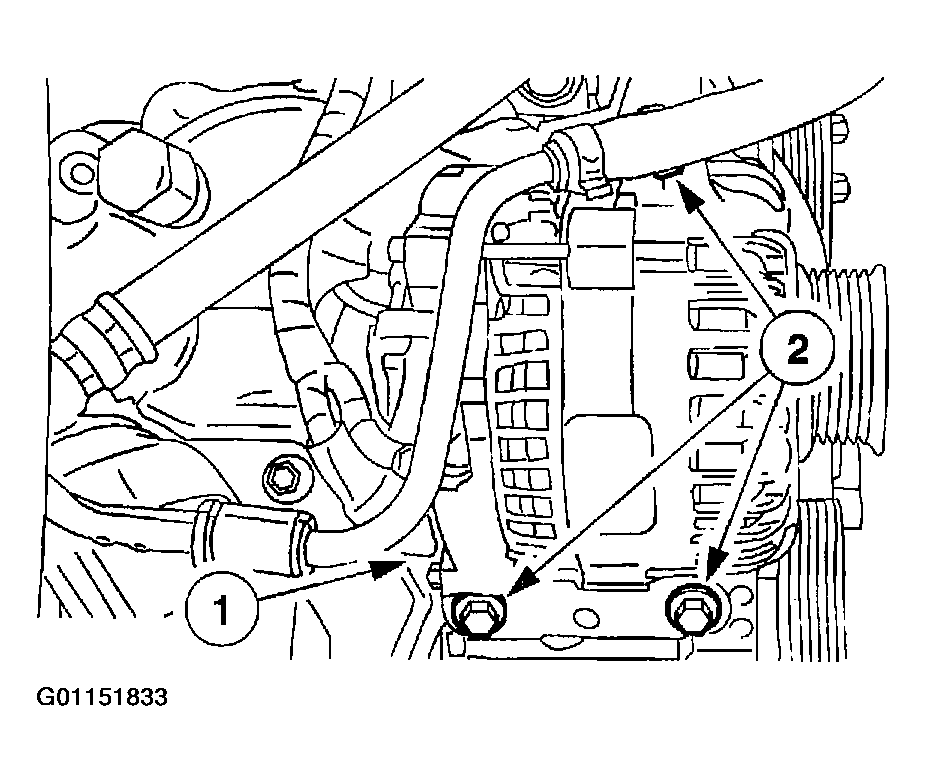

Remove the generator.
1. Disconnect the electrical connector.
2. Remove the bolts.

  Fig 46: Removing Generator
  Courtesy of MAZDA MOTORS CORP.

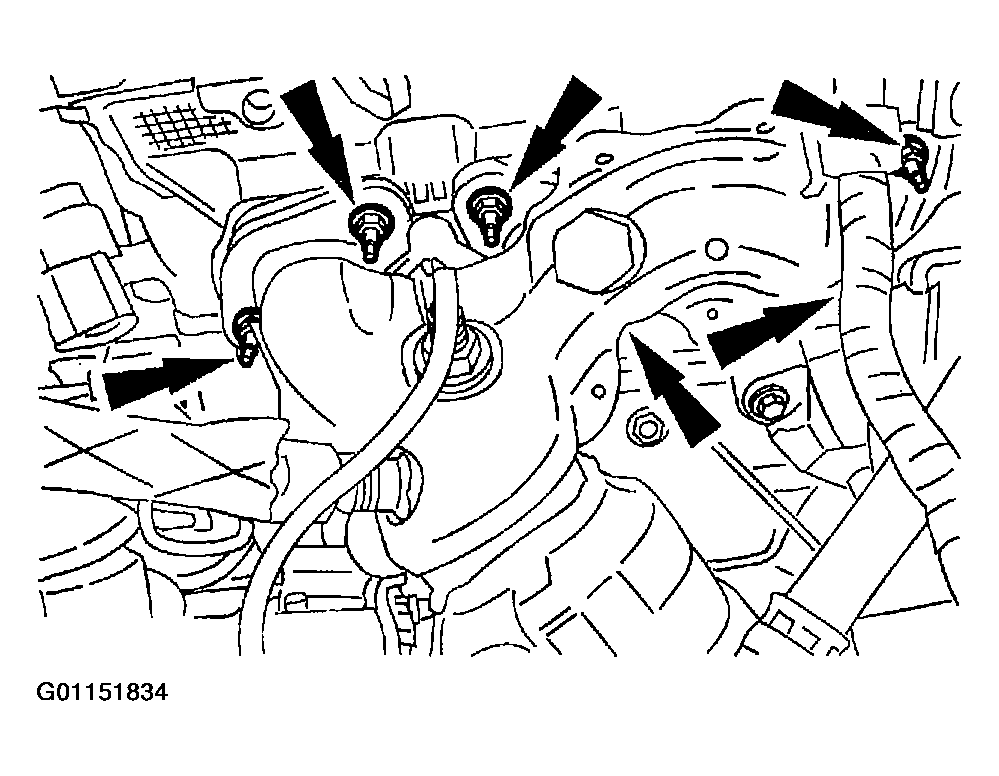

Remove the six RH exhaust manifold nuts and gasket.

Fig 47: Removing RH Exhaust Manifold
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and position the halfshaft support bracket out of the way.

Fig 48: Removing Halfshaft Support Bracket
Courtesy of MAZDA MOTORS CORP.

NOTE: Once the engine is supported by the engine crane, remove the bracket supporting the front of the engine.

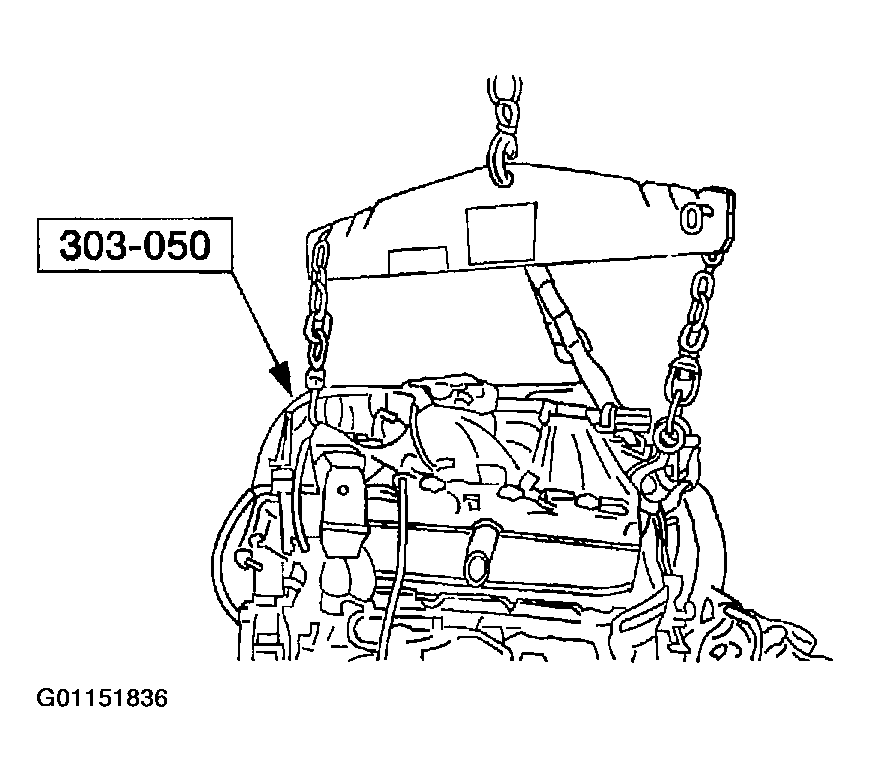

Fig 49: Removing Powertrain

G01151836

Courtesy of MAZDA MOTORS CORP.

Using the special tools, remove the powertrain from the universal powertrain lift.

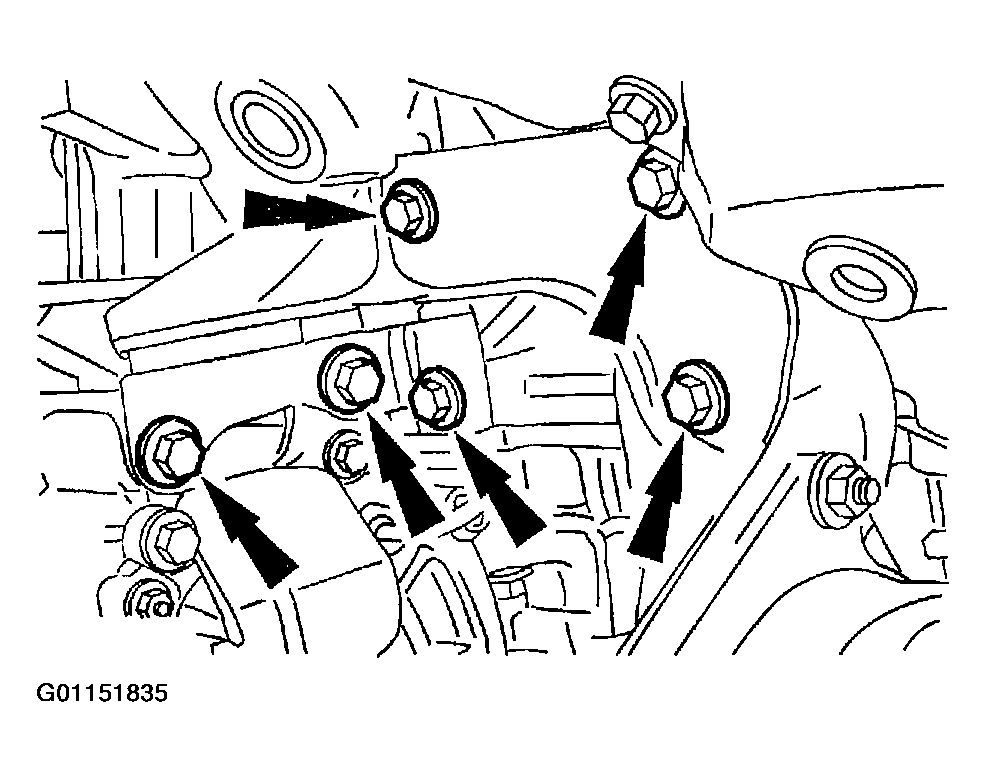

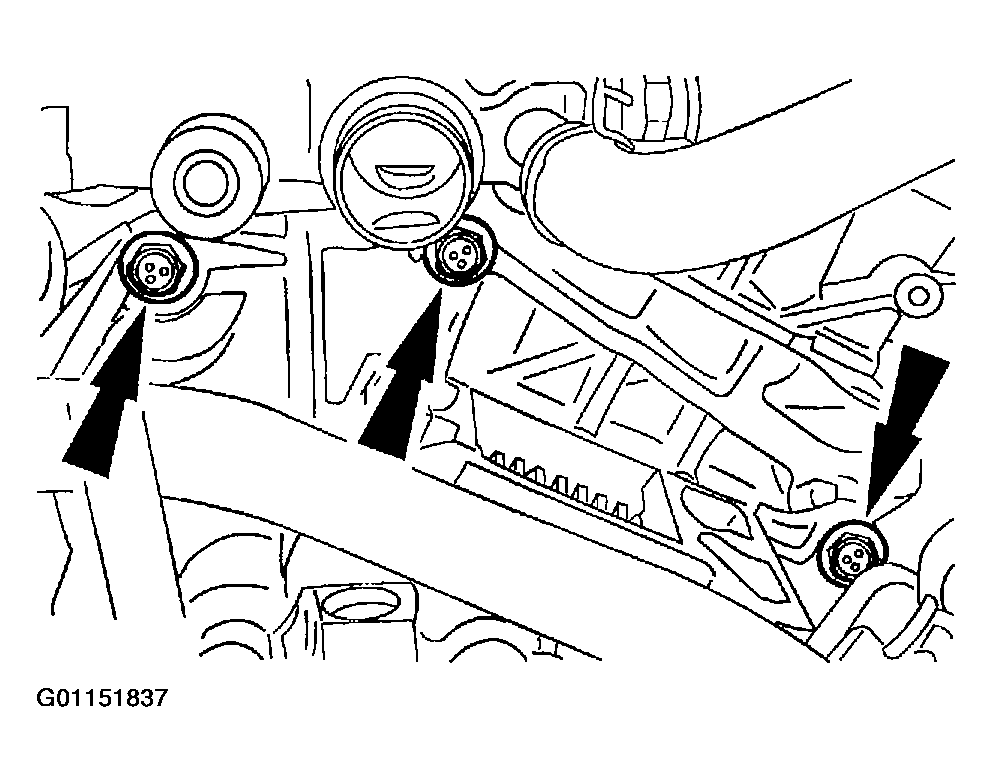

Remove the six transaxle bolts.

Fig 50: Removing Transaxle Bolts
Courtesy of MAZDA MOTORS CORP.

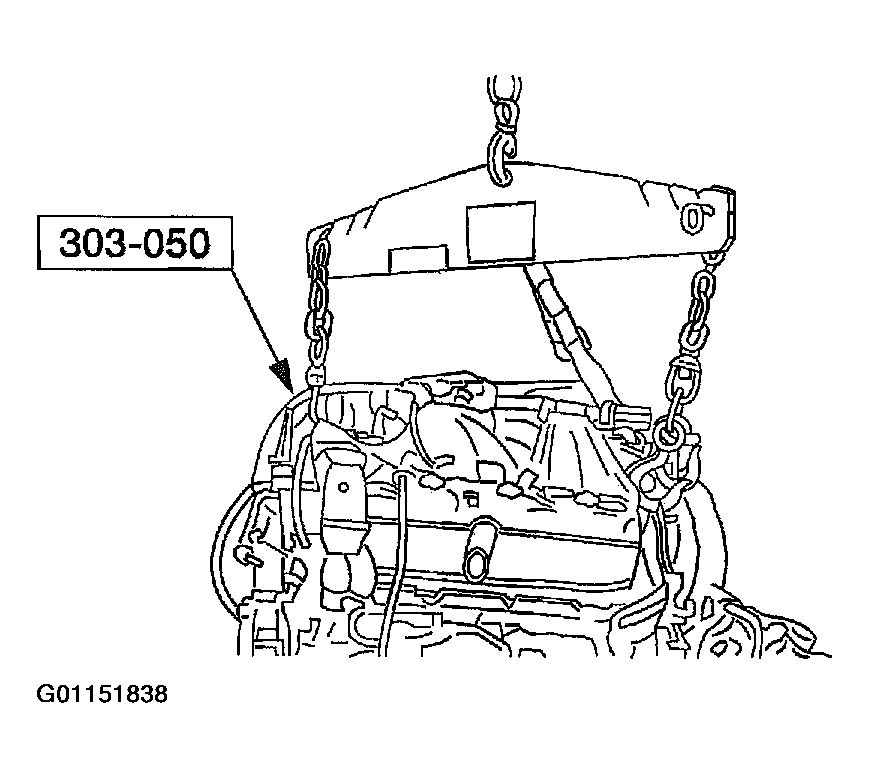

Using the special tools, remove the engine from the transaxle and mount on a suitable engine stand.

Fig 51: Removing Engine From Transaxle
Courtesy of MAZDA MOTORS CORP.
