Inspection and Verification

  1. Verify the customer concern.
  2. Visually inspect for the following obvious signs of mechanical and electrical damage:

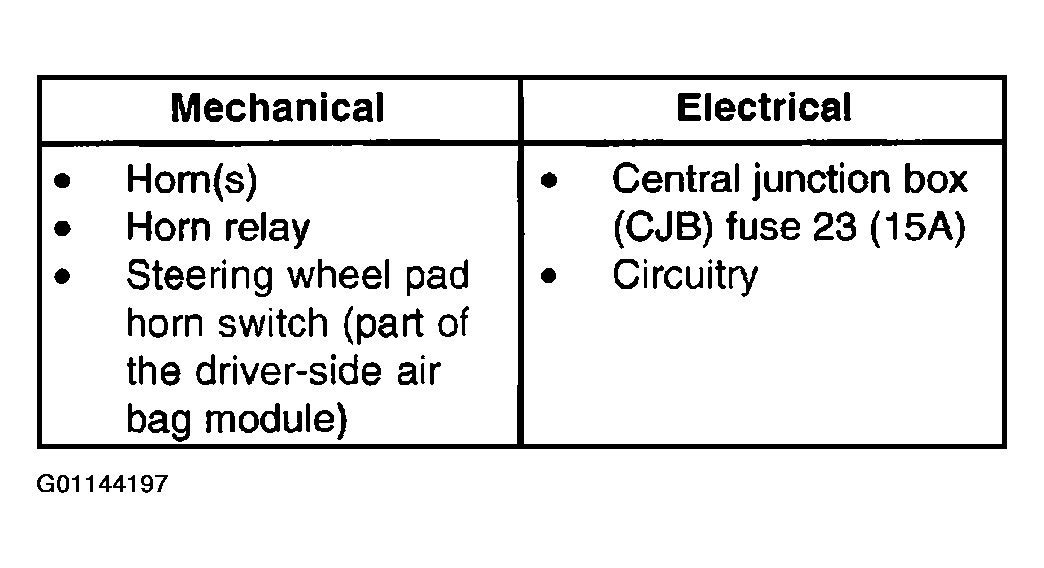

    Visual Inspection Chart Horn

    Fig 1: Visual Inspection Chart Horn
    G01144197Courtesy of MAZDA MOTORS CORP.
  3. If the fault is not visually evident, verify the symptom and proceed to the TROUBLESHOOTING INDEX - HORN  .
