Home >> Mazda >> 2002 >> Tribute LX, 4WD >> Repair and Diagnosis >> Electrical >> Horns >> Instrument Panel >> Horn >> Troubleshooting Index - Horn

Troubleshooting Index - Horn

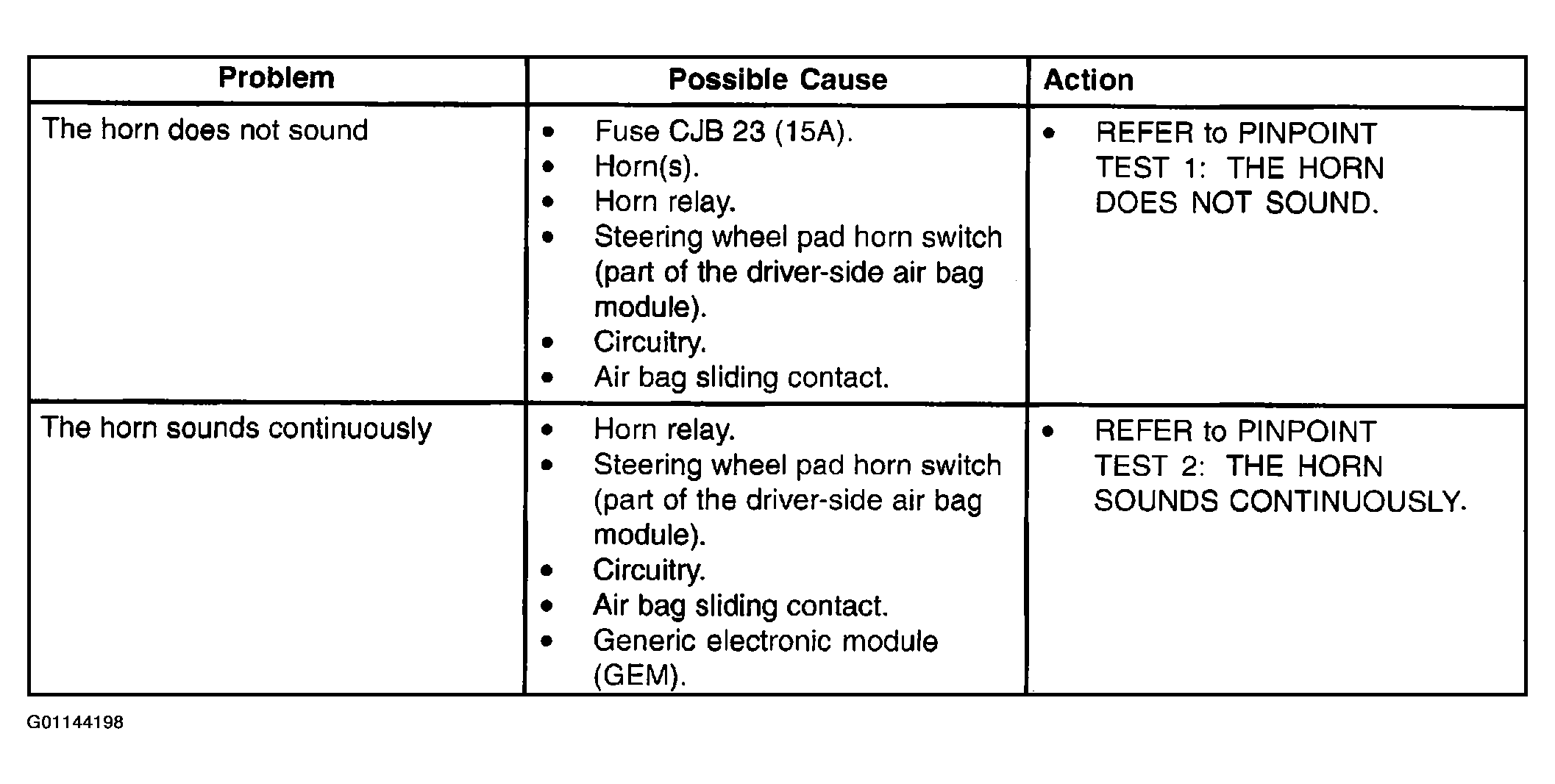

Fig 1: Troubleshooting Index - Horn

G01144198

Courtesy of MAZDA MOTORS CORP.
