Wheel Bearing: Installation

To install, reverse removal procedure. Adjust wheel bearing preload. See WHEEL BEARING  under ADJUSTMENTS.

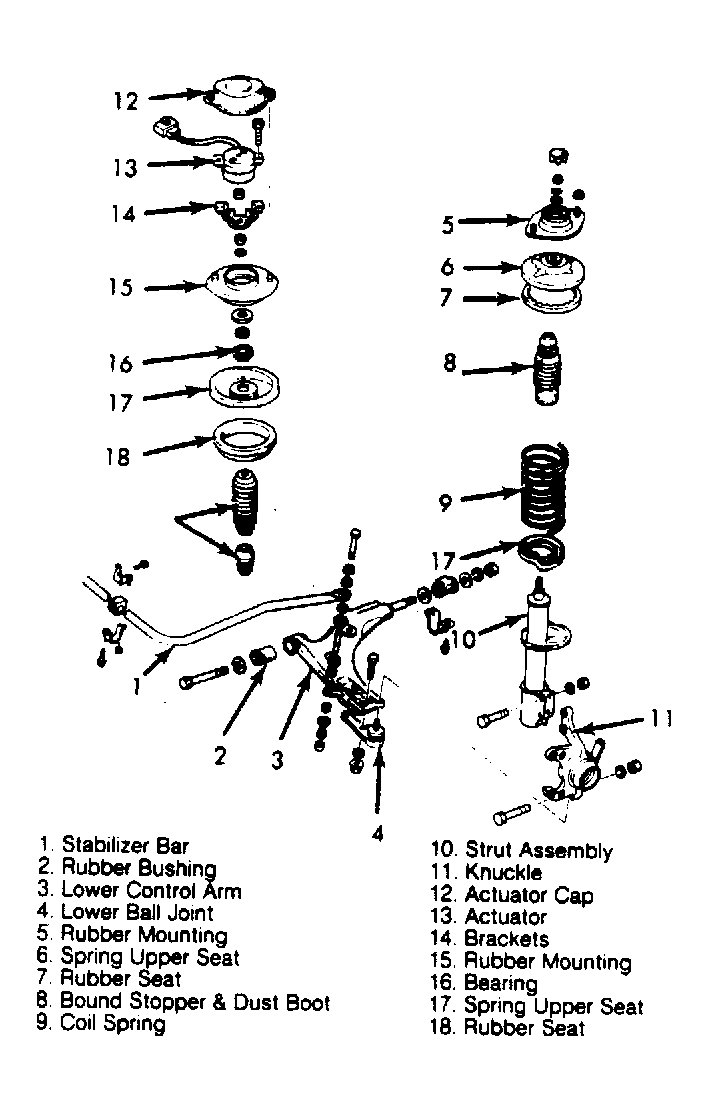

Fig 1: Exploded View of 323 & Tracer Front Suspension
G52358Courtesy of MAZDA MOTORS CORP.
