Removal And Installation: Transmission: Installation

All vehicles

1. NOTE: Make sure that when installing the manual control lever, it is fully seated onto the manual control lever shaft. Damage to the manual control lever shaft will occur and the manual lever will come loose.
   NOTE: Make sure to hold the manual control lever while tightening the manual control lever nut or damage to the manual control lever and park components will occur.

   Install the manual control lever and the nut.

   Torque

   : 159 lb.in (18 Nm)

   Courtesy of FORD MOTOR COMPANY

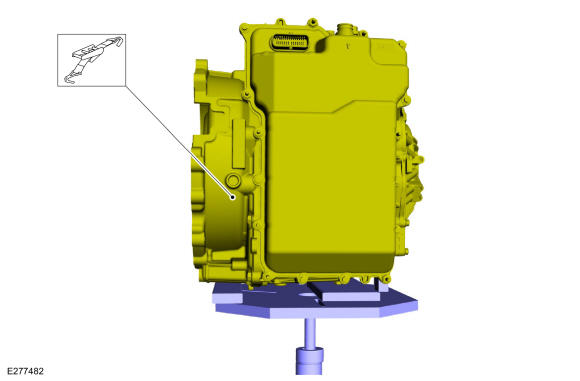

2. Using a transmission jack, support the transmission. Use the General Equipment: Transmission Jack Use the General Equipment: Retaining Strap

   Courtesy of FORD MOTOR COMPANY

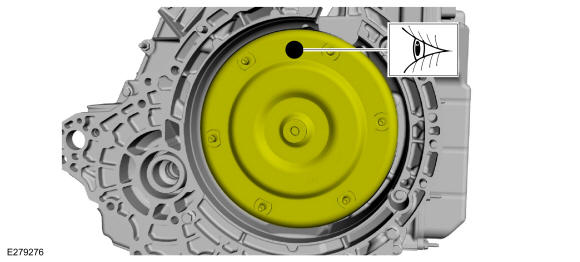

3. Position the balance mark (paint dot, sticker, or laser etch) near the 12 O'clock position. Then rotate the converter to position the nearest converter stud at the starter opening.

   Courtesy of FORD MOTOR COMPANY

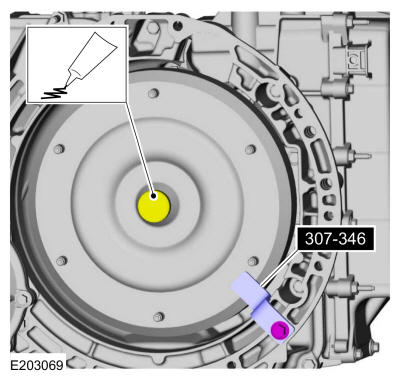

4. Lubricate the torque converter pilot hub with Multi-Purpose Grease. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

   Material

   : Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

5. NOTE: The Balance mark on the torque converter must be above the crankshaft centerline when the first torque converter nut is tightened.
   NOTE: This step is only necessary if installing the original torque converter.

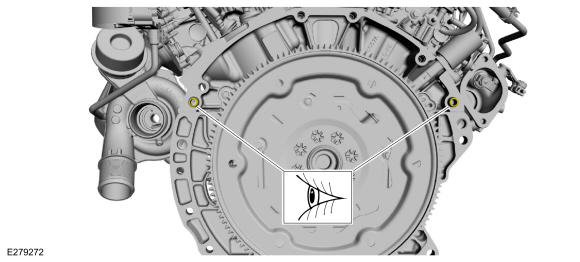

   Rotate the crankshaft clockwise to align the index marks made during removal.

   Courtesy of FORD MOTOR COMPANY

6. NOTE: If the transmission is not positioned on the dowel pins, damage to the transmission may occur.

   If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.

   Courtesy of FORD MOTOR COMPANY

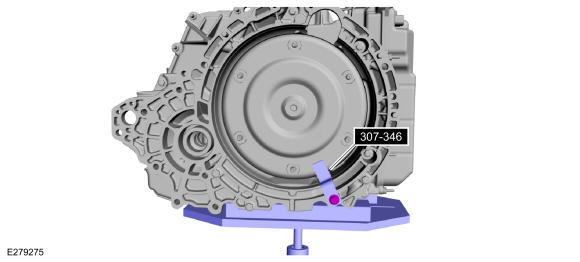

7. Position the transmission behind the engine and remove the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

   Courtesy of FORD MOTOR COMPANY

8. Position the transmission on the dowel pins and install the RH and LH transmission-to-engine bolts.

   Torque

   : 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

9. Install the transmission support insulator, new bolts and install the wiring harness retainer.

   Torque

   : 66 lb.ft (90 Nm)

   Courtesy of FORD MOTOR COMPANY

10. Install a new rear roll restrictor bolt.

    Torque

    : 111 lb.ft (150 Nm)

    Courtesy of FORD MOTOR COMPANY

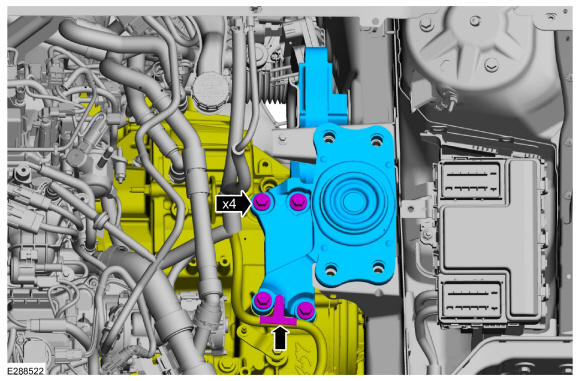

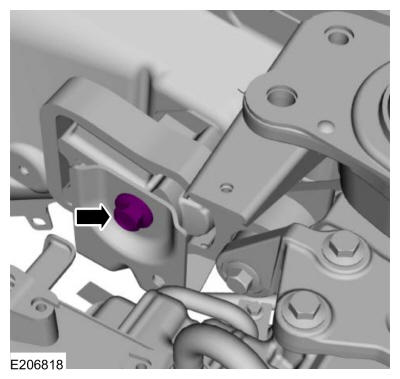

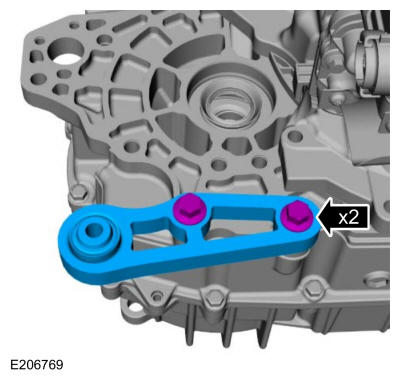

11. 1. Install the transmission support insulator bracket and new bolts.

       Torque

       : 66 lb.ft (90 Nm)

    2. Install a new transmission support insulator bracket bolt.

       Torque

       : 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

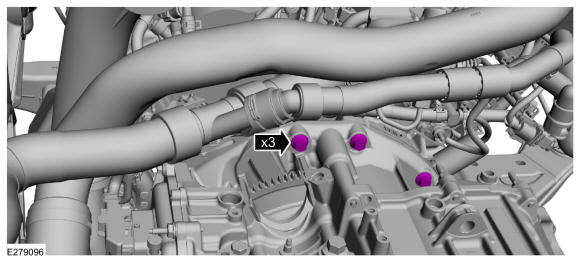

12. Install the upper transmission-to-engine bolts.

    Torque

    : 35 lb.ft (48 Nm)

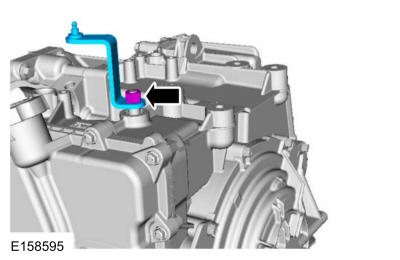

    Courtesy of FORD MOTOR COMPANY

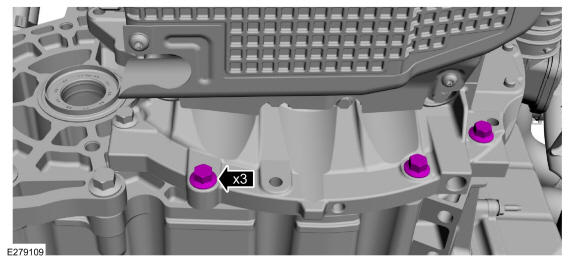

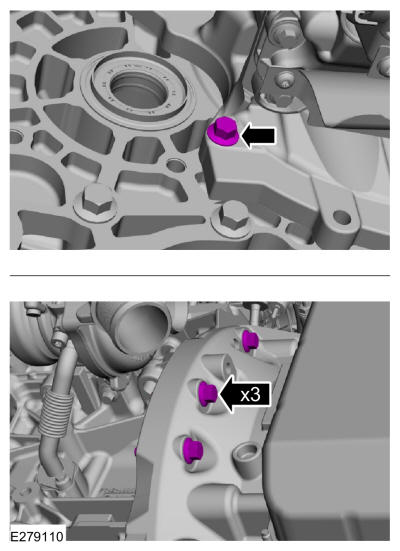

13. Install the lower transmission-to-engine bolts.

    Torque

    : 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

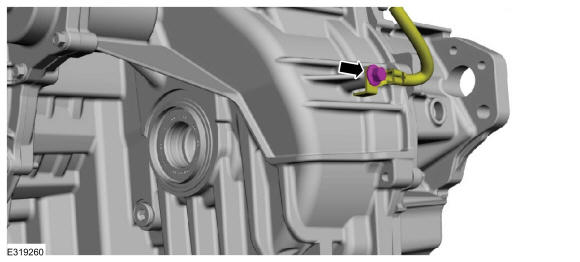

14. Position the ground cable and install the retainer.

    Torque

    : 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

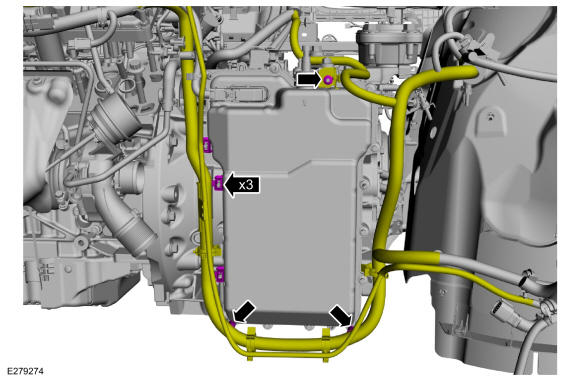

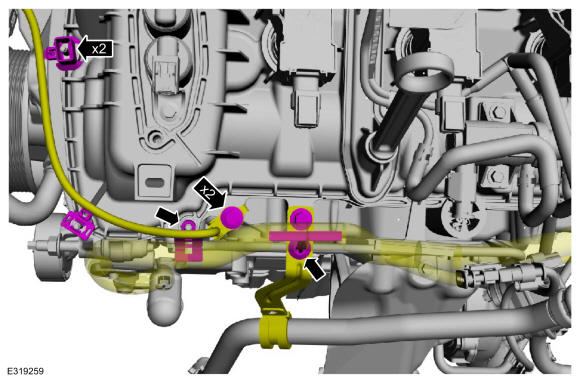

15. Position back the wiring harness, install the wiring harness retainers and the nut.

    Torque

    : 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

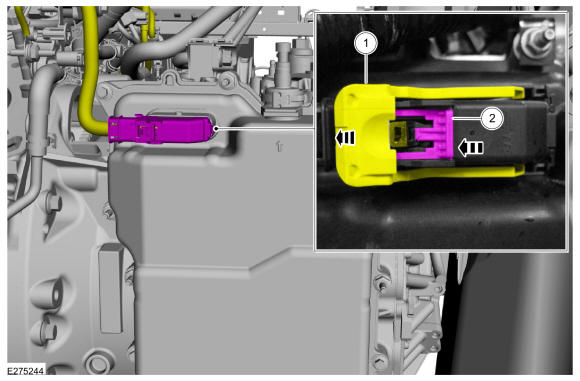

16. Connect the transmission electrical connector.
    1. Rotate the connector latch until it locks in place.
    2. Slide the locking clip back to its original position.

    Courtesy of FORD MOTOR COMPANY

17. Connect the TSS sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

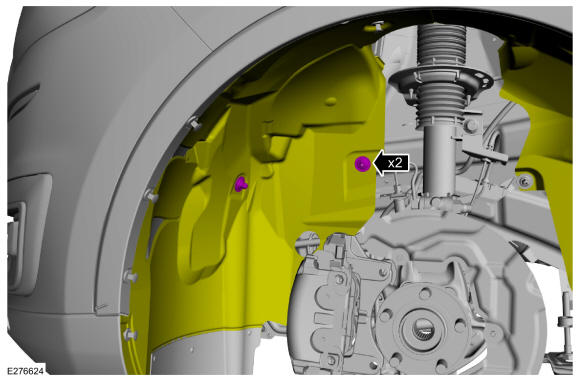

18. Position back the fender splash shield and install the retainers.

    Courtesy of FORD MOTOR COMPANY

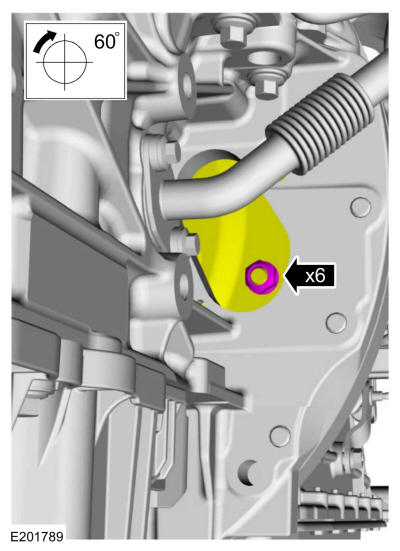

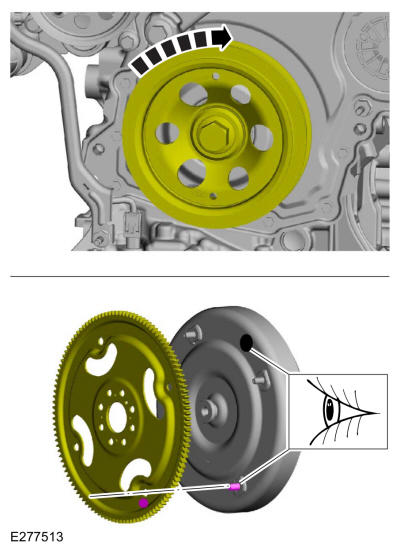

19. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Install the new torque converter nuts.

    Torque

    : 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

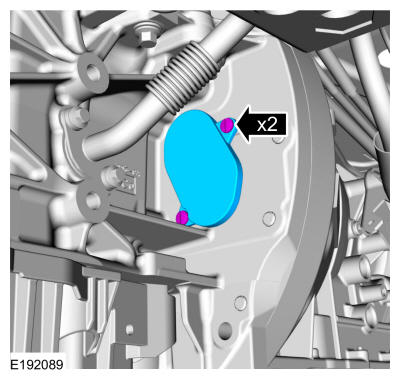

20. Install the access cover and the retainers.

    Courtesy of FORD MOTOR COMPANY

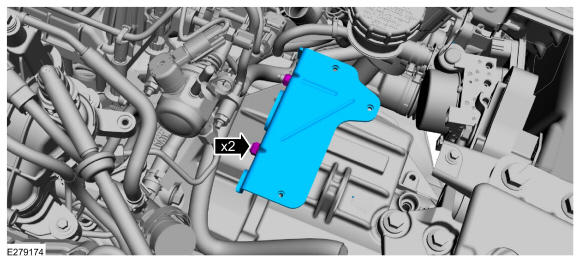

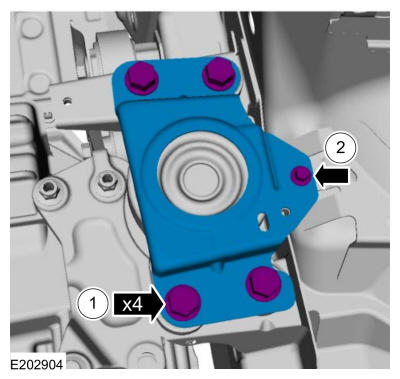

21. Install the roll restrictor bracket and new bolts.

    Torque

    : 92 lb.ft (125 Nm)

    Courtesy of FORD MOTOR COMPANY

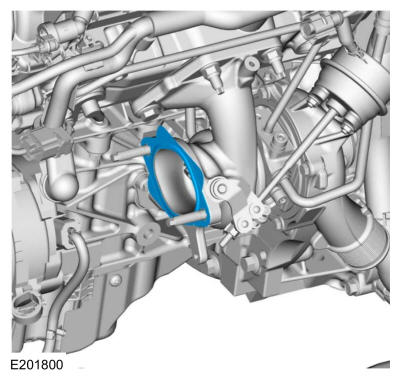

22. Install a new LH catalytic converter gasket.

    Courtesy of FORD MOTOR COMPANY

23. NOTE: Evenly tighten the fasteners during installation.

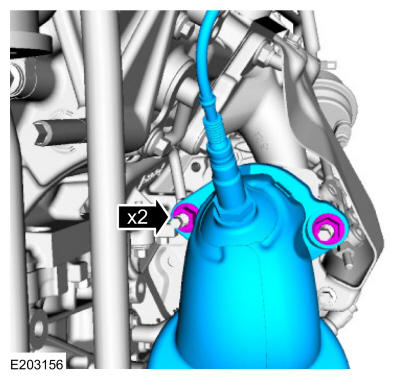

    Install the LH catalytic converter and the new nuts.

    Torque

    : 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

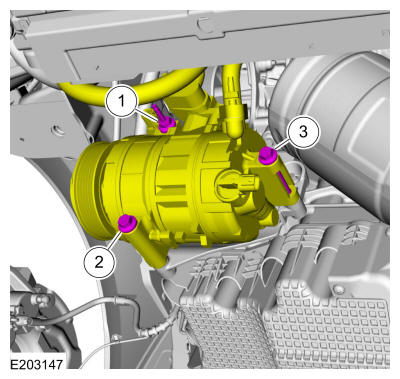

24. Tighten the A/C compressor bolts and studbolt in the sequence shown.
    1. Torque

       : 18 lb.ft (25 Nm)

    2. Torque

       : 18 lb.ft (25 Nm)

    3. Torque

       : 18 lb.ft (25 Nm)

    Fig 1: A/C Compressor Bolts Tightening Sequence

    Courtesy of FORD MOTOR COMPANY

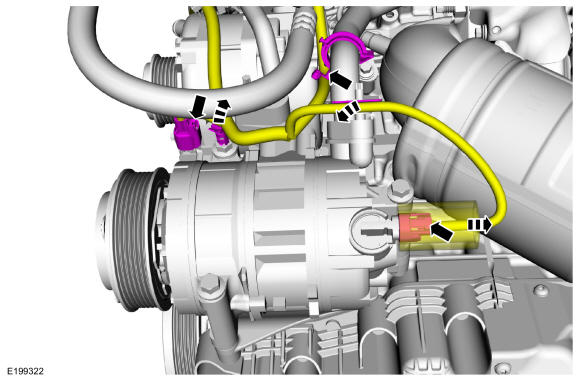

25. Connect the wiring harness retainers, connect the electrical connectors and slide up the insulator.

    Courtesy of FORD MOTOR COMPANY

26. Install the accessory drive belt tensioner. Refer to: Accessory Drive Belt Tensioner 2.7L EcoBoost .

    Vehicles with front wheel drive (FWD)

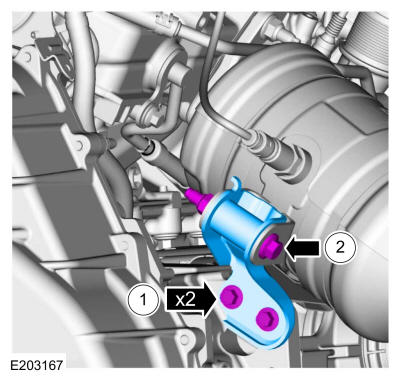

27. Install the catalytic converter bracket and the bolts.
    1. Torque

       : 22 lb.ft (30 Nm)

    2. Torque

       : 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

28. 1. Inspect the RH halfshaft seal surface.
    2. Inspect the differential side gear splines.

    Courtesy of FORD MOTOR COMPANY

29. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    Install a new RH halfshaft seal. Refer to: Halfshaft Seal RH - FWD  .

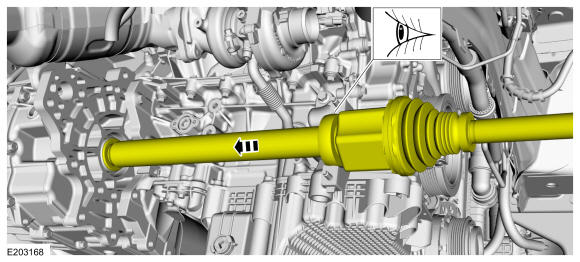

30. Install the RH halfshaft until the intermediate shaft bearing is centered in the intermediate shaft bearing support bracket.

    Courtesy of FORD MOTOR COMPANY

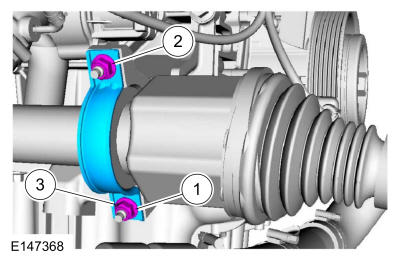

31. Install the new halfshaft retaining strap and the new halfshaft retaining strap nuts.

    Torque

    :Stage 1: 44 lb.in (5 Nm) Stage 2: 18 lb.ft (25 Nm) Stage 3: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

32. Install the LH halfshaft. Refer to: Front Halfshaft LH .
33. Install the starter motor. Refer to: Starter Motor (303-06 Starting System).
34. Position the ground wire and hose support, install the bolts. Attach the wire harness retainers to the studbolts and the hose support.

    Torque

    : 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

35. Connect the PCV tube.

    Courtesy of FORD MOTOR COMPANY

36. Install the vacuum harness pressure sensor and the bolt.

    Torque

    : 62 lb.in (7 Nm)

    Courtesy of FORD MOTOR COMPANY

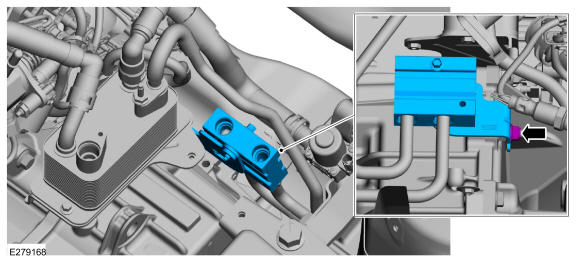

37. Install the transmission fluid warmer bracket and the nuts.

    Torque

    : 17 lb.ft (23 Nm)

    Courtesy of FORD MOTOR COMPANY

38. Position back the transmission fluid warmer and install the bolts.

    Torque

    : 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

39. Inspect and lubricate the band seal and backing ring.
    1. Backing ring (7J324).
    2. Band seal (7D285).

       Material

       : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

    Courtesy of FORD MOTOR COMPANY

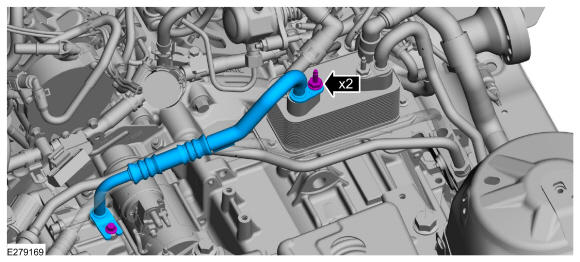

40. Install the transmission fluid warmer-to-cooler bypass valve tube and the bolt.

    Torque

    : 124 lb.in (14 Nm)

    Courtesy of FORD MOTOR COMPANY

41. Inspect and lubricate the band seal and backing ring.
    1. Backing ring (7J324).
    2. Band seal (7D285).

       Material

       : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

    Courtesy of FORD MOTOR COMPANY

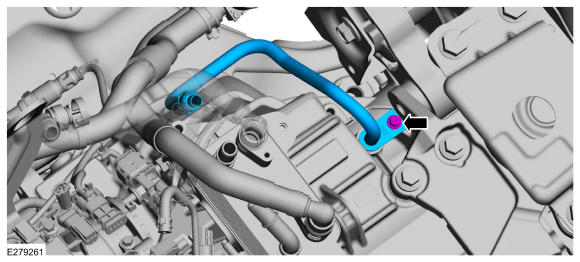

42. Install the transmission fluid warmer-to-cooler bypass valve tube and the bolt.

    Torque

    : 124 lb.in (14 Nm)

    Courtesy of FORD MOTOR COMPANY

43. Install the transmission fluid bypass valve and the nut.

    Torque

    : 17 lb.ft (23 Nm)

    Courtesy of FORD MOTOR COMPANY

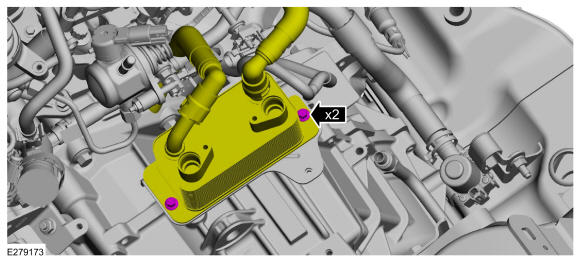

44. Tighten the transmission cooler line fittings.

    Torque

    : 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

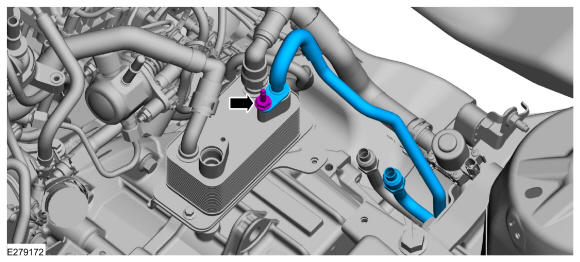

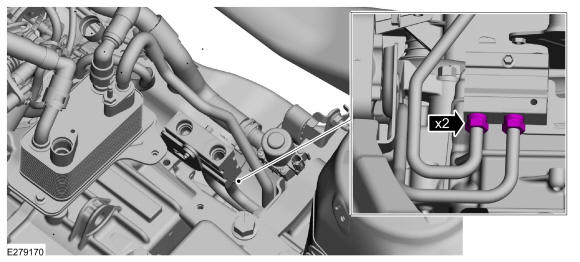

45. Position back the transmission fluid cooler tubes and tighten the fittings.

    Torque

    : 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

46. Inspect and lubricate the band seals and backing rings.
    1. Backing ring (7J324).
    2. Band seal (7D285).

       Material

       : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

    Courtesy of FORD MOTOR COMPANY

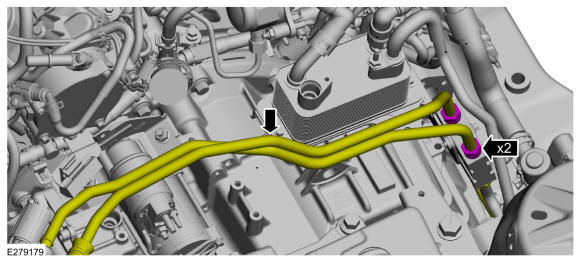

47. Install the transmission-to-transmission fluid warmer tube and the bolts.

    Torque

    : 124 lb.in (14 Nm)

    Courtesy of FORD MOTOR COMPANY

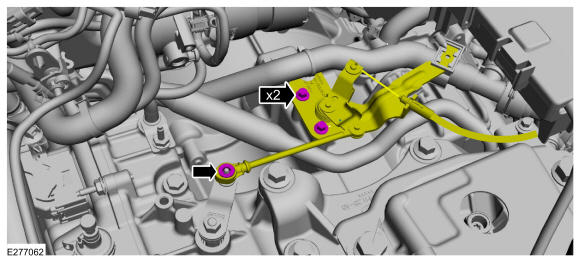

48. 1. Position back the cable and install the bolts.

       Torque

       : 62 lb.in (7 Nm)

    2. Attach the cable to the transmission control lever.

    Courtesy of FORD MOTOR COMPANY

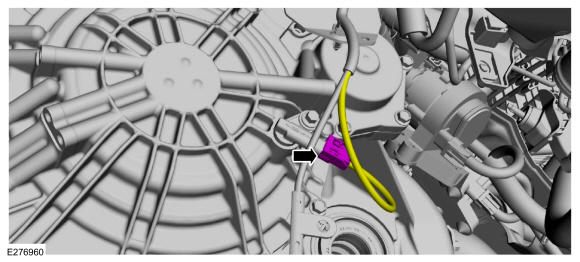

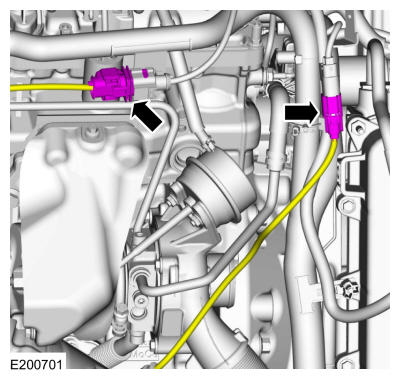

49. Connect the LHHO2S and the LH catalyst monitor sensor electrical connectors.

    Courtesy of FORD MOTOR COMPANY

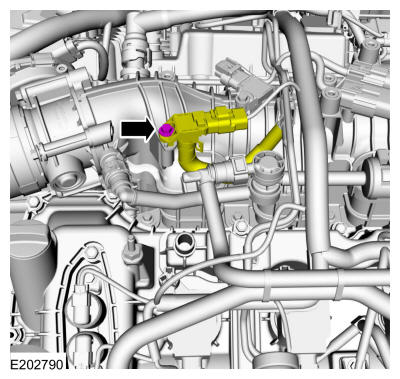

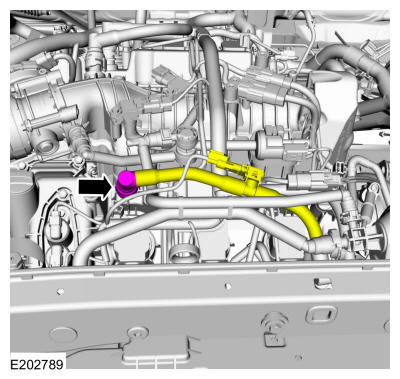

50. Install the RHCAC intake pipe, install the bolt and connect the electrical connectors.

    Torque

    : 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

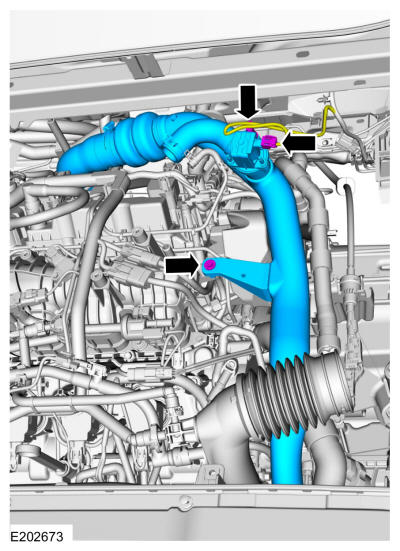

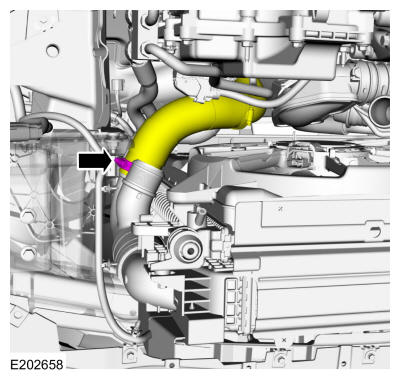

51. Install the RH air cleaner outlet pipe, install the bolt and connect the tubes.

    Torque

    : 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

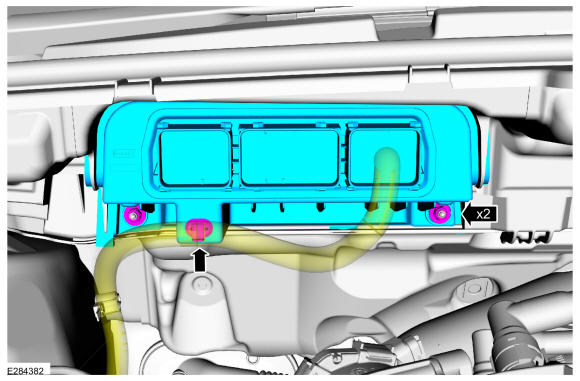

52. Install the PCM and the retainers.

    Torque

    : 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

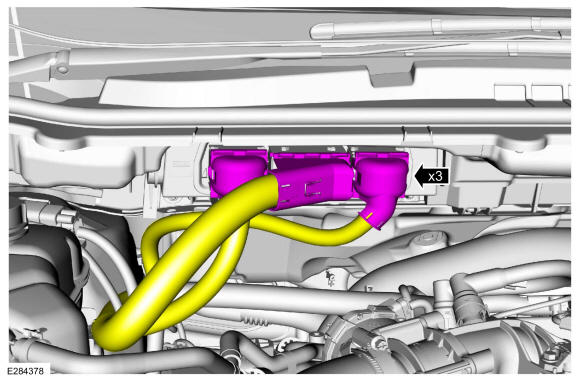

53. Connect the PCM harness connectors.

    Courtesy of FORD MOTOR COMPANY

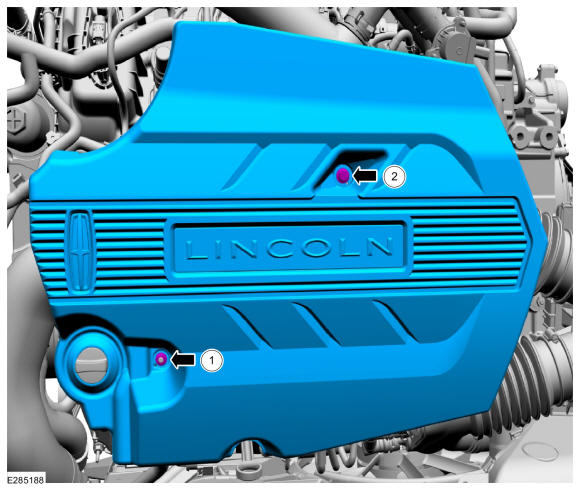

54. 1. Install the engine appearance cover and the nut.

       Torque

       : 44 lb.in (5 Nm)

    2. Install the bolt.

       Torque

       : 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

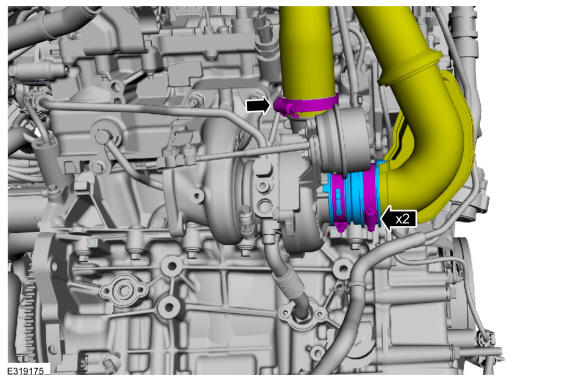

55. Connect the RHCAC intake pipe and tighten the clamp.

    Torque

    : 42 lb.in (4.8 Nm)

    Courtesy of FORD MOTOR COMPANY

56. Install the LHCAC intake pipe.

    Torque

    : 42 lb.in (4.8 Nm)

    Courtesy of FORD MOTOR COMPANY

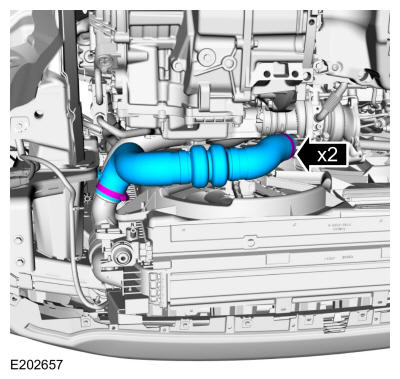

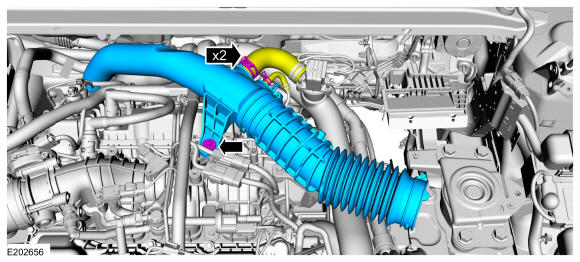

57. Install the coupler and the clamps onto the RH air cleaner outlet pipe. Connect the RH air cleaner outlet pipe and the RHCAC intake pipe and tighten the clamps.

    Torque

    : 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

    All wheel drive (AWD)

58. Install the transfer case. Refer to: Power Transfer Unit - Vehicles With: Power Transfer Unit Oil-to-Coolant Cooler 2.7L EcoBoost .

    Vehicles with front wheel drive (FWD)

59. Install the front subframe. Refer to: Front Subframe .

    All vehicles

60. NOTE: RH shown, LH similar.

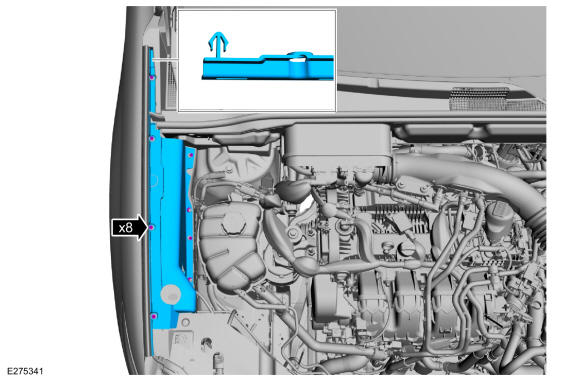

    Install the RH and LH cowl filler panels and the retainers.

    Courtesy of FORD MOTOR COMPANY

61. Install the following items:
    1. Refer to: Battery Tray .
    2. Refer to: Cowl Panel Grille .

62. Fill the transmission with transmission fluid. Refer to: Transmission Fluid Drain and Refill  .
63. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
64. If a new main control body is installed, the solenoid body strategy must be updated. Refer to: Transmission Strategy Download  .

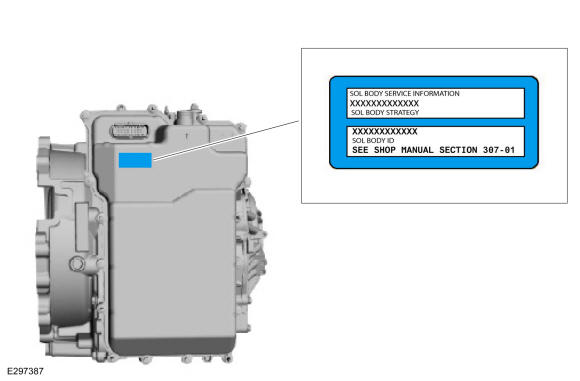

65. If a new main control valve body is installed, install a new solenoid body identification tag.

Courtesy of FORD MOTOR COMPANY
