Power Transfer Unit - Vehicles With: Power Transfer Unit Oil-to-Coolant Cooler

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

NOTE: This step is only necessary when installing a new PTU or replacing a PTU seal.

If equipped, install the PTU temperature sensor harness bracket.

Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new PTU to transmission compression seal.

Courtesy of FORD MOTOR COMPANY

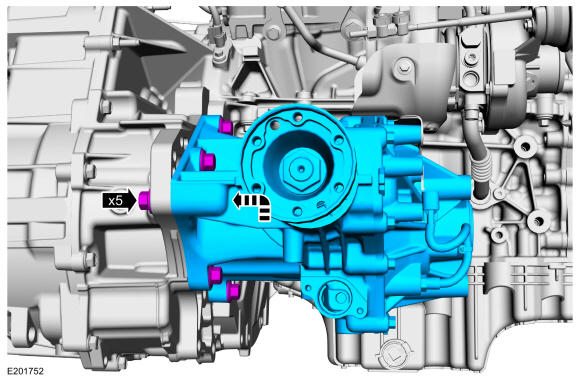

Install the PTU and mounting bolts.
Torque: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY

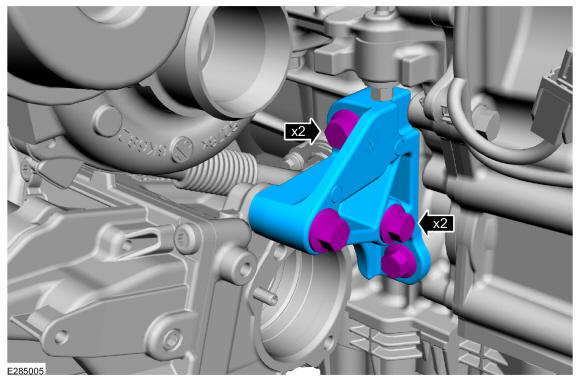

Install the PTU support bracket and bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install the intermediate shaft. Refer to: Intermediate Shaft
Install the vent hose retainer.

Courtesy of FORD MOTOR COMPANY
NOTE: The PTU vent hose should be replaced whenever a new PTU is installed.

Connect the PTU vent hose.

Courtesy of FORD MOTOR COMPANY
Install the coolant pump and hoses. Install the pump mounting nuts.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure to remove the hose clamp pliers.

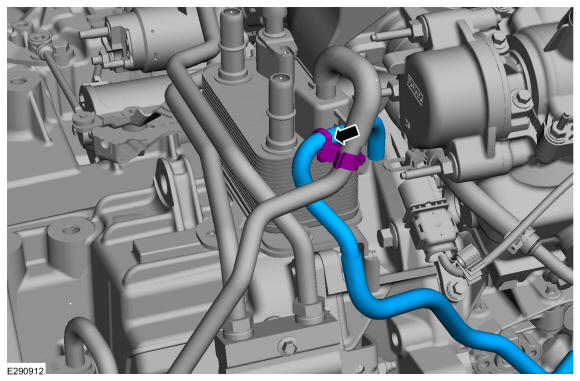

Install the PTU cooling system hoses and connect the hose clamps.

Courtesy of FORD MOTOR COMPANY
If equipped, connect the PTU temperature sensor and install retainers.

Courtesy of FORD MOTOR COMPANY
Connect the PTU motor connectors.

Courtesy of FORD MOTOR COMPANY
Connect the auxiliary pump connector and retainers.

Courtesy of FORD MOTOR COMPANY
Install the PTU heat shield and PTU heat shield bolts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

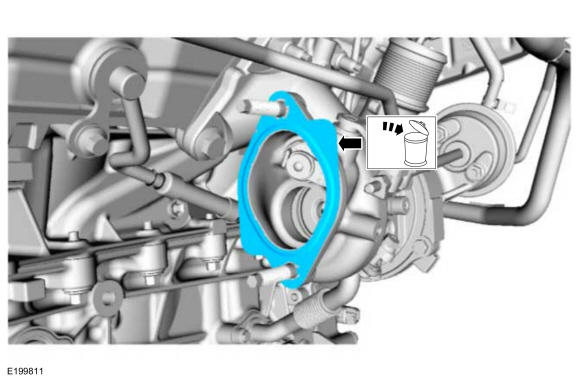

Install the new converter gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Evenly tighten the fasteners during installation.

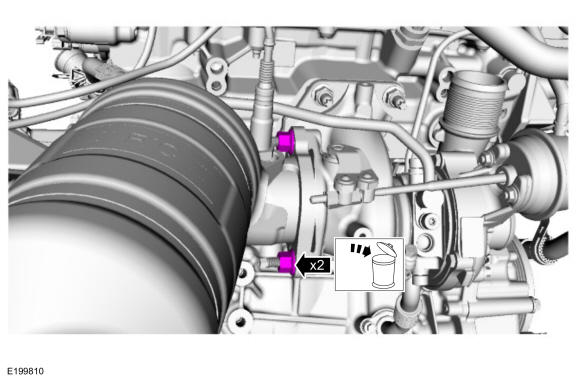

Install the RH catalytic converter and the new RH catalytic converter nuts.

Courtesy of FORD MOTOR COMPANY
NOTE: Loosely install the RH catalytic converter to transmission bracket through bolt before the RH catalytic converter bracket bolts are installed.

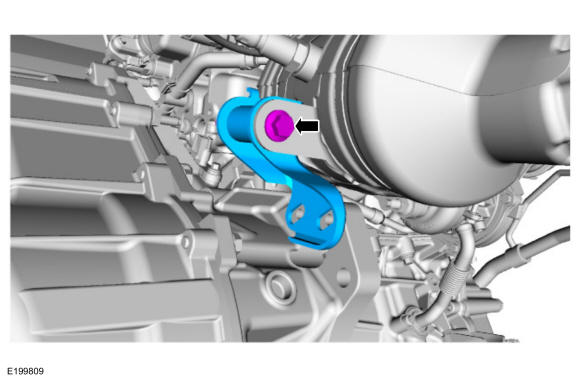

Install the RH catalytic converter bracket through bolt.

Courtesy of FORD MOTOR COMPANY

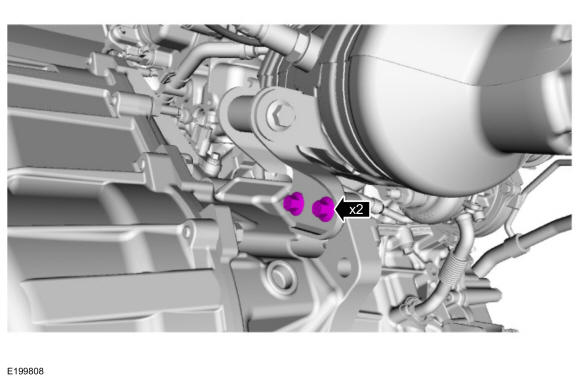

Install the RH catalytic converter to transmission bracket bolts.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the installation marks are aligned.

Courtesy of FORD MOTOR COMPANY

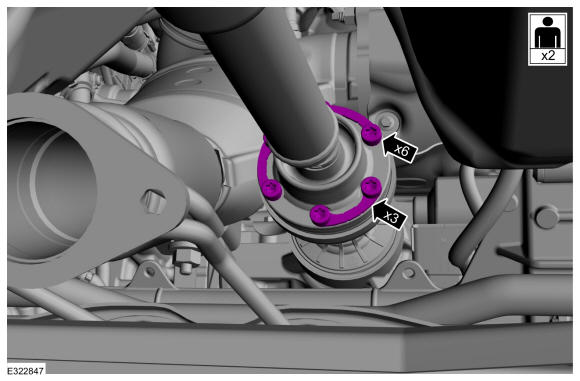

Install new PTU flange bolts.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

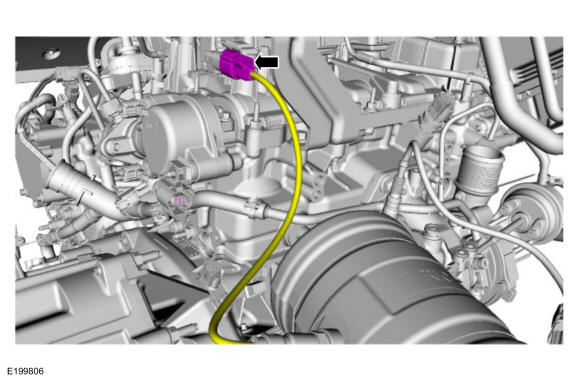

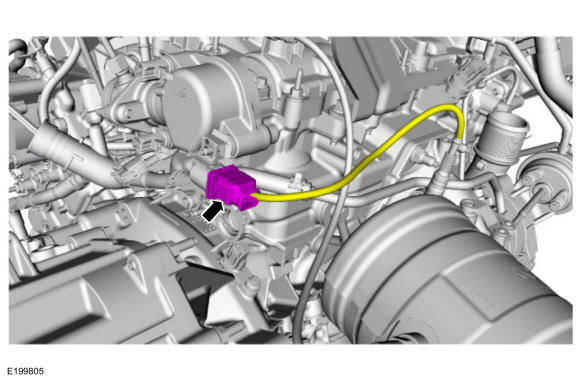

Connect the catalyst monitor sensor.

Courtesy of FORD MOTOR COMPANY
Connect the HO2S.

Courtesy of FORD MOTOR COMPANY
Install the intermediate shaft. Refer to: Intermediate Shaft
Fill the PTU. Refer to: Power Transfer Unit Draining and Filling .
Install the front subframe. Refer to: Front Subframe
