Halfshaft Seal RH - AWD: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the power transfer unit. Refer to: Power Transfer Unit - Vehicles With: Power Transfer Unit Oil-to-Coolant Cooler 2.7L EcoBoost .
  2. Using a punch, poke a small hole in the halfshaft seal. Use the General Equipment: Punch
    GFD427798Courtesy of FORD MOTOR COMPANY

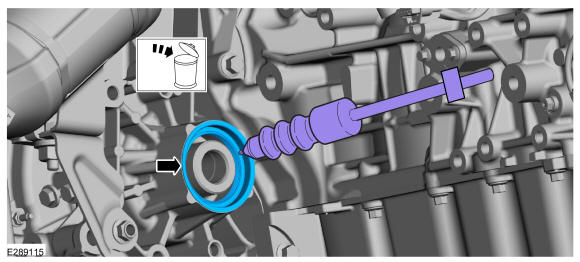

  3. Using a dent puller, remove and discard the halfshaft seal. Use the General Equipment: Puller
GFD427799Courtesy of FORD MOTOR COMPANY
