Halfshaft Seal RH - AWD: Installation
WARNING: This page is about a different variant/trim than selected.

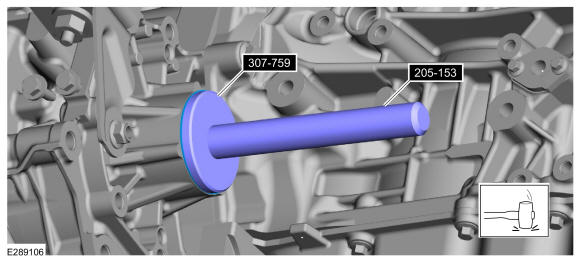

- Install a new halfshaft seal on the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-759 Installer, Axle Seal -AWD.
- Using the special tools, install the LH halfshaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-758 Installer, Axle Seal -FWD.
- Install the power transfer unit. Refer to: Power Transfer Unit - Vehicles With: Power Transfer Unit Oil-to-Coolant Cooler 2.7L EcoBoost .
- Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
