Halfshaft Seal LH: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install a new halfshaft seal on the special tool. Use Special Service Tool: 307-758 Installer, Axle Seal -FWD., 205-153 (T80T-4000-W) Handle.
    GFD427793Courtesy of FORD MOTOR COMPANY

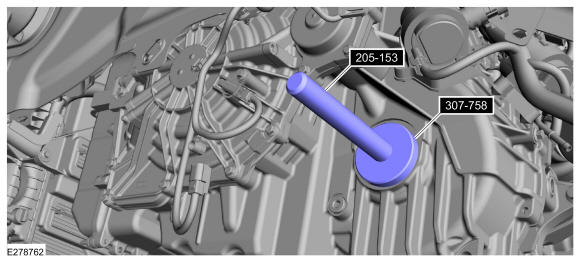

  2. Using the special tool, install the LH halfshaft seal. Use Special Service Tool: 307-758 Installer, Axle Seal -FWD., 205-153 (T80T-4000-W) Handle.
    GFD428362Courtesy of FORD MOTOR COMPANY
  3. Install the front LH halfshaft. Refer to: Front Halfshaft LH .
  4. Check the transmission fluid level. Refer to: Transmission Fluid Level Check  .
