Transmission Fluid Level Check

WARNING: This page is about a different variant/trim than selected.

Special Tool(s) / General Equipment

Funnel

Materials

Name	Specification
Motorcraft® MERCON® ULV Automatic Transmission FluidXT-12-QULV	WSS-M2C949-A, MERCON® ULV

Check

Connect the diagnostic scan tool to the vehicle. Monitor the TFTPID.
With the engine running in PARK on a level surface make sure the transmission is at normal operating temperature 85-93 deg. C (185-200 deg. F). If necessary, drive the vehicle until the transmission is at normal operating temperature 85-93 deg.C (185-200 deg.F).
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the air cleaner. Refer to: Air Cleaner 2.7L EcoBoost .

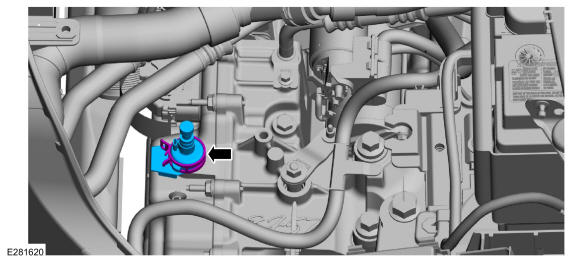

Remove the transmission vent.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner. Refer to: Air Cleaner 2.7L EcoBoost .

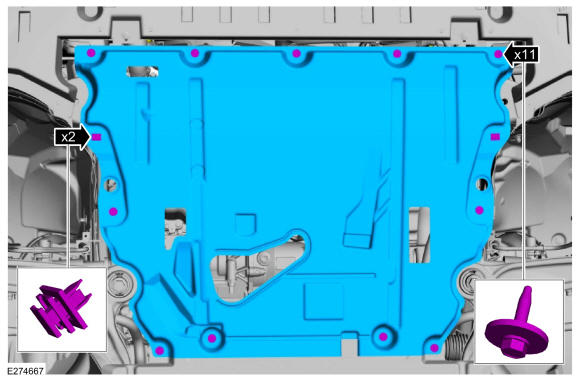

Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

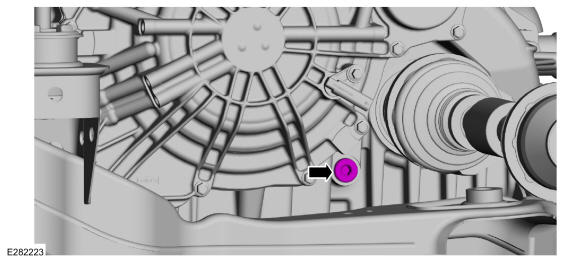

With the engine running in PARK, remove the oil leveling plug and check if transmission fluid seeps out of the oil leveling plug hole.

Courtesy of FORD MOTOR COMPANY
Add clean transmission fluid in increments of 0.25L (0.5 pt) until the transmission fluid is running down the transmission case. Use the General Equipment: Funnel
Material

: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

Courtesy of FORD MOTOR COMPANY
Video
multimedia:A supplement to the article is available.

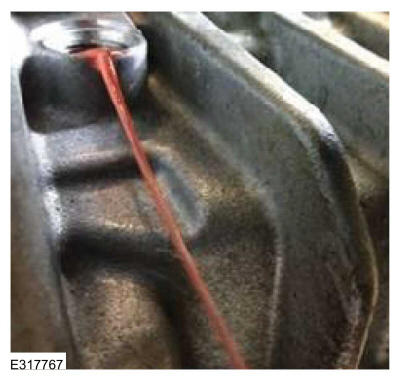

NOTE: Transmission fluid level correct.

Transmission fluid level correct.

Courtesy of FORD MOTOR COMPANY

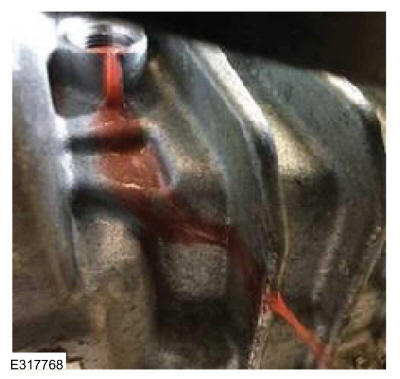

NOTE: Transmission fluid overfilled.

Transmission fluid overfilled.

Courtesy of FORD MOTOR COMPANY

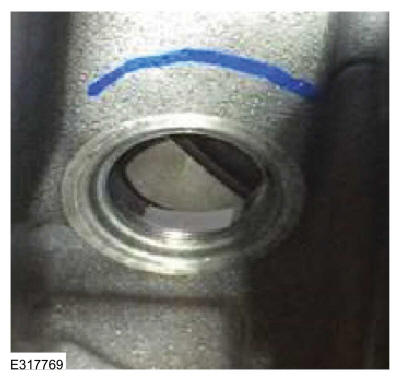

NOTE: Transmission fluid level low.

Transmission fluid level low.

Courtesy of FORD MOTOR COMPANY
Install the oil leveling plug.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

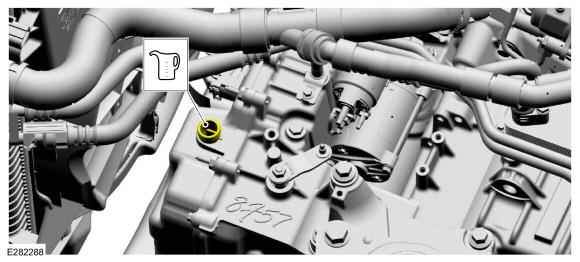

Add 0.5L (1 pt) of clean transmission fluid.
Material

: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

Courtesy of FORD MOTOR COMPANY
Remove the air cleaner. Refer to: Air Cleaner 2.7L EcoBoost .
Install the transmission vent.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner. Refer to: Air Cleaner 2.7L EcoBoost .
Install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
