Main Control Valve Body

Special Tool(s) / General Equipment

Materials

Main Control Valve Body and Solenoid Body

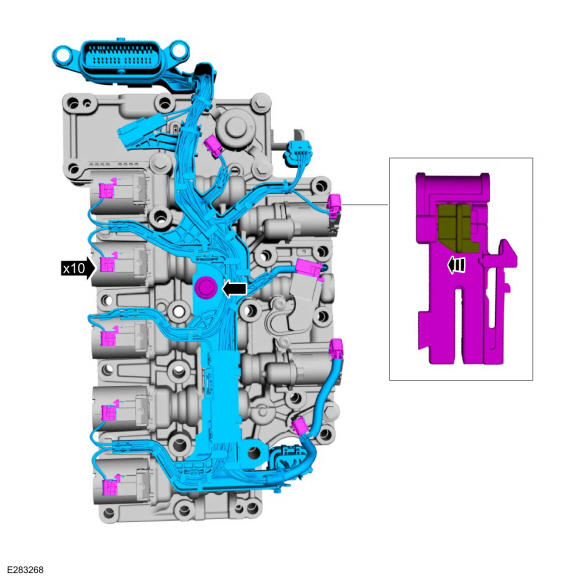

1. Unlock and disconnect the solenoid electrical connectors and the TFT sensor electrical connector. Disconnect the transmission fluid pressure sensor electrical connector. Remove the bolt and the wiring harness assembly.

   Courtesy of FORD MOTOR COMPANY

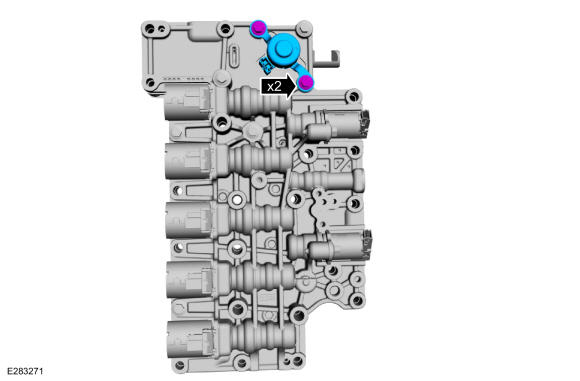

2. Remove the bolts and the transmission fluid pressure sensor.

   Courtesy of FORD MOTOR COMPANY

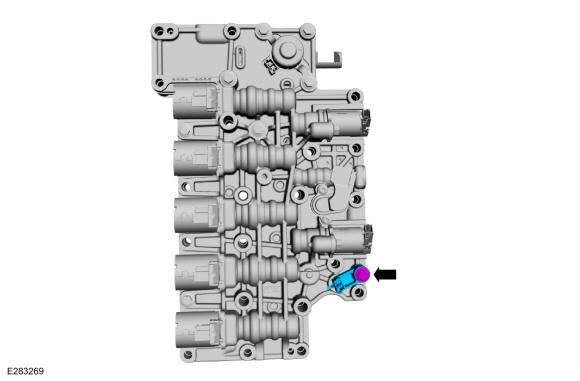

3. Remove the bolt and the TFT sensor.

   Courtesy of FORD MOTOR COMPANY

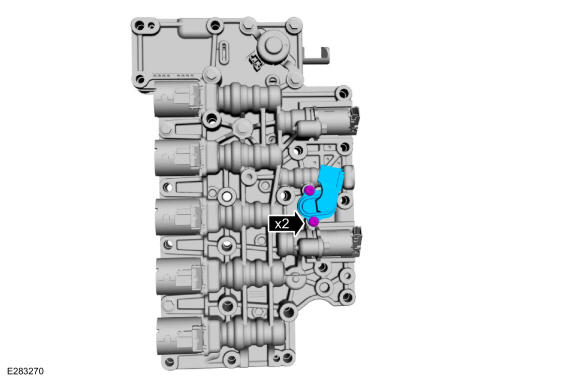

4. Remove the bolts and the park lock pawl solenoid.

   Courtesy of FORD MOTOR COMPANY

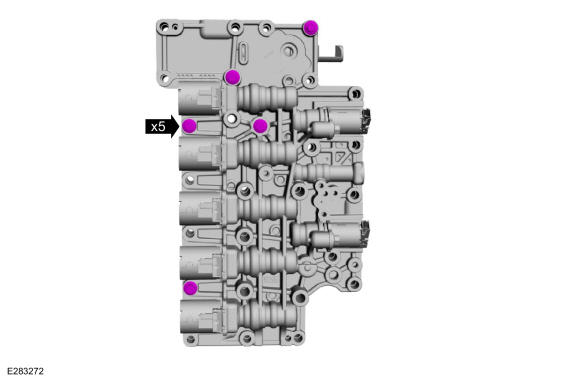

5. Remove the solenoid body-to-main control bolts.

   Courtesy of FORD MOTOR COMPANY

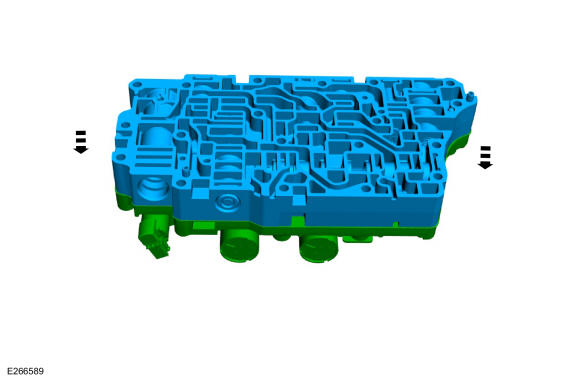

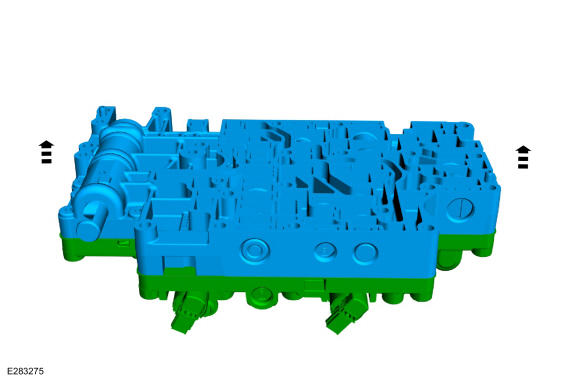

6. Remove the main control valve body from the solenoid body.

   Courtesy of FORD MOTOR COMPANY

   Main Control Valve Body and Solenoid Body

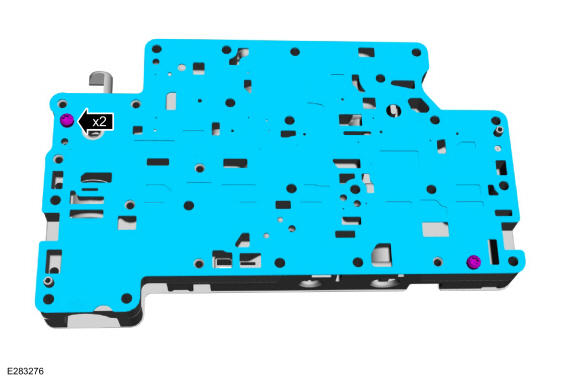

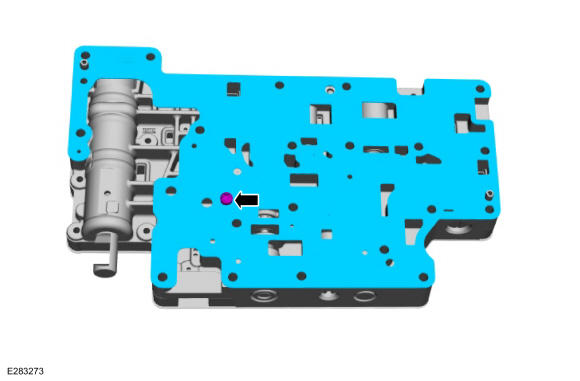

7. Remove the bolts and the solenoid body to main control valve body separator plate.

   Courtesy of FORD MOTOR COMPANY

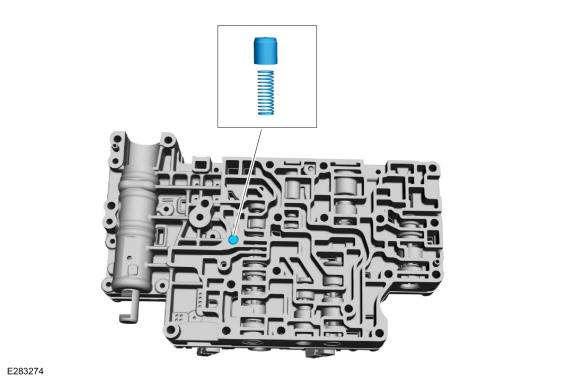

8. Remove the bypass valve and spring.

   Courtesy of FORD MOTOR COMPANY

9. Remove the bolts and the solenoid body to main control valve body separator plate.

   Courtesy of FORD MOTOR COMPANY

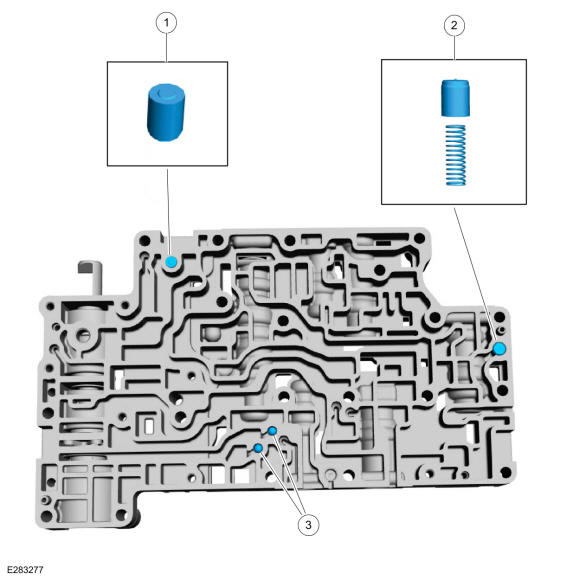

10. Remove the following items.
    1. Solenoid damper
    2. Bypass valve and spring
    3. Check ball

    Courtesy of FORD MOTOR COMPANY

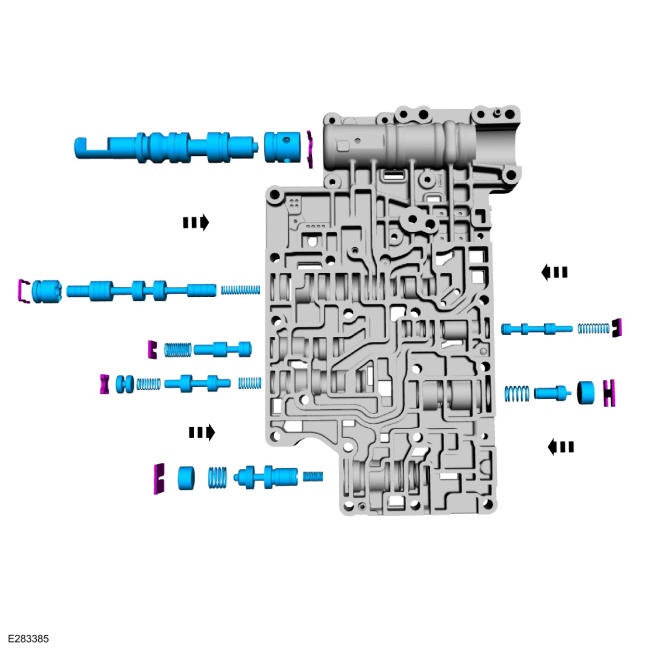

11. NOTE: Remove the valves by tapping the valve body on the palm of the hand to slide the valves out of the bores or by threading a 4-mm bolt into the valves and pulling them out. If it is necessary to use a pick, use extreme caution to prevent damaging the valves or valve bores. If necessary, disassemble parts of the main control valve body in small groups. Arrange the parts as they are removed to avoid mixing similar pieces.

    Compress the valve springs with a screwdriver and remove the retainers with a magnet. Use a pick to remove the bypass valve retainer. Remove the individual valves and springs from the main control valve body by tapping the valve body on the palm of the hand to slide the valves out of the bores. Use the General Equipment: Flat Headed Screw Driver

    Courtesy of FORD MOTOR COMPANY

12. NOTE: Do not stone or polish any valves or damage to the valves can occur. If the valves do not move freely, install a new assembly.

    Clean the valves, springs and main control valve body.

    Courtesy of FORD MOTOR COMPANY

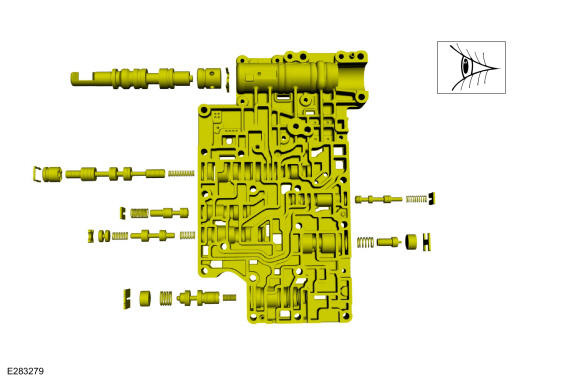

13. Install the valve body valves, springs and retaining clips in the main control valve body. For valve and spring locations. Refer to: Main Control Valve Body .

    Courtesy of FORD MOTOR COMPANY

14. Install the following items.
    1. Solenoid damper
    2. Bypass valve and spring
    3. Check ball

    Courtesy of FORD MOTOR COMPANY

15. Install the seperator plate and the bolts.

    Torque

    : 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

16. Install the spring and bypass valve

    Courtesy of FORD MOTOR COMPANY

17. Install the solenoid body to main control valve body separator plate and the bolt.

    Torque

    : 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

    Solenoid Body

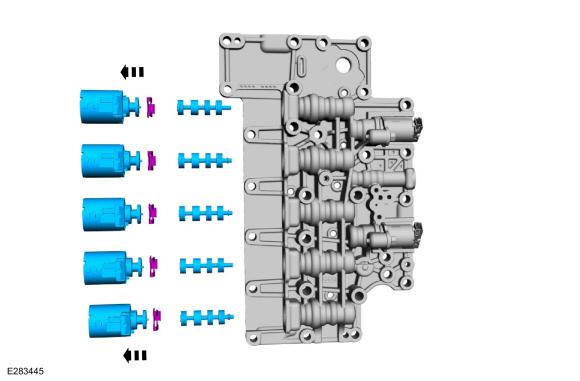

18. Compress the valve spring with a screwdriver and remove the retainer with a magnet. Remove the valve and spring from the solenoid body by tapping the solenoid body on the palm of the hand to slide the valve out of the bore.

    Courtesy of FORD MOTOR COMPANY

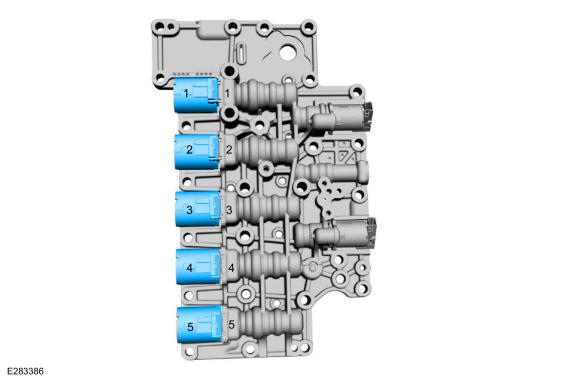

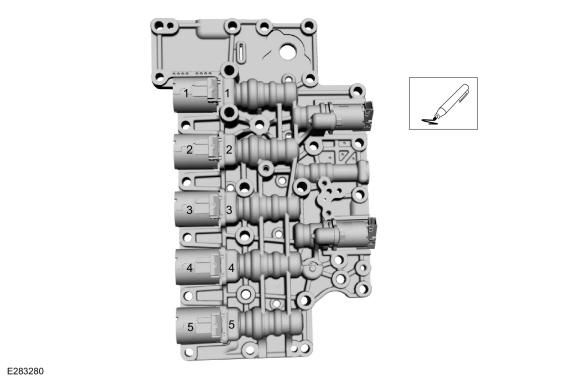

19. Using a paint marker, number the solenoids and the solenoid body to correspond with the ports from which the solenoids are located in the solenoid body.

    Courtesy of FORD MOTOR COMPANY

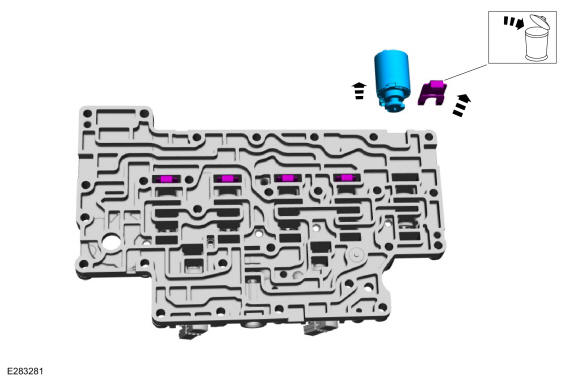

20. Remove and discard the transmission shift solenoid clip and remove the transmission shift solenoid.

    Courtesy of FORD MOTOR COMPANY

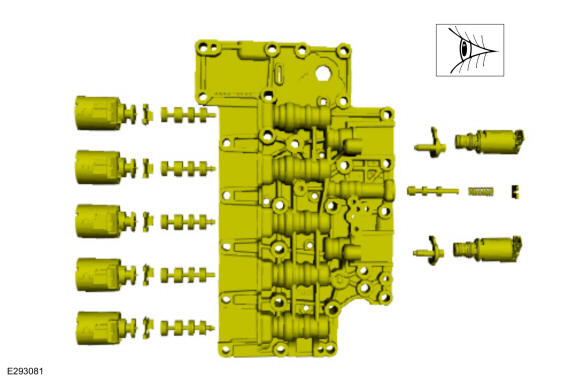

21. Remove the shift solenoids and valves.

    Courtesy of FORD MOTOR COMPANY

22. NOTE: Failure to install the components in the correct location will result in harsh/soft or no shifts or damage to the transmission.

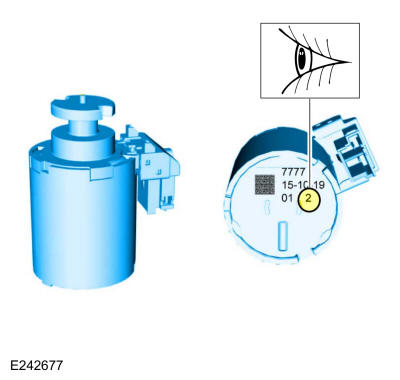

    If new solenoids are needed, identify the solenoid band number.

    Courtesy of FORD MOTOR COMPANY

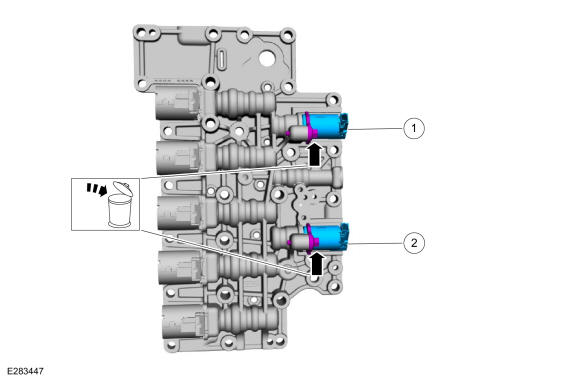

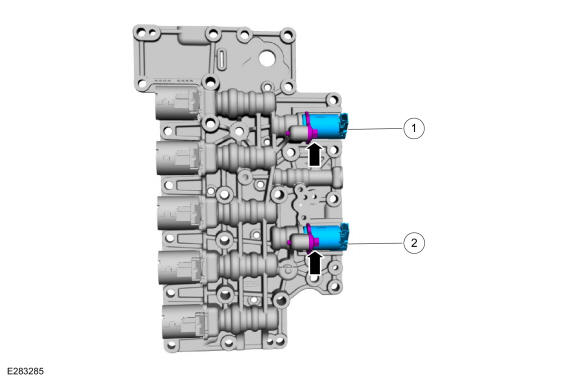

23. Remove and discard the transmission solenoid hold down clamp bolts, remove the clamps and transmission solenoids.
    1. The TCC solenoid is identified by the green electrical connector.
    2. The LPC solenoid is identified by the blue electrical connector.

    Courtesy of FORD MOTOR COMPANY

24. Inspect the solenoid screens for debris that may restrict fluid flow through the screen.

    Courtesy of FORD MOTOR COMPANY

25. NOTE: Be careful not to wash the numbers from the solenoids or the solenoid body. Failure to install the solenoids in the ports they were originally in can result in damage to the transmission or a harsh shift.
    NOTE: Do not stone or polish any valves or damage to the valves can occur. If the valves do not move freely during assembly, install a new solenoid body.

    Clean and inspect the solenoid body, solenoids and valve assemblies for damage.

    Courtesy of FORD MOTOR COMPANY

26. Install the transmission shift control valves and the transmission shift control solenoids and new clips.

    Courtesy of FORD MOTOR COMPANY

27. NOTE: The A-F clutches use linear force solenoids, the CIDAS are all normally low solenoids.
    1. SSF solenoid part number 7J136
    2. SSE solenoid part number 7J136
    3. SSA solenoid part number 7J136
    4. SSC solenoid part number 7J136
    5. SSB solenoid part number 7J136

    Courtesy of FORD MOTOR COMPANY

28. Lubricate the transmission solenoid O-rings with clean transmission fluid.

    Material

    : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

    Courtesy of FORD MOTOR COMPANY

29. NOTE: If installing a new Variable Force Solenoid (VFS), determine the base part number of the solenoid(s). The TCC solenoid is a normally low pressure solenoid. The LPC solenoid is a normally high pressure solenoid.

    Install the transmission solenoids, hold down clamps and new bolts.

    1. The TCC solenoid is identified by the green electrical connector. The TCC solenoid part number 7G136.
    2. The LPC solenoid is identified by the blue electrical connector. The LPC solenoid part number 7G383.

       Torque

       : 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

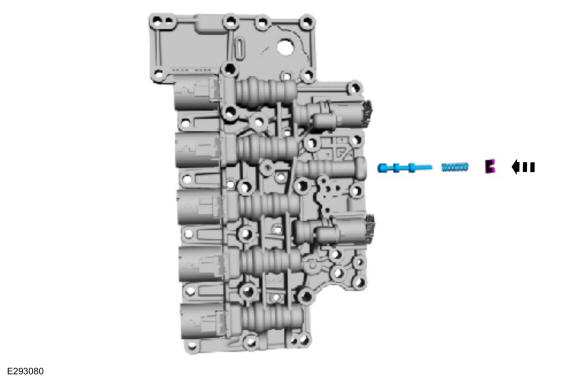

30. Install the valve, spring and retainer in the solenoid body

    Courtesy of FORD MOTOR COMPANY

    Main Control Valve Body and Solenoid Body

31. Install the main control body to the solenoid body.

    Courtesy of FORD MOTOR COMPANY

32. Install the solenoid body-to-main control bolts.

    Torque

    : 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

33. Install the park lock pawl solenoid and bolts.

    Torque

    : 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

34. Lubricate transmission temperature sensor O-ring with clean transmission fluid.

    Material

    : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

    Courtesy of FORD MOTOR COMPANY

35. Install the TFT sensor and bolt.

    Torque

    : 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

36. Lubricate transmission fluid pressure sensor O-rings with clean transmission fluid.

    Material

    : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

    Courtesy of FORD MOTOR COMPANY

37. Install the transmission fluid pressure sensor and bolts.

    Torque

    : 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

38. Install the transmission wiring harness assembly and install the bolt. Connect the transmission shift solenoid electrical connectors and the TFT sensor electrical connector and lock the connectors. Connect the transmission fluid pressure sensor electrical connector.

    Torque

    : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
