Main Control Valve Body
WARNING: This page is about a different variant/trim than selected.

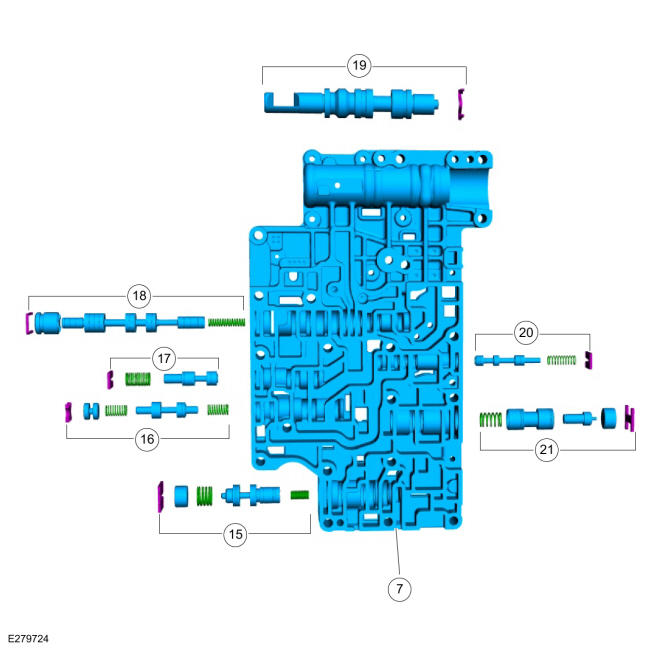

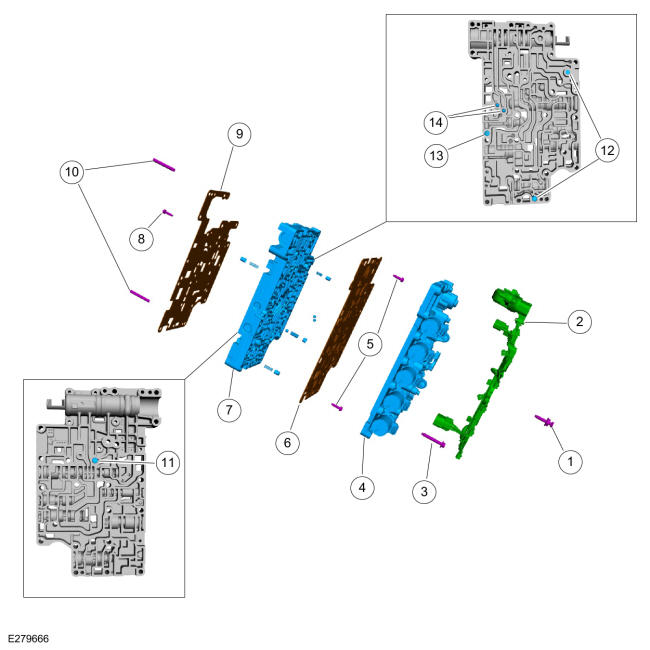

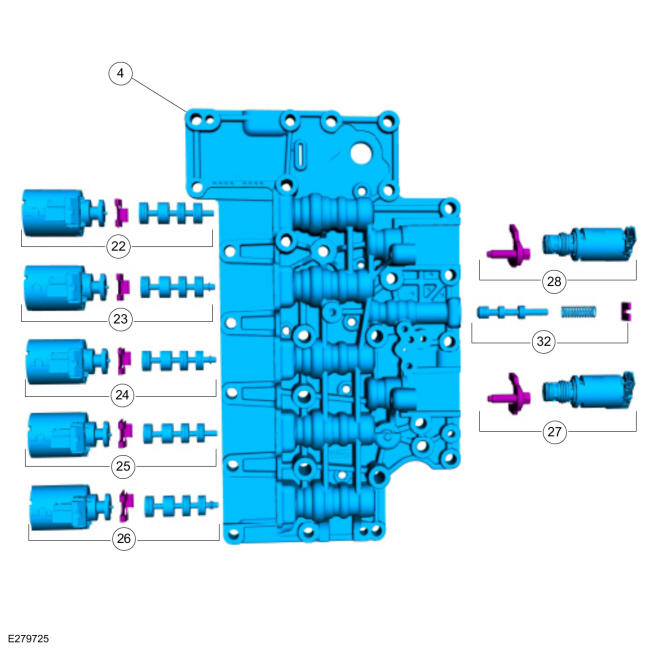

| Item | Description |
|---|---|
| 1 | Transmission internal wiring harness frame bolt |
| 2 | Transmission internal wiring harness frame |
| 3 | Solenoid body-to-main control bolt (7 required) |
| 4 | Solenoid body |
| 5 | Seperator plate-to-main control bolt (2 required) |
| 6 | Solenoid body-to-main control seperator plate |
| 7 | Main control |
| 8 | Seperator plate-to-main control bolt |
| 9 | Main control-to-transmission case seperator plate |
| 10 | Dowel pins (2 required) |
| 11 | Solenoid damper |
| 12 | Solenoid damper and spring (2 required) |
| 13 | Valve retaining plug |
| 14 | Check ball (2 required) |
| 15 | Pressure regulator valve |
| 16 | Check valve |
| 17 | Converter regulator valve |
| 18 | Bypass control/converter regulator valve assembly |
| 19 | Park valve |
| 20 | Lubrication control valve |
| 21 | Oil cooler/lubrication control valve assembly |
| 22 | F (2, 8) clutch shift solenoid/control valve |
| 23 | E (5, 6, 7, 8) clutch shift solenoid/control valve |
| 24 | A (1, 2, 3, 4, 5) clutch shift solenoid/control valve |
| 25 | C (3, 7) clutch shift solenoid/control valve |
| 26 | B (4, 6, R) clutch shift solenoid/control valve |
| 27 | LPC solenoid |
| 28 | TCC solenoid |
| 29 | Park lock pawl solenoid |
| 30 | LPC sensor |
| 31 | TFT sensor |
| 32 | B (4, 6, R) clutch latch valve |

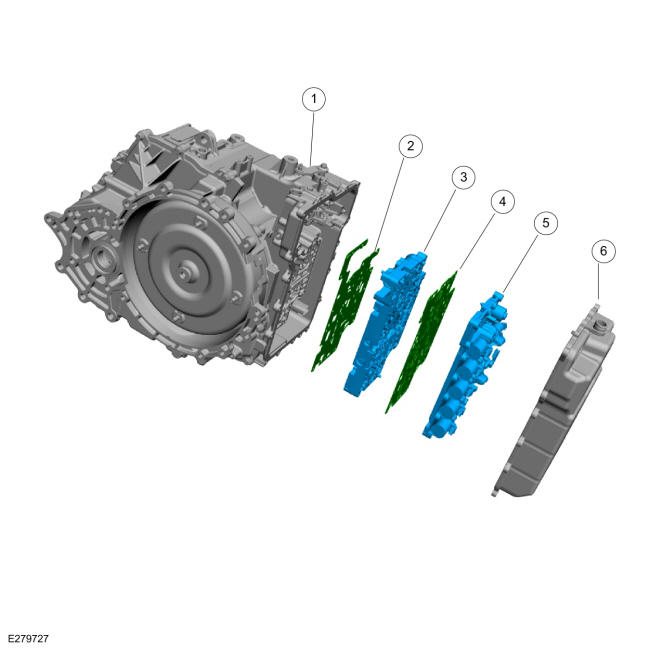

Main Control Components
| Item | Description |
|---|---|
| 1 | Transmission case |
| 2 | Main control-to-transmission case seperator plate |
| 3 | Main control |
| 4 | Solenoid body-to-main control seperator plate |
| 5 | Solenoid body assembly |
| 6 | Main control cover |
The main control assembly consists of a valve body and a solenoid body. Both the valve body and the solenoid body contain hydraulic shift valves. The solenoid body contains the shift solenoids that control the hydraulic valves. The solenoid body can be serviced with the main control or the solenoids can be serviced individually. The solenoid body is controlled by the PCM. The PCM has software stored in it specific to the solenoid body currently in the transmission, called the solenoid body strategy. A new solenoid body strategy must be downloaded into the PCM anytime a new solenoid body is installed.
