Transmission Case Reseal

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	100-001 (T50T-100-A) Slide Hammer
Courtesy of FORD MOTOR COMPANY	100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge
Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle
Courtesy of FORD MOTOR COMPANY	303-D020 (D80L-100-R) Collet, 7/8 to 1
Courtesy of FORD MOTOR COMPANY	307-091 Handle, Torque Converter TKIT-2009TC-F
Courtesy of FORD MOTOR COMPANY	307-300 Gauge Bar, Shim Selection TKIT-1994-LMH/MH2TKIT-1994-FTKIT-1994-FLM/FM
Courtesy of FORD MOTOR COMPANY	307-346 (T97T-7902-A) Retainer, Torque Converter TKIT-1998-LM (NavigatoR)TKIT-1997-F/FLM/LT
Courtesy of FORD MOTOR COMPANY	307-575 Converter Seal Installer TKIT-2006UF-FLMTKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	307-585 Support seal installer TKIT-2006UF-FLMTKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	307-758 Installer, Axle Seal -FWD
Courtesy of FORD MOTOR COMPANY	307-773 Bench Mount Fixture
Puller
Caliper Gauge

Materials

Repair

1. Remove the transmission. Refer to: Transmission  .
2. For information on component views and base part numbers. Refer to: Transmission Description .

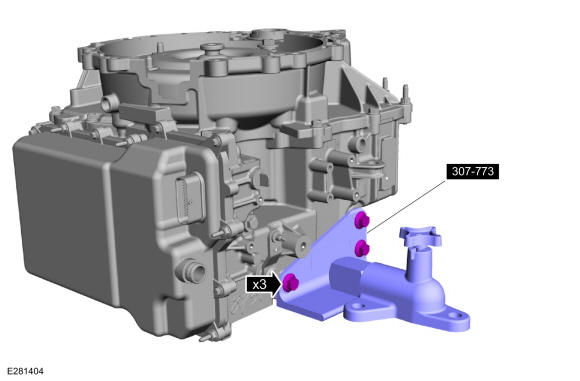

3. Using the special tool, install the transmission onto the bench. Use Special Service Tool: 307-773 Bench Mount Fixture.

   Courtesy of FORD MOTOR COMPANY

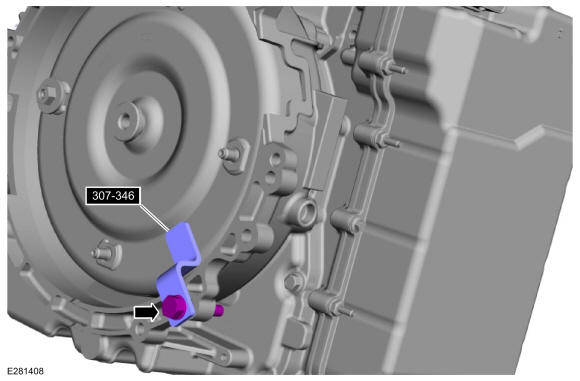

4. Remove the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

   Courtesy of FORD MOTOR COMPANY

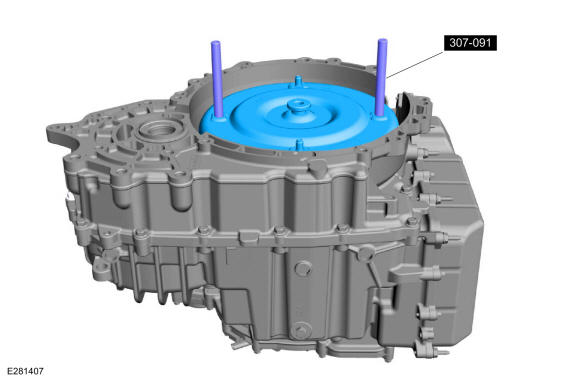

5. NOTE: The torque converter is heavy. Be careful not to drop it or damage will result.

   Using the special tools, remove the torque converter. Use Special Service Tool: 307-091 Handle, Torque Converter.

   Courtesy of FORD MOTOR COMPANY

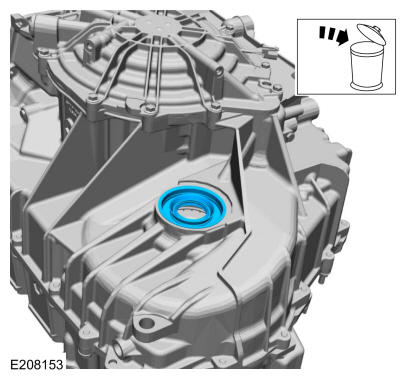

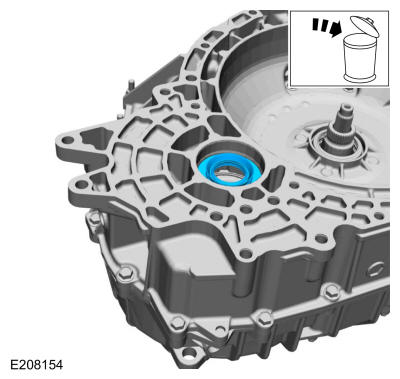

6. Remove and discard the halfshaft seal from the transmission case.

   Courtesy of FORD MOTOR COMPANY

7. NOTE: FWD vehicles

   Remove and discard the halfshaft seal from the torque converter housing.

   Courtesy of FORD MOTOR COMPANY

8. Remove and discard the torque converter hub seal from the torque converter housing. Use the General Equipment: Puller

   Courtesy of FORD MOTOR COMPANY

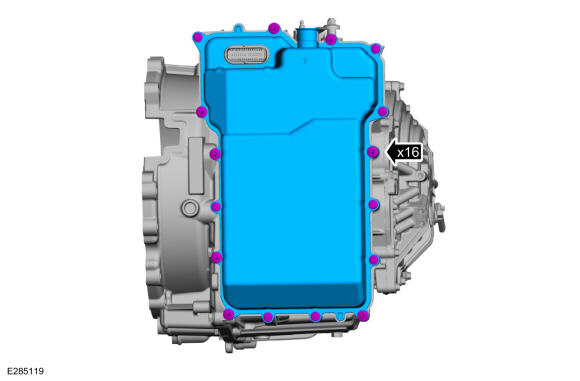

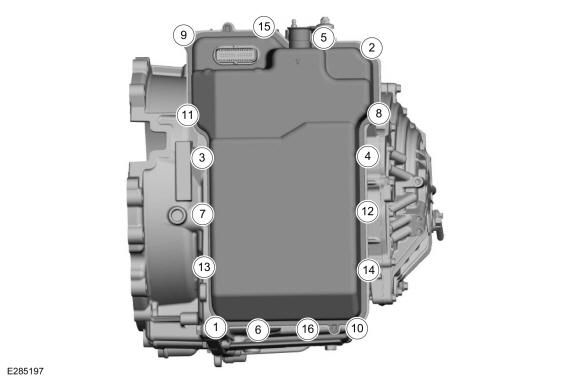

9. Remove the studbolts and the main control cover.

   Courtesy of FORD MOTOR COMPANY

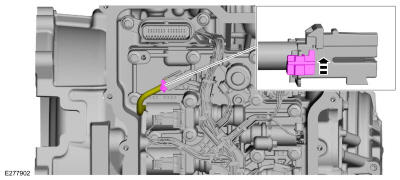

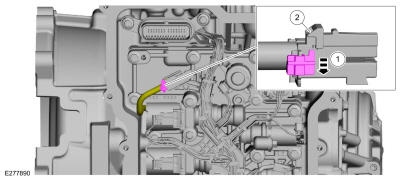

10. Unlock and disconnect the TR sensor.

    Courtesy of FORD MOTOR COMPANY

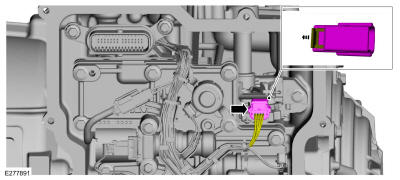

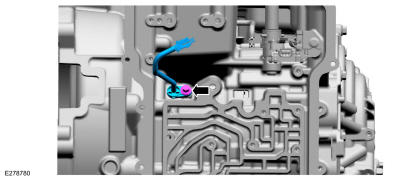

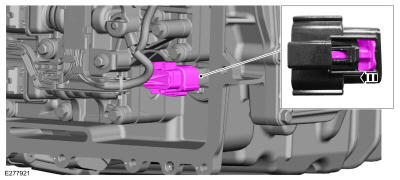

11. Unlock and disconnect the OSS sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

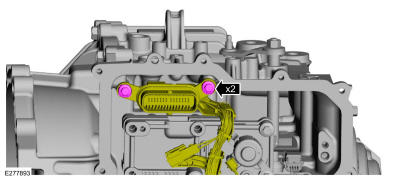

12. Unlock and disconnect the bulkhead electrical connector.

    Courtesy of FORD MOTOR COMPANY

13. Remove the transmission wiring harness bolts.

    Courtesy of FORD MOTOR COMPANY

14. NOTE: Handle the main control with care or damage to the solenoid body may occur.
    NOTE: Note the location of the different length bolts for assembly.

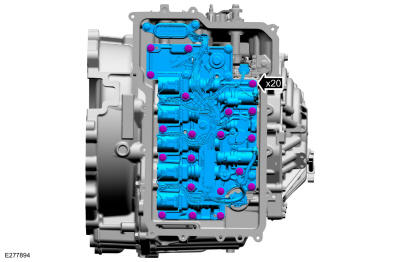

    Remove the bolts and the main control.

    Courtesy of FORD MOTOR COMPANY

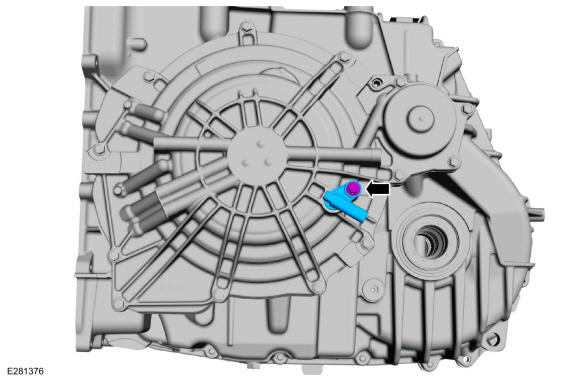

15. Remove the bolt and the OSS sensor.

    Courtesy of FORD MOTOR COMPANY

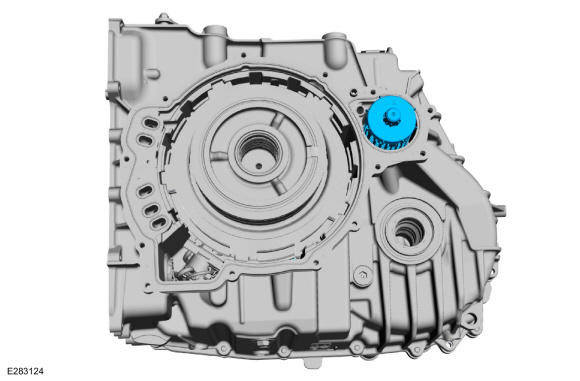

16. Remove the bolt and the TSS sensor.

    Courtesy of FORD MOTOR COMPANY

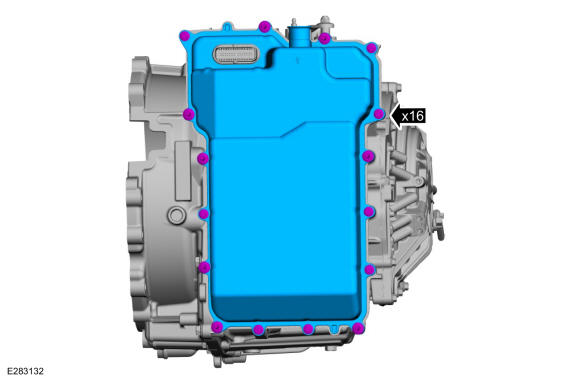

17. Remove the bolts and the cover assembly.

    Courtesy of FORD MOTOR COMPANY

18. Remove the secondary fluid filter.

    Courtesy of FORD MOTOR COMPANY

19. Remove the cover assembly gasket.

    Courtesy of FORD MOTOR COMPANY

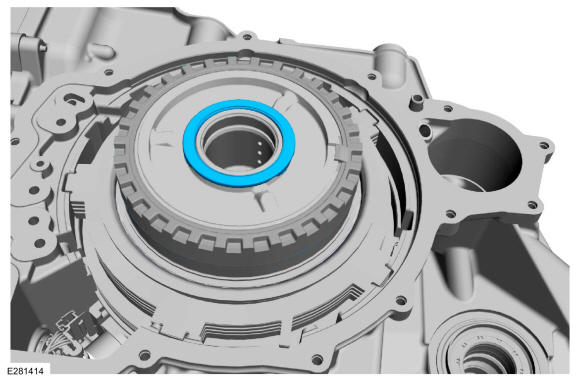

20. Remove the No. 1 thrust bearing.

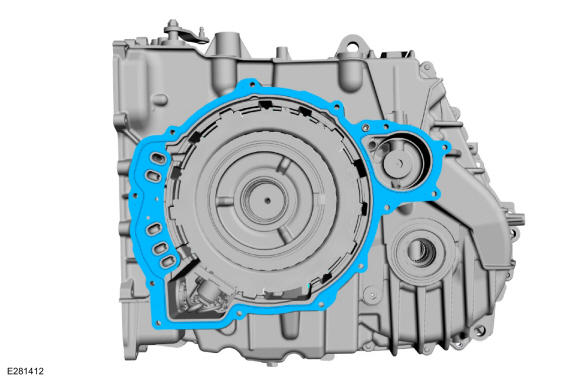

    Courtesy of FORD MOTOR COMPANY

21. Remove the B (4, 6, R)/E (5, 6, 7, 8) clutch hub and turbine shaft assembly.

    Courtesy of FORD MOTOR COMPANY

22. Remove the No. 3 thrust bearing.

    Courtesy of FORD MOTOR COMPANY

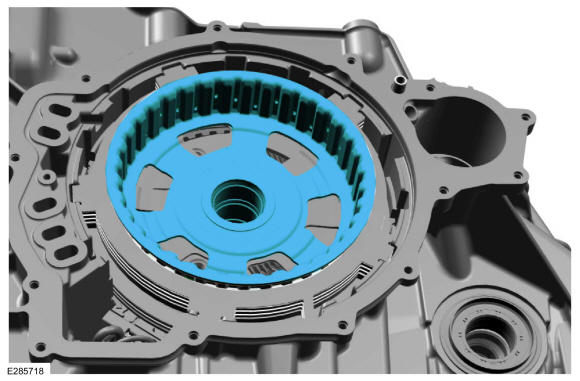

23. Remove the intermediate clutch shell and sun gear assembly.

    Courtesy of FORD MOTOR COMPANY

24. Remove the C (3, 7) clutch pack assembly.

    Courtesy of FORD MOTOR COMPANY

25. Remove the No. 4 thrust bearing.

    Courtesy of FORD MOTOR COMPANY

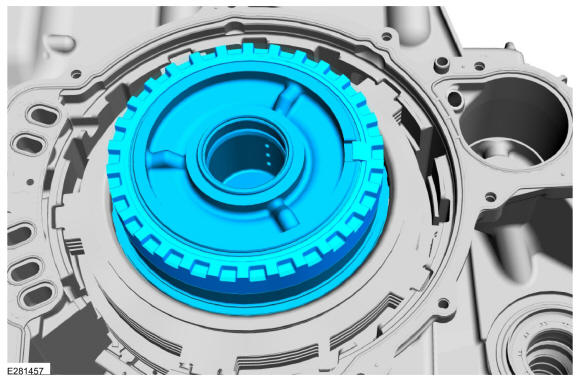

26. Remove the F (2, 8) clutch sun gear and shell assembly.

    Courtesy of FORD MOTOR COMPANY

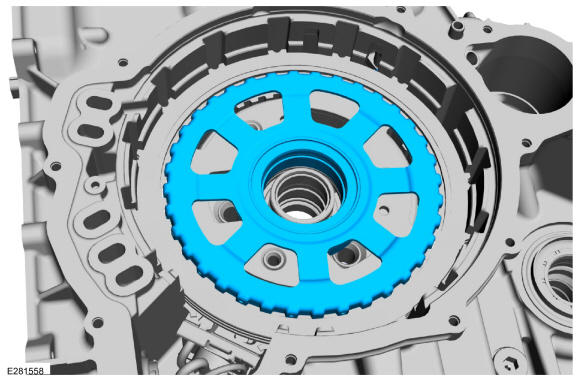

27. Remove the C (3, 7)/F (2, 8) clutch pressure plate.

    Courtesy of FORD MOTOR COMPANY

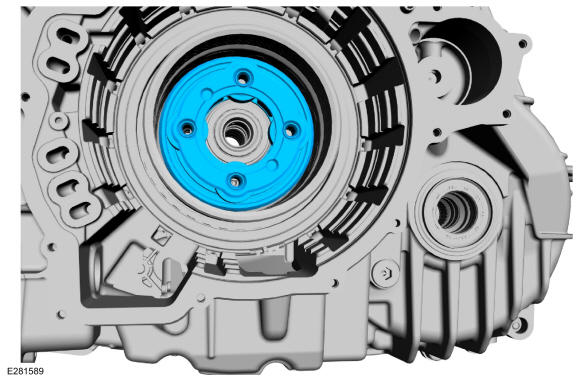

28. Remove the reaction/overdrive carrier sun gear.

    Courtesy of FORD MOTOR COMPANY

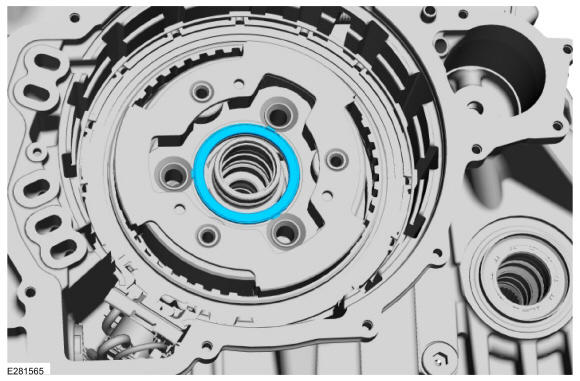

29. Remove the No. 5 thrust bearing.

    Courtesy of FORD MOTOR COMPANY

30. Remove the reaction/overdrive planetary carrier assembly.

    Courtesy of FORD MOTOR COMPANY

31. Remove the F (2, 8) clutch pack assembly.

    Courtesy of FORD MOTOR COMPANY

32. Remove the F (2, 8) clutch reaction plate.

    Courtesy of FORD MOTOR COMPANY

33. Remove the following items.

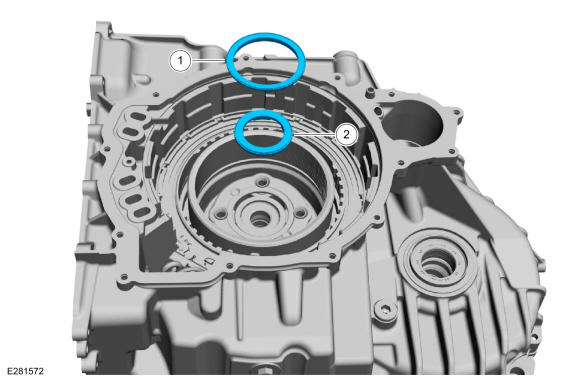

    1. No. 7 thrust bearing
    2. No. 8 thrust bearing

    Courtesy of FORD MOTOR COMPANY

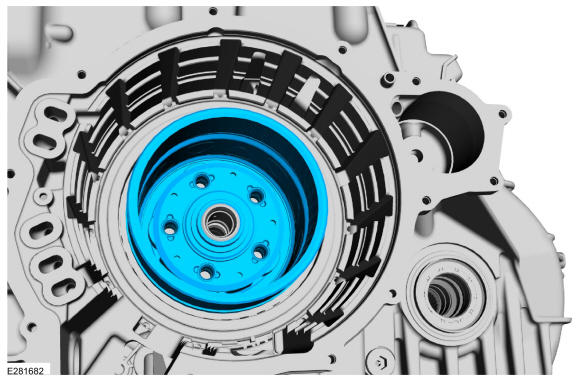

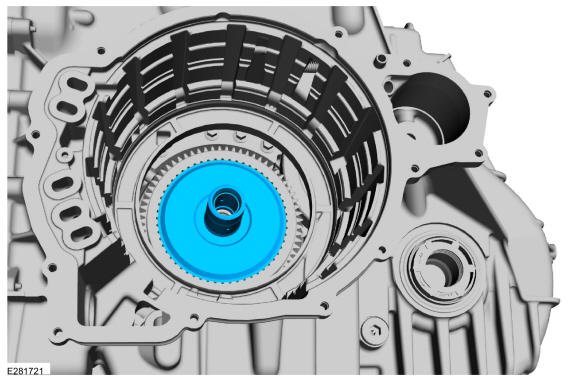

34. Remove the input sun gear.

    Courtesy of FORD MOTOR COMPANY

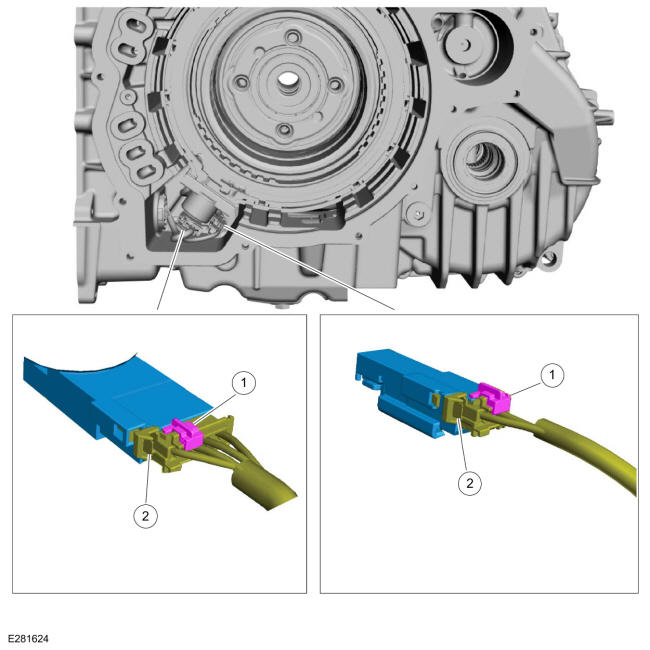

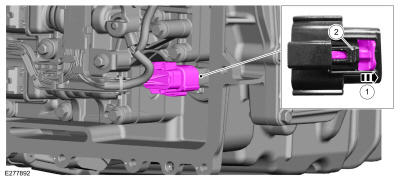

35. Unlock and disconnect the electronic Selectable One-Way Clutch (SOWC) and the Intermediate Speed Sensor (ISS) electrical connector.
    1. Connector lock
    2. Connector release

    Courtesy of FORD MOTOR COMPANY

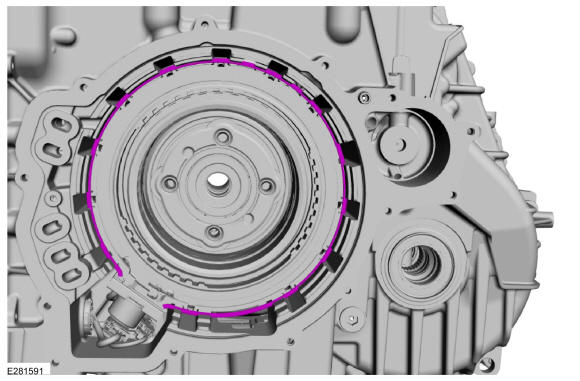

36. Remove the electronic Selectable One-Way Clutch (SOWC) snap ring.

    Courtesy of FORD MOTOR COMPANY

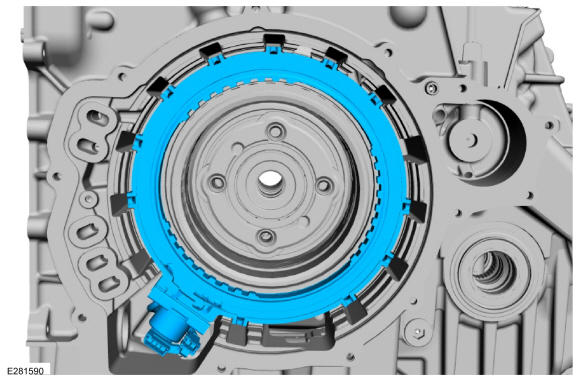

37. Remove the electronic Selectable One-Way Clutch (SOWC) assembly.

    Courtesy of FORD MOTOR COMPANY

38. Remove the input planetary carrier assembly.

    Courtesy of FORD MOTOR COMPANY

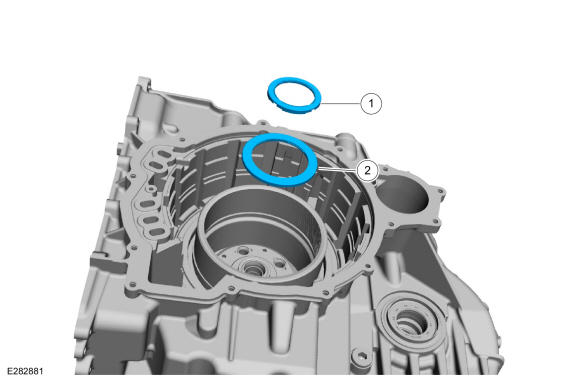

39. Remove the following items.
    1. No. 9 thrust bearing
    2. No. 10 thrust bearing

    Courtesy of FORD MOTOR COMPANY

40. Remove the output planetary carrier assembly.

    Courtesy of FORD MOTOR COMPANY

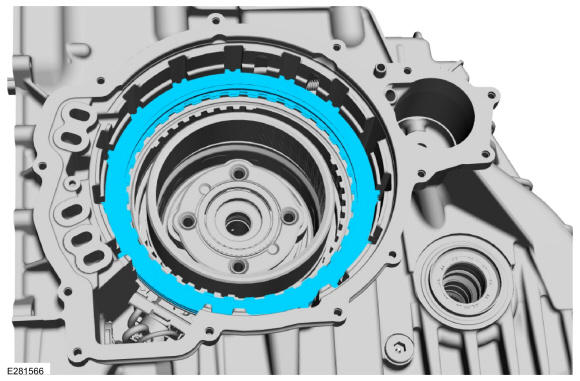

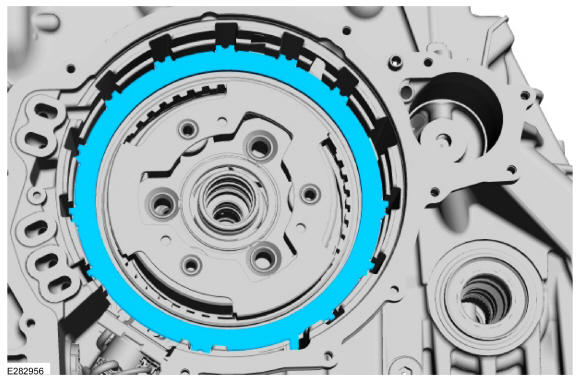

41. Remove the A (1, 2, 3, 4, 5) clutch snap ring.

    Courtesy of FORD MOTOR COMPANY

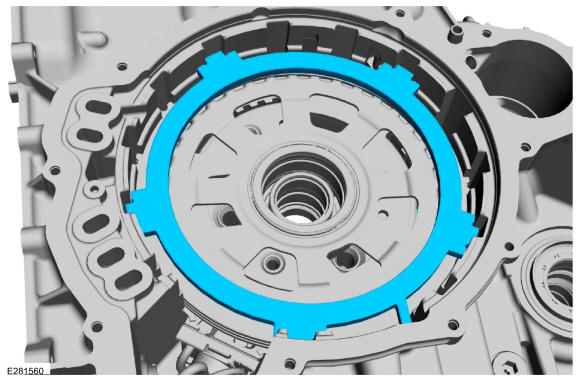

42. Remove the A (1, 2, 3, 4, 5) clutch pressure plate.

    Courtesy of FORD MOTOR COMPANY

43. Remove the A (1, 2, 3, 4, 5) clutch pack assembly.

    Courtesy of FORD MOTOR COMPANY

44. Remove the output sun gear and shell assembly.

    Courtesy of FORD MOTOR COMPANY

45. Remove the No. 12 thrust bearing.

    Courtesy of FORD MOTOR COMPANY

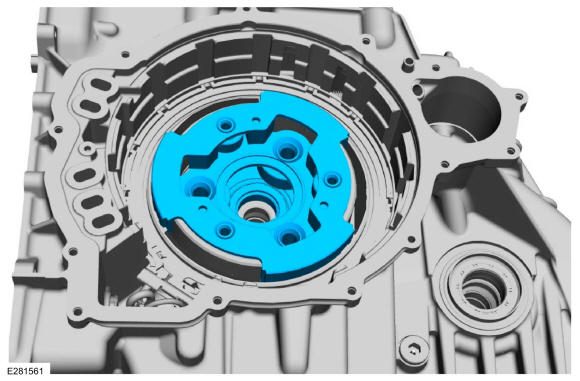

46. Remove the output planetary carrier hub.

    Courtesy of FORD MOTOR COMPANY

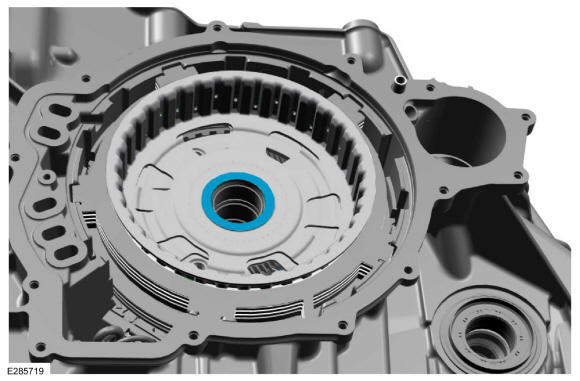

47. Remove the No. 13 thrust bearing.

    Courtesy of FORD MOTOR COMPANY

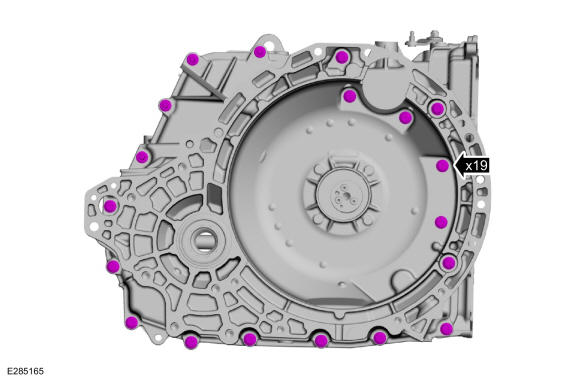

48. NOTE: Note the location of the studbolts for assembly.

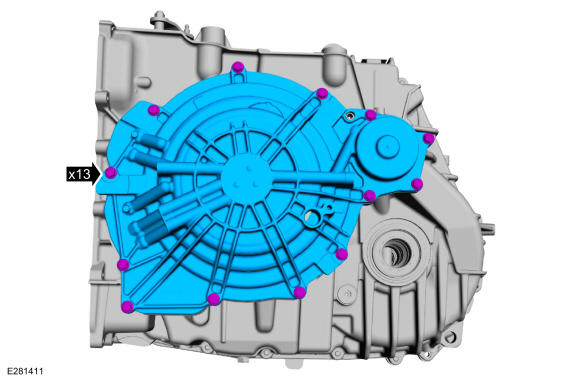

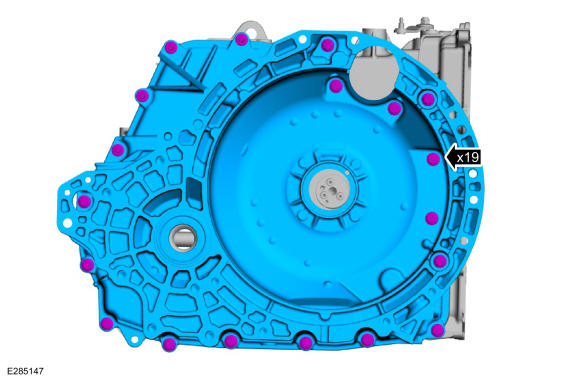

    Remove the torque converter housing bolts.

    Courtesy of FORD MOTOR COMPANY

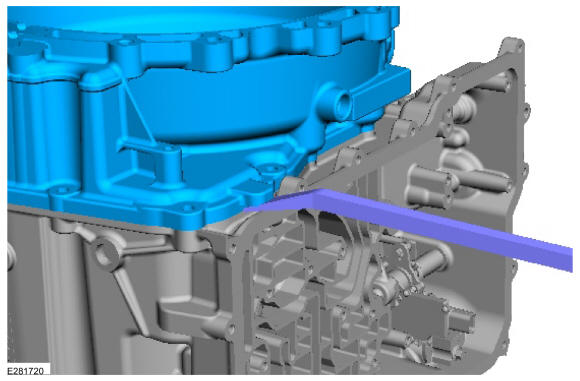

49. Pry the torque converter housing loose from the transmission case.

    Courtesy of FORD MOTOR COMPANY

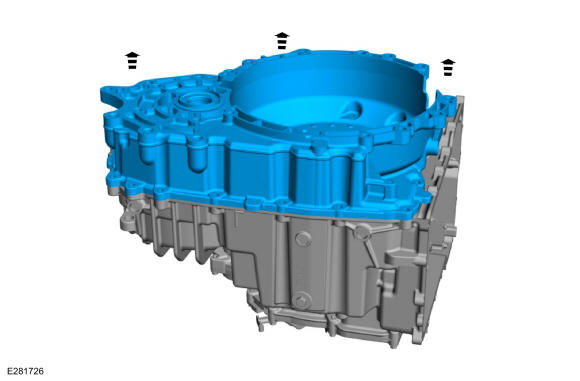

50. Remove the torque converter housing from the transmission case.

    Courtesy of FORD MOTOR COMPANY

51. Remove and discard the pump-to-case seal.

    Courtesy of FORD MOTOR COMPANY

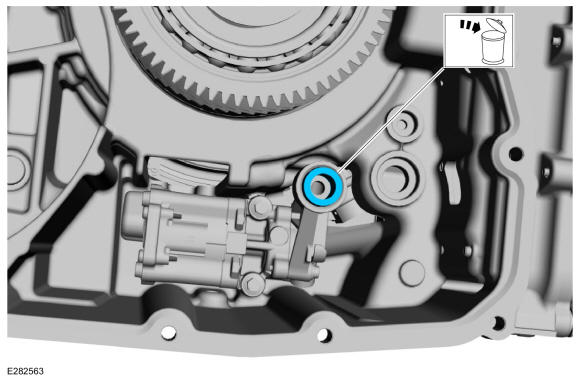

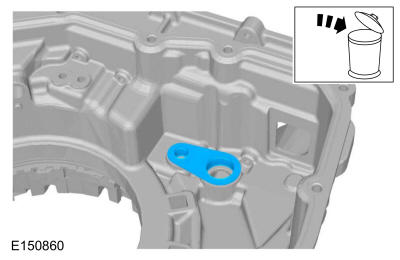

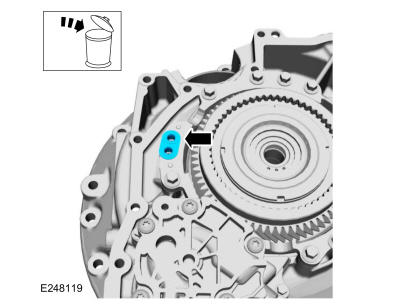

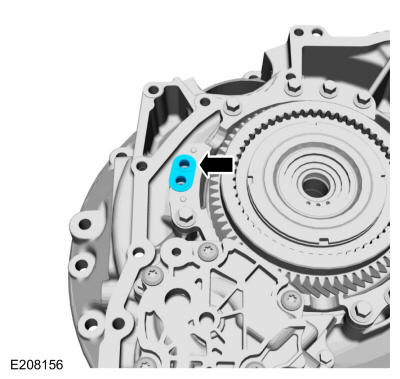

52. Remove and discard the transmission fluid auxiliary pump to torque converter housing seal.

    Courtesy of FORD MOTOR COMPANY

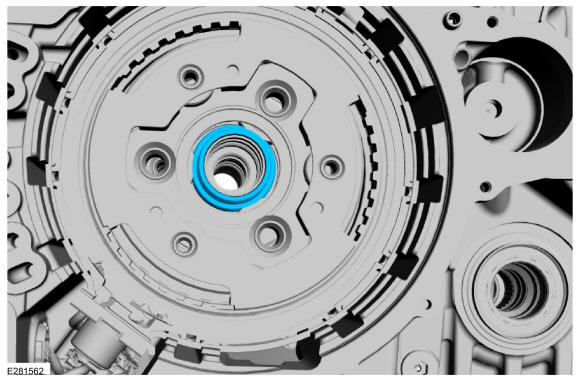

53. Remove and discard the stator support assembly seal.

    Courtesy of FORD MOTOR COMPANY

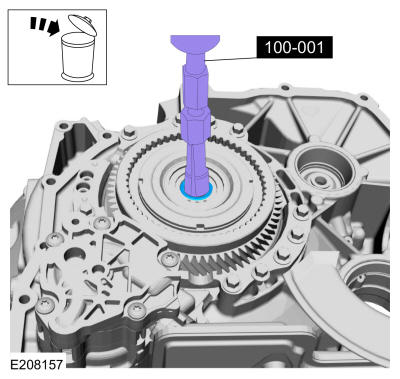

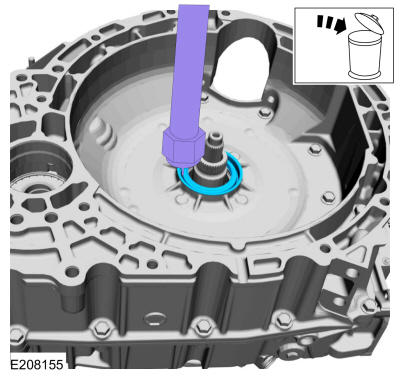

54. Remove and discard the input shaft seal. Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer., 303-D020 (D80L-100-R) Collet, 7/8 to 1.

    Courtesy of FORD MOTOR COMPANY

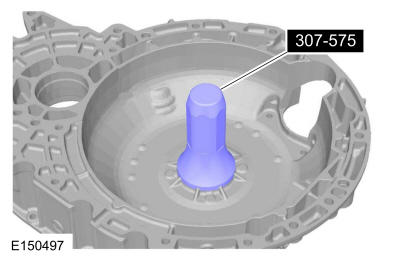

55. Install a new input shaft seal on the special tool. Use Special Service Tool: 307-585 Support seal installer.

    Courtesy of FORD MOTOR COMPANY

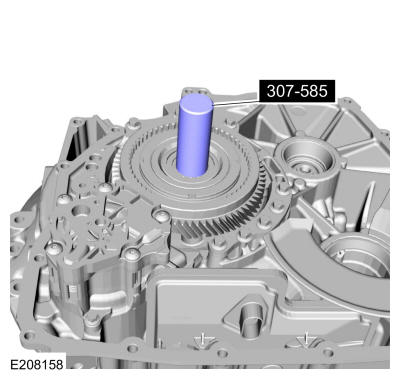

56. Using the special tool, install the input shaft seal. Use Special Service Tool: 307-585 Support seal installer.

    Courtesy of FORD MOTOR COMPANY

57. Install a new stator support assembly seal.

    Courtesy of FORD MOTOR COMPANY

58. Install a new pump-to-case seal.

    Courtesy of FORD MOTOR COMPANY

59. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

    Courtesy of FORD MOTOR COMPANY

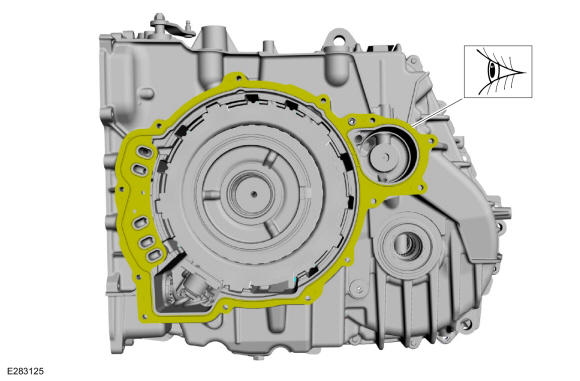

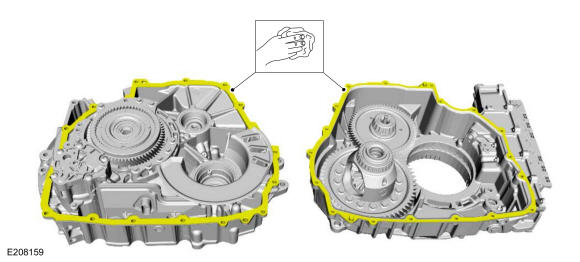

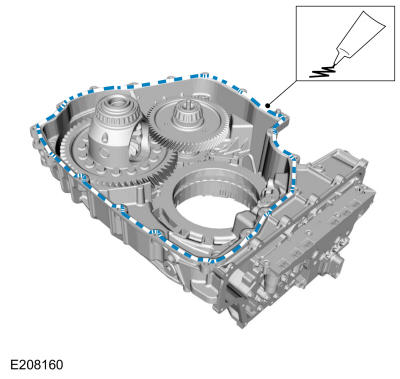

60. NOTE: Make sure the sealing surface of both the transmission case and the torque converter housing are clean, dry and free of oil or the silicone will not seal the transmission case.

    Apply a bead of silicone sealant to the machined surface of the transmission case.

    Material

    : Motorcraft® Ultra Silicone Sealant / TA-29

    Courtesy of FORD MOTOR COMPANY

61. NOTE: Hand tighten the bolts only.

    Install the torque converter housing on top of the transmission case and install the bolts.

    Courtesy of FORD MOTOR COMPANY

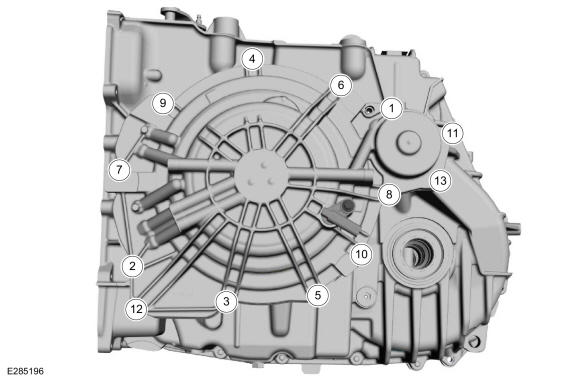

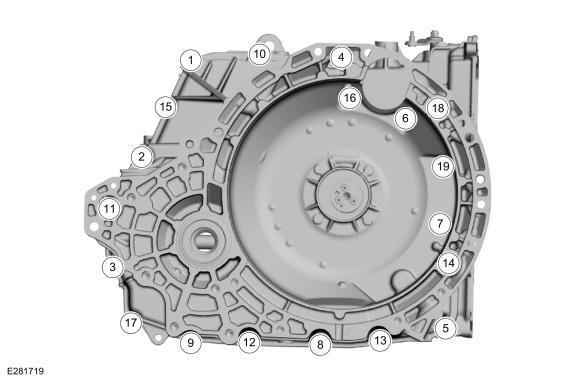

62. NOTE: Install the studbolts in the correct location as noted during disassembly.

    Tighten the bolts in the sequence shown.

    Torque

    : 24 lb.ft (32 Nm)

    Fig 1: Torque Converter Housing Bolts Tightening Sequence

    Courtesy of FORD MOTOR COMPANY

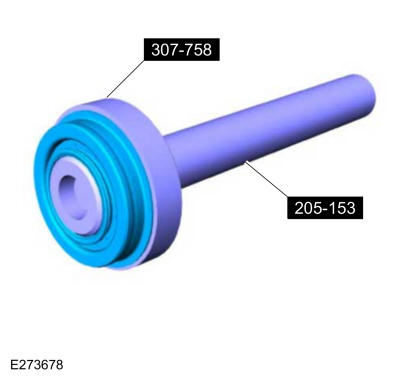

63. Install a new halfshaft seal on special tool. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-758 Installer, Axle Seal -FWD.

    Courtesy of FORD MOTOR COMPANY

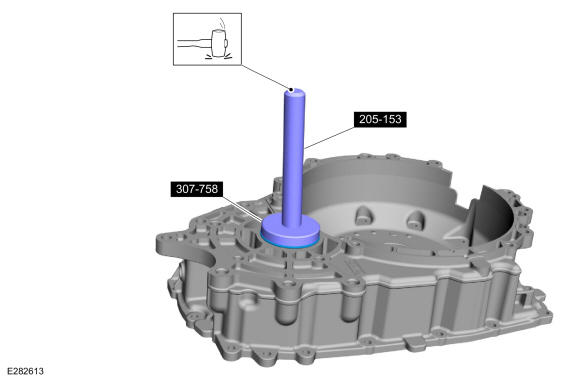

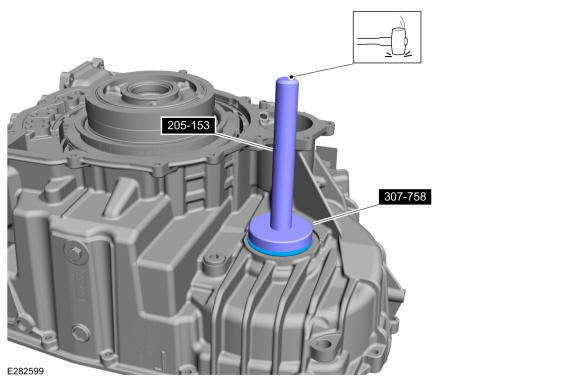

64. Using the special tool, install the halfshaft seal in the transmission case (1177). Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-758 Installer, Axle Seal -FWD.

    Courtesy of FORD MOTOR COMPANY

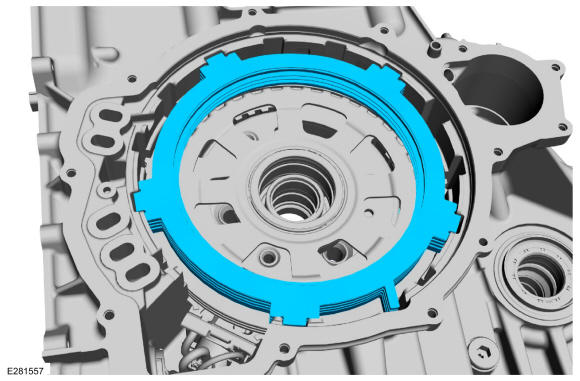

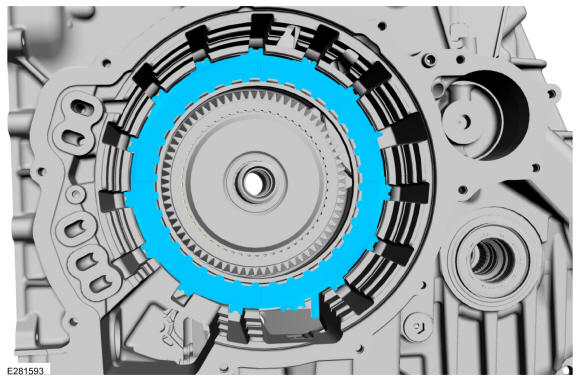

65. Install the A (1, 2, 3, 4, 5) clutch pack without the seperator springs.

    Courtesy of FORD MOTOR COMPANY

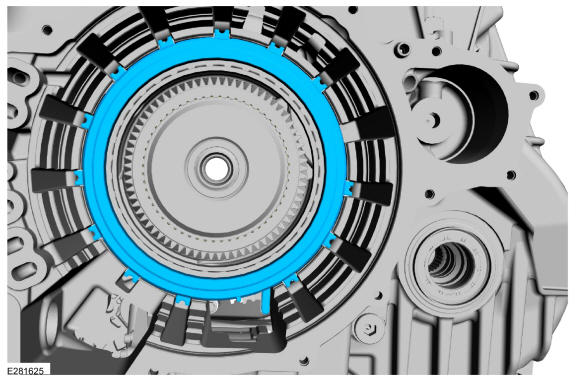

66. Install the A (1, 2, 3, 4, 5) clutch pack pressure plate.

    Courtesy of FORD MOTOR COMPANY

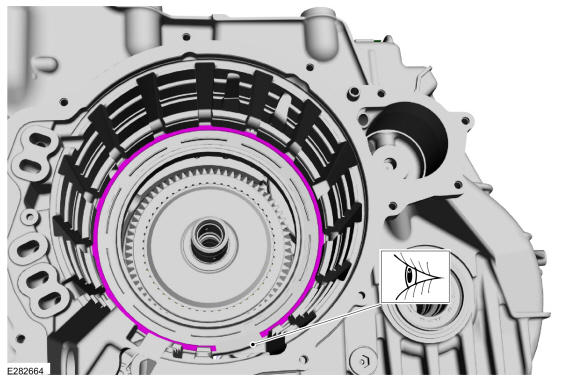

67. Install the A (1, 2, 3, 4, 5) clutch snap ring with the gap at approximately the 5:30 position.

    Courtesy of FORD MOTOR COMPANY

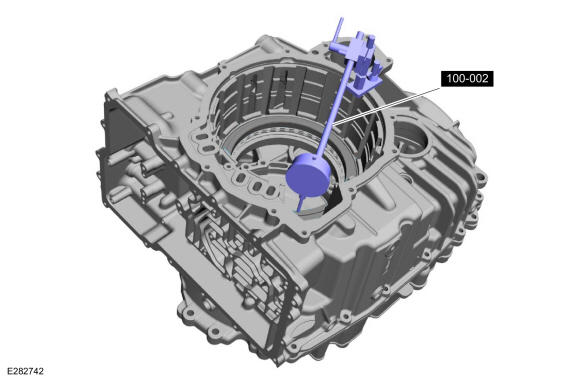

68. Install the special tool on the transmission case and position plunger on the A (1, 2, 3, 4, 5) clutch pressure plate. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

    Courtesy of FORD MOTOR COMPANY

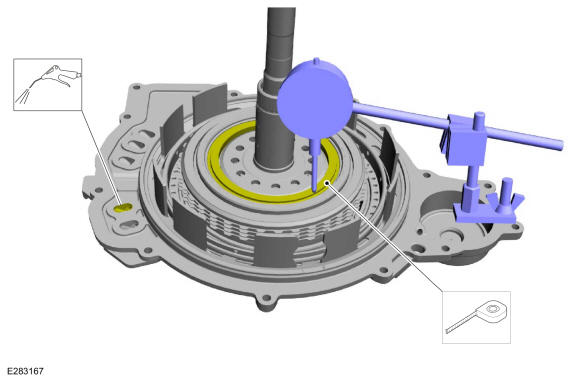

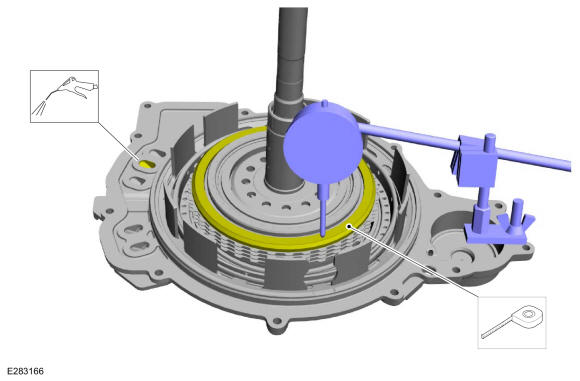

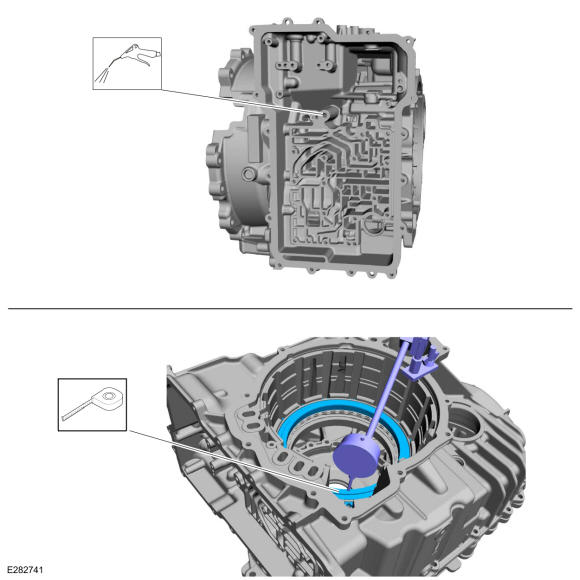

69. Apply 483 kPa (70 psi) of air pressure to the A (1, 2, 3, 4, 5) clutch piston port while recording the clutch pack clearance on the dial indicator. Measure and record in three places for an average reading. The clearance should be between 0.39 mm (0.015 in) and 1.82 mm (0.071 in). If the clearance is out of range, check the A (1, 2, 3, 4, 5) clutch pack for correct installation. If the A (1, 2, 3, 4, 5) clutch pack is correctly installed, install a new A (1, 2, 3, 4, 5) clutch pack. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

    Courtesy of FORD MOTOR COMPANY

70. Remove the special tool. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

    Courtesy of FORD MOTOR COMPANY

71. Remove the A (1, 2, 3, 4, 5) clutch pressure plate snap ring.

    Courtesy of FORD MOTOR COMPANY

72. Remove the A (1, 2, 3, 4, 5) clutch pressure plate.

    Courtesy of FORD MOTOR COMPANY

73. Remove the A (1, 2, 3, 4, 5) clutch pack.

    Courtesy of FORD MOTOR COMPANY

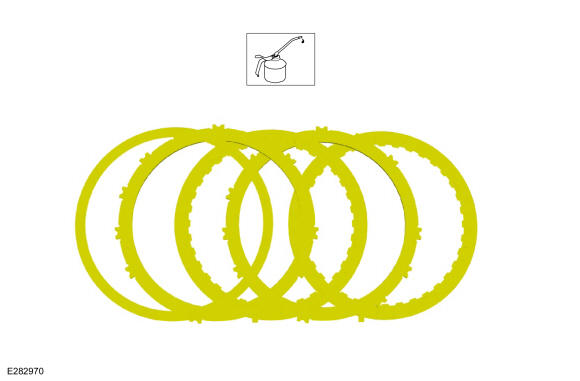

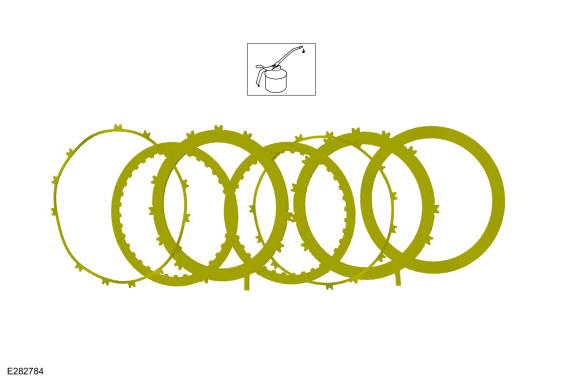

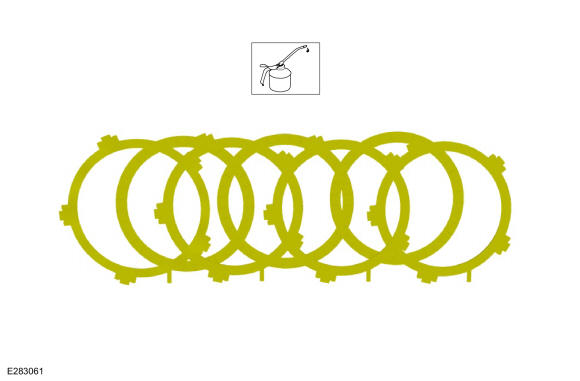

74. Soak the A (1, 2, 3, 4, 5) clutch assembly in transmission fluid.

    Material

    : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

    Courtesy of FORD MOTOR COMPANY

75. Install the A (1, 2, 3, 4, 5) clutch pack without the seperator springs.

    Courtesy of FORD MOTOR COMPANY

76. Install the A (1, 2, 3, 4, 5) clutch pack pressure plate.

    Courtesy of FORD MOTOR COMPANY

77. Install the A (1, 2, 3, 4, 5) clutch snap ring with the gap at approximately the 5:30 position.

    Courtesy of FORD MOTOR COMPANY

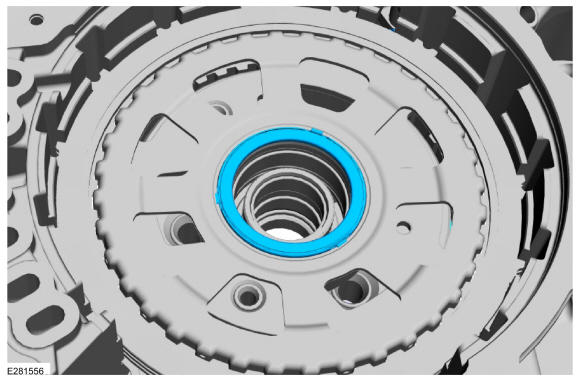

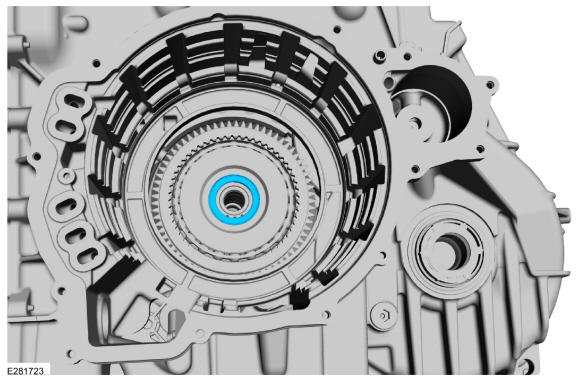

78. Install the No. 13 thrust bearing.

    Courtesy of FORD MOTOR COMPANY

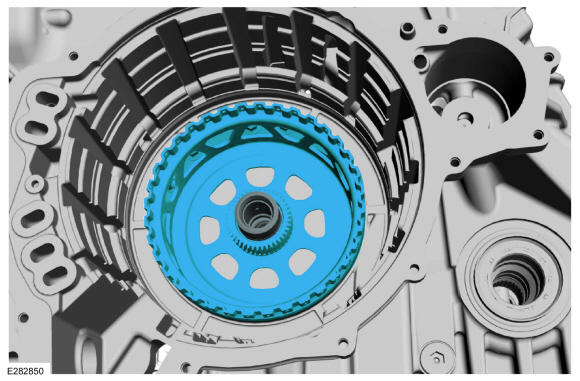

79. Install the output carrier hub.

    Courtesy of FORD MOTOR COMPANY

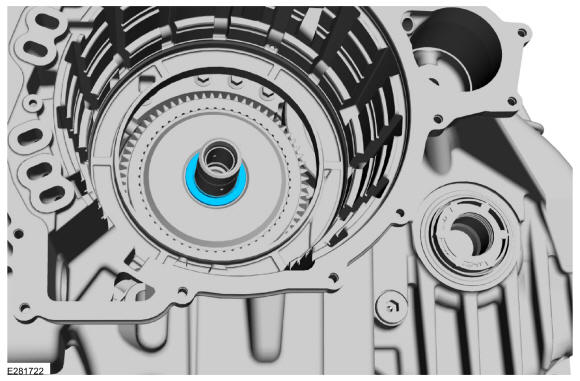

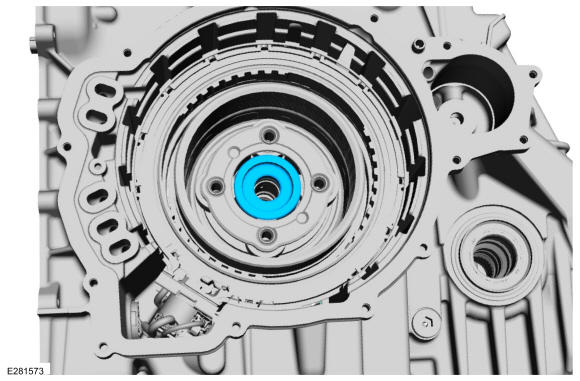

80. Install the No. 12 thrust bearing.

    Courtesy of FORD MOTOR COMPANY

81. Install the output sun gear and shell assembly.

    Courtesy of FORD MOTOR COMPANY

82. Install the electronic Selectable One-Way Clutch (SOWC).

    Courtesy of FORD MOTOR COMPANY

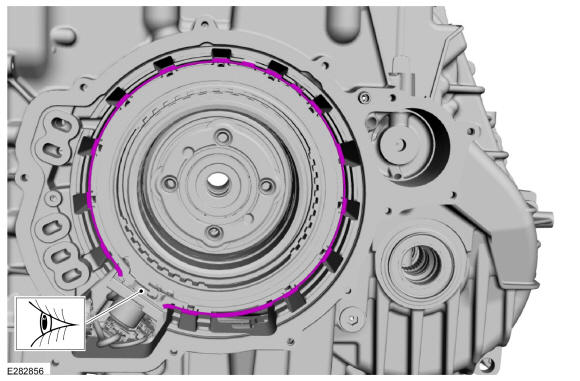

83. NOTE: The snap ring gap should be at the 7 o'clock position.

    Install the electronic Selectable One-Way Clutch (SOWC) snap ring.

    Courtesy of FORD MOTOR COMPANY

84. Connect and lock the electronic Selectable One-Way Clutch (SOWC) and the Intermediate Speed Sensor (ISS) electrical connector.
    1. Connector lock
    2. Connector release

    Courtesy of FORD MOTOR COMPANY

85. Install the output planetary carrier assembly.

    Courtesy of FORD MOTOR COMPANY

86. Install the following items.
    1. No. 9 thrust bearing
    2. No. 10 thrust bearing

    Courtesy of FORD MOTOR COMPANY

87. Install the input planetary carrier assembly.

    Courtesy of FORD MOTOR COMPANY

88. Install the input sun gear.

    Courtesy of FORD MOTOR COMPANY

89. Install the following items.
    1. No. 7 thrust bearing
    2. No. 8 thrust bearing

    Courtesy of FORD MOTOR COMPANY

90. Install the reaction planetary carrier assembly.

    Courtesy of FORD MOTOR COMPANY

91. Install the reaction/overdrive sun gear.

    Courtesy of FORD MOTOR COMPANY

92. Install the F (2, 8) clutch reaction plate.

    Courtesy of FORD MOTOR COMPANY

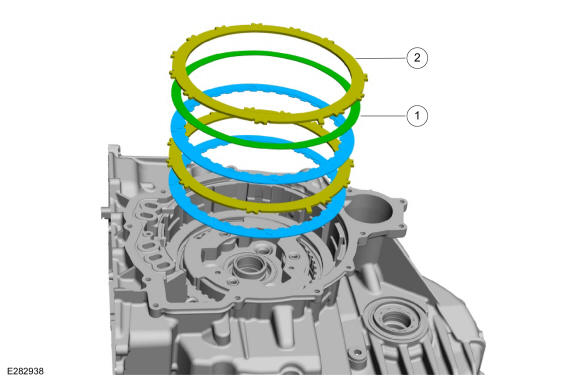

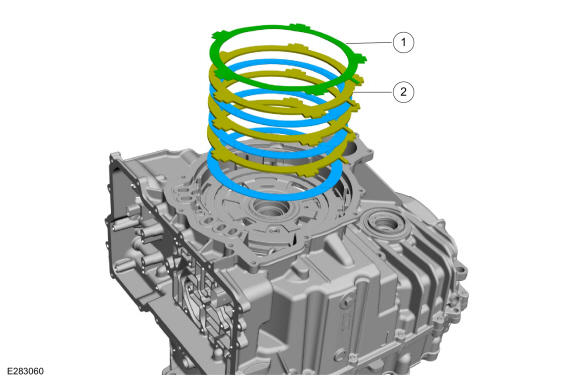

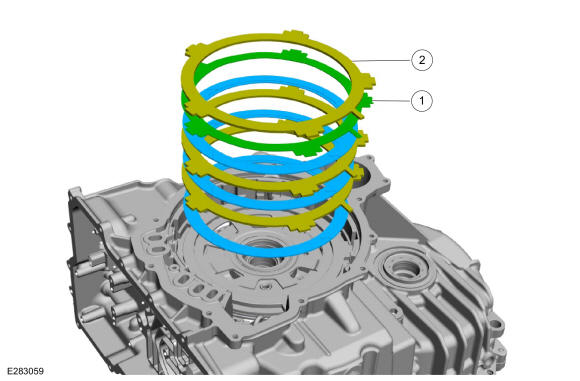

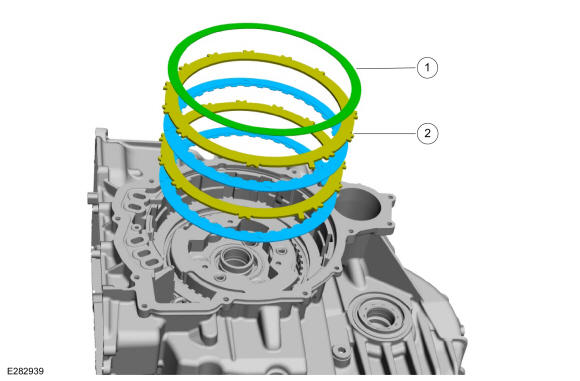

93. NOTE: The F (2, 8) clutch wave plate and separator plate are temporarily reversely installed to measure the F (2, 8) clutch clearance.

    Install the F (2, 8) clutch assembly with the wave plate and the separator plate reversed.

    1. Wave plate
    2. Separator plate

    Courtesy of FORD MOTOR COMPANY

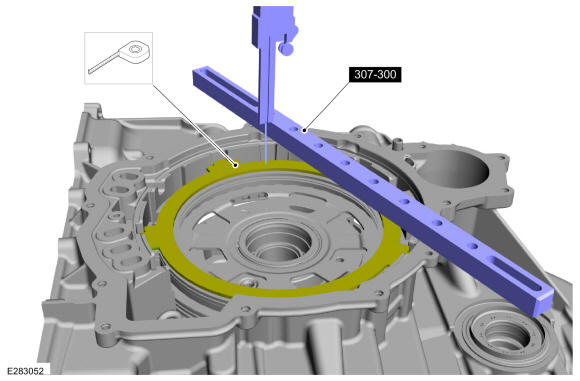

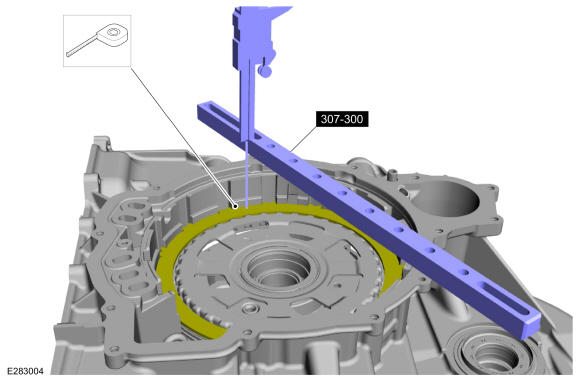

94. Using the special tool and a depth gauge, measure and record as measurement A, the distance from the transmission case deck surface to the F (2, 8) clutch top plate. Use Special Service Tool: 307-300 Gauge Bar, Shim Selection. Use the General Equipment: Caliper Gauge

    Courtesy of FORD MOTOR COMPANY

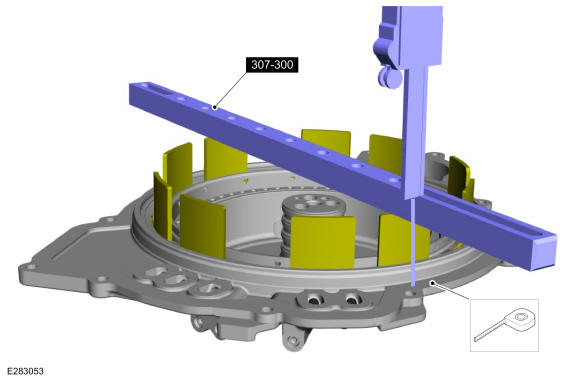

95. Using the special tool and a depth gauge, measure and record as measurement B, the distance from the F (2, 8) clutch piston to the cover assembly deck surface. Use Special Service Tool: 307-300 Gauge Bar, Shim Selection. Use the General Equipment: Caliper Gauge

    Courtesy of FORD MOTOR COMPANY

96. Subtract measurement B from measurement A and add 1.6 mm (0.062 in), to compensate for the thickness of the gasket, to get the F (2, 8) clutch clearance. The clearance should be between 0.80 mm (0.031 in) and 2.31 mm (0.090 in). If the clearance is out of range, check the F (2, 8) clutch pack for correct installation. If the F (2, 8) clutch pack is correctly installed, install a new F (2, 8) clutch pack.

    Description	Reading
    Measurement A
    Measurement B
    Subtract measurement B from measurement A and add 1.6 mm (0.062 in), check to see if it is within range of 0.80 mm (0.031 in) and 2.31 mm (0.090 in)

97. Remove the F (2, 8) clutch assembly.

    Courtesy of FORD MOTOR COMPANY

98. Soak the F (2, 8) clutch assembly in transmission fluid.

    Material

    : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

    Courtesy of FORD MOTOR COMPANY

99. NOTE: When the F (2, 8) clutch is correctly installed, the wave plate is on top.

    Install the F (2, 8) clutch assembly.

    1. Wave plate
    2. Separator plate

    Courtesy of FORD MOTOR COMPANY

100. Install the C (3, 7)/F (2, 8) clutch pressure plate.

     Courtesy of FORD MOTOR COMPANY

101. NOTE: The C (3, 7) clutch wave plate and separator plate are temporarily reversely installed to measure the C (3, 7) clutch clearance.

     Install the C (3, 7) clutch assembly with the wave plate and the separator plate reversed.

     1. Wave plate
     2. Separator plate

     Courtesy of FORD MOTOR COMPANY

102. Using the special tool and a depth gauge, measure and record as measurement A, the distance from the transmission case deck surface to the C (3, 7) clutch top plate. Use Special Service Tool: 307-300 Gauge Bar, Shim Selection. Use the General Equipment: Caliper Gauge

     Courtesy of FORD MOTOR COMPANY

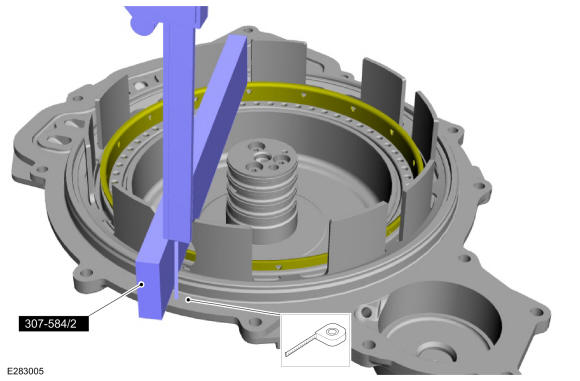

103. Using the special tool and a depth gauge, measure and record as measurement B, the distance from the C (3, 7) clutch piston to the cover assembly deck surface. Use Special Service Tool: 307-300 Gauge Bar, Shim Selection. Use the General Equipment: Caliper Gauge

     Courtesy of FORD MOTOR COMPANY

104. Subtract measurement B from measurement A and add 1.6 mm (0.062 in), to compensate for the thickness of the gasket, to get the C (3, 7) clutch clearance. The clearance should be between 0.70 mm (0.027 in) and 1.90 mm (0.074 in). If the clearance is out of range, check the C (3, 7) clutch pack for correct installation. If the C (3, 7) clutch pack is correctly installed, install a new C (3, 7) clutch pack.

     Description	Reading
     Measurement A
     Measurement B
     Subtract measurement B from measurement A and add 1.6 mm (0.062 in), check to see if it is within range of 0.70 mm (0.027 in) and 1.90 mm (0.074 in)

105. Remove the C (3, 7) clutch assembly.

     Courtesy of FORD MOTOR COMPANY

106. Install the No. 5 thrust bearing.

     Courtesy of FORD MOTOR COMPANY

107. Install the F (2, 8) clutch sun gear and shell assembly.

     Courtesy of FORD MOTOR COMPANY

108. Soak the C (3, 7) clutch in transmission fluid.

     Material

     : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

     Courtesy of FORD MOTOR COMPANY

109. NOTE: When the C (3, 7) clutch is correctly installed, the wave plate is on top.

     Install the C (3, 7) clutch pack assembly.

     1. Wave plate
     2. Separator plate

     Courtesy of FORD MOTOR COMPANY

110. Install the No. 4 thrust bearing.

     Courtesy of FORD MOTOR COMPANY

111. Install the B (4, 6, R)/C (3, 7) clutch hub.

     Courtesy of FORD MOTOR COMPANY

112. Install the No. 3 thrust bearing.

     Courtesy of FORD MOTOR COMPANY

113. Material: Petroleum Jelly Using petroleum jelly, install the No. 1 thrust bearing on the B (4, 6, R)/E (5, 6, 7, 8) clutch hub.

     Courtesy of FORD MOTOR COMPANY

114. Position the B (4, 6, R)/E (5, 6, 7, 8) clutch hub and turbine shaft assembly in the cover assembly, install the dial indicator gauge plunger on the E (5, 6, 7, 8) clutch pressure plate. Apply 483 kPa (70 psi) of air pressure to the E (5, 6, 7, 8) clutch piston port while recording the clutch pack clearance on the dial indicator. The clearance should be between 0.39 mm (0.015 in) and 1.82 mm (0.072 in). If the clearance is out of range, check the E (5, 6, 7, 8) clutch pack for correct installation. If the E (5, 6, 7, 8) clutch pack is correctly installed, install a new E (5, 6, 7, 8) clutch pack.

     Courtesy of FORD MOTOR COMPANY

115. Position the dial indicator gauge plunger on the B (4, 6, R) clutch pressure plate. Apply 483 kPa (70 psi) of air pressure to the B (4, 6, R) clutch piston port while recording the clutch pack clearance on the dial indicator. The clearance should be between 0.98 mm (0.038 in) and 2.34 mm (0.092 in). If the clearance is out of range, check the B (4, 6, R) clutch pack for correct installation. If the B (4, 6, R) clutch pack is correctly installed, install a new B (4, 6, R) clutch pack.

     Courtesy of FORD MOTOR COMPANY

116. Install the B (4, 6, R)/E (5, 6, 7, 8) clutch hub and turbine shaft assembly.

     Courtesy of FORD MOTOR COMPANY

117. Install the No. 1 thrust bearing.

     Courtesy of FORD MOTOR COMPANY

118. Inspect the cover assembly gasket for damage and install new if necessary (7B343).

     Courtesy of FORD MOTOR COMPANY

119. Install the secondary fluid filter (7B301).

     Courtesy of FORD MOTOR COMPANY

120. NOTE: Install the bolts hand tight.

     Install the cover assembly and bolts.

     Courtesy of FORD MOTOR COMPANY

121. Tighten the bolts in the sequence shown.

     Torque

     : 124 lb.in (14 Nm)

     Fig 2: Cover Assembly Bolts Tightening Sequence

     Courtesy of FORD MOTOR COMPANY
122. Material: Petroleum Jelly Lubricate the TSS sensor O-ring with petroleum jelly.

     Courtesy of FORD MOTOR COMPANY

123. Install the TSS sensor and bolt.

     Torque

     : 80 lb.in (9 Nm)

     Courtesy of FORD MOTOR COMPANY

124. Install the OSS sensor and bolt.

     Torque

     : 97 lb.in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

125. NOTE: Note the location of the short and long main control valve body bolts. Install the bolts hand tight.

     Install the main control valve body, the transmission wiring harness and the main control valve body bolts.

     Courtesy of FORD MOTOR COMPANY

126. Tighten the main control valve body bolts in the sequence shown.

     Torque

     : 89 lb.in (10 Nm)

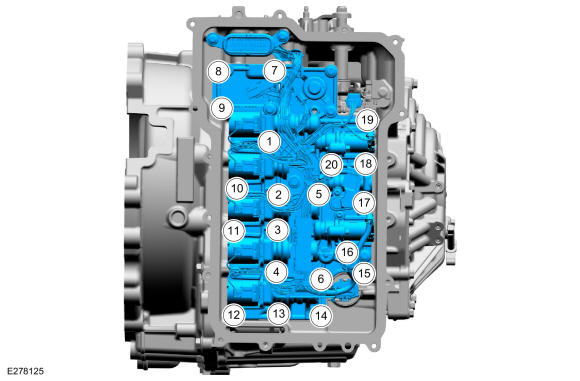

     Fig 3: Main Control Valve Body Bolts Tightening Sequence

     Courtesy of FORD MOTOR COMPANY
127. Install the transmission wiring harness bolts.

     Torque

     : 71 lb.in (8 Nm)

     Courtesy of FORD MOTOR COMPANY

128. Connect and lock the bulkhead electrical connector.

     Courtesy of FORD MOTOR COMPANY

129. Connect and lock the TR sensor electrical connector.

     Courtesy of FORD MOTOR COMPANY

130. Connect and lock the OSS sensor electrical connectors.

     Courtesy of FORD MOTOR COMPANY

131. Inspect the main control cover seal for damage and install new if necessary (7F396).

     Courtesy of FORD MOTOR COMPANY

132. NOTE: Install the studbolts hand tight.

     Install the main control cover and studbolts.

     Courtesy of FORD MOTOR COMPANY

133. Tighten the main control cover studbolts in the sequence shown.

     Torque

     : 106 lb.in (12 Nm)

     Fig 4: Main Control Cover Studbolts Tightening Sequence

     Courtesy of FORD MOTOR COMPANY
134. Install a new toque converter hub seal on the special tool. Use Special Service Tool: 307-575 Converter Seal Installer.

     Courtesy of FORD MOTOR COMPANY

135. Using the special tool, install the torque converter hub seal in the torque converter housing (7F401). Use Special Service Tool: 307-575 Converter Seal Installer.

     Courtesy of FORD MOTOR COMPANY

136. Using the special tool, install the RH halfshaft seal in the torque converter housing Use Special Service Tool: 307-758 Installer, Axle Seal -FWD., 205-153 (T80T-4000-W) Handle.

     Courtesy of FORD MOTOR COMPANY

137. NOTE: The torque converter is heavy. Be careful not to drop it or damage will result.

     Using the special tool, install the torque converter into the transmission. Use Special Service Tool: 307-091 Handle, Torque Converter.

     Courtesy of FORD MOTOR COMPANY

138. Remove the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

     Courtesy of FORD MOTOR COMPANY

139. Remove the transmission from the bench-mounted holding fixture and the special tool. Use Special Service Tool: 307-773 Bench Mount Fixture.

     Courtesy of FORD MOTOR COMPANY

140. Install the transmission. Refer to: Transmission  .
