Transmission Fluid Cooler Tubes: Installation

WARNING: This page is about a different variant/trim than selected.

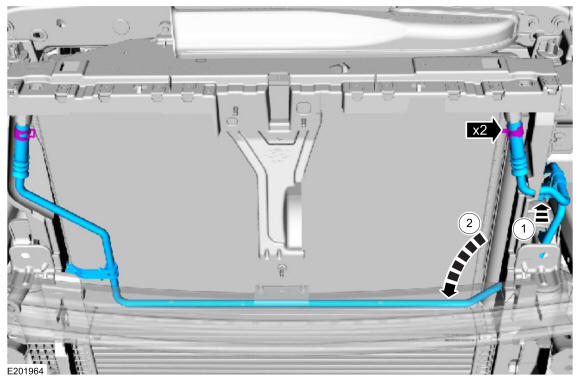

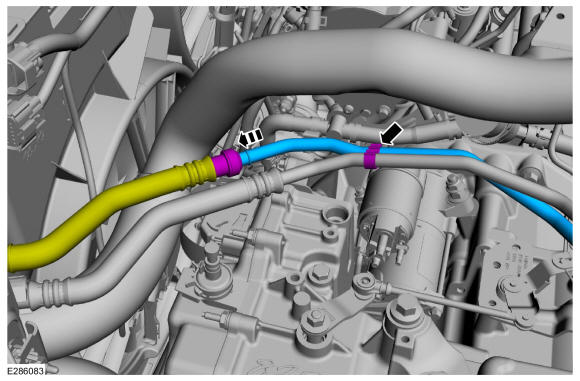

Install the transmission fluid cooler tubes, connect the transmission fluid cooler tubes to the transmission fluid cooler and position the clamps.
1. Push the transmission fluid cooler tubes into position.
2. Rotate the transmission fluid cooler tubes into place.
Courtesy of FORD MOTOR COMPANY

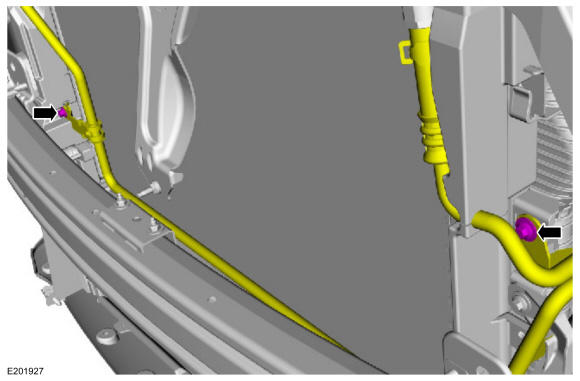

Install the transmission fluid tube cooler bracket bolts.
Torque

: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
Install the active grille shutter. Refer to: Active Grille Shutter

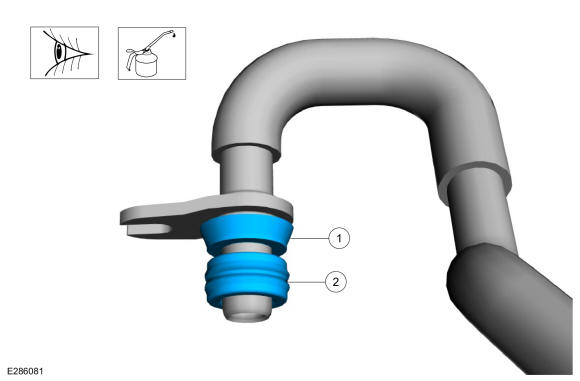

Inspect and lubricate the seal and backing ring.
- Backing ring (7J324)
- Seal (7D285)
  Material

  : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)
Courtesy of FORD MOTOR COMPANY

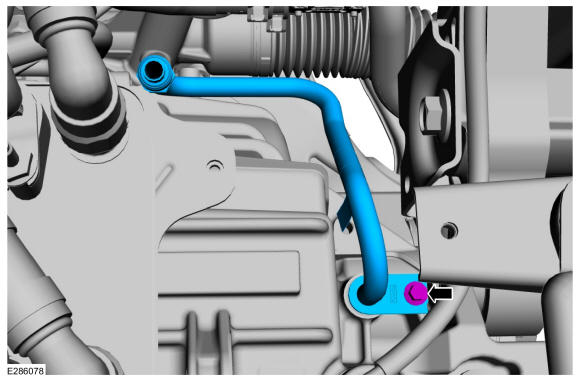

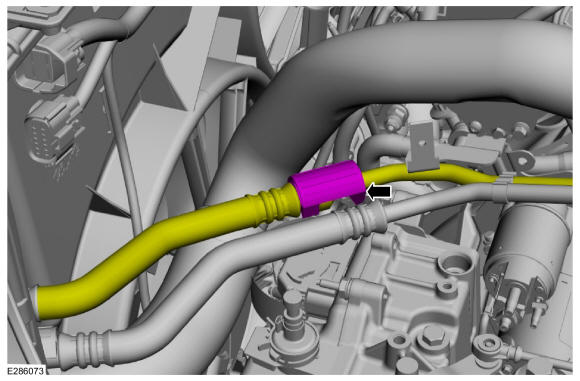

Install the cooler bypass valve-to-transmission tube and the bolt.
Torque

: 124 lb.in (14 Nm)

Courtesy of FORD MOTOR COMPANY

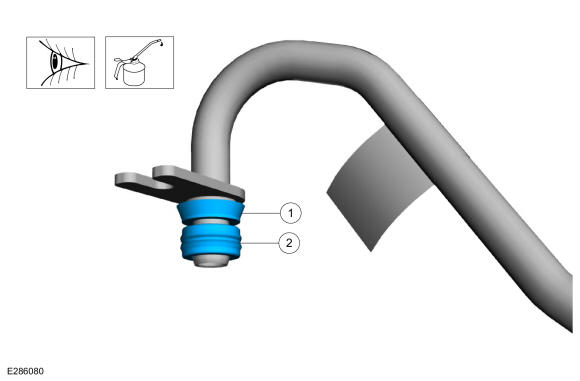

Inspect and lubricate the seal and backing ring.
- Backing ring (7J324)
- Seal (7D285)
  Material

  : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)
Courtesy of FORD MOTOR COMPANY
Install the transmission fluid warmer-to-cooler bypass valve tube and the stud bolt. Connect the wiring harness retainer.
Torque

: 124 lb.in (14 Nm)

Courtesy of FORD MOTOR COMPANY

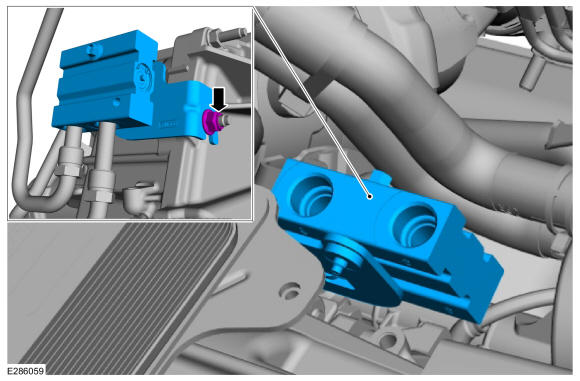

Install the cooler bypass valve and tighten the nut.
Torque

: 124 lb.in (14 Nm)

Courtesy of FORD MOTOR COMPANY

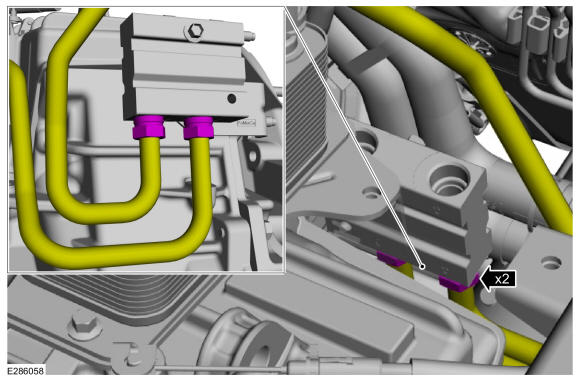

Tighten the transmission fluid cooler tube fittings.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

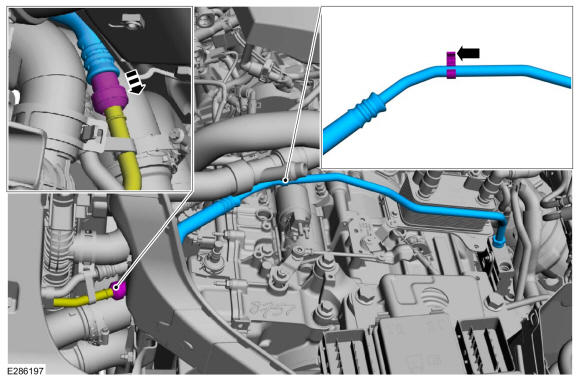

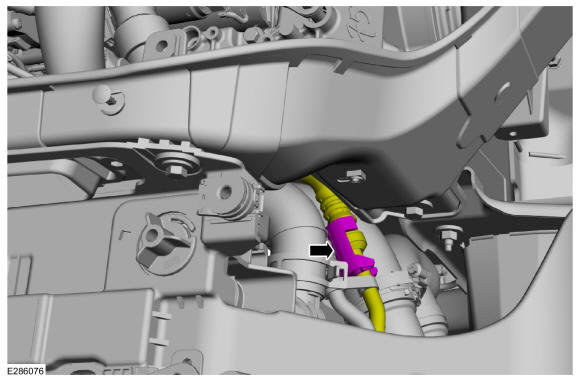

Install the tube retainer and connect the transmission fluid cooler tube assembly-to-cooler bypass valve quick connect coupling.

Courtesy of FORD MOTOR COMPANY
Install the transmission cooler tube assembly-to-cooler bypass valve tube secondary latch.

Courtesy of FORD MOTOR COMPANY

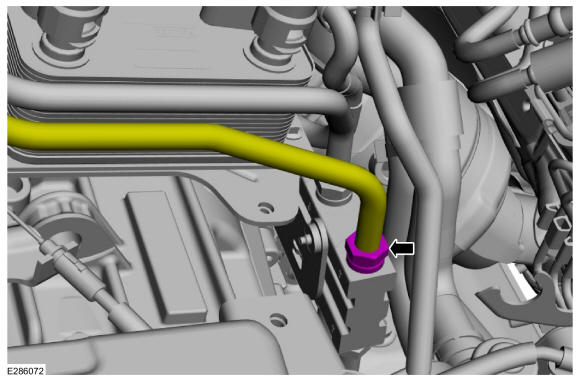

Connect the transmission fluid cooler tube assembly-to-cooler bypass valve tube fitting and tighten the fitting.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Install the cooler bypass valve-to-transmission fluid cooler tube assembly tube secondary latch.

Courtesy of FORD MOTOR COMPANY

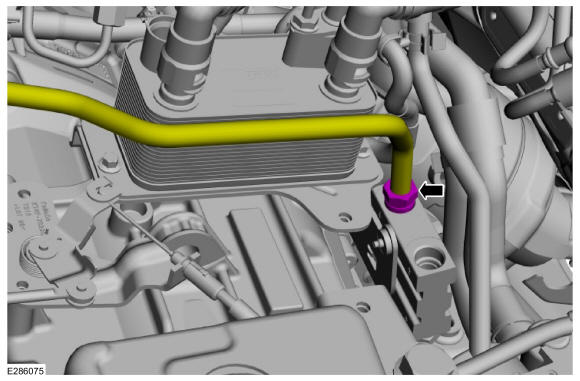

Connect the cooler bypass valve-to-transmission fluid cooler tube assembly tube fitting and tighten the fitting.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

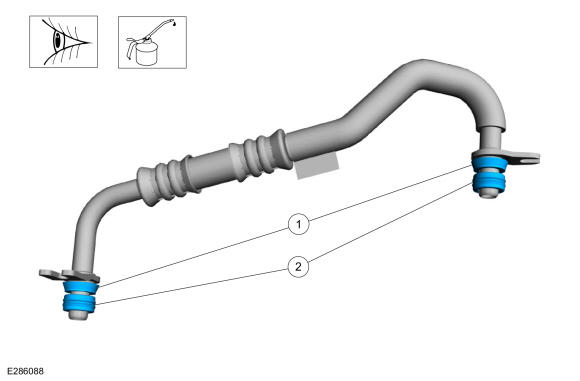

Inspect and lubricate the seal and backing ring.
- Backing ring (7J324)
- Seal (7D285)
  Material

  : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)
Courtesy of FORD MOTOR COMPANY

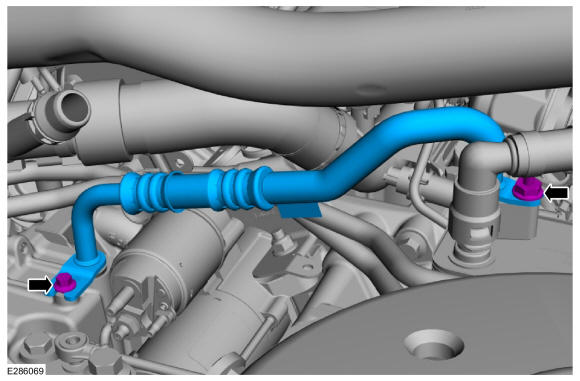

Install the transmission-to-transmission fluid warmer tube, the bolt and the stud bolt.
Torque

: 124 lb.in (14 Nm)

Courtesy of FORD MOTOR COMPANY
Install the battery tray. Refer to: Battery Tray
Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check
