Section 13 (Engine - 2.7L ECOBOOST (238KW/324PS) (2 Of 2)): Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1246 Engine Spreader Bar TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1634 Lift Eyes (2) TKIT-2014D-ROW3 TKIT-2014D-FL_ROW
Courtesy of FORD MOTOR COMPANY	307-346 (T97T-7902-A) Retainer, Torque Converter TKIT-1998-LM (NavigatoR) TKIT-1997-F/FLM/LT
Floor Crane
Adjustable Mounting Arm
Hose Clamp Remover/Installer
Powertrain Jack
Wooden Block

Materials

LHD AWD/LHD FWD

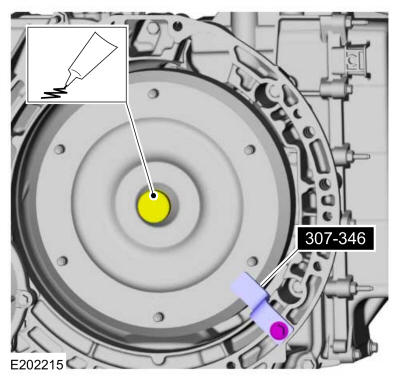

1. Lubricate the torque converter hub with multi-purpose grease. Remove Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

   Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

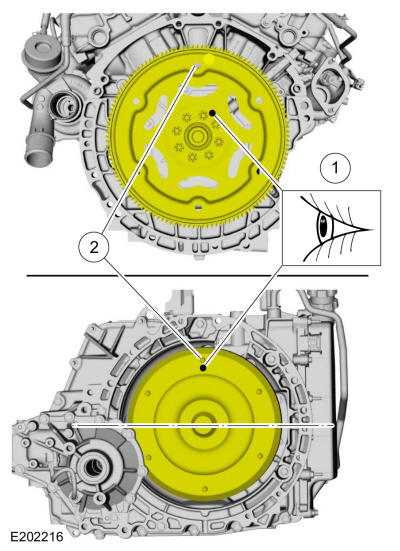

2. • Inspect the torque converter stud and flexplate for paint marks.
   • Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.

   Courtesy of FORD MOTOR COMPANY

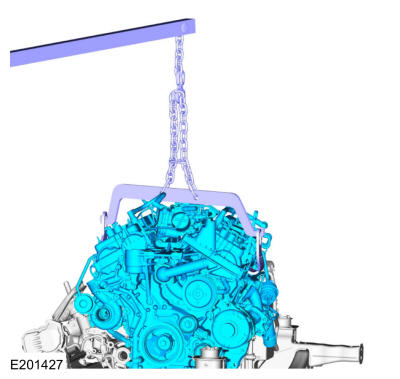

3. Position the engine onto the transmission and subframe assembly. Use the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

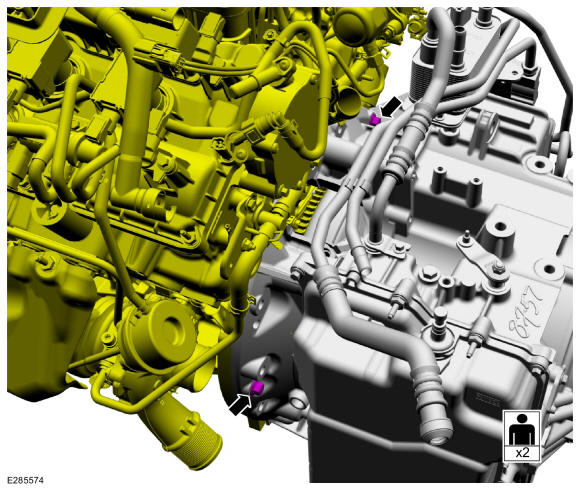

4. • With the aid of an assistant, align the engine to the transmission and install the bolts.
   • Draw the engine and transmission together evenly using the bolts.

   Courtesy of FORD MOTOR COMPANY

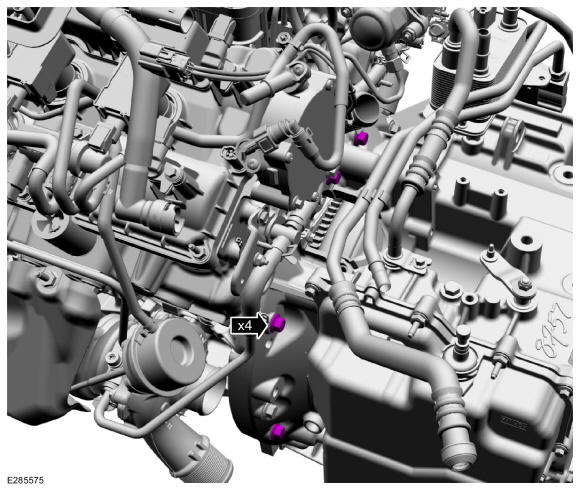

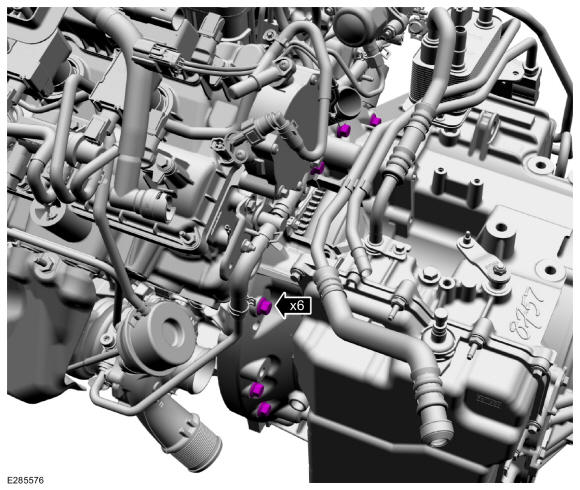

5. Install the transmission bellhousing bolts.

   Courtesy of FORD MOTOR COMPANY

6. Tighten.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

7. NOTE: AWD shown, FWD similar.

   Install the transmission bellhousing bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

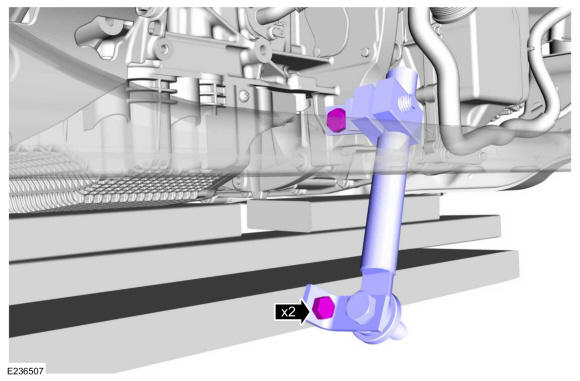

8. Install. Use the General Equipment: Adjustable Mounting Arm

   Courtesy of FORD MOTOR COMPANY

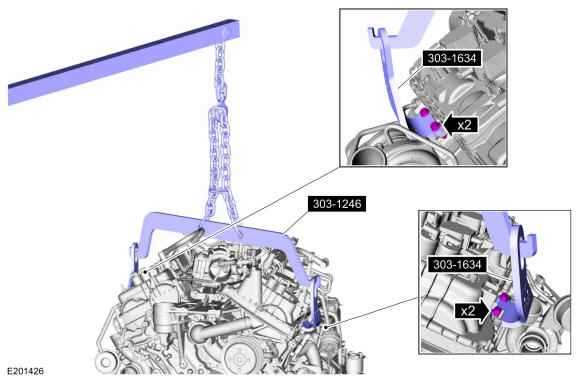

9. 1. Remove the floor crane and length of chain with connecting links. Use the General Equipment: Floor Crane
   2. Remove Special Service Tool: 303-1246 Engine Spreader Bar, 303-1634 Lift Eyes (2).

   Courtesy of FORD MOTOR COMPANY

   LHD AWD

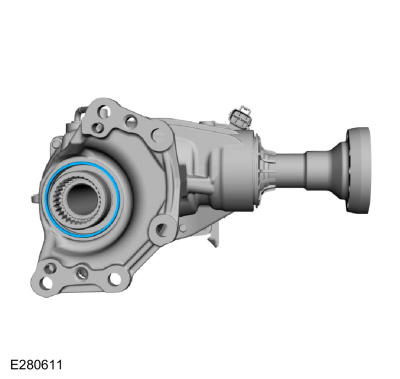

10. Install a new transfer case compression seal.

    Courtesy of FORD MOTOR COMPANY

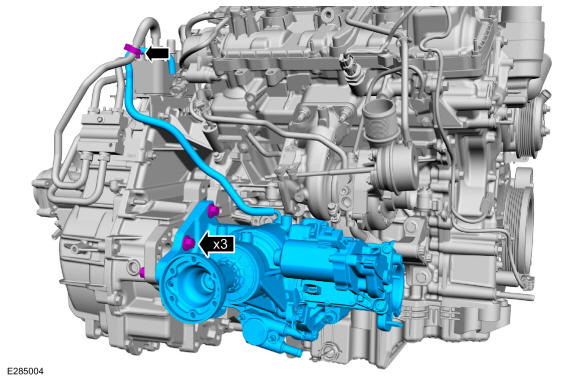

11. 1. Install the transfer case.
    2. Install new bolts.

       Torque: 76 lb.ft (103 Nm)

    3. Attach the vent hose retainer.

    Courtesy of FORD MOTOR COMPANY

12. Install the bracket and the bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

13. Install the intermediate shaft. Refer to: Intermediate Shaft .

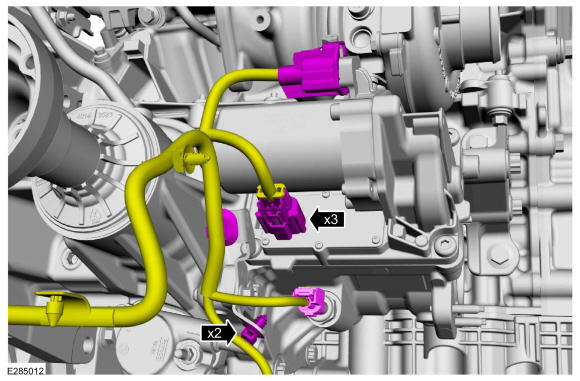

14. Connect the transfer case electrical connectors and attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

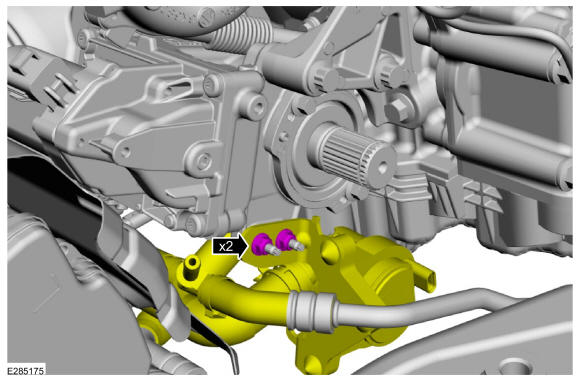

15. Install the coolant pump and the nuts.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

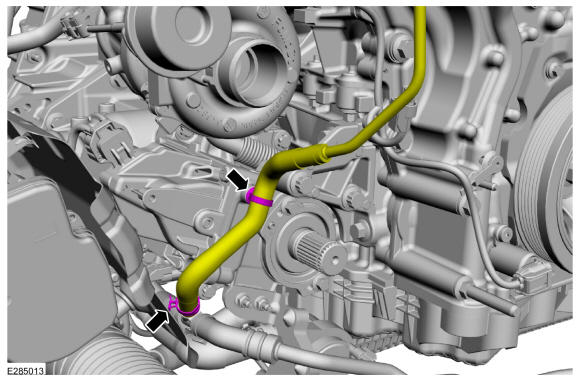

16. • Install the coolant hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    • Attach the coolant hose retainer.

    Courtesy of FORD MOTOR COMPANY

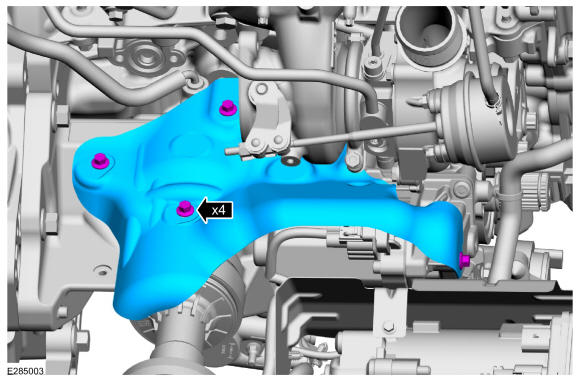

17. Install the heat shield and the bolts.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD FWD

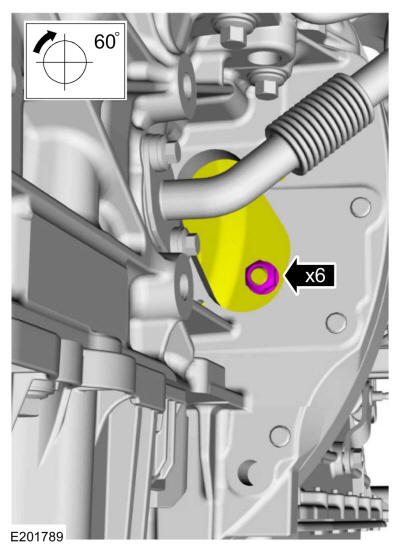

18. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Install the new torque converter nuts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

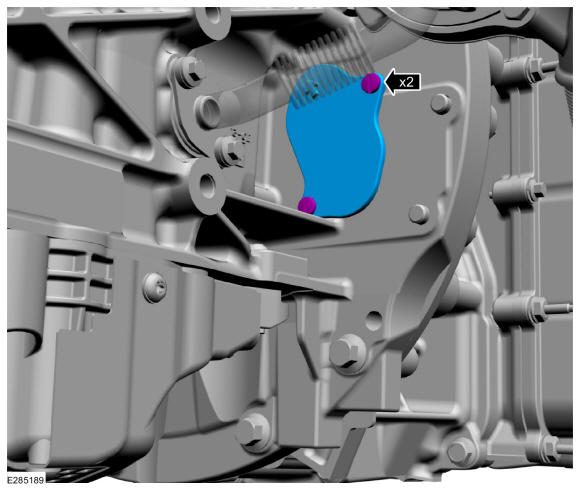

19. Install the access cover and the retainers.

    Courtesy of FORD MOTOR COMPANY

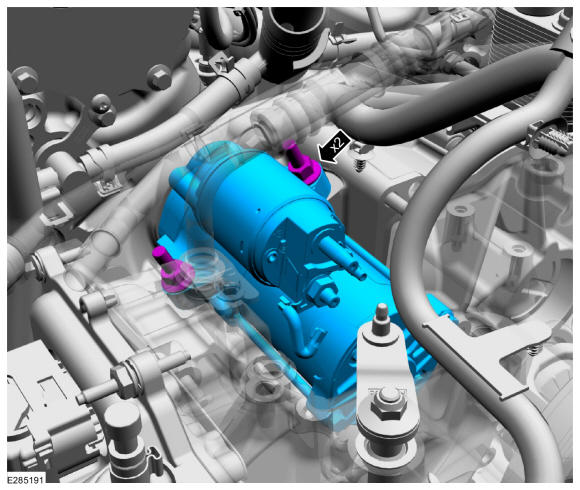

20. Install the starter and the stud bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

21. 1. Install the bracket and the nuts.

       Torque: 17 lb.ft (23 Nm)

    2. Position the wiring harness and attach the retainer.

    Courtesy of FORD MOTOR COMPANY

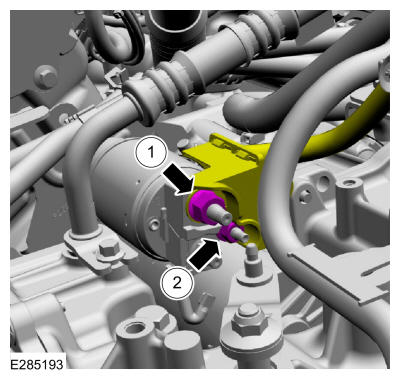

22. 1. Position the starter cable and install the nut.

       Torque: 106 lb.in (12 Nm)

    2. Install the nut.

       Torque: 53 lb.in (6 Nm)

    Courtesy of FORD MOTOR COMPANY

23. Install the starter cable protective cover.

    Courtesy of FORD MOTOR COMPANY

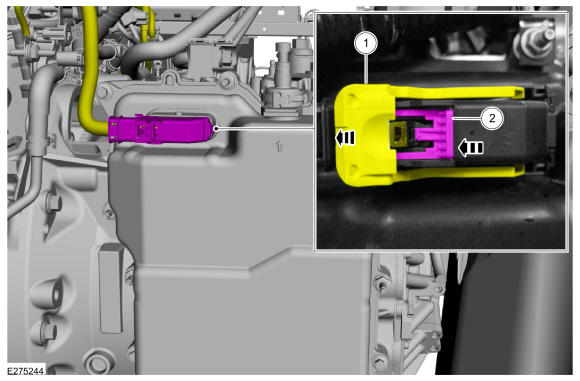

24. Connect the transmission electrical connector.
    1. Rotate the connector latch until it locks in place.
    2. Slide the locking clip back to its original position.

    Courtesy of FORD MOTOR COMPANY

25. Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

26. • Install the coolant pump and hose assembly, the nuts and the bolt.

      Torque: 80 lb.in (9 Nm)

    • Attach the wiring harness retainer.
    • Connect the coolant pump electrical connector.

    Courtesy of FORD MOTOR COMPANY

27. • Attach the retainers and position the battery cable aside.

    Courtesy of FORD MOTOR COMPANY

    1. If equipped, position the transducer and install the nut.

       Torque: 80 lb.in (9 Nm)

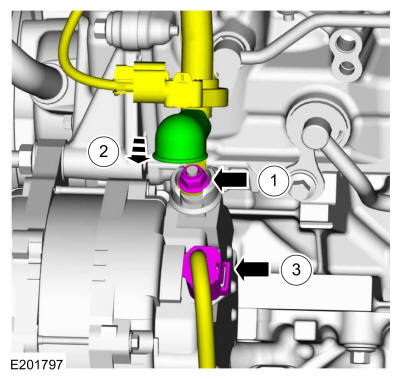

28. 1. Connect the generator cable and install the nut.

       Torque: 159 lb.in (18 Nm)

    2. Position the generator cable protective cover.
    3. Connect the generator electrical connector.

    Courtesy of FORD MOTOR COMPANY

29. Install a new RH catalytic converter gasket.

    Courtesy of FORD MOTOR COMPANY

30. 1. Install the RH catalytic converter.
    2. Install new RH catalytic converter nuts.

       Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

31. 1. Install.

       Torque: 22 lb.ft (30 Nm)

    2. Tighten.

       Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

32. If equipped, position the transducer and install the bolt.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

33. • Connect the HO2S and the catalyst monitor sensor electrical connectors.
    • Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

34. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
    1. Uncover, clean and inspect all open ports.
    2. Install the turbocharger outlet pipe and clamp.

       Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

35. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
    1. Uncover, clean and inspect all open ports.
    2. Install the turbocharger intake pipe and clamp.

       Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

36. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
    1. Uncover, clean and inspect all open ports.
    2. Install the bolt.

       Torque: 71 lb.in (8 Nm)

    3. Install the hoses and the clamps. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

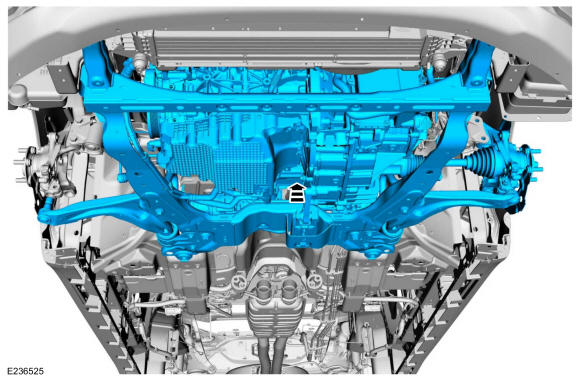

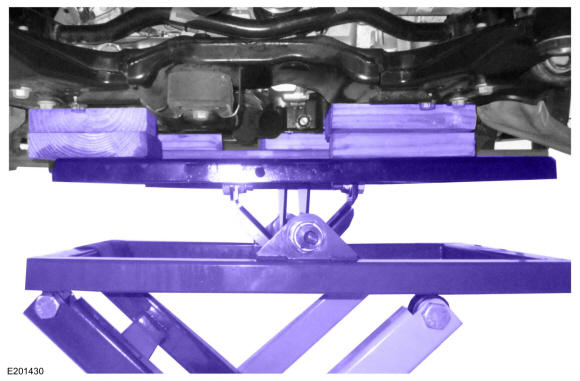

37. Using the powertrain jack, raise the powertrain and subframe assembly into the engine compartment. Use the General Equipment: Powertrain Jack

    Courtesy of FORD MOTOR COMPANY

38. Install the engine mount and bracket assembly.
    1. Install the new engine mount bracket-to-engine nuts finger tight.
    2. Install the new engine mount-to-frame nut finger tight.
    3. Install the new engine mount-to-frame bolts finger tight.
    4. Tighten the engine mount bracket-to-engine nuts.

       Torque: 59 lb.ft (80 Nm)

    Courtesy of FORD MOTOR COMPANY

39. Install the new transmission mount bolts.

    Torque: 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

40. NOTE: Align the reference marks made during removal.
    NOTE: Only tighten the bolts finger tight at this stage.

    Install the new subframe bolts.

    Courtesy of FORD MOTOR COMPANY

41. NOTE: Align the reference marks made during removal.
    NOTE: Only tighten the bolts finger tight at this stage.
    1. Install the subframe brackets and the new subframe bolts.
    2. Install the subframe bracket bolts.

    Courtesy of FORD MOTOR COMPANY

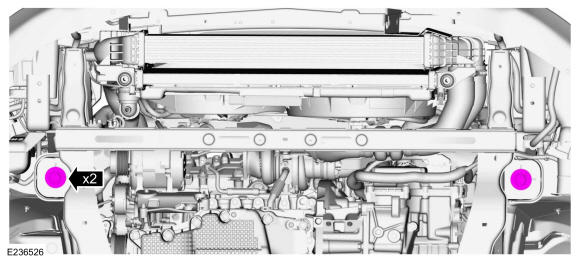

42. NOTE: While tightening the subframe bolts, make sure the front subframe does not move.

    Tighten the subframe bolts.

    Torque: 173 lb.ft (235 Nm)

    Courtesy of FORD MOTOR COMPANY

43. 1. Tighten.

       Torque: Stage 1: 76 lb.ft (103 Nm) | Stage 2: 270°

    2. Tighten.

       Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

44. Install the bolts and nuts.

    Torque: 173 lb.ft (235 Nm)

    Courtesy of FORD MOTOR COMPANY

45. Remove. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

46. Install the bellhousing bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

47. Remove. Use the General Equipment: Powertrain Jack. Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

48. 1. Tighten the engine mount-to-frame nut.

       Torque: 66 lb.ft (90 Nm)

    2. Tighten the engine mount-to-frame bolts.

       Torque: 81 lb.ft (110 Nm)

    Courtesy of FORD MOTOR COMPANY

    LHD AWD

49. Connect the transfer case coolant hose quick connect couplings.

    Courtesy of FORD MOTOR COMPANY

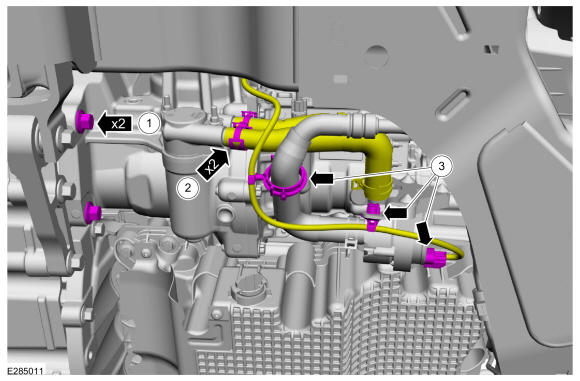

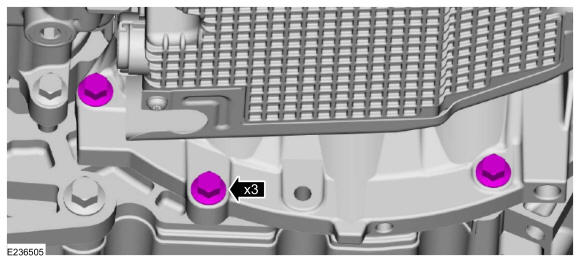

50. 1. Install the lower transfer case bolts.

       Torque: 76 lb.ft (103 Nm)

    2. Install the coolant hoses and clamps. Use the General Equipment: Hose Clamp Remover/Installer
    3. Connect the coolant pump electrical connector and attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

51. Install the driveshaft. Refer to: Rear Driveshaft - 2.7L EcoBoost (238kW/324PS) .

    LHD AWD/LHD FWD

52. Install the following items:
    1. LH catalytic convertor. Refer to: Catalytic Converter LH 2.7L EcoBoost .
    2. Exhaust flexible pipes. Refer to: Exhaust Flexible Pipe 2.7L EcoBoost .

53. 1. Install the subframe support bracket and the nuts.

       Torque: 30 lb.ft (40 Nm)

    2. If equipped, install the wiring harness support bracket(s) and the nut(s).

       Torque: 80 lb.in (9 Nm)

    3. If equipped, connect the wiring harness electrical connectors.

    Courtesy of FORD MOTOR COMPANY

54. Install the following items:
    1. NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

       Remove the LH brake disc. Refer to: Brake Disc .

    2. RH front halfshaft. Refer to: Front Halfshaft RH - FWD . Refer to: Front Halfshaft RH - 2.7L EcoBoost (238kW/324PS), All-Wheel Drive (AWD) .

55. Install the shield and the retainers.

    Courtesy of FORD MOTOR COMPANY

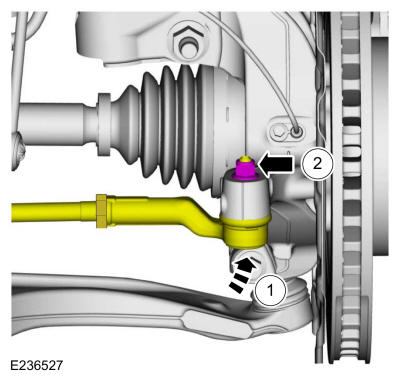

56. 1. Position the RH tie rod end into the wheel knuckle.
    2. Install the new tie rod end nut.

       Torque: 111 lb.ft (150 Nm)

    Courtesy of FORD MOTOR COMPANY

57. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the RH sway bar link and install the new nut.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

58. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the LH sway bar link and install the new nut.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

59. Install the LH anti-lock sensor and the bolt.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

60. Install the A/C compressor, the bolts and the stud bolt.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

61. NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.
    1. Make sure to uncover any open ports.
    2. Install new the O-ring seals and gasket seals.
    3. Connect the A/C compressor inlet and outlet line fittings and install the nuts.

       Torque: 159 lb.in (18 Nm)

    Courtesy of FORD MOTOR COMPANY

62. • Connect the A/C compressor electrical connectors.
    • Slide the insulator over the A/C compressor electrical connector.
    • Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

63. • Install the cooling module support panel and the bolts.

      Torque: 18 lb.ft (24 Nm)

    • Install the pin-type retainers.

    Courtesy of FORD MOTOR COMPANY

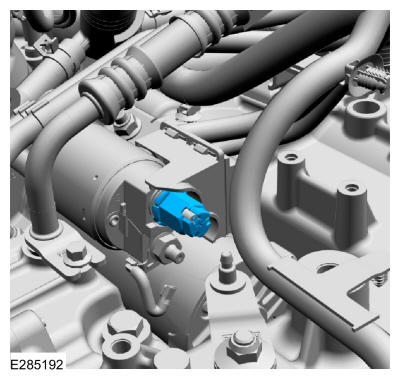

64. Connect the TSS sensor.

    Courtesy of FORD MOTOR COMPANY

65. Connect and attach the engine harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

66. Connect the transmission fluid cooler tubes.

    Courtesy of FORD MOTOR COMPANY

67. Install the transmission fluid cooler tube secondary latches.

    Courtesy of FORD MOTOR COMPANY

68. Connect the coolant tube couplings.

    Courtesy of FORD MOTOR COMPANY

69. Install the battery tray support bracket and the nut and bolt.

    Torque: 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

70. NOTE: If the filter housing stem is damaged or missing the oil will flow through the reservoir drain port and a loss  of engine oil pressure will occur.

    Inspect the oil filter housing and stem for damage including cracks or separation of the stem from the housing. If damaged, a new oil filter housing assembly must be installed.

    Courtesy of FORD MOTOR COMPANY

71. • NOTE: Failure to install new oil filter housing-to-engine front cover seals may result in oil leakage.

      Install new oil filter housing-to-engine front cover seals and lubricate with clean engine oil.

    • NOTE: Failure to install a new oil filter housing stem-to-oil reservoir drain port seal will result with the oil flowing through the reservoir drain port and a loss  of engine oil pressure.

      Install a new oil filter housing stem-to-oil reservoir drain port seal and lubricate with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

72. 1. Install a new oil filter element.
    2. Install the oil filter housing.

       Torque: 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

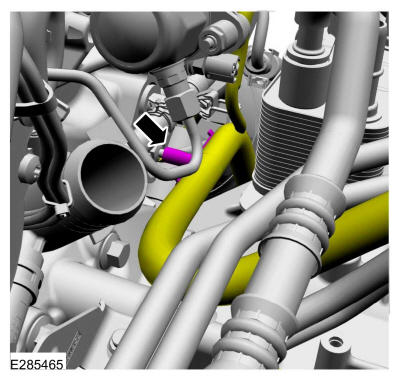

73. Install and connect the EVAP tube.

    Courtesy of FORD MOTOR COMPANY

74. 1. Connect the high-pressure fuel pump fuel supply tube quick release coupling. Refer to: Quick Release Coupling .
    2. Install the high-pressure fuel pump insulator. Refer to: Quick Release Coupling .
    3. Connect the EVAP tube quick release coupling. Refer to: Quick Release Coupling .
    4. Attach the EVAP tube retainer.

    Courtesy of FORD MOTOR COMPANY

75. • Connect the engine harness electrical connectors and attach the retainer.
    • Connect the PCM electrical connectors.

    Courtesy of FORD MOTOR COMPANY

76. • Position the bracket and install the bolt.

      Torque: 159 lb.in (18 Nm)

    • Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

77. 1. Install the ground wire and the bolt.

       Torque: 159 lb.in (18 Nm)

    2. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

78. 1. Install the lower radiator hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    2. Install the heater hose and clamp.
    3. Attach the heater hose retainer.

    Courtesy of FORD MOTOR COMPANY

79. 1. Install the heater hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    2. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

80. 1. Install the radiator hose onto the engine and retaining tab.
    2. Tighten the radiator hose clamp.

       Torque: 48 lb.in (5.4 Nm)

    3. Connect the heater hose coupling.
    4. Attach the heater hose retainer.

    Courtesy of FORD MOTOR COMPANY

81. Install the upper radiator hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

82. 1. Position the cable and install the bolts.

       Torque: 62 lb.in (7 Nm)

    2. Attach the cable to the manual control lever.

    Courtesy of FORD MOTOR COMPANY

83. Connect the vacuum tube quick release couplings. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

84. Install the bolts and attach the wiring harness retainers.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

85. 1. Install the electrical wiring harness and the nuts.

       Torque: 106 lb.in (12 Nm)

    2. Install the electrical wiring harness and the nut.

       Torque: 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

86. Close the cover.

    Courtesy of FORD MOTOR COMPANY

87. • Position the top part of junction box.
    • Latch the tabs.

    Courtesy of FORD MOTOR COMPANY

88. Connect the junction box electrical connector.

    Courtesy of FORD MOTOR COMPANY

89. Install the ground cable and stud bolt.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

90. Install the following items:
    1. Battery tray. Refer to: Battery Tray .
    2. Accessory drive belt. Refer to: Accessory Drive Belt 2.7L EcoBoost .

91. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
    1. Uncover, clean and inspect all open ports.
    2. Install the CAC inlet pipe and tighten the clamps.

       Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

92. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
    1. Uncover, clean and inspect all open ports.
    2. Install the CAC outlet pipe and tighten the clamps.

       Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

93. Connect the wiring harness electrical connector and attach the retainer.

    Courtesy of FORD MOTOR COMPANY

94. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
    1. Uncover, clean and inspect all open ports.
    2. Connect the CAC inlet pipe and tighten the clamps.

       Torque: 44 lb.in (5 Nm)

    3. Install the bolt.

       Torque: 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

95. Install the following items:
    1. Upper RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH 2.7L EcoBoost .
    2. LH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe LH 2.7L EcoBoost .
    3. Degas bottle. Refer to: Degas Bottle .

96. 1. Install the engine appearance cover and the nut.

       Torque: 42 lb.in (4.8 Nm)

    2. Install the bolt.

       Torque: 93 lb.in (10.5 Nm)

    Courtesy of FORD MOTOR COMPANY

97. Install the underbody shields and the retainers.

    Courtesy of FORD MOTOR COMPANY

98. Install the front underbody shield and the retainers.

    Courtesy of FORD MOTOR COMPANY

99. Install the following items:
    1. Front suspension height sensors. Refer to: Front Suspension Height Sensor .
    2. Front fender splash shields. Refer to: Fender Splash Shield .

100. 1. Remove the cable ties or mechanics wire.
     2. Install the upper cooling module support brackets.

     Courtesy of FORD MOTOR COMPANY

101. Install the upper air deflector and the retainers.

     Courtesy of FORD MOTOR COMPANY

102. Position steering column shaft and install a new bolt.

     Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

103. Remove the holding device.

     Courtesy of FORD MOTOR COMPANY

104. Fill the engine with clean engine oil. Refer to: Specifications 2.7L EcoBoost .

     Courtesy of FORD MOTOR COMPANY

105. Pressurize the fuel system. Refer to: Fuel System Pressure Release 2.7L EcoBoost .
106. Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
107. Charge the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant .
108. Start and check the exhaust system for leaks.
109. Check and top off the transmission fluid. Refer to: Transmission Fluid Level Check .
110. Install the underbody shields and the retainers.

     Courtesy of FORD MOTOR COMPANY

111. Use the PCM Misfire Monitor Profile Correction routine in the diagnostic scan tool.
