Camshaft RH: Installation

LHD AWD/LHD FWD

1. NOTE: Do

   not install the camshaft roller followers at this time. The roller followers will be installed later in the procedure. If the roller followers are installed prior to the camshafts, the camshaft caps can become distorted during the camshaft tightening process and result in upper end engine noise or severe damage to the engine.

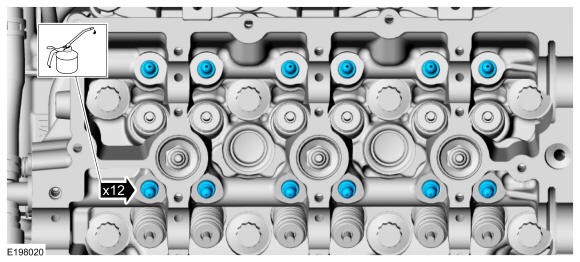

   NOTE: If the original hydraulic lash adjusters are to be reinstalled, they must be installed in their original locations.
   1. Lubricate the hydraulic lash adjusters with clean engine oil.
   2. Install the hydraulic lash adjusters.

   Courtesy of FORD MOTOR COMPANY

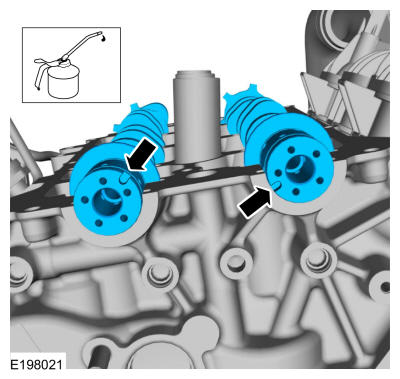

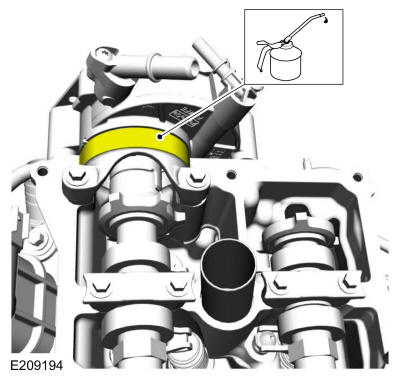

2. NOTE: Lubricate the camshafts with clean engine oil prior to installation.
   NOTE: It is not necessary to position the scarf-cut seal ends when installing the camshafts.

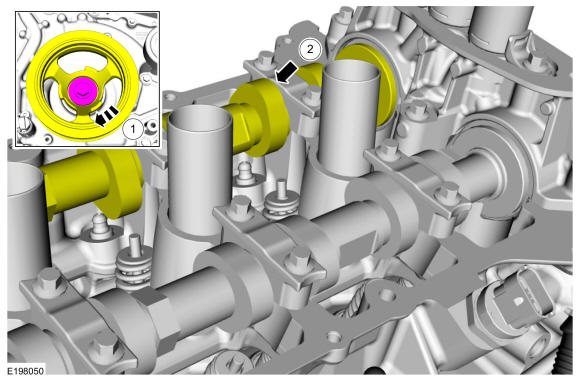

   Install the intake and exhaust camshafts in the neutral position. Align the D-slots as shown in the illustration.

   Courtesy of FORD MOTOR COMPANY

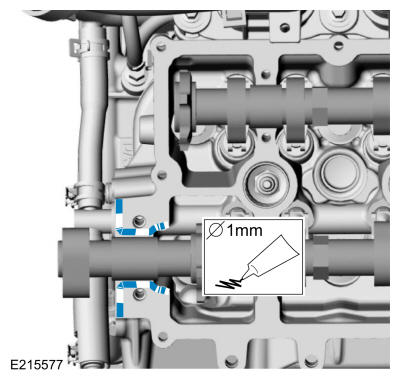

3. Apply a 1 mm bead of sealant to the rear camshaft cap mounting surface of the cylinder head.

   Material: Flange Sealant / CU7Z-19B508-A (WSS-M2G348-A11)

   Courtesy of FORD MOTOR COMPANY

4. NOTE: Do not tighten at this time.

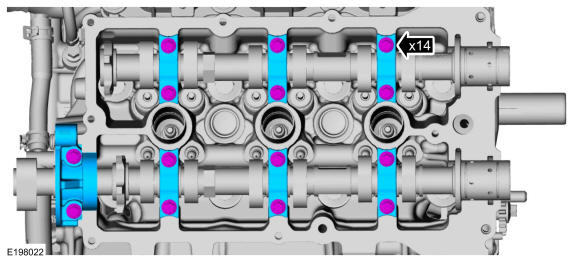

   Install the camshaft bearing caps and the bolts.

   Courtesy of FORD MOTOR COMPANY

5. NOTE: Do not tighten at this time.

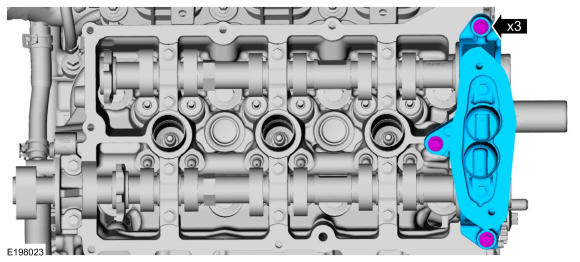

   Install the front camshaft bearing mega cap and the bolts.

   Courtesy of FORD MOTOR COMPANY

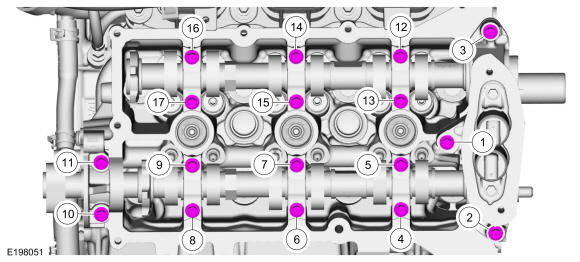

6. Tighten the bolts.

   Torque: 133 lb.in (15 Nm)

   Fig 1: Front Camshaft Bearing Mega Cap Bolts Tightening Sequence

   Courtesy of FORD MOTOR COMPANY

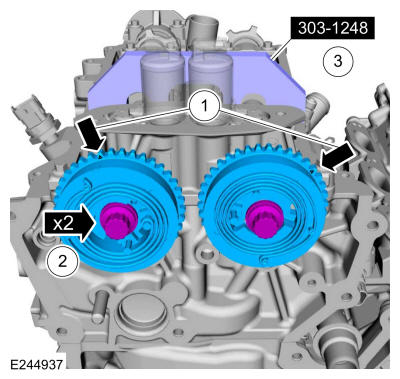

7. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For installation of the RH side the triangle marks are used.
   1. Install the VCT units. The triangle  timing marks on the VCT units will be at the 2 o'clock (intake) and 11 o'clock (exhaust) positions as shown in the illustration.
   2. Install new VCT unit bolts.

      Torque: Stage 1: 30 lb.ft (40 Nm) | Stage 2: Loosen: 360° | Stage 3: 37 lb.ft (50 Nm) | Stage 4: 90°

   3. Remove Special Service Tool: 303-1248 Camshaft holding tools.

   Courtesy of FORD MOTOR COMPANY

8. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the RH side the triangle marks are used.

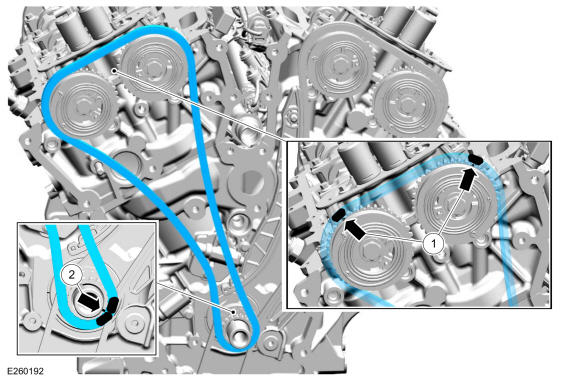

   1. Install the RH timing chain with the single colored links aligned with the triangle  timing marks on the VCT units.
   2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

   Courtesy of FORD MOTOR COMPANY

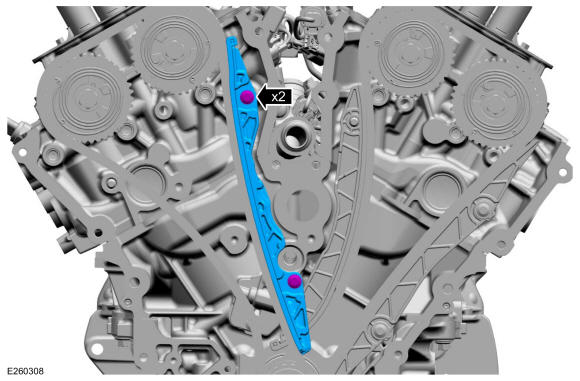

9. Install the RH timing chain guide and bolts.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

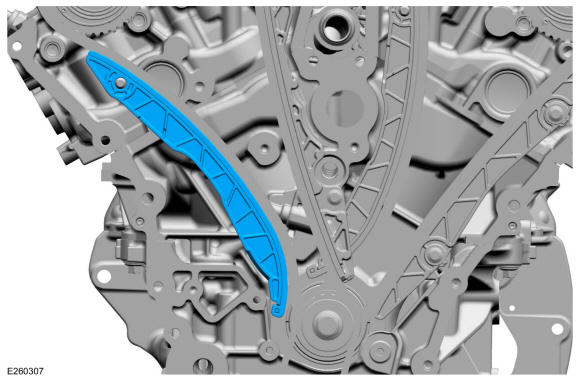

10. Install the RH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

11. Slide the tensioner cylinder out of the RH timing chain tensioner housing.

    Courtesy of FORD MOTOR COMPANY

12. NOTE: Use vise jaw protectors or cover the jaws of the vise with clean shop towels to prevent damage to the surface of the tensioner ratchet mechanism.

    Mount the flat machined surfaces on the end of the tensioner cylinder into a vise.

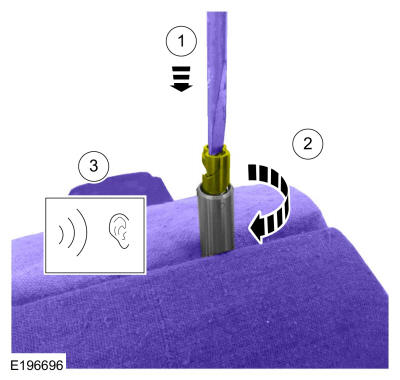

    1. Using a flat-bladed screwdriver apply light downward pressure on the end of the tensioner ratchet mechanism. Use the General Equipment: Vise. Use the General Equipment: Vise Jaw Protectors. Use the General Equipment: Flat-Bladed Screwdriver
    2. Rotate the screwdriver clockwise approximately one turn.
    3. An audible click will be heard when the tensioner ratchet mechanism locks into place.

    Courtesy of FORD MOTOR COMPANY

13. Slide the tensioner cylinder into the tensioner housing until it contacts the bottom of the bore. The shoulder of the tensioner cylinder will be flush with the top of the housing.

    Courtesy of FORD MOTOR COMPANY

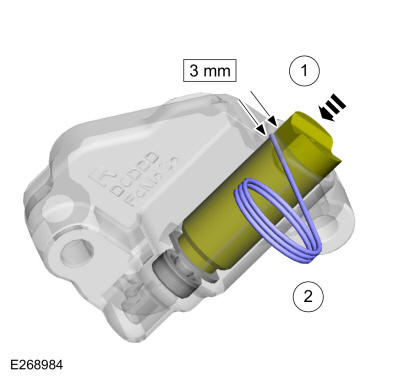

14. 1. Firmly press the tensioner cylinder into the tensioner housing until the shoulder of the tensioner cylinder is approximately 3 mm (0.125 in) below the top of the housing.
    2. Install a retaining pin into the hole in the housing to lock the tensioner cylinder in the retracted position.

    Courtesy of FORD MOTOR COMPANY

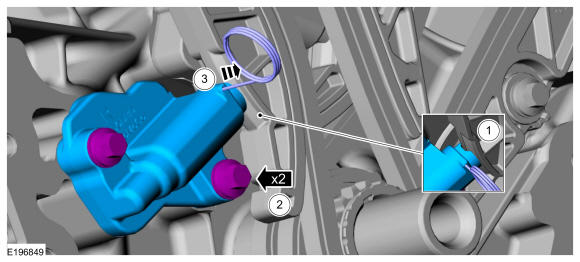

15. 1. Position the RH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm.
    2. Install the bolts.

       Torque: 89 lb.in (10 Nm)

    3. Remove the pin to allow the tensioner cylinder to extend and press against the timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

16. Install new engine front cover gaskets.

    Courtesy of FORD MOTOR COMPANY

17. Lubricate and install a new oil gallery seal (6G068).

    Courtesy of FORD MOTOR COMPANY

18. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The engine front cover must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.

    Apply a 9 mm (0.35 in) bead of Motorcraft® High Performance Engine RTV Silicone to the cylinder block skirt-to-cylinder block joint and the cylinder head-to-cylinder block joint areas as indicated.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

19. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The engine front cover must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.
    1. Apply a 4.5 mm (0.18 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover sealing surfaces of the inner bolt bosses.

       Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    2. Apply a 4.5 mm (0.18 in) bead of Motorcraft® High Performance Engine RTV Silicone to the chamfer of the engine front cover sealing surfaces.

       Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

20. Install the engine front cover and the fasteners.

    Torque: Stage 1: Tighten bolts 1 thru 11 to: 18 lb.ft (24 Nm) | Stage 2: Tighten bolts 12 thru 13 to: 35 lb.ft (48 Nm) | Stage 3: Tighten bolts 14 thru 21 to: 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

21. • Lubricate the inside and the outside diameter of the grommet with clean engine coolant.
    • Install the grommet so it is flush with the rear of the coolant pump housing.

    Courtesy of FORD MOTOR COMPANY

22. NOTE: Verify the front cover dowel pins are aligned to the coolant pump and that the coolant pump is fully seated prior to installing the fasteners.
    • Using a new gasket, install the coolant pump and the fasteners.

      Torque: Fasteners 1-7: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45°

    • Torque

      : Fastener 8: 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

23. Install the coolant pump pulley and the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

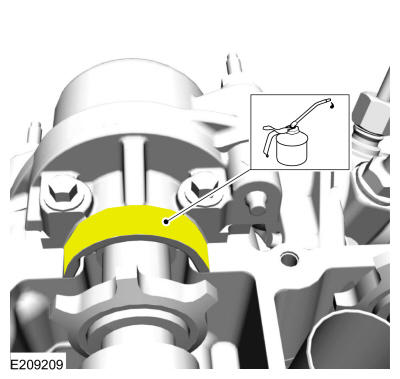

24. Lubricate the engine front cover bore with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

25. Using the special tools, install the new crankshaft front oil seal. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal, 303-1531 Installer, Front Crank Seal and Damper.

    Courtesy of FORD MOTOR COMPANY

26. Lubricate the crankshaft front seal inner lip with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

27. Lubricate the crankshaft pulley sealing surface with clean engine oil prior to installation.

    Courtesy of FORD MOTOR COMPANY

28. Using the special tools, install the crankshaft pulley. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal, 303-1531 Installer, Front Crank Seal and Damper.

    Courtesy of FORD MOTOR COMPANY

29. NOTE: Use a universal pulley holder (such as an OTC 4754, or equivalent).

    Using a universal pulley holder, install and tighten a new crankshaft pulley bolt.

    Torque: Stage 1: 166 lb.ft (225 Nm) | Stage 2: Loosen: 360° | Stage 3: 26 lb.ft (35 Nm) | Stage 4: 270°

    Courtesy of FORD MOTOR COMPANY

30. Rotate the crankshaft pulley bolt clockwise to position the camshaft lobe upward for the camshaft roller follower to be installed.

    Courtesy of FORD MOTOR COMPANY

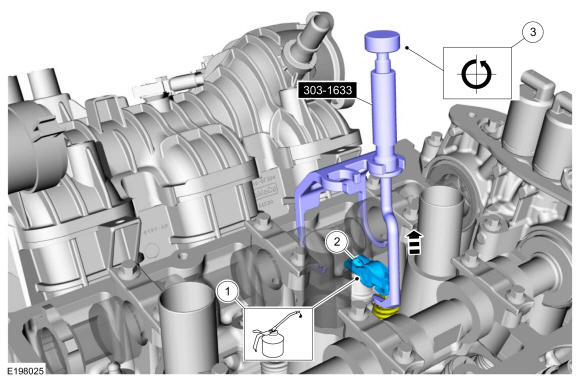

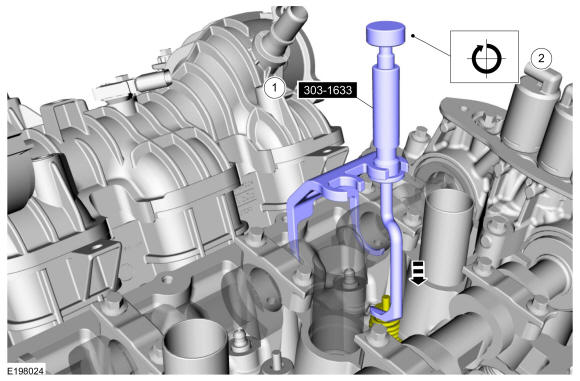

31. 1. Install Special Service Tool: 303-1633 Remover, Roller Rocker Follower.
    2. Turn the knob on the special tool clockwise to depress the valve and spring.

    Courtesy of FORD MOTOR COMPANY

32. 1. Lubricate the camshaft roller follower with clean engine oil.
    2. Install the camshaft roller follower.
    3. Turn the knob on the special tool counterclockwise to raise the valve and spring. Remove Special Service Tool: 303-1633 Remover, Roller Rocker Follower.
    • Repeat steps for the remaining camshaft roller followers.

    Courtesy of FORD MOTOR COMPANY

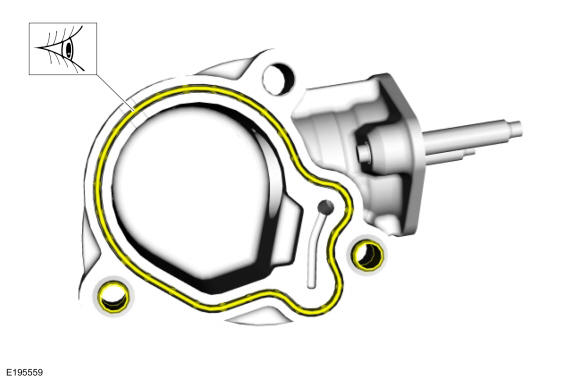

33. Inspect the high-pressure fuel pump drive unit gasket and replace if damaged.

    Courtesy of FORD MOTOR COMPANY

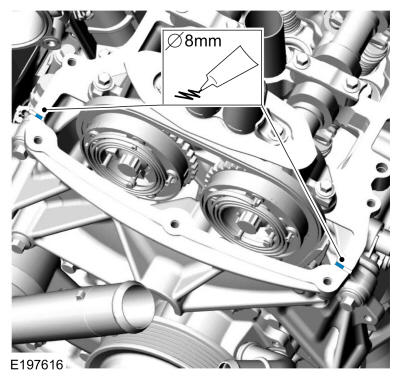

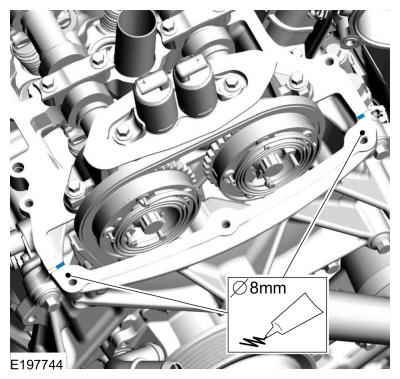

34. Apply 8 mm dots of sealant to the camshaft bearing cap and cylinder head seam as shown.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

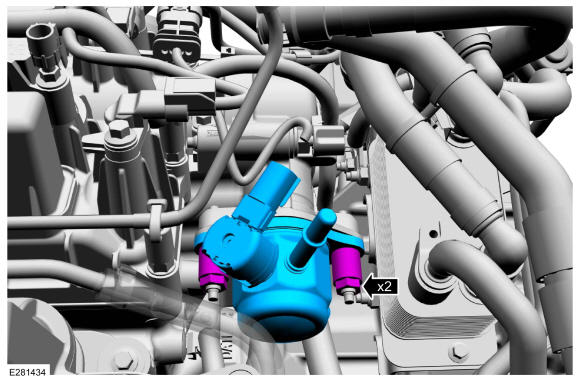

35. Install the high-pressure fuel pump drive unit and stud bolts.

    Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 45°

    Courtesy of FORD MOTOR COMPANY

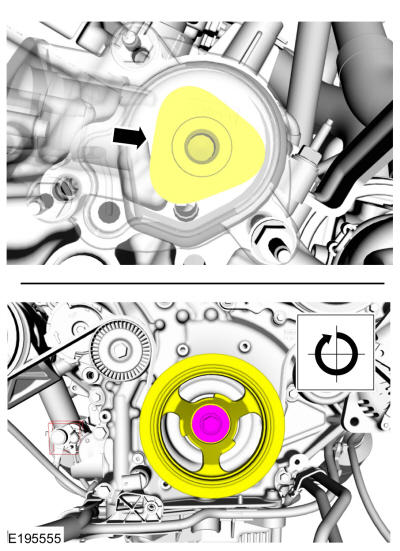

36. NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.
    NOTE: The drive lobe for the high-pressure fuel pump must be at BDC (bottom dead center) for the high-pressure fuel pump installation.

    Using the crankshaft pulley bolt, turn the crankshaft until the high-pressure fuel pump drive lobe is at BDC.

    Courtesy of FORD MOTOR COMPANY

37. NOTE: Align the notch on the high-pressure fuel pump tappet and with the groove in the high-pressure fuel pump drive unit bore.

    Apply clean engine oil to the high-pressure fuel pump drive unit bore, the drive lobe and the roller tappet. Install the high-pressure fuel pump tappet.

    Courtesy of FORD MOTOR COMPANY

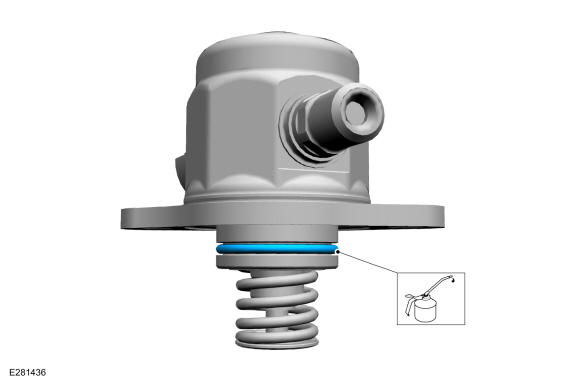

38. NOTE: Apply clean engine oil to the high-pressure fuel pump O-ring seals.

    Install a new high-pressure fuel pump O-ring seal and lubricate with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

39. Install the high-pressure fuel pump, then install and finger tighten the high-pressure fuel pump nuts. Alternately tighten each of the high-pressure fuel pump nuts one complete revolution until seated. Then tighten the fuel high-pressure fuel pump nuts in the following 2 stages.

    Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 45°

    Courtesy of FORD MOTOR COMPANY

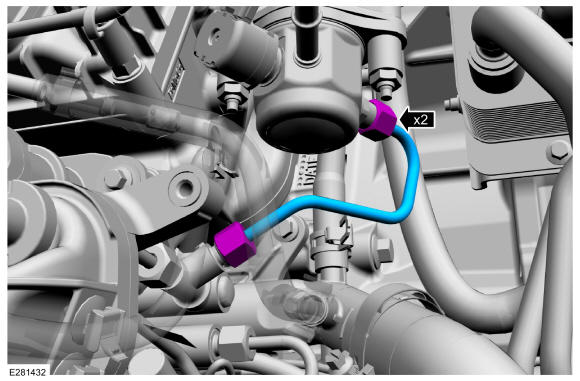

40. NOTE: Make sure that a new high-pressure fuel pump-to-fuel rail high-pressure fuel tube is installed.

    Install the high-pressure fuel pump-to-fuel rail high-pressure fuel tube and tighten the flare nuts finger tight, then tighten the flare nuts in the following 3 stages.

    Torque: Stage 1: 62 lb.in (7 Nm) | Stage 2: 89 lb.in (10 Nm) | Stage 3: 25°

    Courtesy of FORD MOTOR COMPANY

41. Position the generator and install the bolt and nut.

    Torque: 35 lb.ft (47 Nm)

    Courtesy of FORD MOTOR COMPANY

42. Install the idler pulley and the bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

43. NOTE: Installation of new seals is only required if damaged seals were removed.

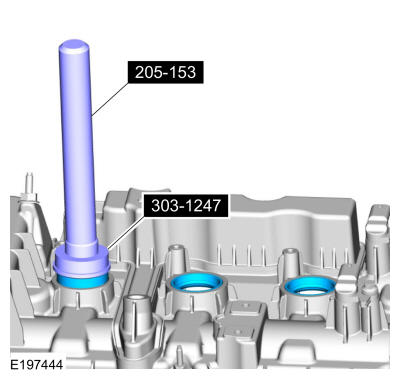

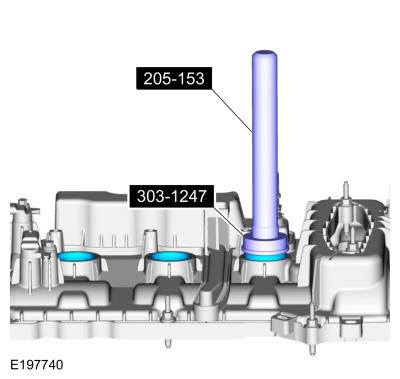

    Using the special tools, install new spark plug tube seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

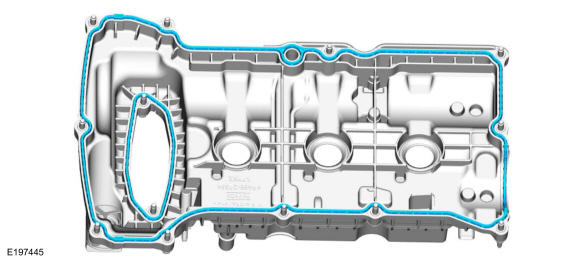

44. Install a new gasket.

    Courtesy of FORD MOTOR COMPANY

45. Apply clean engine oil to the surface.

    Courtesy of FORD MOTOR COMPANY

46. NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.

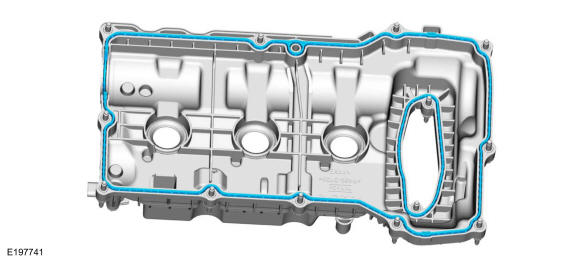

    Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

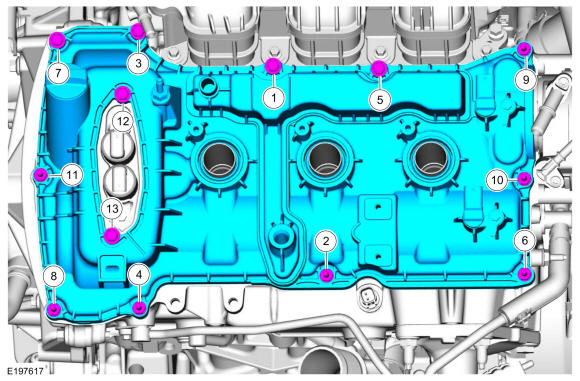

47. Install the valve cover and tighten the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

48. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using the special tools, install new spark plug tube seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

49. Install a new gasket.

    Courtesy of FORD MOTOR COMPANY

50. Apply clean engine oil to the surface.

    Courtesy of FORD MOTOR COMPANY

51. NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.

    Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

52. Install the valve cover and tighten the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

53. Inspect the ignition coil-on-plug assembly for cracks, rips or tears. Replace any damaged coil-on-plug assembly's.

    Courtesy of FORD MOTOR COMPANY

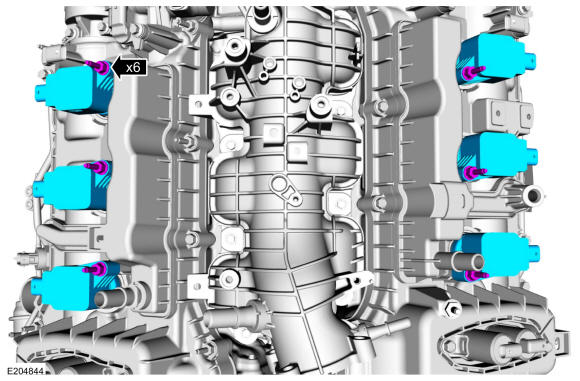

54. Install the coil-on-plug assemblies.

    Torque: 53 lb.in (6 Nm)

    Courtesy of FORD MOTOR COMPANY

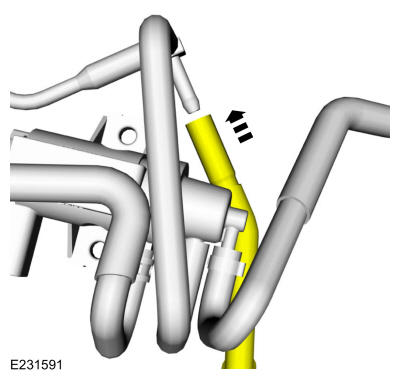

55. • Connect the TC vacuum supply tube. Use the General Equipment: Hose Clamp Remover/Installer
    • Attach the vacuum tube retainers.

    Courtesy of FORD MOTOR COMPANY

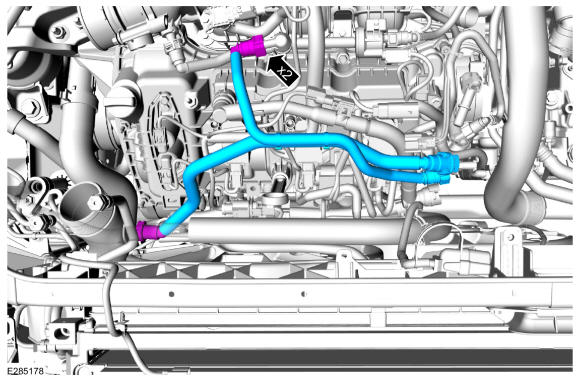

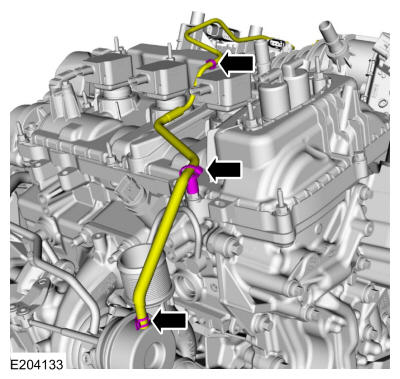

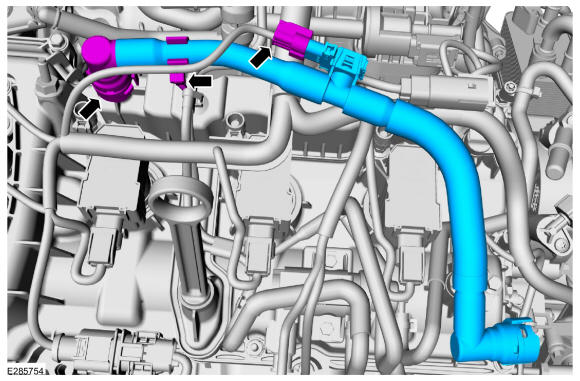

56. • Attach the vacuum tube and coolant tube retainers.
    • Connect the engine wiring harness electrical connector and retainers.

    Courtesy of FORD MOTOR COMPANY

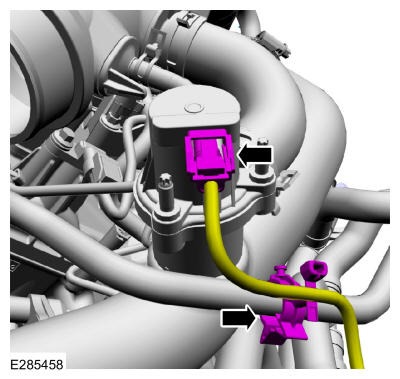

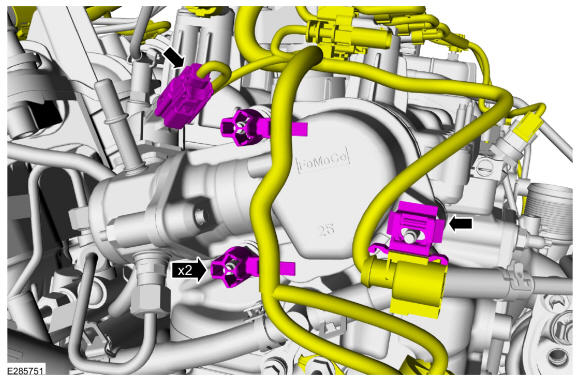

57. • Connect the high pressure fuel pump electrical connector.
    • Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

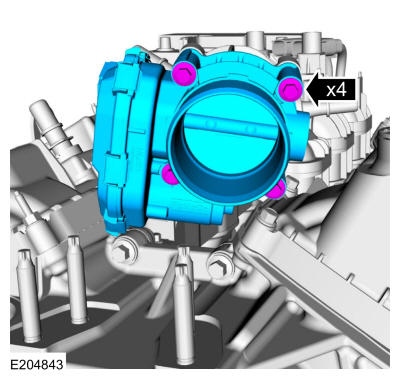

58. Install the throttle body and the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

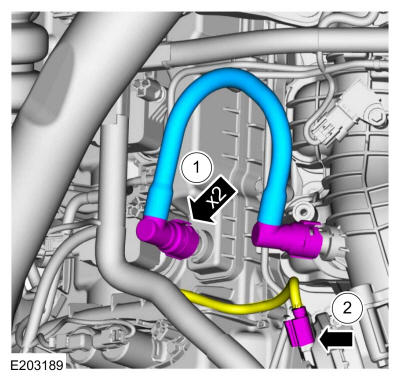

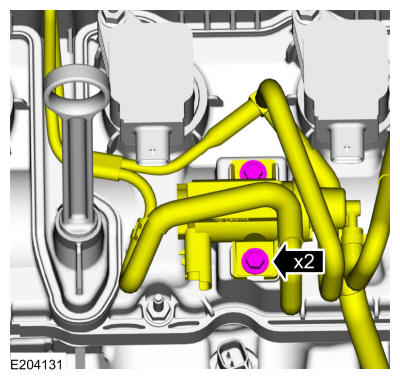

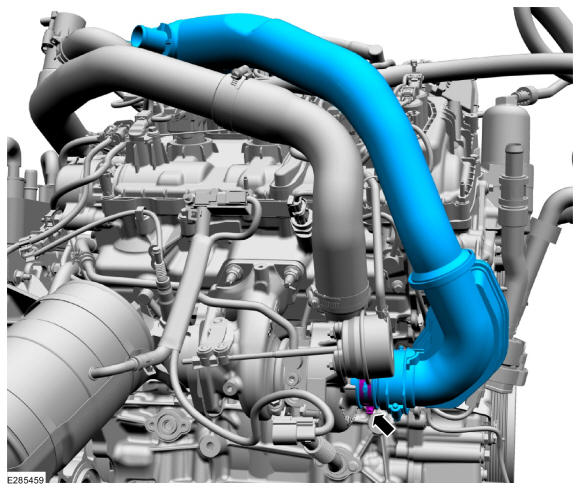

59. 1. Position the PCV tube and connect the quick release couplings. Refer to: Quick Release Coupling .
    2. Connect the throttle body electrical connector.

    Courtesy of FORD MOTOR COMPANY

60. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

61. Install the oil pressure control solenoid and the retainer.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

62. Connect the oil pressure control solenoid electrical connector.

    Courtesy of FORD MOTOR COMPANY

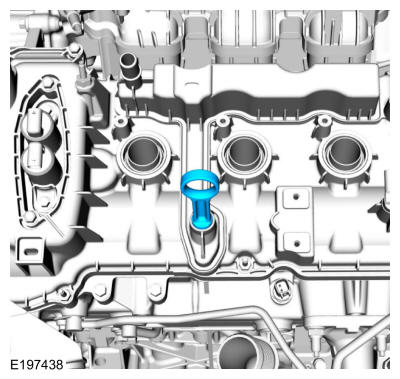

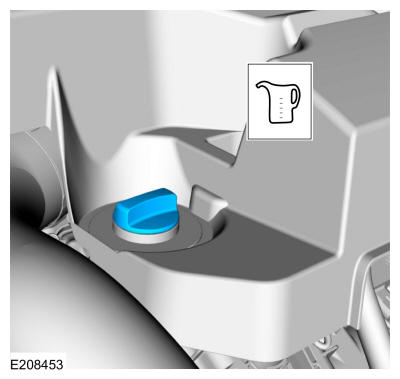

63. Install the oil level indicator.

    Courtesy of FORD MOTOR COMPANY

64. Connect the TC vacuum supply hose.

    Courtesy of FORD MOTOR COMPANY

65. Install the TC boost solenoid and the bolts.

    Torque: 62 lb.in (7 Nm)

    Courtesy of FORD MOTOR COMPANY

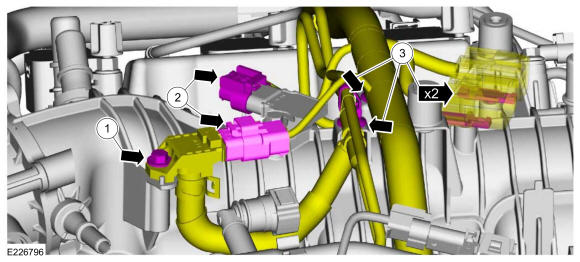

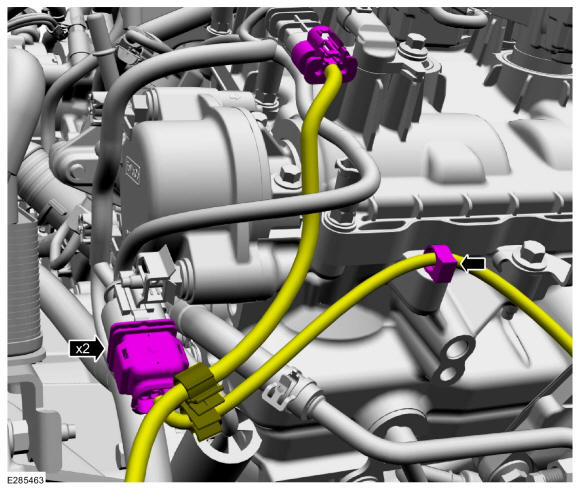

66. • Connect the engine wiring harness electrical connectors and attach the harness and vacuum hose retainers.
    • Slide the insulator down onto the CHT electrical connector.

    Courtesy of FORD MOTOR COMPANY

67. Connect the CMP electrical connectors.

    Courtesy of FORD MOTOR COMPANY

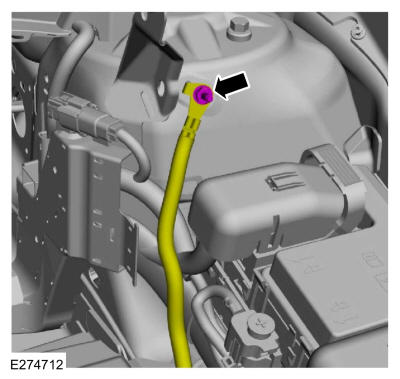

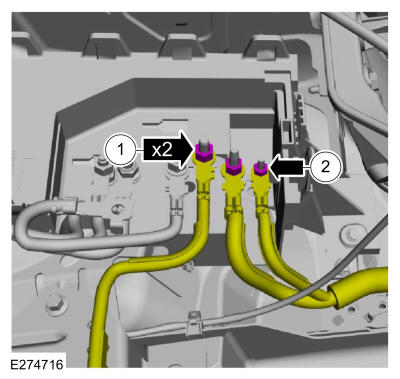

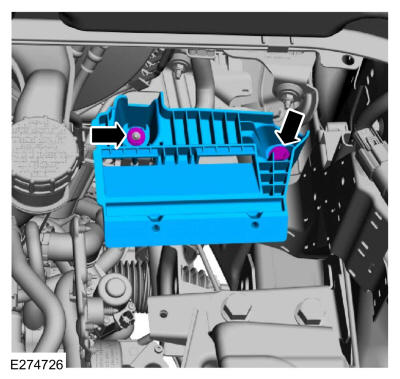

68. • Attach the retainers and position the battery cable aside.

    Courtesy of FORD MOTOR COMPANY

    1. If equipped, position the transducer and install the nut.

       Torque: 80 lb.in (9 Nm)

69. 1. Position the vacuum harness pressure sensor and install the bolt.

       Torque: 62 lb.in (7 Nm)

    2. Connect the wiring harness electrical connectors.
    3. Attach the wiring harness and vacuum harness retainers.

    Courtesy of FORD MOTOR COMPANY

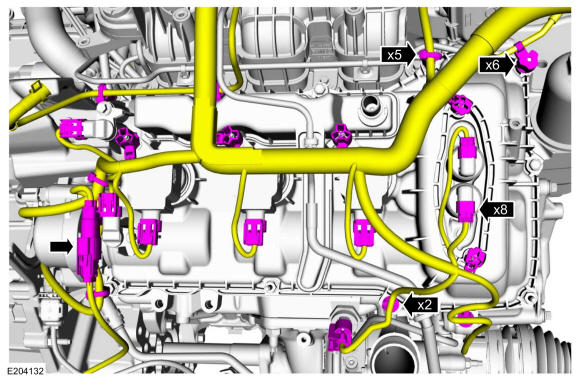

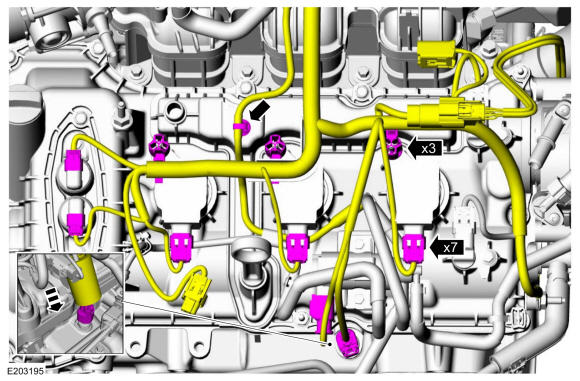

70. Connect the engine wiring harness electrical connectors and retainers.

    Courtesy of FORD MOTOR COMPANY

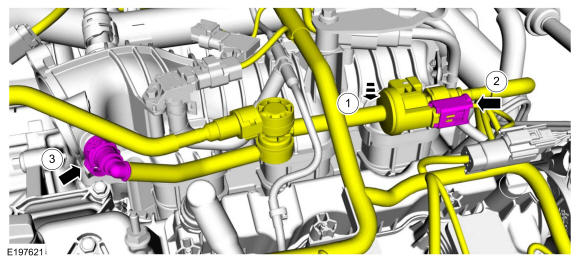

71. 1. Slide the EVAP purge valve onto the intake manifold mounting tab.
    2. Connect the EVAP purge valve electrical connector.
    3. Connect the EVAP tube quick release coupling. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

72. • Position the PCV tube and connect the quick release coupling. Refer to: Quick Release Coupling .
    • Attach the PCV tube retainer.
    • Connect the crankcase pressure sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

73. • Install the coolant pump and hose assembly, the nuts and the bolt.

      Torque: 80 lb.in (9 Nm)

    • Attach the wiring harness retainer.
    • Connect the coolant pump electrical connector.

    Courtesy of FORD MOTOR COMPANY

74. If equipped, position the transducer and install the bolt.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

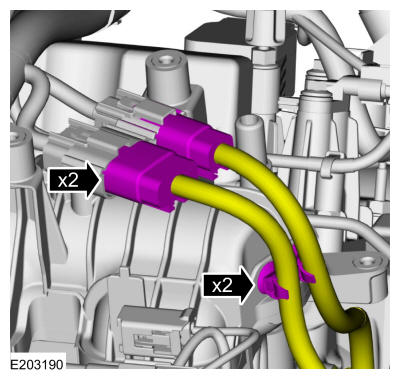

75. • Connect the HO2S and the catalyst monitor sensor electrical connectors.
    • Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

76. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
    1. Uncover, clean and inspect all open ports.
    2. Install the turbocharger outlet pipe and clamp.

       Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

77. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
    1. Uncover, clean and inspect all open ports.
    2. Install the turbocharger intake pipe and clamp.

       Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

78. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
    1. Uncover, clean and inspect all open ports.
    2. Install the bolt.

       Torque: 71 lb.in (8 Nm)

    3. Install the hoses and the clamps. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

79. Using the powertrain jack, raise the powertrain and subframe assembly into the engine compartment. Use the General Equipment: Powertrain Jack

    Courtesy of FORD MOTOR COMPANY

80. Install the engine mount and bracket assembly.
    1. Install the new engine mount bracket-to-engine nuts finger tight.
    2. Install the new engine mount-to-frame nut finger tight.
    3. Install the new engine mount-to-frame bolts finger tight.
    4. Tighten the engine mount bracket-to-engine nuts.

       Torque: 59 lb.ft (80 Nm)

    Courtesy of FORD MOTOR COMPANY

81. Install the new transmission mount bolts.

    Torque: 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

82. NOTE: Align the reference marks made during removal.
    NOTE: Only tighten the bolts finger tight at this stage.

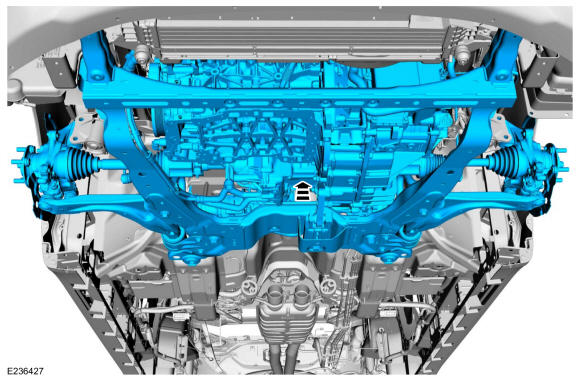

    Install the new subframe bolts.

    Courtesy of FORD MOTOR COMPANY

83. NOTE: Align the reference marks made during removal.
    NOTE: Only tighten the bolts finger tight at this stage.
    1. Install the subframe brackets and the new subframe bolts.
    2. Install the subframe bracket bolts.

    Courtesy of FORD MOTOR COMPANY

84. NOTE: While tightening the subframe bolts, make sure the front subframe does not move.

    Tighten the subframe bolts.

    Torque: 173 lb.ft (235 Nm)

    Courtesy of FORD MOTOR COMPANY

85. 1. Tighten.

       Torque: Stage 1: 76 lb.ft (103 Nm) | Stage 2: 270°

    2. Tighten.

       Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

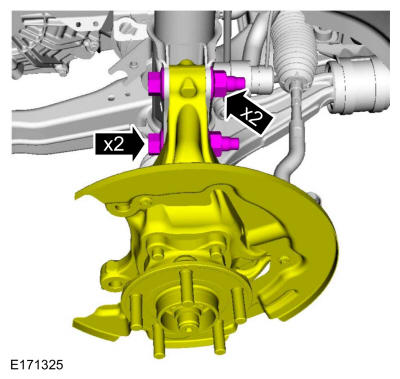

86. Install new bolts and nuts.

    Torque: 173 lb.ft (235 Nm)

    Courtesy of FORD MOTOR COMPANY

87. Install new bolts and nuts.

    Torque: 173 lb.ft (235 Nm)

    Courtesy of FORD MOTOR COMPANY

88. Remove. Use the General Equipment: Powertrain Jack. Use the General Equipment: Wooden Block. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

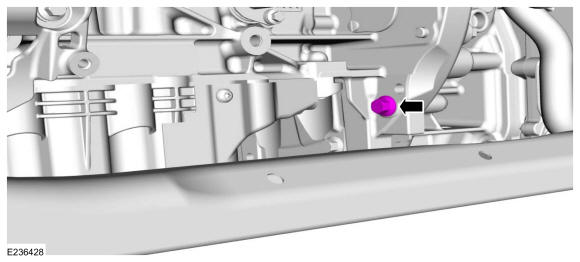

89. Install the engine-to-transmission bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

90. 1. Tighten the engine mount-to-frame nut.

       Torque: 66 lb.ft (90 Nm)

    2. Tighten the engine mount-to-frame bolts.

       Torque: 81 lb.ft (110 Nm)

    Courtesy of FORD MOTOR COMPANY

91. Install a new oil pump seal.

    Courtesy of FORD MOTOR COMPANY

92. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The oil pan must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 minutes of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.
    1. Install a new oil pan press-in-place gasket.
    2. Apply a 18 mm (0.708 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder block joint areas on the oil pan.

       Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

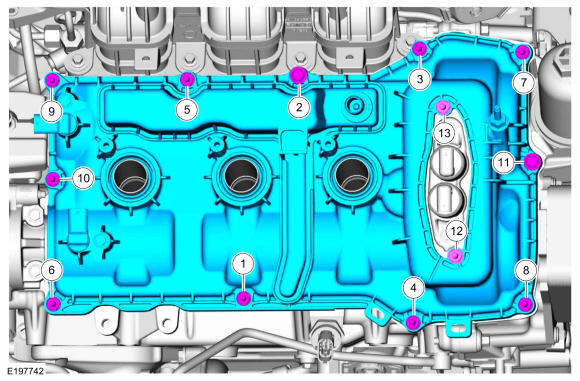

93. Install the oil pan and the bolts.

    Torque: Stage 1: 31 lb.in (3.5 Nm) | Stage 2: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

    LHD AWD

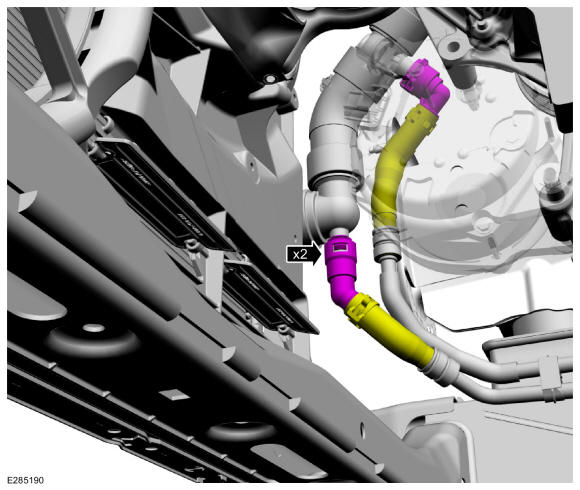

94. Connect the transfer case coolant hose quick connect couplings.

    Courtesy of FORD MOTOR COMPANY

95. Install the driveshaft. Refer to: Rear Driveshaft - 2.7L EcoBoost (238kW/324PS) .

    LHD AWD/LHD FWD

96. Install the following items:
    1. LH catalytic convertor. Refer to: Catalytic Converter LH 2.7L EcoBoost .
    2. Exhaust flexible pipes. Refer to: Exhaust Flexible Pipe 2.7L EcoBoost .

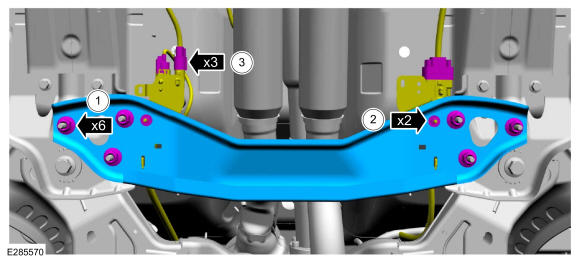

97. 1. Install the subframe support bracket and the nuts.

       Torque: 30 lb.ft (40 Nm)

    2. If equipped, install the wiring harness support bracket(s) and the nut(s).

       Torque: 80 lb.in (9 Nm)

    3. If equipped, connect the wiring harness electrical connectors.

    Courtesy of FORD MOTOR COMPANY

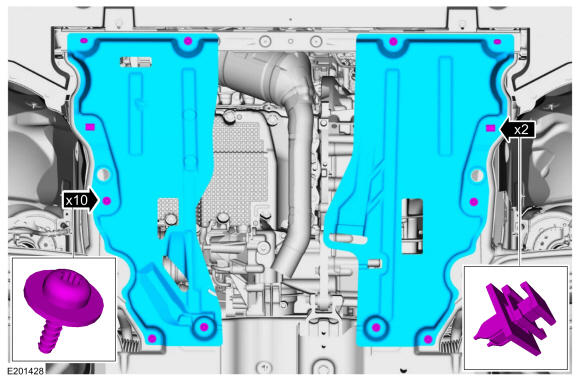

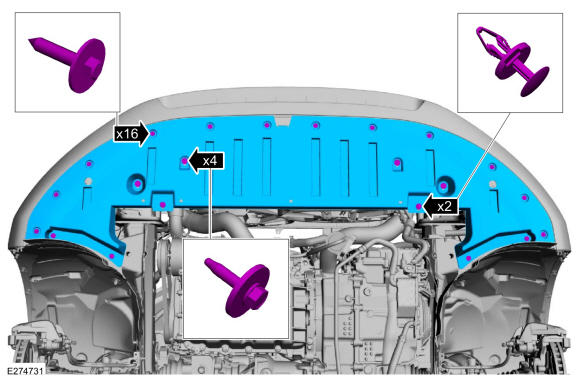

98. Install the shield and the retainers.

    Courtesy of FORD MOTOR COMPANY

99. NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    Install the front brake discs. Refer to: Brake Disc .

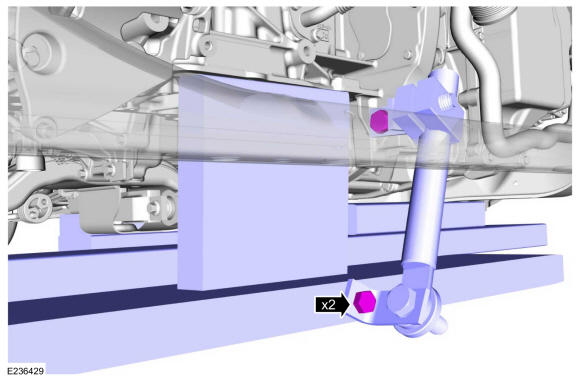

100. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

     Position the RH sway bar link and install the new nut.

     Torque: 85 lb.ft (115 Nm)

     Courtesy of FORD MOTOR COMPANY

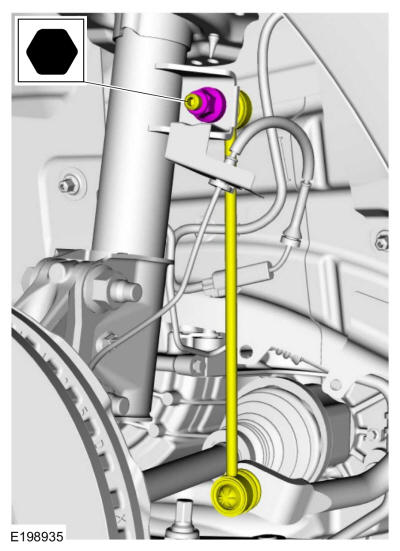

101. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

     Position the LH sway bar link and install the new nut.

     Torque: 85 lb.ft (115 Nm)

     Courtesy of FORD MOTOR COMPANY

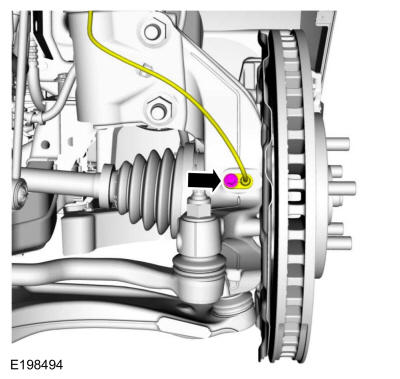

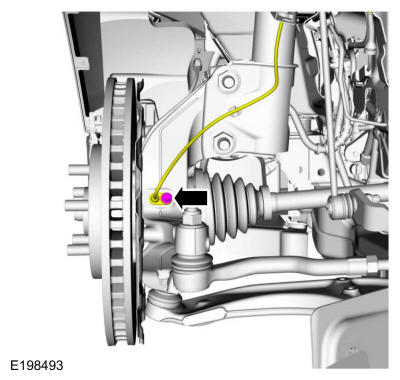

102. NOTE: Before installing a new sensor, inspect the sensor housing to make sure the sensor cavity is clean and free of foreign material or damage to the sensor may occur. Clean and inspect the sensor housing cavity.

     Install the RH anti-lock sensor and the bolt.

     Torque: 80 lb.in (9 Nm)

     Courtesy of FORD MOTOR COMPANY

103. NOTE: Before installing a new sensor, inspect the sensor housing to make sure the sensor cavity is clean and free of foreign material or damage to the sensor may occur. Clean and inspect the sensor housing cavity.

     Install the LH anti-lock sensor and the bolt.

     Torque: 80 lb.in (9 Nm)

     Courtesy of FORD MOTOR COMPANY

104. 1. Install the A/C compressor mounting bracket and the M8 x 50 mm bolt.

        Torque: 18 lb.ft (25 Nm)

     2. Install the M10 x 43 mm bolt.

        Torque: 35 lb.ft (47 Nm)

     3. Install the M8 x 30 mm bolt.

        Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

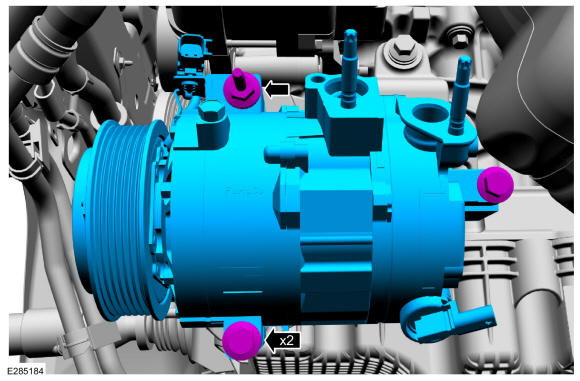

105. Install the A/C compressor, the bolts and the stud bolt.

     Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

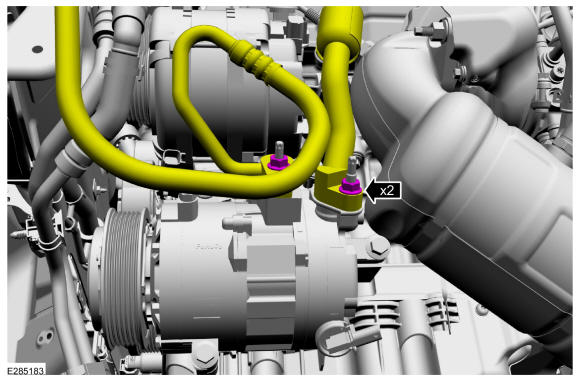

106. NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.
     1. Make sure to uncover any open ports.
     2. Install new the O-ring seals and gasket seals.
     3. Connect the A/C compressor inlet and outlet line fittings and install the nuts.

        Torque: 159 lb.in (18 Nm)

     Courtesy of FORD MOTOR COMPANY

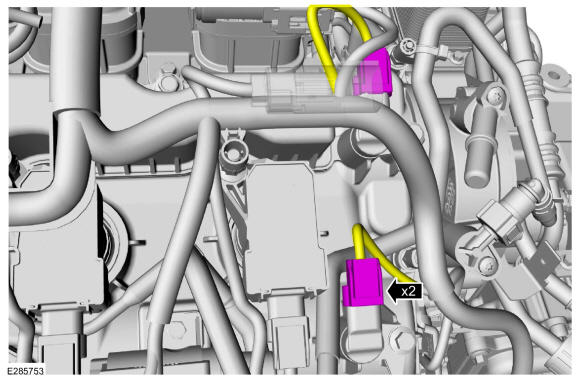

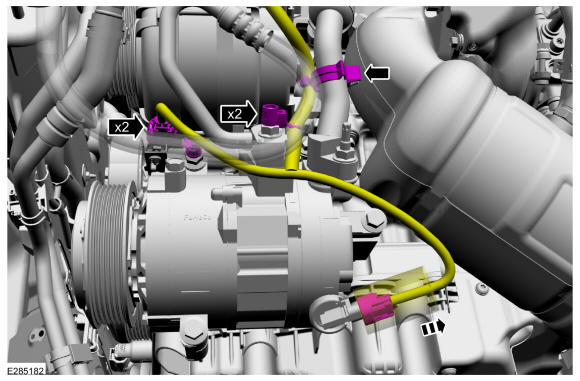

107. • Connect the A/C compressor electrical connectors.
     • Slide the insulator over the A/C compressor electrical connector.
     • Attach the wiring harness retainers.

     Courtesy of FORD MOTOR COMPANY

108. • Install the cooling module support panel and the bolts.

       Torque: 18 lb.ft (24 Nm)

     • Install the pin-type retainers.

     Courtesy of FORD MOTOR COMPANY

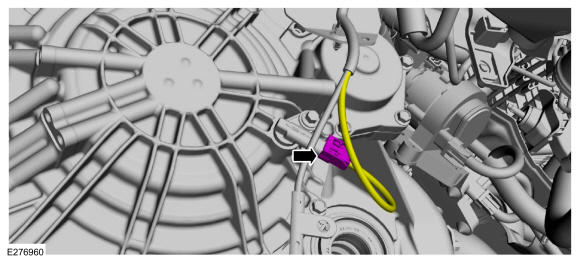

109. Connect the TSS sensor.

     Courtesy of FORD MOTOR COMPANY

110. Connect and attach the engine harness electrical connector.

     Courtesy of FORD MOTOR COMPANY

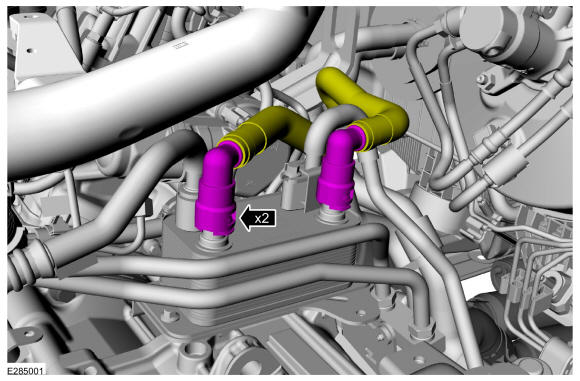

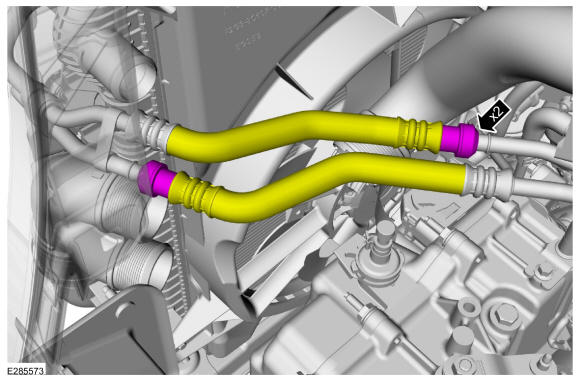

111. Connect the transmission fluid cooler tubes.

     Courtesy of FORD MOTOR COMPANY

112. Install the transmission fluid cooler tube secondary latches.

     Courtesy of FORD MOTOR COMPANY

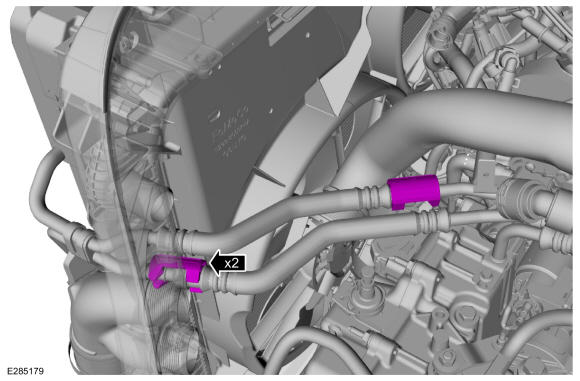

113. Connect the coolant tube couplings.

     Courtesy of FORD MOTOR COMPANY

114. Install the battery tray support bracket and the nut and bolt.

     Torque: 18 lb.ft (24 Nm)

     Courtesy of FORD MOTOR COMPANY

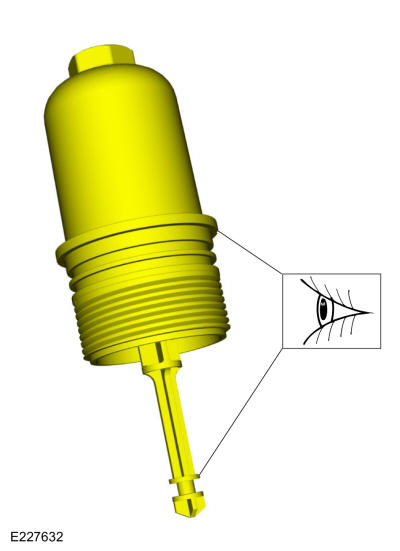

115. NOTE: If the filter housing stem is damaged or missing the oil will flow through the reservoir drain port and a loss  of engine oil pressure will occur.

     Inspect the oil filter housing and stem for damage including cracks or separation of the stem from the housing. If damaged, a new oil filter housing assembly must be installed.

     Courtesy of FORD MOTOR COMPANY

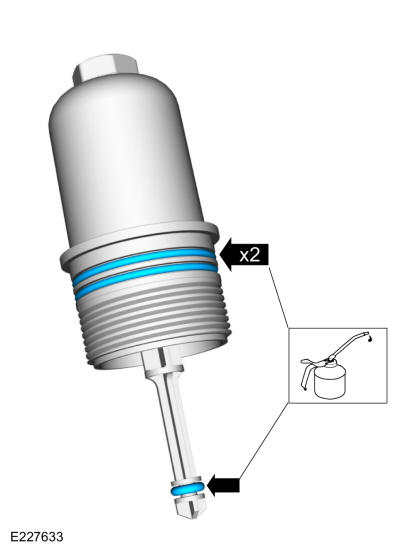

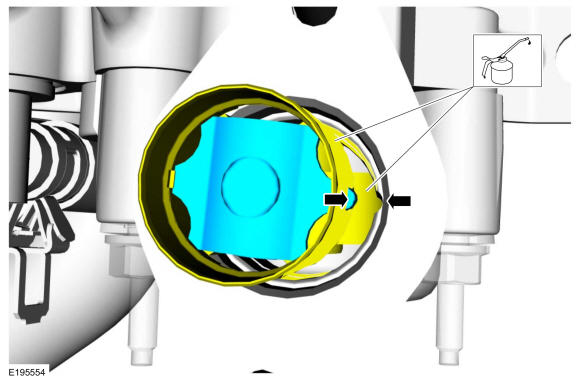

116. • NOTE: Failure to install new oil filter housing-to-engine front cover seals may result in oil leakage.

       Install new oil filter housing-to-engine front cover seals and lubricate with clean engine oil.

     • NOTE: Failure to install a new oil filter housing stem-to-oil reservoir drain port seal will result with the oil flowing through the reservoir drain port and a loss  of engine oil pressure.

       Install a new oil filter housing stem-to-oil reservoir drain port seal and lubricate with clean engine oil.

     Courtesy of FORD MOTOR COMPANY

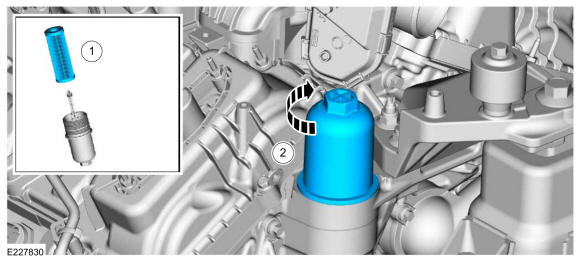

117. 1. Install a new oil filter element.
     2. Install the oil filter housing.

        Torque: 18 lb.ft (24 Nm)

     Courtesy of FORD MOTOR COMPANY

118. Install and connect the EVAP tube.

     Courtesy of FORD MOTOR COMPANY

119. 1. Connect the high-pressure fuel pump fuel supply tube quick release coupling. Refer to: Quick Release Coupling .
     2. Install the high-pressure fuel pump insulator. Refer to: Quick Release Coupling .
     3. Connect the EVAP tube quick release coupling. Refer to: Quick Release Coupling .
     4. Attach the EVAP tube retainer.

     Courtesy of FORD MOTOR COMPANY

120. • Connect the engine harness electrical connectors and attach the retainer.
     • Connect the PCM electrical connectors.

     Courtesy of FORD MOTOR COMPANY

121. • Position the bracket and install the bolt.

       Torque: 159 lb.in (18 Nm)

     • Attach the wiring harness retainer.

     Courtesy of FORD MOTOR COMPANY

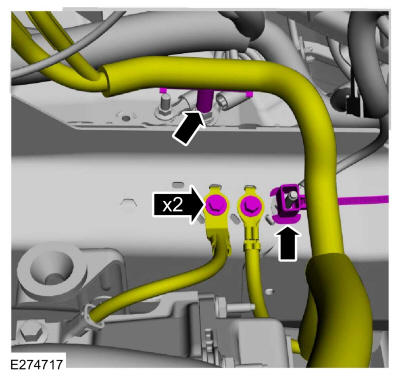

122. 1. Install the ground wire and the bolt.

        Torque: 159 lb.in (18 Nm)

     2. Attach the wiring harness retainers.

     Courtesy of FORD MOTOR COMPANY

123. 1. Install the lower radiator hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
     2. Install the heater hose and clamp.
     3. Attach the heater hose retainer.

     Courtesy of FORD MOTOR COMPANY

124. 1. Install the heater hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
     2. Attach the wiring harness retainers.

     Courtesy of FORD MOTOR COMPANY

125. 1. Install the radiator hose onto the engine and retaining tab.
     2. Tighten the radiator hose clamp.

        Torque: 48 lb.in (5.4 Nm)

     3. Connect the heater hose coupling.
     4. Attach the heater hose retainer.

     Courtesy of FORD MOTOR COMPANY

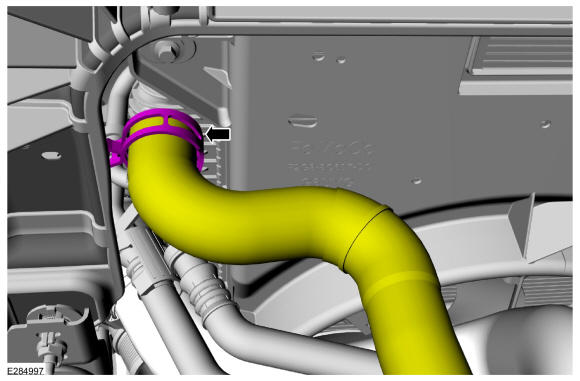

126. Install the upper radiator hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer

     Courtesy of FORD MOTOR COMPANY

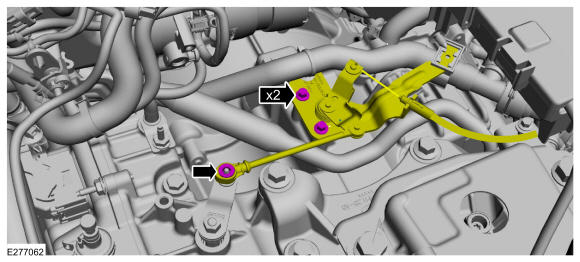

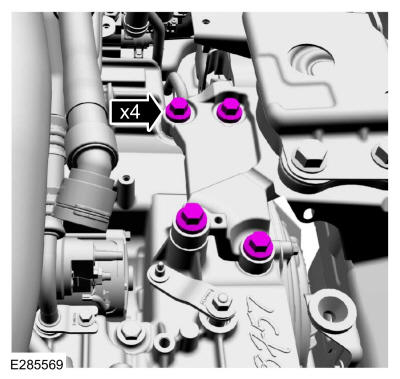

127. 1. Position the cable and install the bolts.

        Torque: 62 lb.in (7 Nm)

     2. Attach the cable to the manual control lever.

     Courtesy of FORD MOTOR COMPANY

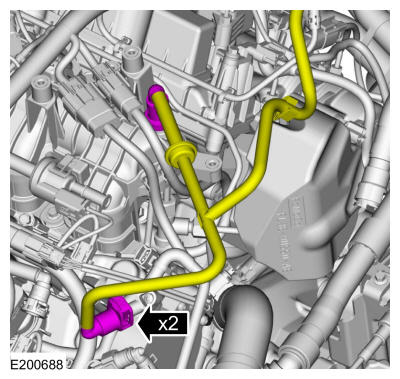

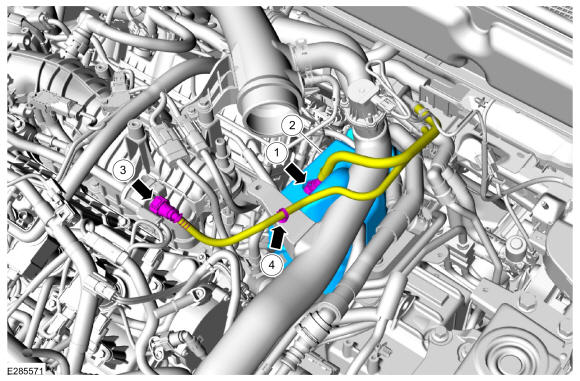

128. Connect the vacuum tube quick release couplings. Refer to: Quick Release Coupling .

     Courtesy of FORD MOTOR COMPANY

129. Install the bolts and attach the wiring harness retainers.

     Torque: 106 lb.in (12 Nm)

     Courtesy of FORD MOTOR COMPANY

130. 1. Install the electrical wiring harness and the nuts.

        Torque: 106 lb.in (12 Nm)

     2. Install the electrical wiring harness and the nut.

        Torque: 71 lb.in (8 Nm)

     Courtesy of FORD MOTOR COMPANY

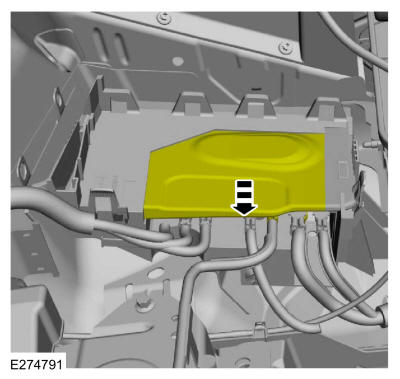

131. Close the cover.

     Courtesy of FORD MOTOR COMPANY

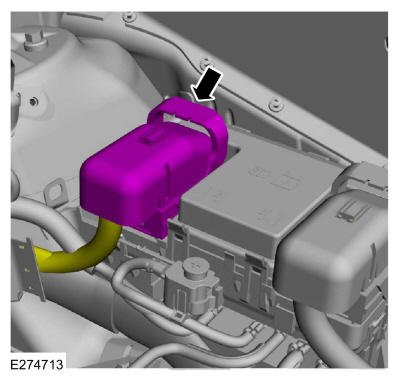

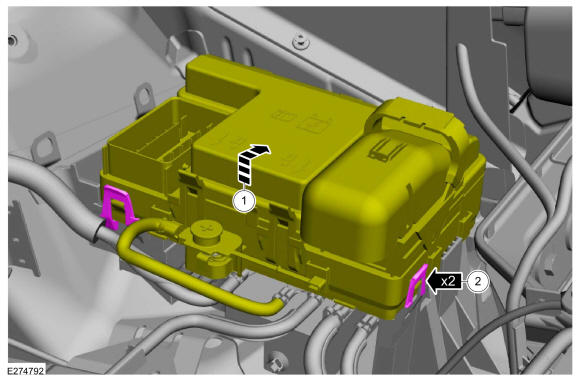

132. • Position the top part of junction box.
     • Latch the tabs.

     Courtesy of FORD MOTOR COMPANY

133. Connect the junction box electrical connector.

     Courtesy of FORD MOTOR COMPANY

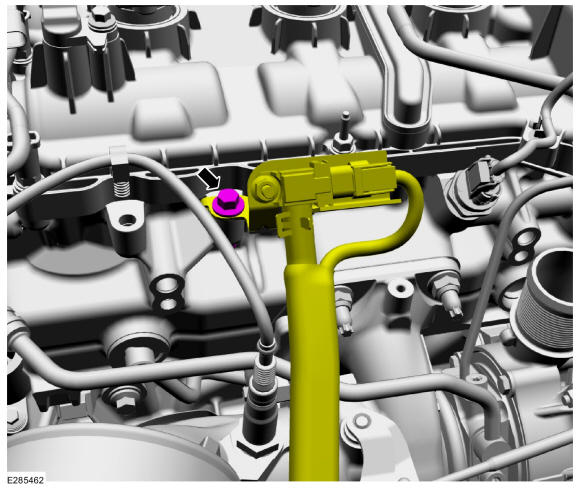

134. Install the ground cable and stud bolt.

     Torque: 106 lb.in (12 Nm)

     Courtesy of FORD MOTOR COMPANY

135. Install the following items:
     1. Battery tray. Refer to: Battery Tray .
     2. Accessory drive belt tensioner. Refer to: Accessory Drive Belt Tensioner 2.7L EcoBoost .

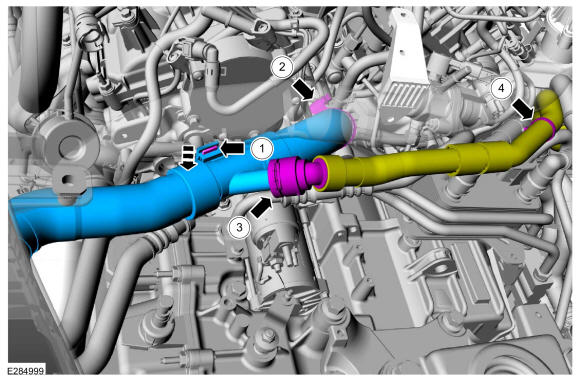

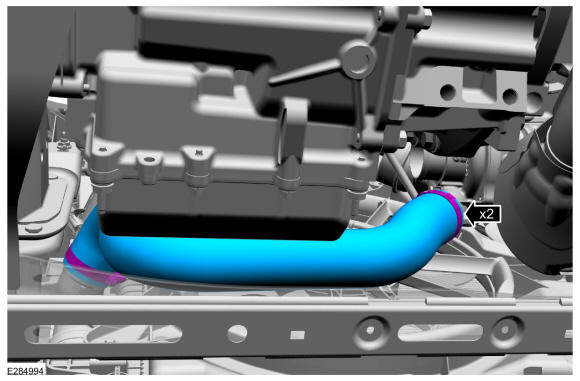

136. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
     1. Uncover, clean and inspect all open ports.
     2. Install the CAC inlet pipe and tighten the clamps.

        Torque: 44 lb.in (5 Nm)

     Courtesy of FORD MOTOR COMPANY

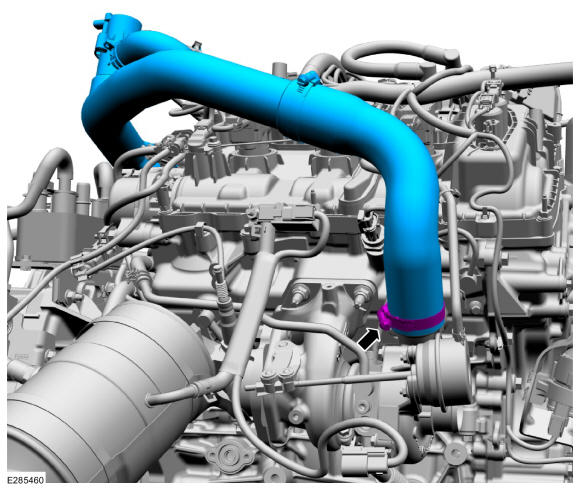

137. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
     1. Uncover, clean and inspect all open ports.
     2. Install the CAC outlet pipe and tighten the clamps.

        Torque: 44 lb.in (5 Nm)

     Courtesy of FORD MOTOR COMPANY

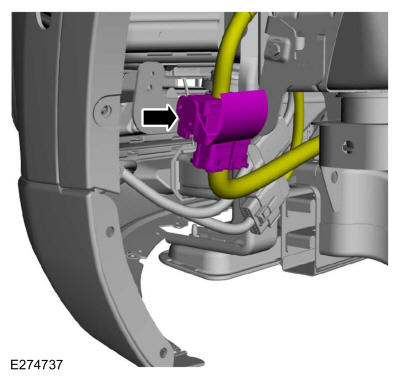

138. Connect the wiring harness electrical connector and attach the retainer.

     Courtesy of FORD MOTOR COMPANY

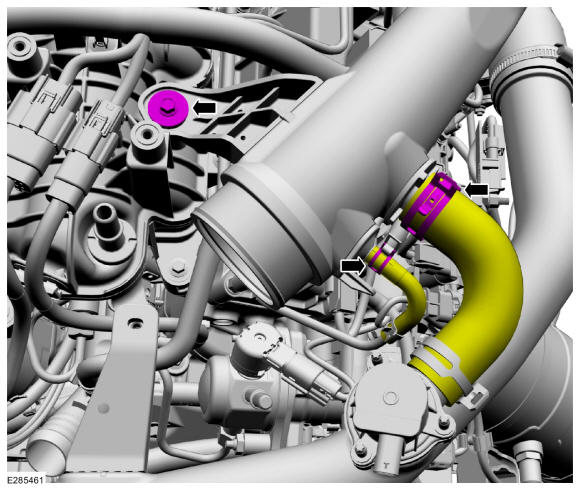

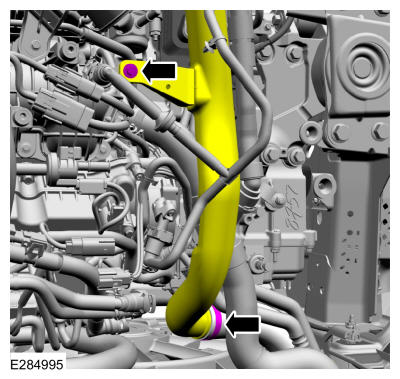

139. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
     1. Uncover, clean and inspect all open ports.
     2. Connect the CAC inlet pipe and tighten the clamps.

        Torque: 44 lb.in (5 Nm)

     3. Install the bolt.

        Torque: 71 lb.in (8 Nm)

     Courtesy of FORD MOTOR COMPANY

140. Install the following items:
     1. Upper RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH 2.7L EcoBoost .
     2. LH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe LH 2.7L EcoBoost .
     3. Degas bottle. Refer to: Degas Bottle .

141. 1. Install the engine appearance cover and the nut.

        Torque: 42 lb.in (4.8 Nm)

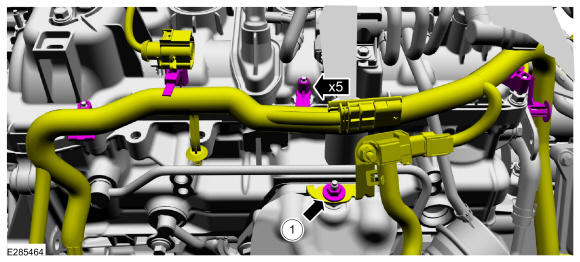

     2. Install the bolt.

        Torque: 93 lb.in (10.5 Nm)

     Courtesy of FORD MOTOR COMPANY

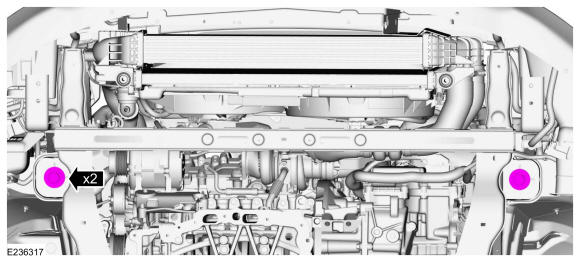

142. Install the underbody shields and the retainers.

     Courtesy of FORD MOTOR COMPANY

143. Install the front underbody shield and the retainers.

     Courtesy of FORD MOTOR COMPANY

144. Install the underbody shields and the retainers.

     Courtesy of FORD MOTOR COMPANY

145. Install the following items:

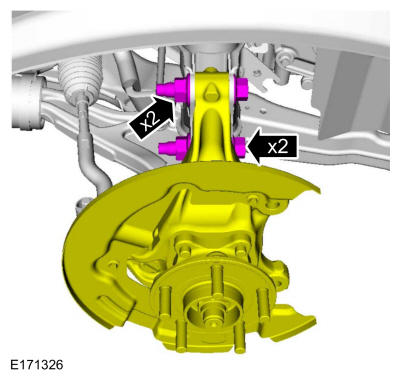

     1. Front suspension height sensors. Refer to: Front Suspension Height Sensor .
     2. Front fender splash shields. Refer to: Fender Splash Shield .

146. 1. Remove the cable ties or mechanics wire.
     2. Install the upper cooling module support brackets.

     Courtesy of FORD MOTOR COMPANY

147. Install the upper air deflector and the retainers.

     Courtesy of FORD MOTOR COMPANY

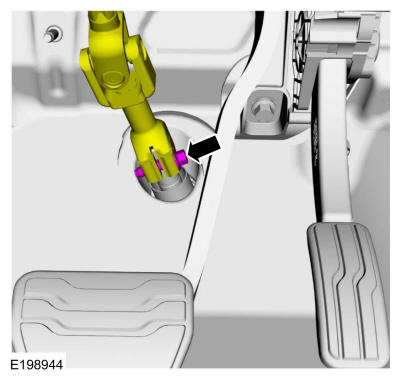

148. Position steering column shaft and install a new bolt.

     Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

149. Remove the holding device.

     Courtesy of FORD MOTOR COMPANY

150. Fill the engine with clean engine oil. Refer to: Specifications 2.7L EcoBoost  .

     Courtesy of FORD MOTOR COMPANY

151. Pressurize the fuel system. Refer to: Fuel System Pressure Release 2.7L EcoBoost .
152. Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
153. Charge the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant .
154. Start and check the exhaust system for leaks.
155. Check and top off the transmission fluid. Refer to: Transmission Fluid Level Check .
156. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
