Power Transfer Unit Input Shaft Seal: Removal
WARNING: This page is about a different variant/trim than selected.
- Drain the PTU/transfer case. Refer to: Power Transfer Unit Draining and Filling .
- Remove the PTU/transfer case. Refer to: Power Transfer Unit .

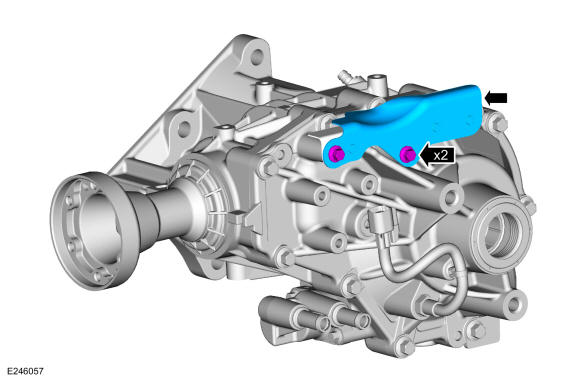

- Remove the PTU head shield.

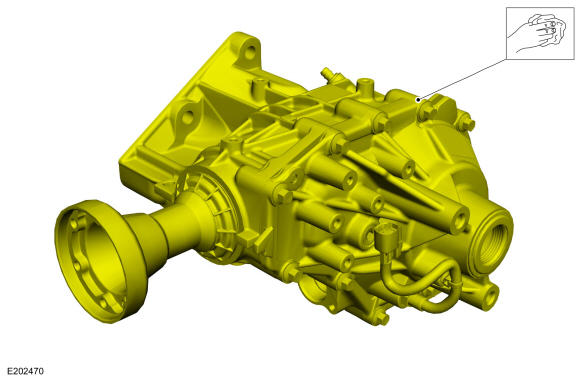

- Clean the PTU assembly.

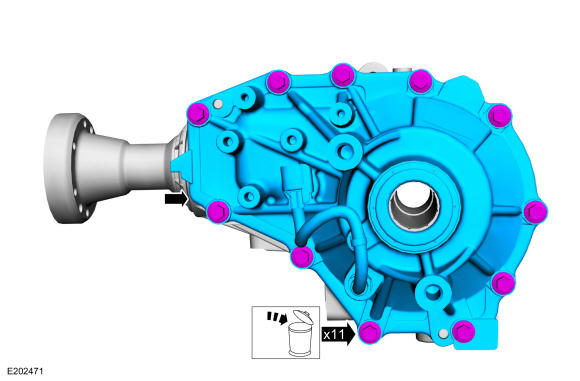

- Remove and discard the PTU cover bolts and remove PTU cover.

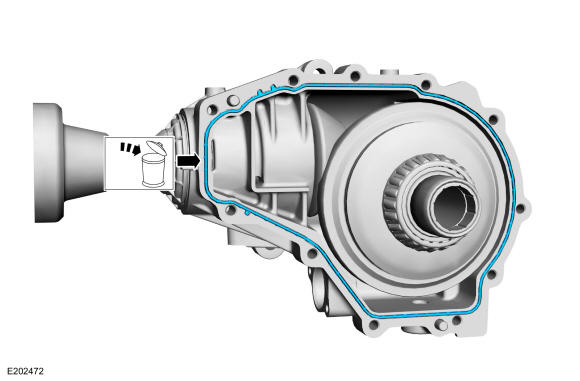

- Remove and discard the PTU cover O-ring seal.

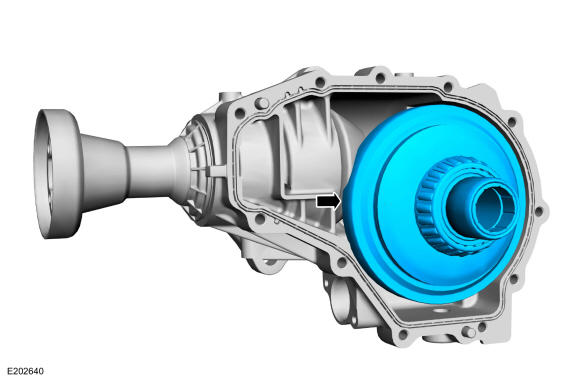

- Remove the input shaft assembly.

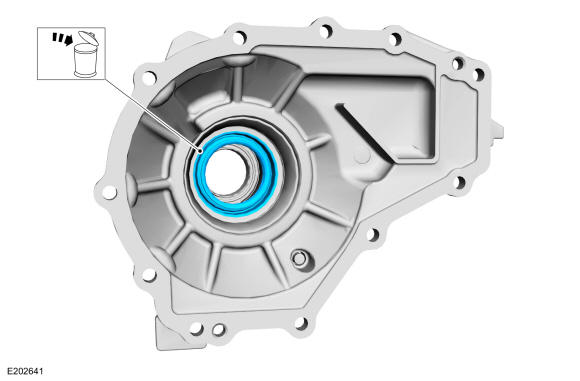

- Remove the LH input shaft seal.

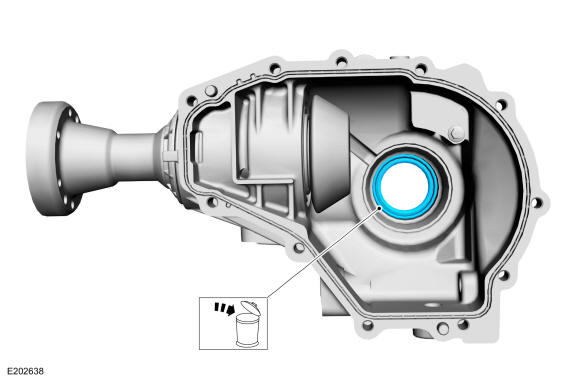

- Remove the RH input shaft seal.
