Power Transfer Unit

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

1. Remove the front subframe. Refer to: Front Subframe .
2. Remove the RH halfshaft. Refer to: Front Halfshaft RH .

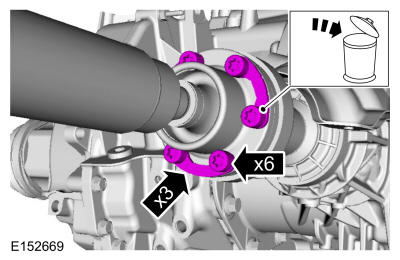

3. Remove and discard the driveshaft to PTU bolt and washer assemblies.

   Courtesy of FORD MOTOR COMPANY

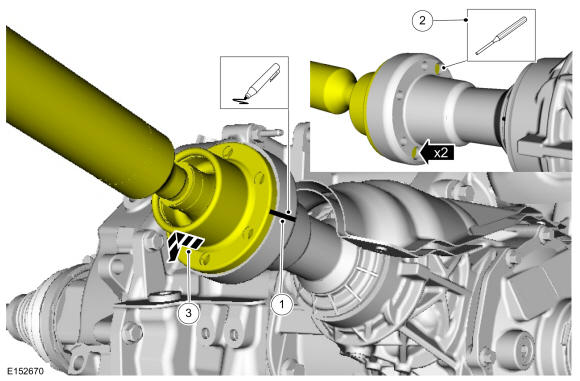

4. Position aside the driveshaft.
   1. Mark the driveshaft and PTU flange alignment.
   2. Separate the driveshaft from the PTU flange.
   3. Push the engine forward and position aside the driveshaft.

   Courtesy of FORD MOTOR COMPANY

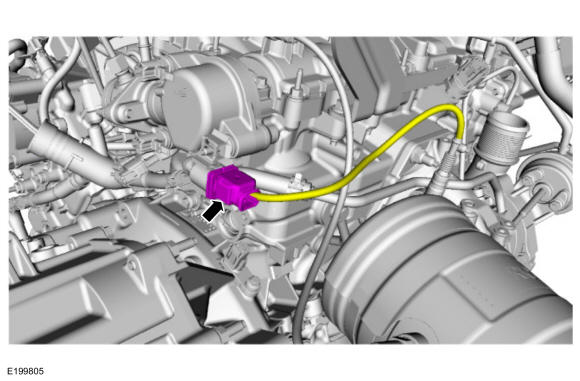

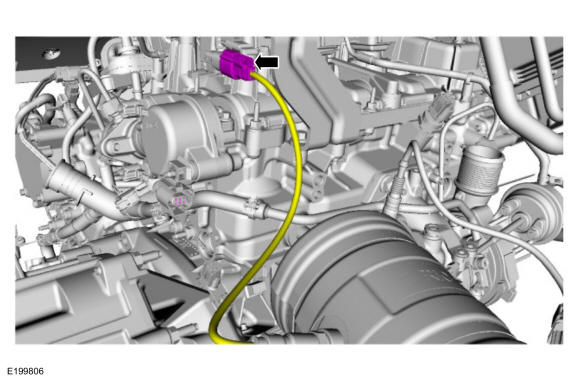

5. Disconnect the HO2S electrical connector.

   Courtesy of FORD MOTOR COMPANY

6. Disconnect the catalyst monitor electrical connector.

   Courtesy of FORD MOTOR COMPANY

7. Remove the RH catalytic converter to transmission bracket bolts.

   Courtesy of FORD MOTOR COMPANY

8. Remove the RH catalytic converter bracket through bolt and bracket.

   Courtesy of FORD MOTOR COMPANY

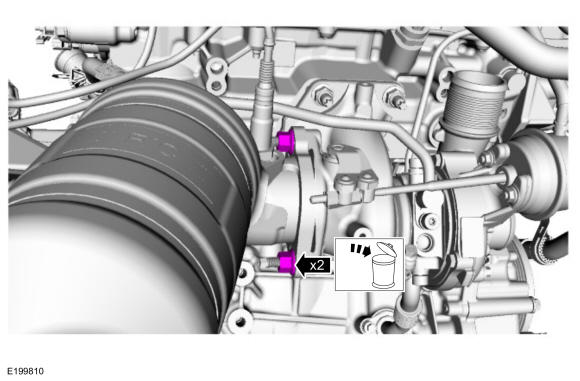

9. Remove and discard the RH catalytic converter nuts. Remove the RH catalytic converter.

   Courtesy of FORD MOTOR COMPANY

10. Remove and discard the converter gasket.

    Courtesy of FORD MOTOR COMPANY

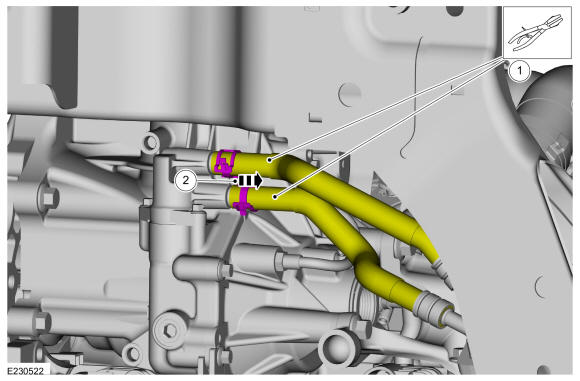

11. Disconnect the PTU cooler lines.
    • Using hose clamp pliers, pinch both PTU cooler lines. Use the General Equipment: Hose Clamp(s)
    • Disconnect the PTU cooler lines.

    Courtesy of FORD MOTOR COMPANY

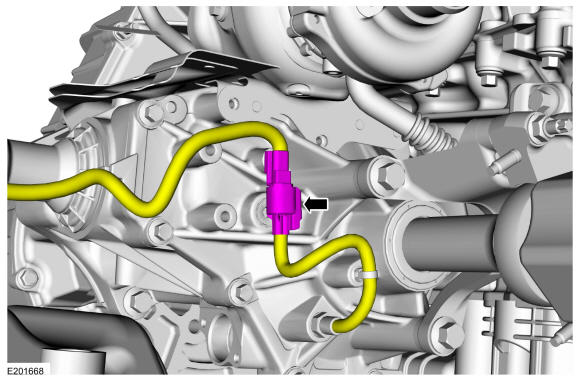

12. Disconnect the PTU temperature sensor.

    Courtesy of FORD MOTOR COMPANY

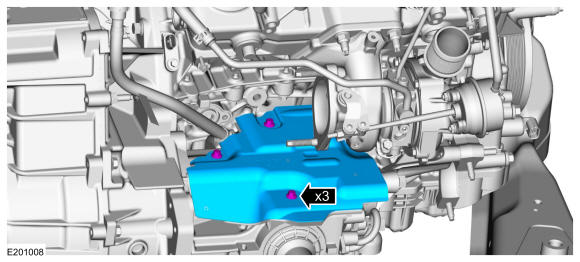

13. Remove the PTU heat shield bolts and the PTU heat shield.

    Courtesy of FORD MOTOR COMPANY

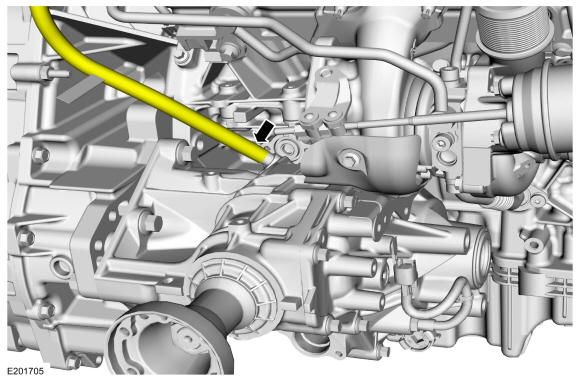

14. Disconnect and position aside the PTU vent hose.

    Courtesy of FORD MOTOR COMPANY

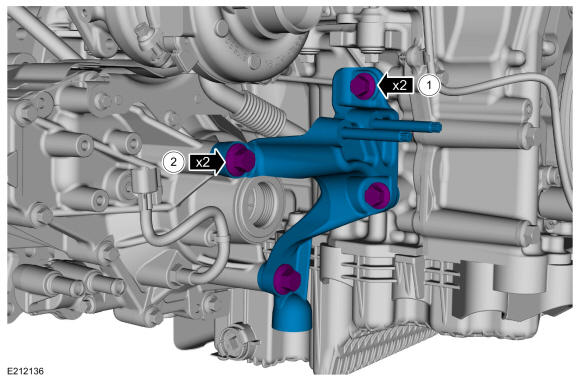

15. Remove the PTU support bracket bolts and the PTU support bracket.

    Courtesy of FORD MOTOR COMPANY

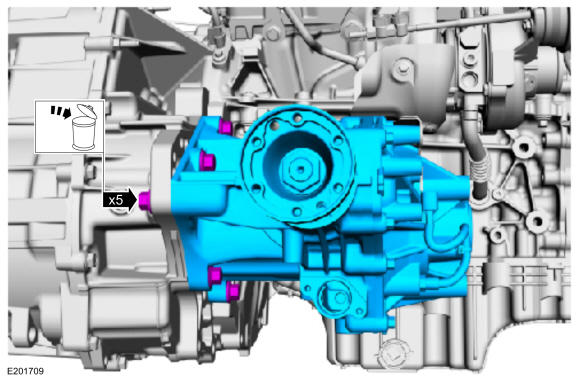

16. Remove the PTU bolts and the PTU.

    Courtesy of FORD MOTOR COMPANY

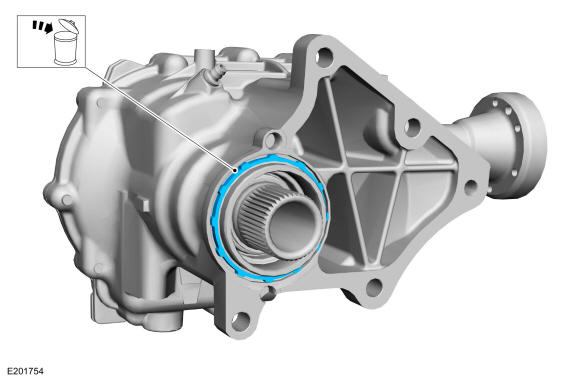

17. Remove and discard the PTU to transmission compression seal.

Courtesy of FORD MOTOR COMPANY
