Power Transfer Unit Input Shaft Seal: Installation
WARNING: This page is about a different variant/trim than selected.

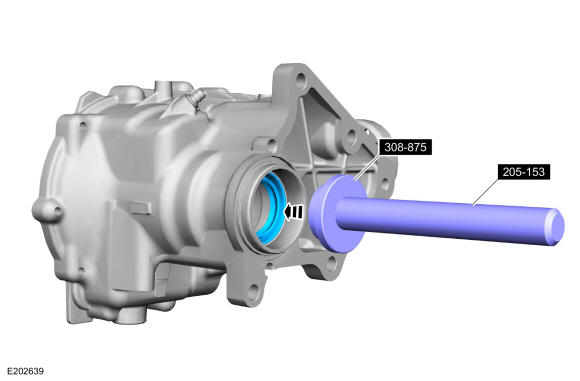

- Using the special tool, install the RH input shaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle.

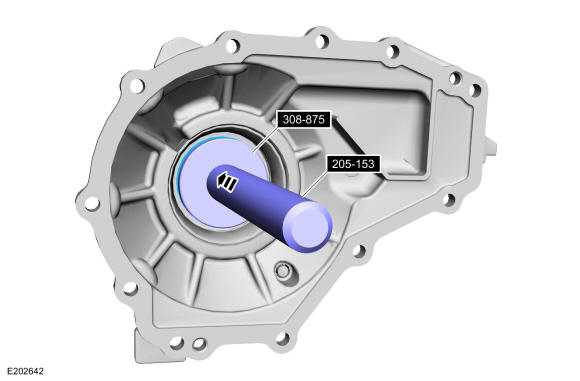

- Using the special tool, install the LH input shaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle.
- Install the input shaft assembly.

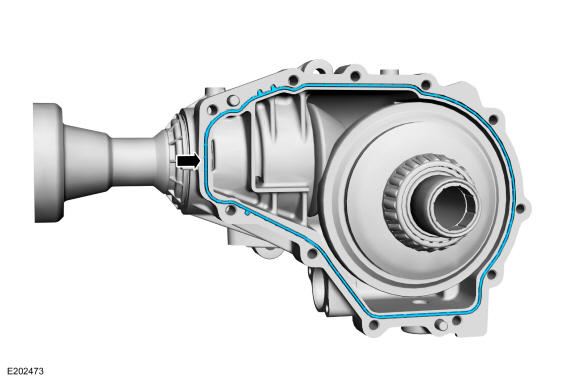

- Install the new PTU cover O-ring seal.
- Install the PTU head shield.
Torque: 97 lb.in (11 Nm)

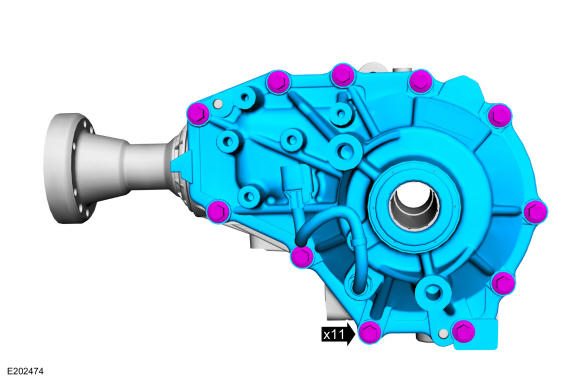

- Install the PTU cover and the new PTU cover bolts.
Torque: Stage 1: 26 lb.ft (35 Nm) - Stage 2: 45°
- Install the PTU/transfer case. Refer to: Power Transfer Unit .
- Fill the PTU/transfer case. Refer to: Power Transfer Unit Draining and Filling .
