Power Transfer Unit

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

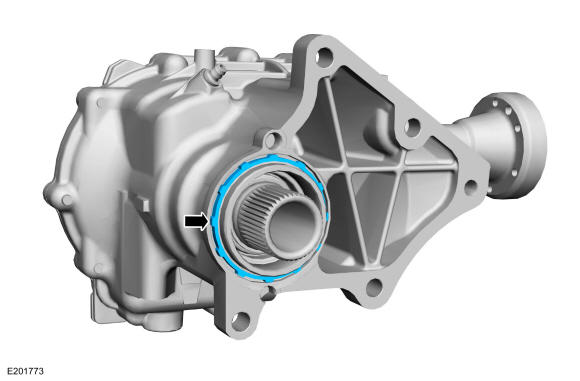

1. Install the new PTU to transmission compression seal.

   Courtesy of FORD MOTOR COMPANY

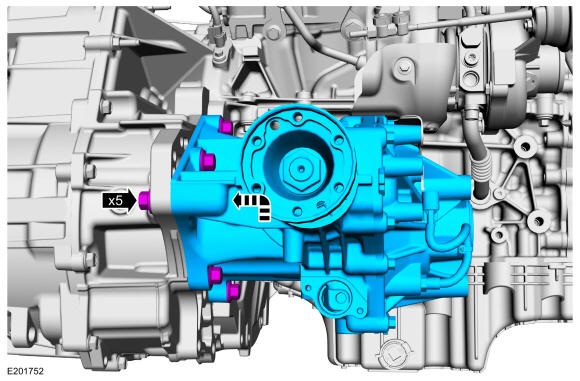

2. Install the PTU and the PTU bolts.

   Torque: 66 lb.ft (90 Nm)

   Courtesy of FORD MOTOR COMPANY

3. Install a new RH halfshaft shaft seal. Refer to: Front Halfshaft RH .
4. Install the PTU support bracket and the PTU support bracket bolts.

   Torque: PTU support bracket to block: 35 lb.ft (48 Nm) PTU support bracket to PTU: 59 lb.ft (80 Nm)

   Courtesy of FORD MOTOR COMPANY

5. Connect the PTU vent hose.

   Courtesy of FORD MOTOR COMPANY

6. Install the PTU heat shield and the PTU heat shield bolts.

   Torque: 97 lb.in (11 Nm)

   Courtesy of FORD MOTOR COMPANY

7. Connect the PTU temperature sensor.

   Courtesy of FORD MOTOR COMPANY

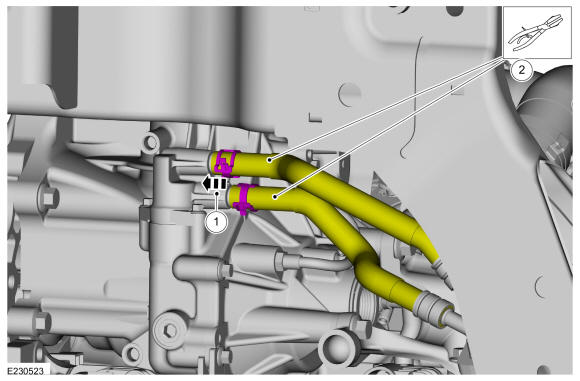

8. Connect the PTU cooler lines.
   1. Connect the PTU cooler lines.
   2. Remove the hose clamp pliers form the PTU cooler lines. Use the General Equipment: Hose Clamp(s)

   Courtesy of FORD MOTOR COMPANY

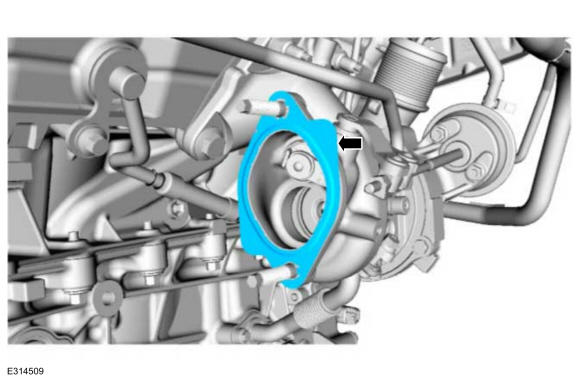

9. Install the new converter gasket.

   Courtesy of FORD MOTOR COMPANY

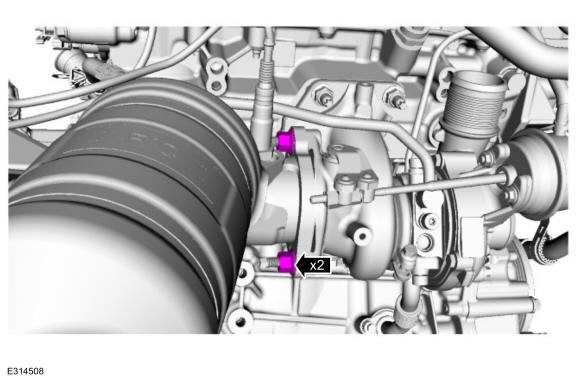

10. Install the RH catalytic converter. Install the RH catalytic converter nuts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

11. NOTE: Loosely install the RH catalytic converter to transmission bracket through bolt before the RH catalytic converter bracket bolts are installed.

    Install the RH catalytic converter bracket through bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

12. Install the RH catalytic converter to transmission bracket bolts.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

13. Connect the catalyst monitor sensor.

    Courtesy of FORD MOTOR COMPANY

14. Connect the HO2S sensor.

    Courtesy of FORD MOTOR COMPANY

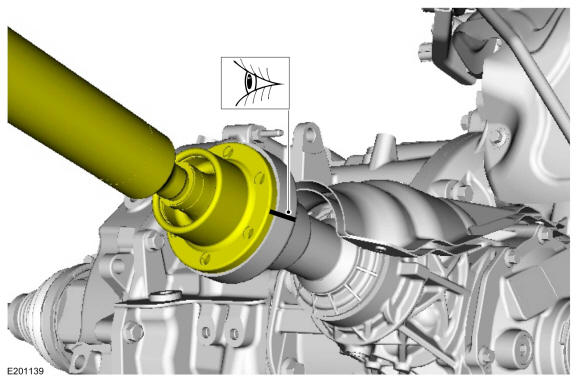

15. Align the index-mark on driveshaft to the PTU pinion flange.

    Courtesy of FORD MOTOR COMPANY

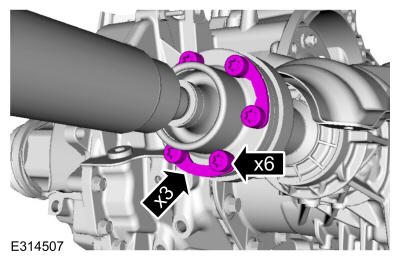

16. Install the new driveshaft to PTU bolt and washer assemblies.

    Torque: 26 lb.ft (35 Nm)

    Courtesy of FORD MOTOR COMPANY

17. Install the RH halfshaft. Refer to: Front Halfshaft RH .
18. Install the front subframe. Refer to: Front Subframe .
19. Check the PTU fluid level. Refer to: Power Transfer Unit Fluid Level Check  .
20. If equipped with PTU cooling system, fill the cooling system. Refer to appropriate service information : ENGINE COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING - 2.0L / ENGINE COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING - 3.0L .
21. Check the exhaust system for leaks.
