Main Control Cover: Installation

WARNING: This page is about a different variant/trim than selected.

Clean and inspect the transmission main control cover seal for damage and install new if necessary.

Courtesy of FORD MOTOR COMPANY
NOTE: Install the studbolts in the correct locations as noted during disassembly.

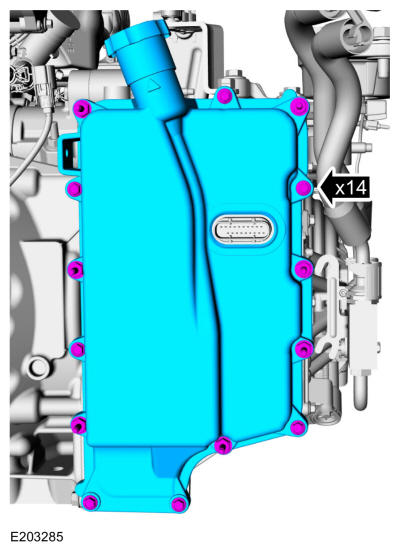

Install the front cover and loosely install the bolts.

Courtesy of FORD MOTOR COMPANY

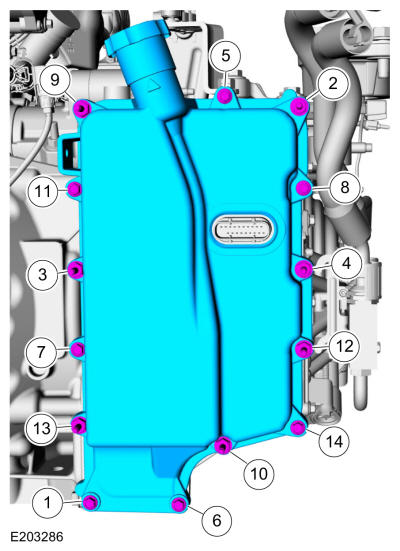

Tighten the main control cover bolts in the sequence shown.
Torque: 106 lb.in (12 Nm)

Fig 1: Main Control Cover Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

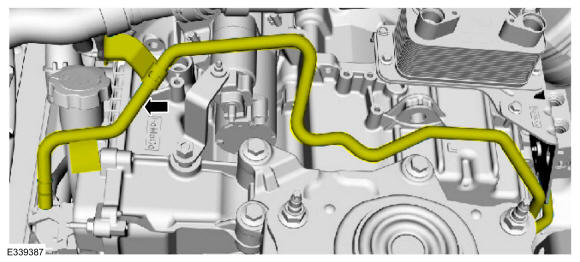

Position back the transmission fluid cooler tube.

Courtesy of FORD MOTOR COMPANY

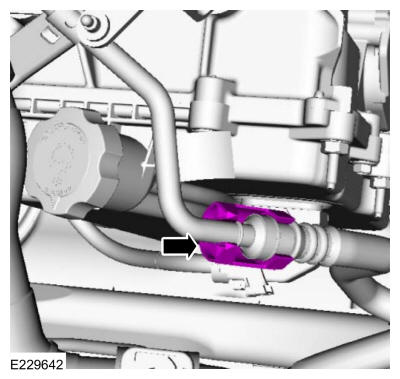

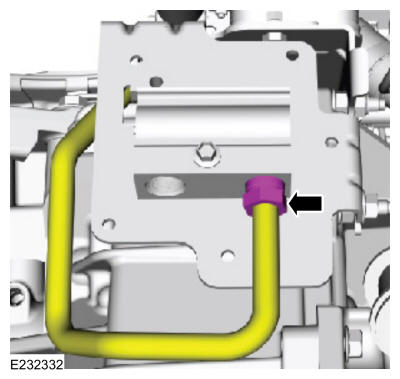

Tighten the cooler bypass valve-to-transmission fluid cooler tube assembly tube fitting.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Install the battery tray. Refer to: Battery Tray .
Connect the transmission fluid cooler tube.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler tube secondary latches.

Courtesy of FORD MOTOR COMPANY

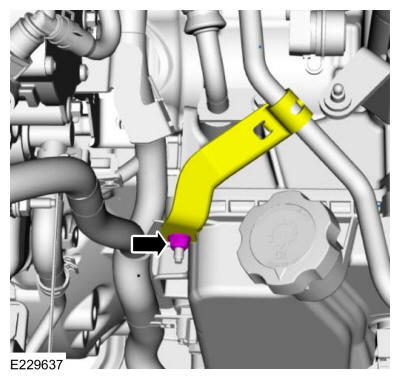

Install the transmission cooler tube bracket nut.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

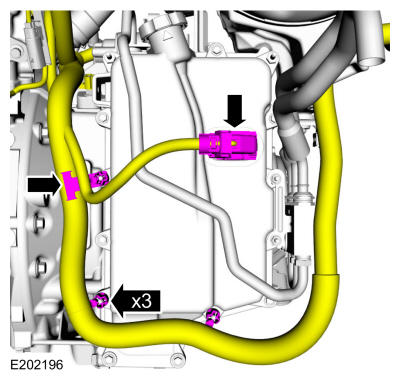

Connect the transmission electrical connector and the wiring retainers.

Courtesy of FORD MOTOR COMPANY
Attach the coolant hose to the starter motor bracket.

Courtesy of FORD MOTOR COMPANY

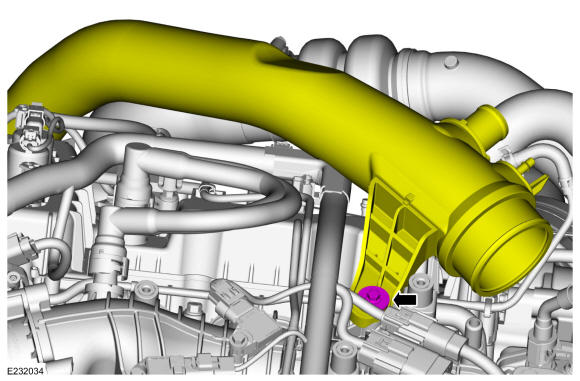

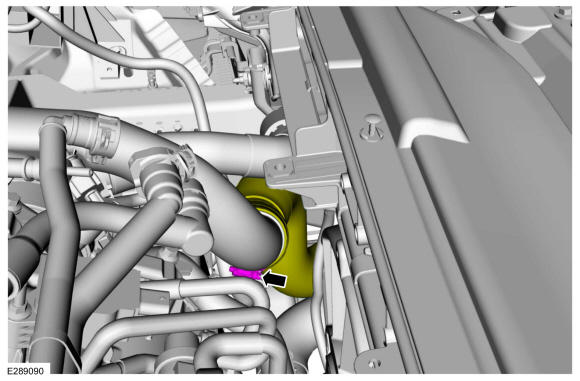

Install the CAC intake pipe RH.
1. Install the bolt.
  Torque: 71 lb.in (8 Nm)
2. Connect the bypass valve electrical connector.
Courtesy of FORD MOTOR COMPANY
Position back the EVAP canister purge valve tube.
1. Connect the EVAP canister purge valve quick release coupling. Refer to: Quick Release Coupling .
2. Attach the retainer.
Courtesy of FORD MOTOR COMPANY

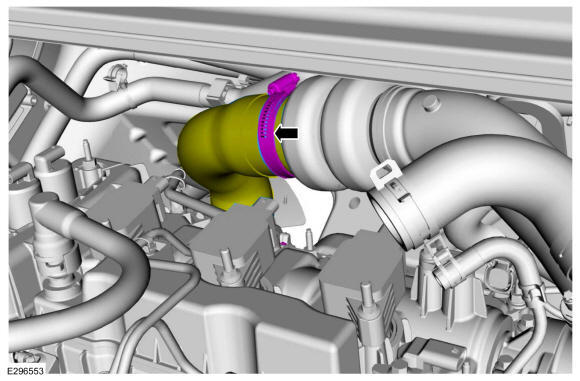

Position back the CAC intake upper pipe RH and tighten the clamp.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

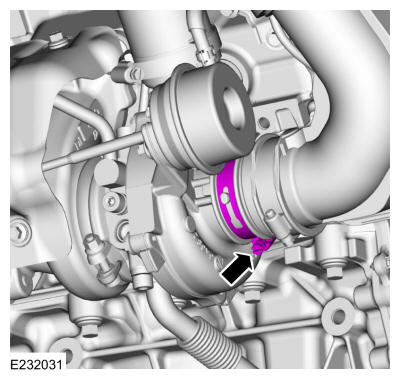

Position back the CAC intake lower pipe RH and tighten the clamp.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Position back the lower RH air cleaner outlet pipe and install the bolt.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

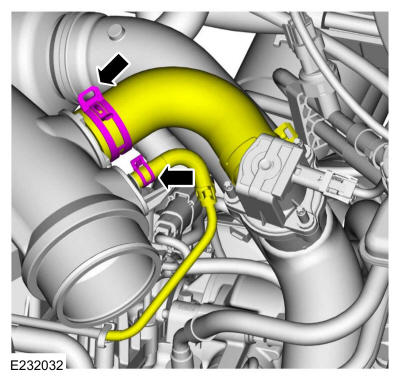

Connect the by-pass hose and the vacuum hose and install the clamps.

Courtesy of FORD MOTOR COMPANY
Tighten the clamp.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

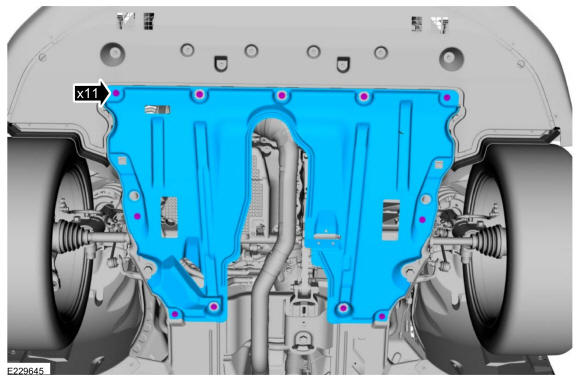

Install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
Install the upper air cleaner outlet pipe.
1. Position back and attach the tube.
2. Tighten the clamps.
  Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Air Cleaner Outlet Pipe LH .
2. Refer to: Air Cleaner .
Fill the transmission with transmission fluid. Refer to: Transmission Fluid Drain and Refill .
