Transmission Fluid Drain and Refill

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Materials

Draining

1. With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

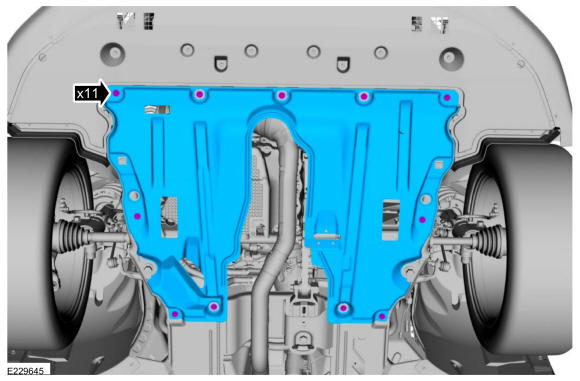

2. Remove the retainers and the underbody shield.

   Courtesy of FORD MOTOR COMPANY

3. NOTE: If an internal problem is suspected, drain the transmission fluid through a paper filter. A small amount of metal or friction particles may be found from normal wear. If an excessive amount of metal or friction material is present, the transmission will need to be overhauled.

   Remove the drain plug and drain the transmission. Install the drain plug.

   Torque: 159 lb.in (18 Nm)

   Courtesy of FORD MOTOR COMPANY

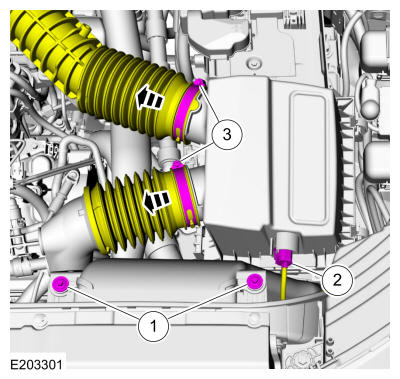

4. Remove the air cleaner.
   1. Remove the bolts.
   2. Disconnect the MAF sensor electrical connector.
   3. Loosen clamps and disconnect the air outlet tubes.

   Courtesy of FORD MOTOR COMPANY

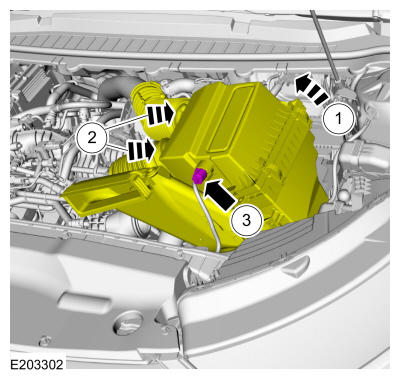

5. NOTE: Connect the air outlet tubes and MAF sensor connector with the air cleaner positioned aside, to prevent DTC's to be set and dust or dirt from entering the intake while running the engine.

   Re-install the air cleaner.

   1. Position aside the air cleaner.
   2. Connect the air outlet tubes.
   3. Connect the MAF sensor electrical connector.

   Courtesy of FORD MOTOR COMPANY

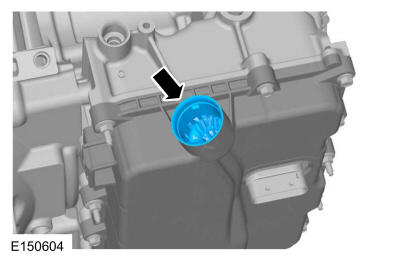

6. Remove the transmission fluid level indicator.

   Courtesy of FORD MOTOR COMPANY

7. If the transmission was removed and disassembled, fill the transmission with 6.2L (6.5 qt) of clean transmission fluid. If the main control cover was removed, fill the transmission with 4.3L (4.5 qt) of clean transmission fluid.

   Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

   Courtesy of FORD MOTOR COMPANY

8. NOTE: With the selector in PARK, the engine at idle and foot pressed on the brake, select the gears into each position and allow engagement for a minimum of ten seconds. Check the transmission fluid level by installing and removing the transmission fluid level indicator. Adjust the transmission fluid level.
   NOTE: Correct transmission fluid level at normal operating temperature is 82 deg.C-93 deg.C (180 deg.F-200 deg.F).
   1. Correct transmission fluid level at normal operating temperature 82 deg.C-93 deg.C (180 deg.F-200 deg.F).
   2. Low transmission fluid level.
   3. High transmission fluid level.

   Courtesy of FORD MOTOR COMPANY

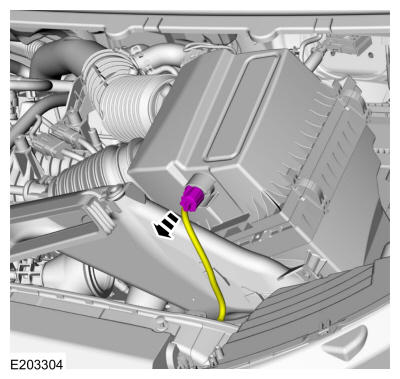

9. Disconnect the MAF sensor electrical connector.

   Courtesy of FORD MOTOR COMPANY

10. Install the air cleaner. Refer to: Air Cleaner .
11. Install the underbody shield and retainers.
