Halfshaft Seal RH - AWD: Removal

  1. Remove the transfer case assembly. Refer to: Power Transfer Unit . Refer to: Halfshaft Seal RH - AWD  .

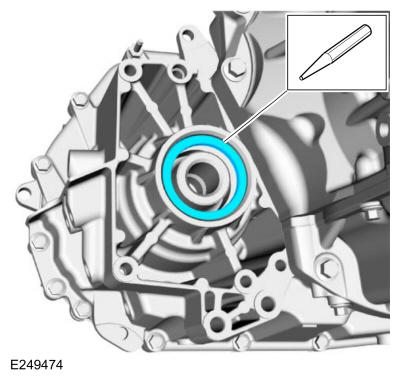

  2. Using a punch, poke a small hole in the halfshaft seal. Use the General Equipment: Punch
    GFD260982Courtesy of FORD MOTOR COMPANY

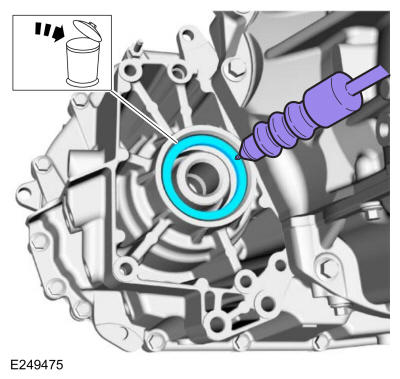

  3. Using a dent puller, remove and discard the halfshaft seal. Use the General Equipment: Puller
GFD260983Courtesy of FORD MOTOR COMPANY
