Power Transfer Unit

WARNING: This page is about a different variant/trim than selected.

For more information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped. Remove the underbody shield.

Courtesy of FORD MOTOR COMPANY
Remove the rear driveshaft. Refer to: Rear Driveshaft .

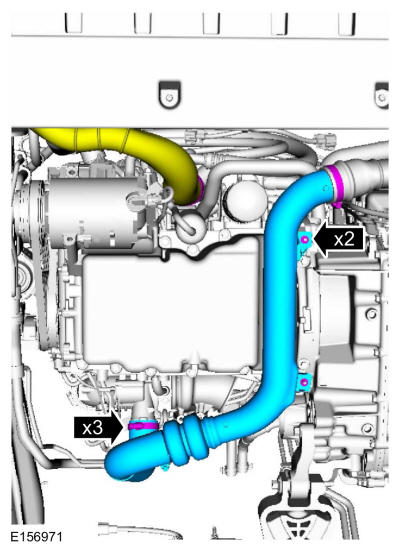

- Loosen the clamp, remove the nuts and the CAC inlet tube.
- Loosen the clamp and disconnect the CAC outlet tube.
Courtesy of FORD MOTOR COMPANY
Remove the catalytic converter.Refer to: Catalytic Converter .

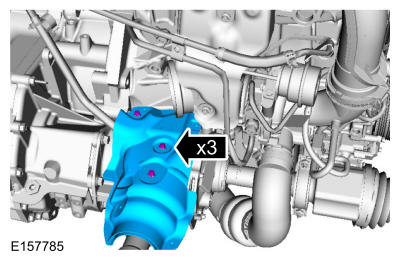

Remove the PTU heat shield bolts and the heat shield.

Courtesy of FORD MOTOR COMPANY
Remove the front halfshaft RH.Refer to: Front Halfshaft RH .

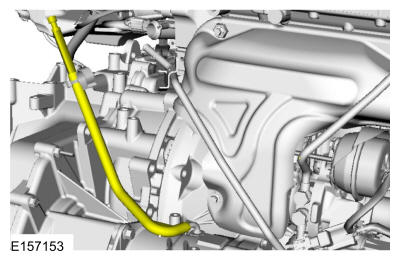

Disconnect the PTU vent hose and position it aside.

Courtesy of FORD MOTOR COMPANY

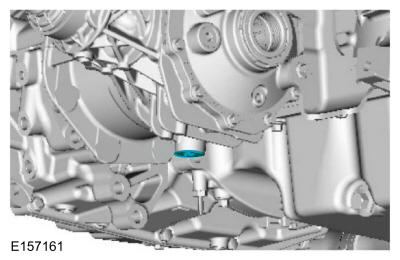

Remove the PTU drain plug.

Courtesy of FORD MOTOR COMPANY

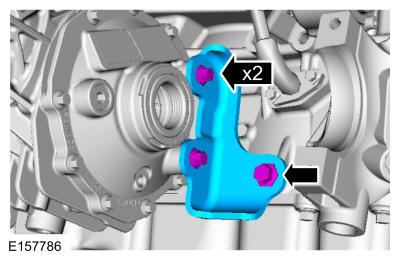

Remove the PTU support bracket and bolts.

Courtesy of FORD MOTOR COMPANY

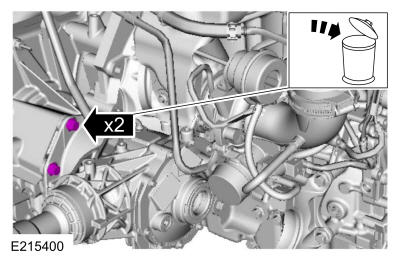

Remove and discard the upper PTU bolts.

Courtesy of FORD MOTOR COMPANY

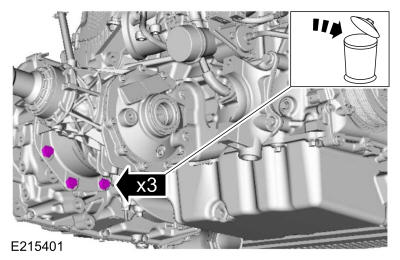

Remove and discard the lower PTU bolts.

Courtesy of FORD MOTOR COMPANY

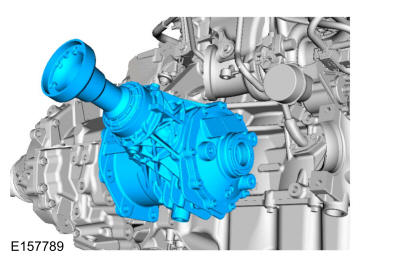

Remove the PTU.

Courtesy of FORD MOTOR COMPANY
