Halfshaft Seal RH - AWD: Installation

  1. Install a new halfshaft seal on the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-718 Installer, Axle Seal.
    GFD260934Courtesy of FORD MOTOR COMPANY

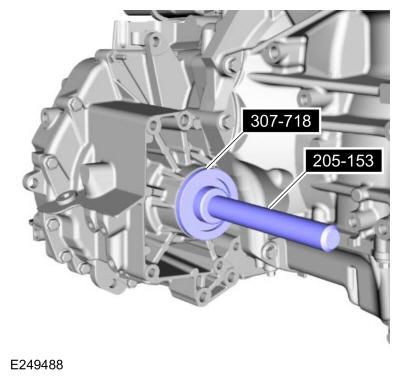

  2. Using the special tools, install the RH halfshaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-718 Installer, Axle Seal.
    GFD260984Courtesy of FORD MOTOR COMPANY
  3. Install the transfer case assembly. Refer to: POWER TRANSFER UNIT . Refer to: Halfshaft Seal RH - AWD  .
  4. Check the transmission fluid level. Refer to: Transmission Fluid Level Check  .
