Evaporative Emission Canister - Hybrid Electric Vehicle (HEV): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the negative battery cable. Refer to: Battery Disconnect and Connect - Hybrid Electric Vehicle (HEV) .

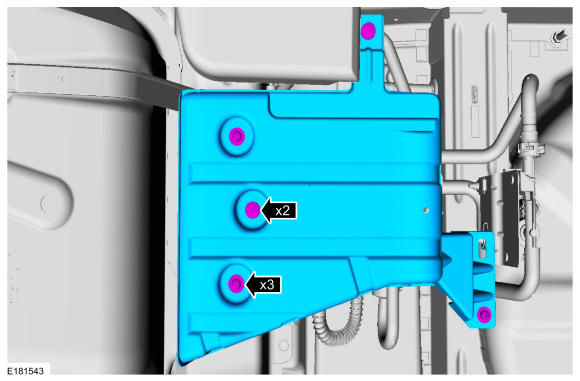

Remove the fasteners and the shield.

Courtesy of FORD MOTOR COMPANY

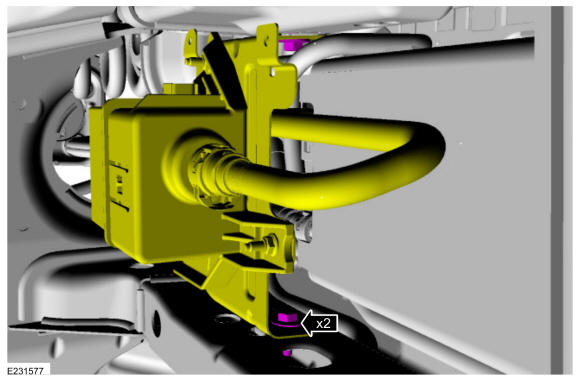

Remove the bolts from the leak detection filter and pump bracket and position aside.
Torque

: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Clean the EVAP canister immediate surrounding area of any dirt or foreign material.

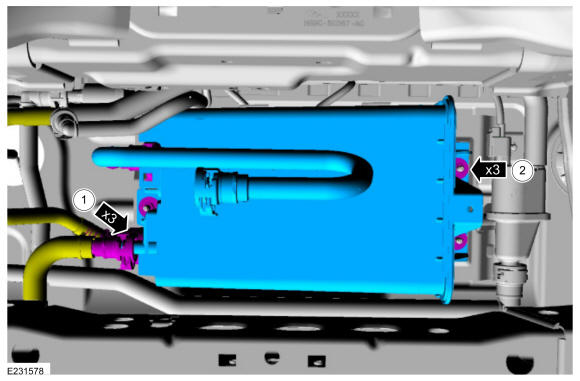

1. Disconnect the EVAP canister quick connect couplings. Refer to: Quick Release Coupling .
2. Remove the nuts and the EVAP canister.
  Torque

  : 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
