Engine Block Skirt Stiffener

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

GFD260029Courtesy of FORD MOTOR COMPANY
 205-153 (T80T-4000-W) Handle
GFD260030Courtesy of FORD MOTOR COMPANY
 303-1246 Engine Spreader Bar TKIT-2006UF-FLM TKIT-2006UF-ROW
GFD260031Courtesy of FORD MOTOR COMPANY
 303-1247VCT Spark Plug Tube Seal Remover and Installer TKIT-2006UF-FLM TKIT-2006UF-ROW
GFD260032Courtesy of FORD MOTOR COMPANY
 303-1634 Lift Eyes (2) TKIT-2014D-ROW3 TKIT-2014D-FL_ROW
GFD259031Courtesy of FORD MOTOR COMPANY
 303-409 (T92C-6700-CH) Remover, Crankshaft Seal TKIT-1992-FH/FMH/FLMH TKIT-1993-LMH/MH
Floor Crane
Mounting Stand
Plastic Scraper
Flat-Bladed Screwdriver

Materials

Name Specification
Motorcraft ® Silicone Gasket Remover ZC-30-A -
Motorcraft ® Metal Surface Prep Wipes ZC-31-B -
Motorcraft ® Metal Brake Parts Cleaner PM-4-A, PM-4-B -
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: Remove the cylinder heads before removing the crankshaft. Failure to do so can result in engine damage.
NOTE: If the components are to be reinstalled, they must be installed in their original location. Mark the components for installation into their original location.
NOTE: Refer to Description And Operation see the exploded view under the Engine Component View.
  1. Remove the engine from the vehicle. Refer to: Engine .

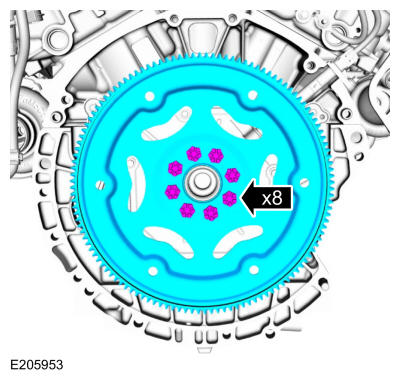

  2. Remove the bolts and the flexplate.
    GFD260033Courtesy of FORD MOTOR COMPANY
  3. Remove the crankshaft sensor ring.
    GFD260034Courtesy of FORD MOTOR COMPANY

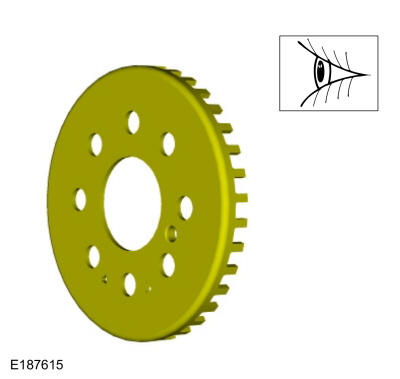

  4. Inspect the crankshaft sensor ring for damage. If the crankshaft sensor ring has been dropped or has any visual damage, it must be discarded.
    GFD260035Courtesy of FORD MOTOR COMPANY

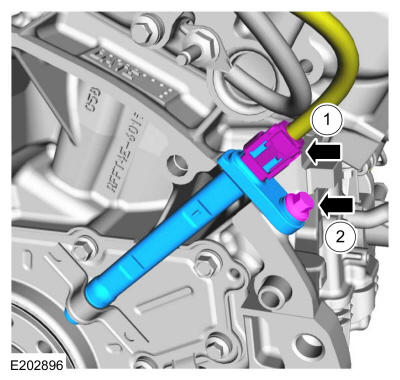

    1. Disconnect the CKP sensor electrical connector.
    2. Remove the bolt and the CKP sensor.
    GFD260036Courtesy of FORD MOTOR COMPANY

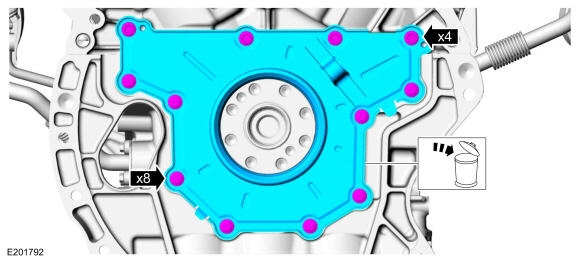

  6. Remove the bolts and the crankshaft rear seal and retainer plate.

    • Discard the crankshaft rear seal and retainer plate.

    GFD260037Courtesy of FORD MOTOR COMPANY

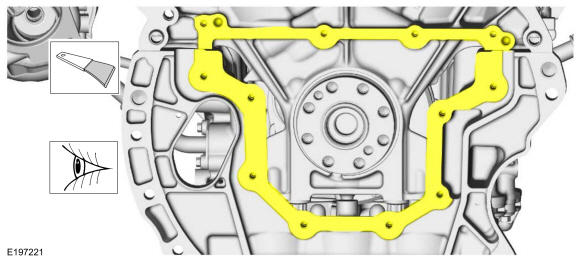

  7. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean and inspect the mating surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    GFD260038Courtesy of FORD MOTOR COMPANY
  8. Using a floor crane, install the engine on a mounting stand. Remove Special Service Tool: 303-1246 Engine Spreader Bar., 303-1634 Lift Eyes (2). Use the General Equipment: Floor Crane. Use the General Equipment: Mounting Stand
    GFD260039Courtesy of FORD MOTOR COMPANY

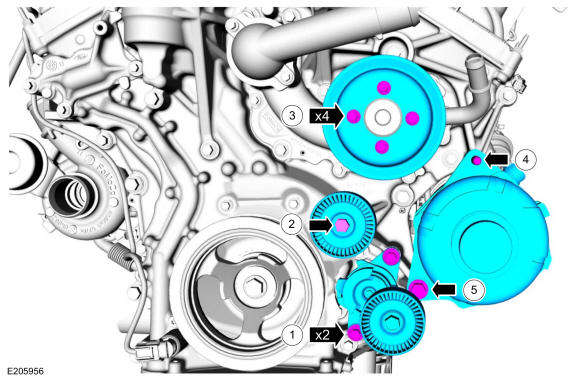

    • Remove the bolts and the accessory drive belt tensioner.

    • Remove the bolt and the idler pulley.

    • Remove the bolts and the coolant pump pulley.

    • Remove the generator stud.

    • Remove the bolt and the generator.

    GFD260040Courtesy of FORD MOTOR COMPANY
    • Disconnect the oil pressure control solenoid electrical connector.

    • Remove the retainer and the oil pressure control solenoid.

    GFD260041Courtesy of FORD MOTOR COMPANY
  11. Detach the wiring harness retainers.
    GFD259539Courtesy of FORD MOTOR COMPANY

    1. Disconnect the throttle body electrical connector and detach the wiring harness retainer.

    GFD260042Courtesy of FORD MOTOR COMPANY
    • Disconnect the crankcase pressure sensor electrical connector.

    • Detach the PCV tube retainer.

    GFD259527Courtesy of FORD MOTOR COMPANY
  14. Disconnect the EVAP tube quick release coupling and remove the tube. Refer to: Fuel System - General Information - 3.0L Ecoboost (Except Hybrid) .
    GFD260043Courtesy of FORD MOTOR COMPANY

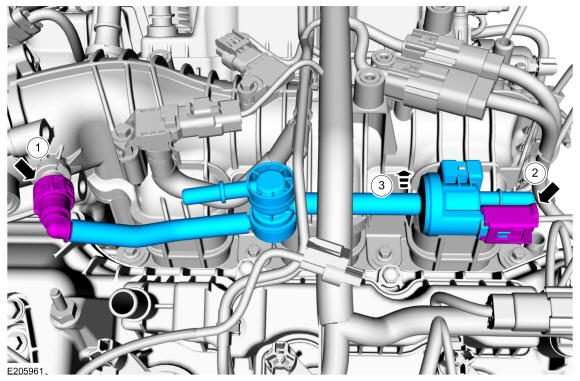

    1. Disconnect the EVAP tube quick release coupling. Refer to: Fuel System - General Information - 3.0L Ecoboost (Except Hybrid) .
    2. Disconnect the EVAP purge valve electrical connector.
    3. Lift the EVAP purge valve off of the intake manifold mounting tab and remove the valve from the engine.
    GFD260044Courtesy of FORD MOTOR COMPANY
  16. Disconnect the engine wiring harness electrical connectors and retainers.
    GFD259529Courtesy of FORD MOTOR COMPANY
    1. Remove the vacuum harness pressure sensor bolt.
    2. Disconnect the MAP sensor electrical connector.
    3. Detach the wiring harness and vacuum harness retainers.
    GFD260045Courtesy of FORD MOTOR COMPANY
    • Slide the insulator up to access the CHT electrical connector.

    • Disconnect the engine wiring harness electrical connectors and detach the wiring harness retainers.

    GFD260046Courtesy of FORD MOTOR COMPANY

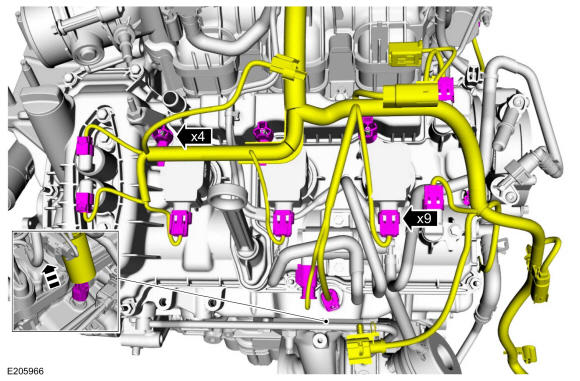

    • Disconnect the engine wiring harness electrical connectors.

    • Detach the wiring harness retainers and remove the harness from the engine.

    GFD260047Courtesy of FORD MOTOR COMPANY
  20. Detach the vacuum hose retainers.

    • Release the clamp and disconnect the vacuum hose from the TC.

    GFD260048Courtesy of FORD MOTOR COMPANY
    1. Release the clamp and disconnect the vacuum hose from the TC.
    2. Remove the vacuum control solenoid bolts.
    3. Disconnect the vacuum tube quick release coupling. Refer to: Fuel System - General Information - 3.0L Ecoboost (Except Hybrid) .
    4. Detach the retainers and remove the vacuum tube assembly from the engine.
    GFD260049Courtesy of FORD MOTOR COMPANY
  22. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

    Remove the bolts and the coil-on-plug assemblies.

    GFD259545Courtesy of FORD MOTOR COMPANY
  23. Remove the oil level indicator.
    GFD260050Courtesy of FORD MOTOR COMPANY
  24. Remove the bolts and the throttle body.
    GFD260051Courtesy of FORD MOTOR COMPANY

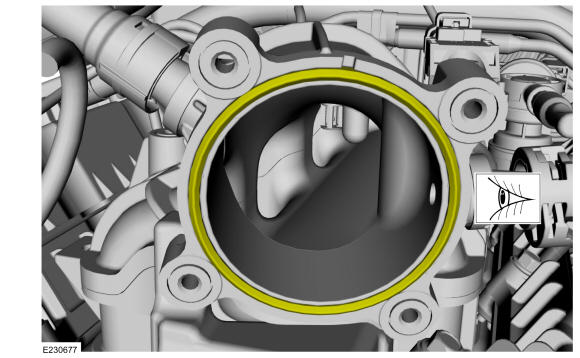

  25. Inspect the gasket, clean or replace as needed.
    GFD260052Courtesy of FORD MOTOR COMPANY
  26. Remove the bolts and the coolant pump.
    GFD259561Courtesy of FORD MOTOR COMPANY
  27. Remove and discard the coolant pump gasket and seal.
    GFD259562Courtesy of FORD MOTOR COMPANY
  28. Remove the stud bolts, the bolt and the TC oil return tube.
    GFD260053Courtesy of FORD MOTOR COMPANY
  29. Remove and discard the TC oil return tube O-ring seal.
    GFD260054Courtesy of FORD MOTOR COMPANY
  30. Remove and discard the TC oil return tube-to-engine block gasket.
    GFD260055Courtesy of FORD MOTOR COMPANY
  31. NOTE: AWD shown FWD is similar.

    Remove the bolts and the TC oil return tube.

    GFD260056Courtesy of FORD MOTOR COMPANY
  32. Remove and discard the TC oil return tube O-ring seal.
    GFD260054Courtesy of FORD MOTOR COMPANY
  33. Remove and discard the TC oil return tube-to-engine block gasket.
    GFD260055Courtesy of FORD MOTOR COMPANY

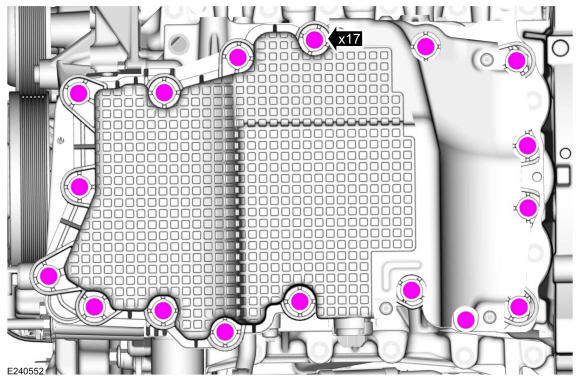

  34. Remove the oil pan bolts.
    GFD260057Courtesy of FORD MOTOR COMPANY
    1. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and separate the oil pan from the bottom of the engine.
    2. NOTE: Do not reuse the oil pan.

      Remove and discard the oil pan.

    GFD259510Courtesy of FORD MOTOR COMPANY
  36. Remove and discard the oil pump seal.
    GFD259511Courtesy of FORD MOTOR COMPANY
  37. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

    Make sure that the oil pan sealing surfaces of the cylinder block and engine front cover are free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    GFD259512Courtesy of FORD MOTOR COMPANY
  38. Loosen the fasteners and remove the valve cover.
    GFD259546Courtesy of FORD MOTOR COMPANY
  39. Remove and discard the gasket.

    • Clean the valve cover gasket groove with soap and water or a suitable solvent.

    GFD259547Courtesy of FORD MOTOR COMPANY
  40. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
    GFD259548Courtesy of FORD MOTOR COMPANY
  41. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean the valve cover mating surface of the cylinder head and engine front cover. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD259549Courtesy of FORD MOTOR COMPANY
  42. Loosen the fasteners and remove the valve cover.
    GFD259550Courtesy of FORD MOTOR COMPANY
  43. Remove and discard the gasket.

    • Clean the valve cover gasket groove with soap and water or a suitable solvent.

    GFD259551Courtesy of FORD MOTOR COMPANY
  44. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
    GFD259552Courtesy of FORD MOTOR COMPANY
  45. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean the valve cover mating surface of the cylinder head and engine front cover. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD259553Courtesy of FORD MOTOR COMPANY
  46. Remove the crankshaft pulley bolt.
    GFD259556Courtesy of FORD MOTOR COMPANY

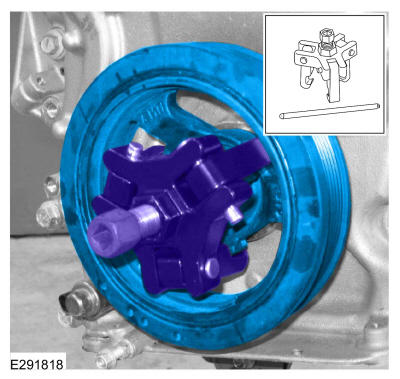

  47. NOTE: Use a universal puller (such as an OTC 6667, or equivalent).

    Using a universal puller, remove the crankshaft pulley.

    GFD260058Courtesy of FORD MOTOR COMPANY
  48. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

    1. Install the crankshaft pulley bolt.
    2. Using the special tool, remove and discard the crankshaft front oil seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
    3. NOTE: Retain the original crankshaft pulley bolt for turning the crankshaft while the pulley is removed.

      Remove the crankshaft pulley bolt.

    GFD259558Courtesy of FORD MOTOR COMPANY
  49. NOTE: There are 4 different types of fasteners, note location of each fastener for assembly.

    Remove the engine front cover fasteners.

    GFD259565Courtesy of FORD MOTOR COMPANY
  50. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and remove the engine front cover. Use the General Equipment: Flat-Bladed Screwdriver
    GFD259566Courtesy of FORD MOTOR COMPANY
  51. Remove and discard the engine front cover gaskets.
    GFD259567Courtesy of FORD MOTOR COMPANY
  52. Remove and discard the oil gallery seal (6G068).
    GFD259568Courtesy of FORD MOTOR COMPANY
  53. NOTE: Only use a 3M™ Roloc ® Bristle Disk (2-in white, part number 07528) to clean the engine front cover. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean front cover.

    • Clean the engine front cover using a 3M™ Roloc ® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 rpm. Refer to: RTV Sealing Surface Cleaning and Preparation .

    • Thoroughly wash the engine front cover to remove any foreign material, including any abrasive particles created during the cleaning process.

      Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

      Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    GFD259569Courtesy of FORD MOTOR COMPANY
  54. NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages may cause engine failure.
    NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc ® Bristle Disk (2-in white part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that will cause premature engine failure. Remove all traces of the gasket.

    Make sure that the mating faces of the engine block are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    GFD259570Courtesy of FORD MOTOR COMPANY
  55. NOTE: Rotate the crankshaft utilizing only the original crankshaft pulley bolt. Failure to follow this direction may cause damage to the crankshaft and result in engine failure.

    Install the original crankshaft pulley bolt.

    GFD259571Courtesy of FORD MOTOR COMPANY

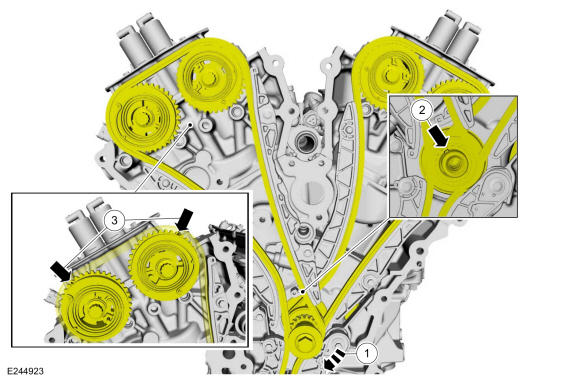

  56. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the RH side the triangle marks are used.

    1. Rotate the crankshaft clockwise.
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.
    3. Verify the triangle  timing marks on the VCT units are at the 2 o'clock (intake) and 11 o'clock (exhaust) positions. If the circle  timing marks are at these positions the crankshaft must be turned clockwise one revolution (360 degrees).

    GFD260059Courtesy of FORD MOTOR COMPANY
  57. Remove the bolts and the RH timing chain tensioner.
    GFD259573Courtesy of FORD MOTOR COMPANY
  58. Remove the RH timing chain tensioner arm.
    GFD260060Courtesy of FORD MOTOR COMPANY
  59. Remove the bolts and the RH timing chain guide.
    GFD260061Courtesy of FORD MOTOR COMPANY

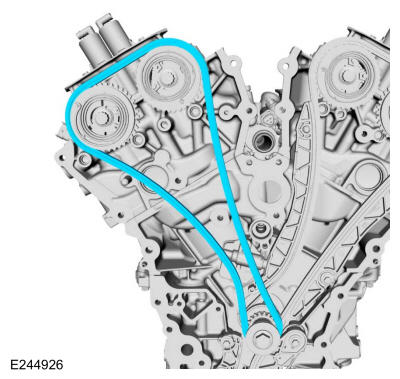

  60. Remove the RH timing chain.
    GFD260062Courtesy of FORD MOTOR COMPANY
  61. Remove and discard the original crankshaft pulley bolt.
    GFD259608Courtesy of FORD MOTOR COMPANY
    1. Rotate the oil pump drive chain tensioner counterclockwise.
    2. Insert a small hex wrench or pin into the holes of the tensioner to secure the end of the spring.
    GFD259581Courtesy of FORD MOTOR COMPANY
  63. Remove the bolt and oil pump drive chain tensioner.
    GFD259582Courtesy of FORD MOTOR COMPANY
  64. Remove the bolts and oil pump drive chain guide.
    GFD259583Courtesy of FORD MOTOR COMPANY
  65. Remove the oil pump drive chain.
    GFD259584Courtesy of FORD MOTOR COMPANY
  66. Remove the bolts and the oil pump.
    GFD260063Courtesy of FORD MOTOR COMPANY

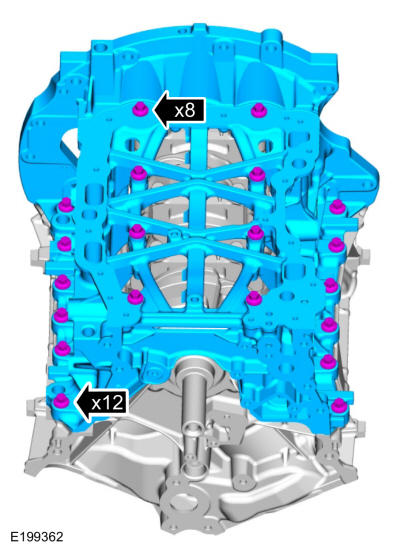

  67. Remove the engine block skirt stiffener bolts.
    GFD260064Courtesy of FORD MOTOR COMPANY

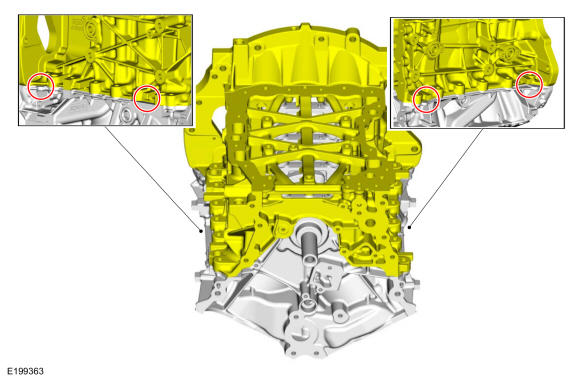

  68. Using a suitable pry bar at the 4 pry pad locations, release the engine block skirt stiffener-to-engine block seal.
    GFD260065Courtesy of FORD MOTOR COMPANY

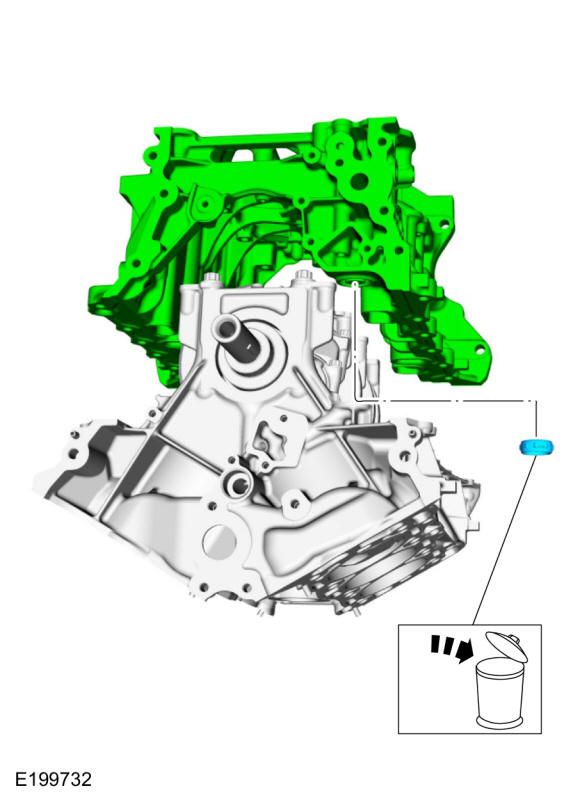

    • Remove the engine block skirt stiffener.

    • Remove and discard the oil seal.

    GFD260066Courtesy of FORD MOTOR COMPANY

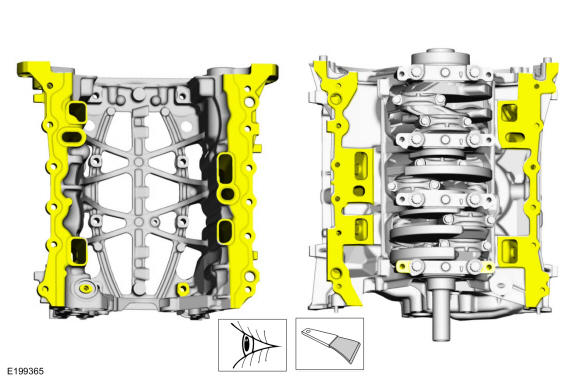

  70. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean and inspect the mating surfaces. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

GFD260067Courtesy of FORD MOTOR COMPANY
scientia non olet · About LEMON Manuals
