Section 19 (Engine - 3.0L ECOBOOST (Except Hybrid) (2 Of 2)): Removal: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1246 Engine Spreader Bar TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1634 Lift Eyes (2) TKIT-2014D-ROW3 TKIT-2014D-FL_ROW
Courtesy of FORD MOTOR COMPANY	307-346 (T97T-7902-A) Retainer, Torque Converter TKIT-1998-LM (NavigatoR) TKIT-1997-F/FLM/LT
Courtesy of FORD MOTOR COMPANY	307-569 Disconnect Tool TOC Line (1/2) TKIT-2006U-F/FM TKIT-2006U-FLM/LM TKIT-2006U-ROW1 TKIT-2006U-ROW2
Tie Rod End Remover
Floor Crane
Adjustable Mounting Arm
Hose Clamp Remover/Installer
Powertrain Jack
Wooden Block

LHD AWD/LHD FWD

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. Release the fuel pressure. Refer to: Fuel System Pressure Release .
3. Evacuate the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant . Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant .
4. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
5. NOTE: Use a steering wheel holding device (such as Hunter ® 28-75-1 or equivalent).

   Using a suitable holding tool, hold the steering wheel in the straight-ahead position.

   Courtesy of FORD MOTOR COMPANY

6. NOTE: Do not allow the intermediate shaft to rotate while it is disconnected from the gear or damage to the clockspring can occur. If there is evidence that the intermediate shaft has rotated, the clockspring must be removed and recentered. Refer to Supplemental Restraint System (Except Hybrid) (1 Of 3) , Supplemental Restraint System (Except Hybrid) (2 Of 3) and Supplemental Restraint System (Except Hybrid) (3 Of 3) .
   • Remove and discard the steering intermediate shaft bolt.
   • Separate the steering intermediate shaft from the steering gear.

   Courtesy of FORD MOTOR COMPANY

7. Remove and discard the engine oil filter and drain the engine oil. Refer to: Engine Oil Draining and Filling .
8. Support the cooling module.

   Courtesy of FORD MOTOR COMPANY

9. Drain the engine cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
10. Remove the front fender splash shields. Refer to: Fender Splash Shield .

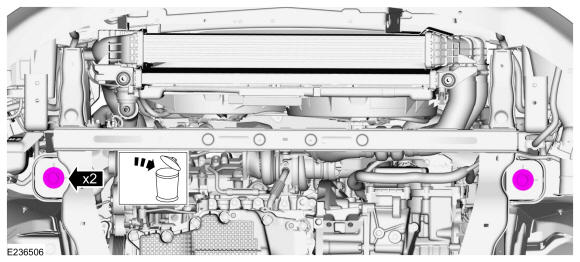

11. Remove the retainers and the underbody shield.

    Courtesy of FORD MOTOR COMPANY

12. If equipped, remove the retainers and the front underbody straps.

    Courtesy of FORD MOTOR COMPANY

13. Remove the retainers and the underbody shields.

    Courtesy of FORD MOTOR COMPANY

14. 1. Remove the nut.
    2. Detach the 2 engine appearance cover grommets from the ball studs and remove the engine appearance cover.
    3. If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened into the valve cover.

       Torque: 62 lb.in (7 Nm)

    Courtesy of FORD MOTOR COMPANY

15. If equipped, remove the retainer and the wiring harness cover.

    Courtesy of FORD MOTOR COMPANY

16. Disconnect the engine wiring harness electrical connectors and detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

17. Detach the wiring harness retainer from the engine mount.

    Courtesy of FORD MOTOR COMPANY

18. Remove the following items:
    1. NOTE: It is not necessary to clamp off the degas bottle hose with the cooling system drained.

       Refer to: Degas Bottle .

    2. NOTE: It is not necessary to clamp off the oil cooler hoses with the cooling system drained.

       Refer to: Oil Cooler .

    3. Refer to: Air Cleaner .
    4. Refer to: Air Cleaner Outlet Pipe LH .
    5. Refer to: Air Cleaner Outlet Pipe RH .
    6. Refer to: Charge Air Cooler (CAC) Intake Pipe .

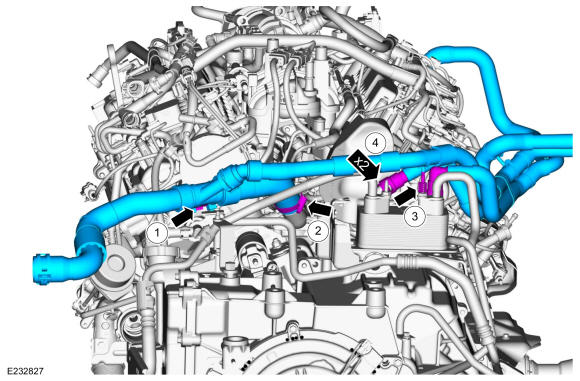

19. Loosen the clamps and remove the upper CAC outlet pipe.

    Courtesy of FORD MOTOR COMPANY

20. Remove the following items:
    1. Refer to: Accessory Drive Belt .
    2. Refer to: Air Conditioning (A/C) Compressor - 3.0L EcoBoost .
    3. Refer to: Battery Tray .

21. Remove the stud bolt and position aside the ground cable.

    Courtesy of FORD MOTOR COMPANY

22. 1. Release the tabs.
    2. Lift and position top part of junction box aside.

    Courtesy of FORD MOTOR COMPANY

23. Release the tabs and open the battery cable terminal cover.

    Courtesy of FORD MOTOR COMPANY

24. Remove the nuts and position the wiring harness aside.

    Courtesy of FORD MOTOR COMPANY

25. Remove the ground wire bolt and detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

26. Disconnect the vacuum tube quick release couplings and position the tube aside. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

27. 1. Detach the cable from the transmission control lever.
    2. Remove the bolt and position the cable aside.

    Courtesy of FORD MOTOR COMPANY

28. Detach the heater hose from the retainers.

    Courtesy of FORD MOTOR COMPANY

29. NOTE: Note the position of the coolant hoses for installation.

    Disconnect the coolant hoses from the heater core. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

30. Disconnect the coolant control solenoid electrical connector.

    Courtesy of FORD MOTOR COMPANY

31. Slide the coolant control solenoid off of the bracket.

    Courtesy of FORD MOTOR COMPANY

32. 1. Release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
    2. Detach the heater hose retainer.
    3. Release the clamp and remove the heater hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

33. Disconnect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

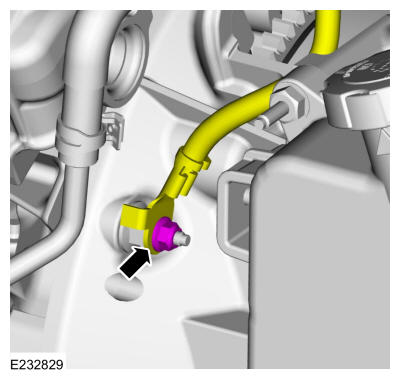

34. 1. Remove the ground wire bolt.
    2. Detach the retainers and position the ground wire aside.

    Courtesy of FORD MOTOR COMPANY

35. 1. Position the high-pressure fuel pump noise insulator aside and disconnect the high-pressure fuel pump fuel feed tube quick release coupling. Refer to: Quick Release Coupling .
    2. Disconnect the EVAP tube quick release coupling. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

36. Remove the transmission fluid warmer to transmission fluid cooler tube secondary latch.

    Courtesy of FORD MOTOR COMPANY

37. Using the special tool, disconnect the transmission fluid warmer to transmission fluid cooler tube. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

    Courtesy of FORD MOTOR COMPANY

38. Remove the transmission fluid cooler to transmission cooler bypass valve tube secondary latch.

    Courtesy of FORD MOTOR COMPANY

39. Using the special tool, disconnect the transmission fluid cooler to transmission cooler bypass valve tube. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

    Courtesy of FORD MOTOR COMPANY

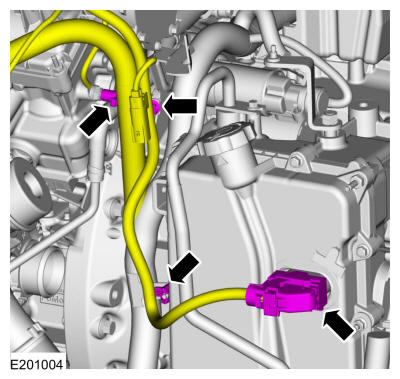

40. Detach and disconnect the engine wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

41. Remove the generator nut.

    Courtesy of FORD MOTOR COMPANY

42. 1. Detach the wiring harness retainer.

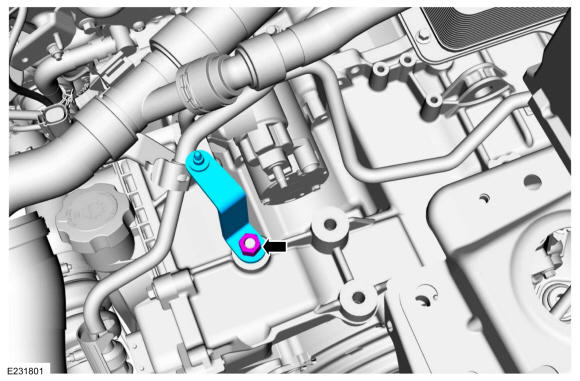

    2. Position the A/C line bracket from the generator stud.

    Courtesy of FORD MOTOR COMPANY

43. Remove the front ride height sensors. Refer to: Front Suspension Height Sensor .
44. Remove the bolt and the LH anti-lock sensor.

    Courtesy of FORD MOTOR COMPANY

45. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

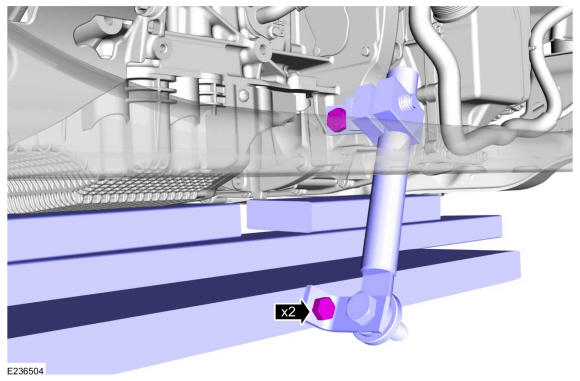

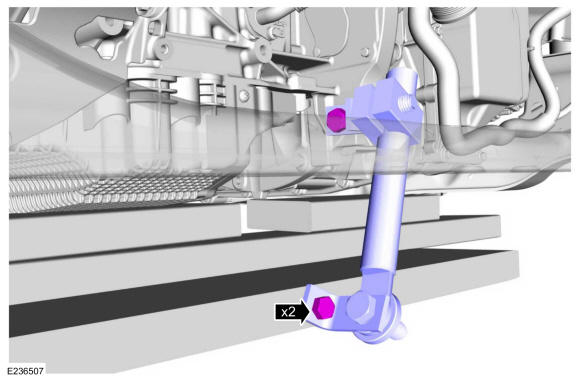

    Remove the nut and position the LH sway bar link aside.

    Courtesy of FORD MOTOR COMPANY

46. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the RH sway bar link aside.

    Courtesy of FORD MOTOR COMPANY

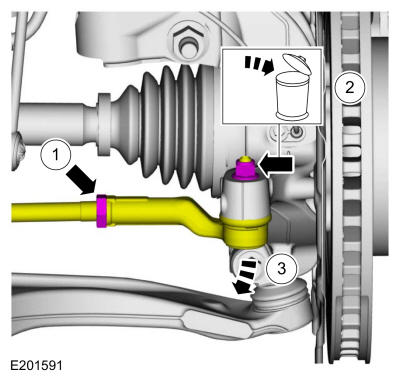

47. 1. Loosen the tie rod end jam nut.
    2. Remove and discard the outer tie rod end nut.
    3. NOTE: Do not use a hammer to separate the outer tie-rod end from the wheel spindle or damage to the wheel spindle may result.
       NOTE: Use care when installing the tie rod end remover or damage to the outer tie-rod end boot may occur.

       Separate the outer tie rod end from the wheel knuckle. Use the General Equipment: Tie Rod End Remover

    Courtesy of FORD MOTOR COMPANY

48. Remove the nuts and the subframe support bracket.

    Courtesy of FORD MOTOR COMPANY

49. Remove the following items:
    1. RH front halfshaft. Refer to: Front Halfshaft RH .
    2. NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

       Remove the LH brake disc. Refer to: Brake Disc LH .

    3. Refer to: Exhaust Flexible Pipe .
    4. Refer to: Catalytic Converter LH .

    LHD AWD

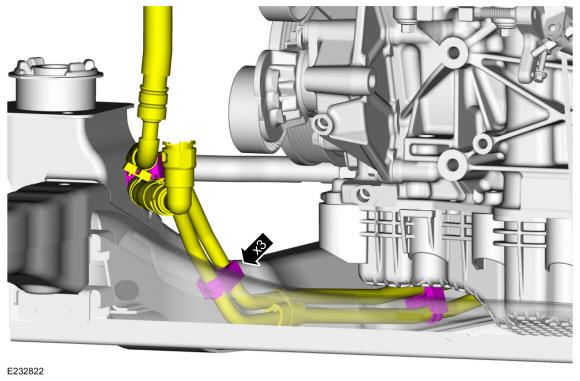

50. Disconnect the coolant tubes and detach the retainer.

    Courtesy of FORD MOTOR COMPANY

51. Remove the rear driveshaft. Refer to: Rear Driveshaft .

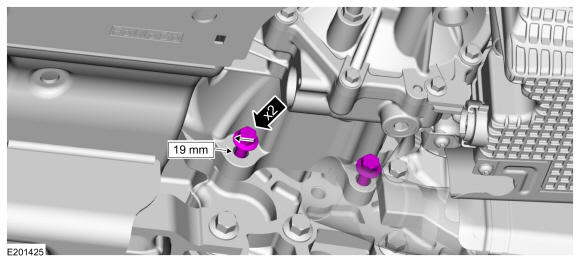

52. Loosen the PTU bolts 19 mm (0.75 in).

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD FWD

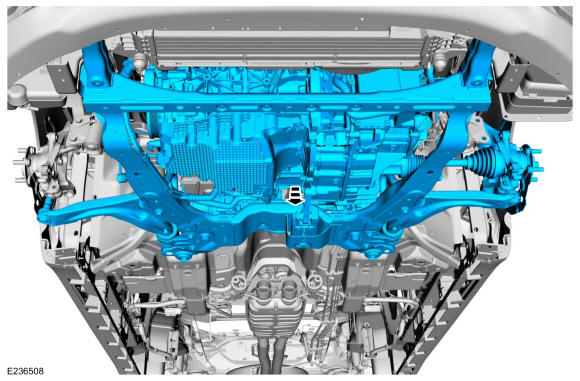

53. Mark the subframe location.

    Courtesy of FORD MOTOR COMPANY

54. Mark the subframe location.

    Courtesy of FORD MOTOR COMPANY

55. NOTE: Make sure the cooling module is secure.

    Remove the fasteners and the cooling module support panel.

    Courtesy of FORD MOTOR COMPANY

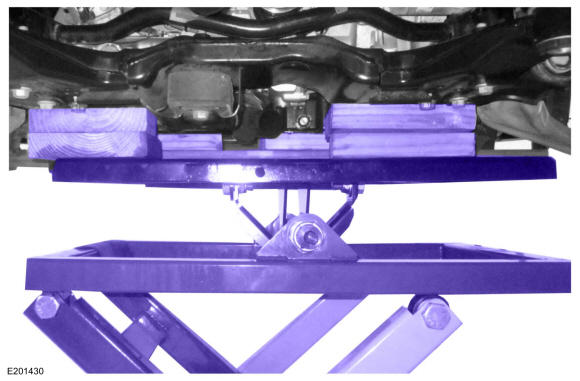

56. NOTE: The boards must be positioned to properly support the engine, transmission and subframe, and allow clearance between the powertrain jack and the exhaust components to prevent damage.

    Position lengths of 2 x 6 boards on the powertrain jack to support the oil pan, transmission and subframe. Use the General Equipment: Powertrain JackUse the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

57. NOTE: View from rear of vehicle.

    Position the powertrain jack and boards under the engine, transmission and subframe. Use the General Equipment: Powertrain JackUse the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

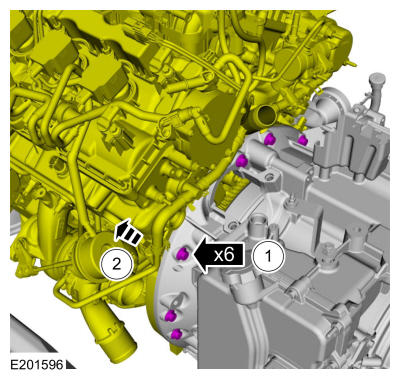

58. Remove the engine-to-transmission bolt.

    Courtesy of FORD MOTOR COMPANY

59. 1. Position the powertrain jack and boards under the powertrain and subframe. Use the General Equipment: Powertrain JackUse the General Equipment: Wooden Block
    2. Install. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

60. Remove and discard the nuts and bolts.
    • Separate the LH knuckle from the strut.

    Courtesy of FORD MOTOR COMPANY

61. 1. Remove and discard the engine mount-to-engine nuts.
    2. Remove and discard the engine mount-to-frame nut.
    3. Remove and discard the engine mount-to-frame bolts.
    4. Remove the engine mount.

    Courtesy of FORD MOTOR COMPANY

62. Remove the nuts, the bolt and the transmission support insulator bracket.

    Courtesy of FORD MOTOR COMPANY

63. Remove and discard the transmission mount bolts.

    Courtesy of FORD MOTOR COMPANY

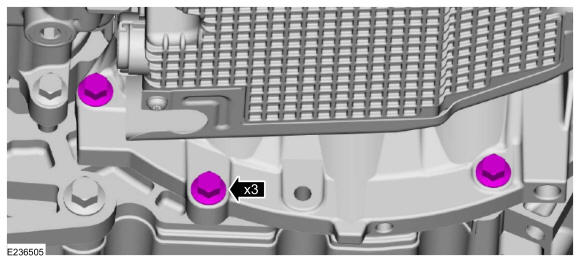

64. 1. Remove and discard the subframe bolts.
    2. Remove the bolts and the subframe brackets.

    Courtesy of FORD MOTOR COMPANY

65. Remove and discard the subframe bolts.

    Courtesy of FORD MOTOR COMPANY

66. Using the powertrain jack, lower the powertrain and subframe as an assembly. Use the General Equipment: Powertrain Jack

    Courtesy of FORD MOTOR COMPANY

67. Disconnect the right hand HO2S and right hand catalyst monitor sensor electrical connectors.

    Courtesy of FORD MOTOR COMPANY

68. 1. Loosen.
    2. Remove.

    Courtesy of FORD MOTOR COMPANY

69. 1. Remove and discard the RH catalytic converter nuts.
    2. Remove the RH catalytic converter.

    Courtesy of FORD MOTOR COMPANY

70. Remove and discard the RH catalytic converter gasket.

    Courtesy of FORD MOTOR COMPANY

71. 1. Lift up the generator cable protective cover.
    2. Remove the nut and disconnect the generator cable.
    3. Disconnect the generator electrical connector.

    Courtesy of FORD MOTOR COMPANY

72. Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

73. • Disconnect the transmission electrical connector.
    • Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

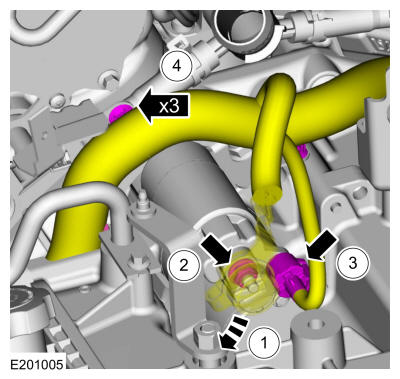

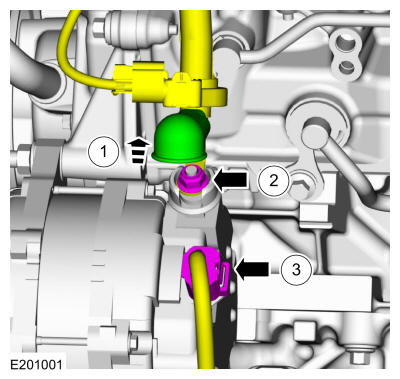

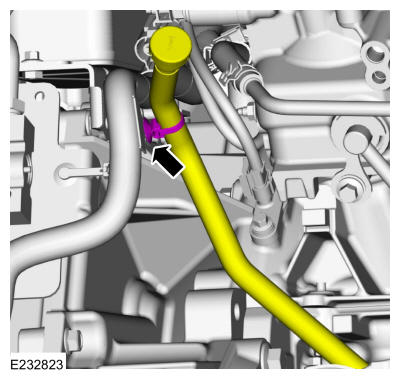

74. 1. Slide the coolant hose retainer off of the bracket.
    2. Loosen the clamp and slide the coolant hose off of the coolant outlet pipe.
    3. Detach the coolant hose retainer from the stud bolt.
    4. Disconnect the coolant hose quick connectors and remove the coolant hose assembly.

    Courtesy of FORD MOTOR COMPANY

75. 1. Lift up the starter cable protective cover.
    2. Remove the nut and disconnect the starter cable.
    3. Disconnect the starter electrical connector.
    4. Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

76. Remove the nut and the manual control lever.

    Courtesy of FORD MOTOR COMPANY

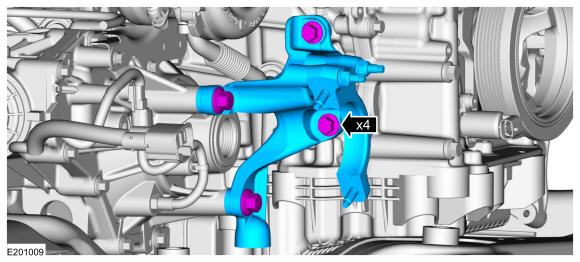

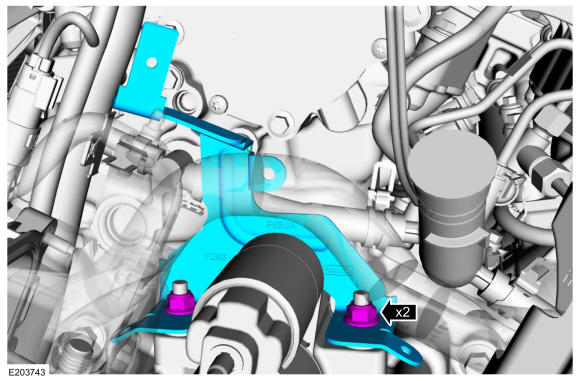

77. Remove the nuts and the bracket.

    Courtesy of FORD MOTOR COMPANY

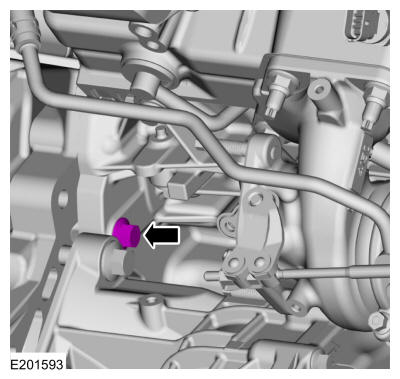

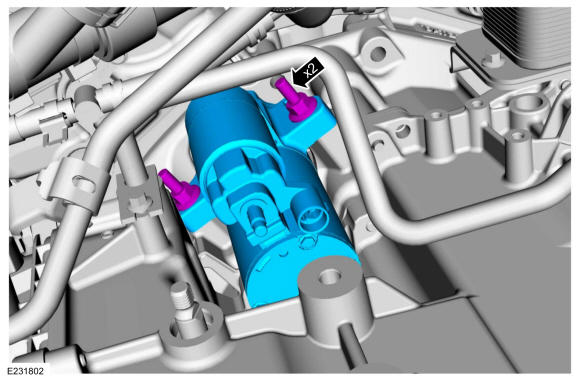

78. Remove the stud bolts and the starter.

    Courtesy of FORD MOTOR COMPANY

79. Remove the nut and the ground cable.

    Courtesy of FORD MOTOR COMPANY

80. Remove the retainers and the access cover.

    Courtesy of FORD MOTOR COMPANY

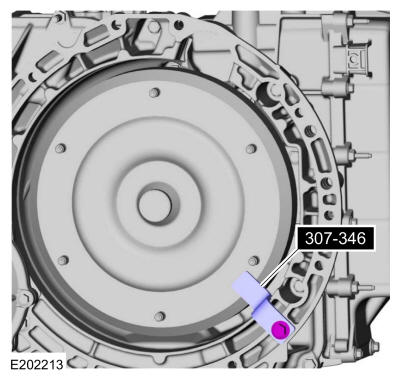

81. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Remove and discard the torque converter nuts.

    Courtesy of FORD MOTOR COMPANY

    LHD AWD

82. Detach the coolant tube retainers from the subframe.

    Courtesy of FORD MOTOR COMPANY

83. Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

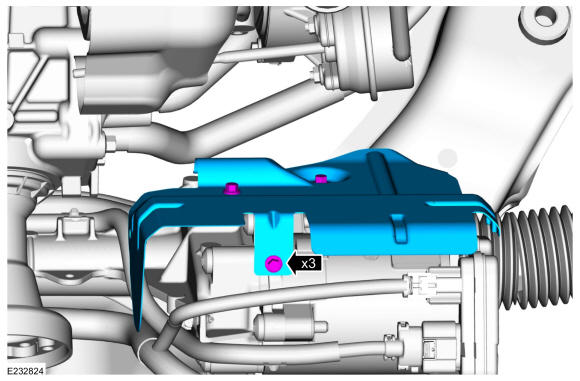

84. Remove the bolts and the heat shield.

    Courtesy of FORD MOTOR COMPANY

85. Remove the bolts and the heat shield.

    Courtesy of FORD MOTOR COMPANY

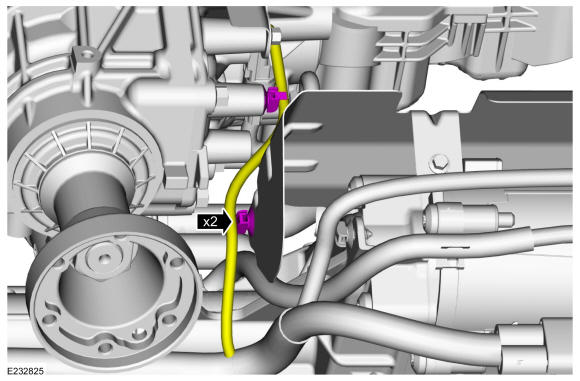

86. Detach the PTU vent hose retainer.

    Courtesy of FORD MOTOR COMPANY

87. Remove the bolts and the bracket.

    Courtesy of FORD MOTOR COMPANY

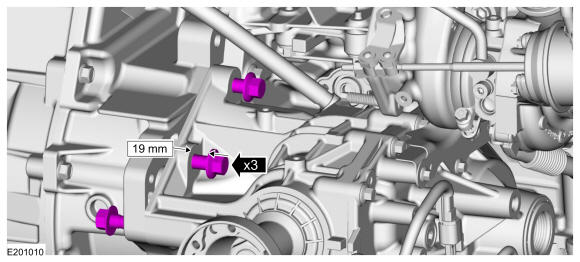

88. Loosen the PTU bolts 19 mm (0.75 in).

    Courtesy of FORD MOTOR COMPANY

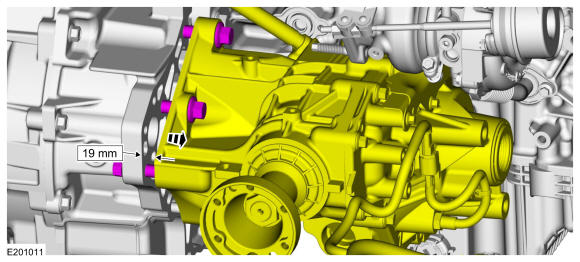

89. Separate the PTU from the transmission 19 mm (0.75 in).

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD FWD

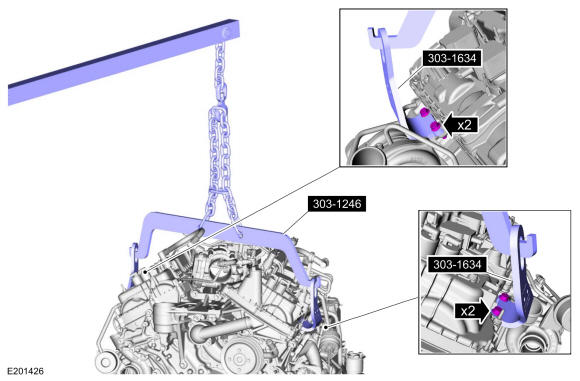

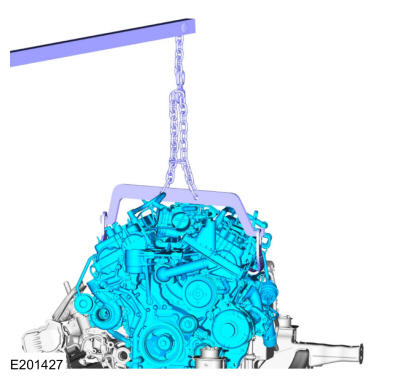

90. 1. Install Special Service Tool: 303-1634 Lift Eyes (2)., 303-1246 Engine Spreader Bar.
    2. Support the engine using the floor crane and length of chain with connecting links. Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

91. Remove. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

92. Remove the transmission bellhousing bolts.

    Courtesy of FORD MOTOR COMPANY

93. NOTE: 4WD shown, 2WD similar.

    If equipped, remove the transmission bellhousing bolt.

    Courtesy of FORD MOTOR COMPANY

94. 1. Remove the bellhousing bolts.
    2. Separate the engine from the transmission.

    Courtesy of FORD MOTOR COMPANY

95. Remove the engine from the transmission and subframe assembly. Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

96. Install Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

Courtesy of FORD MOTOR COMPANY
