Generator Current Sensor: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Disconnect the battery. Refer to Battery Disconnect .

2.

Remove the air cleaner outlet tube. Refer to Intake Air Distribution and Filtering .

3.

Disconnect the quick connect couplings and disconnect the turbocharger bypass tube. Refer to Fuel System General Information .

GFD135127

Courtesy of FORD MOTOR COMPANY

4.
- 1.

  Release the turbocharger inlet tube from the turbocharger inlet tube bracket grommet.
- 2.

  Loosen the turbocharger inlet tube clamp and remove the turbocharger inlet tube.
  - To install, tighten to 5 Nm (44 lb-In).

GFD135128

Courtesy of FORD MOTOR COMPANY

5.

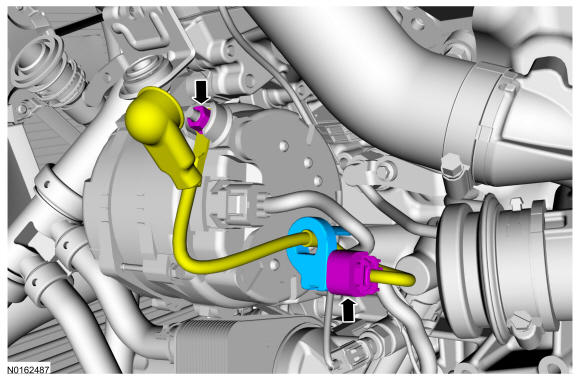

Remove the nut and position the positive battery cable terminal aside, disconnect the generator current sensor electrical connector.
- To install, tighten to 9 Nm (80 lb-in).

GFD136901

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Note the orientation and position of the generator current sensor tape tab.

Index-mark the battery cable at the generator current sensor. Remove and discard the tape securing the generator current sensor to the positive battery cable and remove the generator current sensor.
