Battery Disconnect
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Batteries contain sulfuric acid and produce explosive gases. Work in a well-ventilated area. Do not allow the battery to come in contact with flames, sparks or burning substances. Avoid contact with skin, eyes or clothing. Shield eyes when working near the battery to protect against possible splashing of acid solution. In case of acid contact with skin or eyes, flush immediately with water for a minimum of 15 minutes, then get prompt medical attention. If acid is swallowed, call a physician immediately. Failure to follow these instructions may result in serious personal injury.
WARNING:
Always deplete the backup power supply before repairing or installing any new front or side air bag supplemental restraint system (SRS) component and before servicing, removing, installing, adjusting or striking components near the front or side impact sensors or the restraints control module (RCM). Nearby components include doors, instrument panel, console, door latches, strikers, seats and hood latches. Refer to the Description and Operation portion of Supplemental Restraint System
WARNING:
Always lift a plastic-cased battery with a battery carrier or with hands on opposite corners. Excessive pressure on the battery end walls may cause acid to flow through the vent caps, resulting in personal injury and/or damage to the vehicle or battery.
NOTE:
When the battery (or PCM) is disconnected and connected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The charging system setpoint may also vary. The vehicle may need to be driven to relearn its strategy.
NOTE:
When the battery is disconnected and connected, the illumination display needs to be calibrated. After the battery is connected, rotate the dimmer switch from the lowest dim position to the full bright, dome ON position.
- 1.NOTE: Do not lift the battery ground terminal by grabbing onto the wire or damage to the wire or terminal may result.NOTE: When disconnecting the battery ground cable to interrupt power to the vehicle electrical system, disconnect the battery ground cable only. It is not necessary to disconnect the positive battery cable.

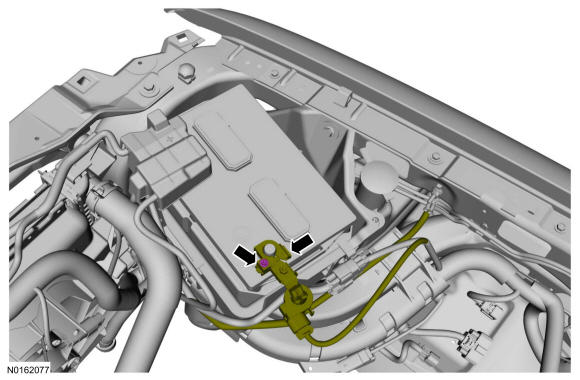

Disconnect the battery negative cable.
- To connect, tighten to 5 Nm (44 lb-in).
- 2.NOTE: Do not lift the positive battery terminal by grabbing onto the wire or lifting underneath the terminal cover or damage to the wire or terminal may result.

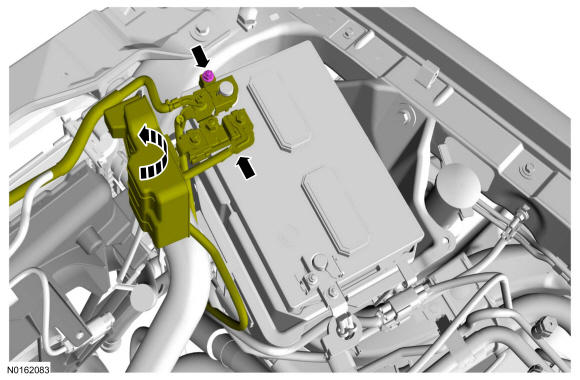

Disconnect the positive battery cable.
- To connect, tighten to 5 Nm (44 lb-in).
