Removal And Installation: Battery: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Disconnect the battery cables. Refer to Battery Disconnect .

2.

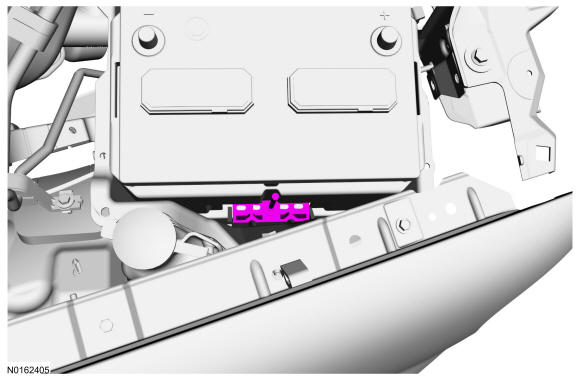

Loosen and remove the battery hold-down bolt and clamp.
- Tighten to 7 Nm (62 lb-in).

Courtesy of FORD MOTOR COMPANY

3.

WARNING: Always lift a plastic-cased battery with a battery carrier or with hands on opposite corners. Excessive pressure on the battery end walls may cause acid to flow through the vent caps, resulting in personal injury and/or damage to the vehicle or battery.

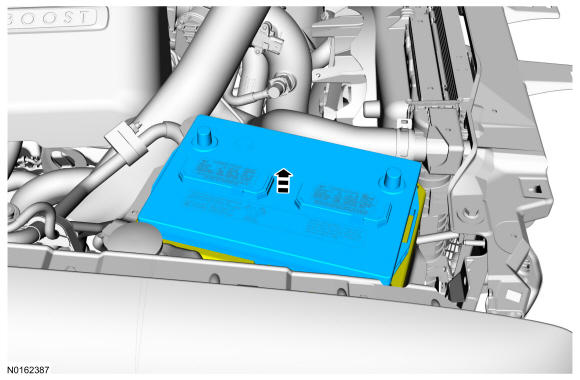

Remove the battery.

Courtesy of FORD MOTOR COMPANY
