Camber and Caster Adjustment - Front
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not remove the stabilizer bar brackets until the stabilizer links have been disconnected or damage to the stabilizer bar links may occur.
NOTE:
To allow for adjustment of the lower arm in the frame slots, the lower arm bolts and nuts must be removed and discarded. They are replaced with cam bolt kit 3C333. The vehicle should be supported by the frame to ease movement of the lower arm in the slot.
- 1.
Using alignment equipment and the manufacturers instructions, measure the front caster and camber.- Refer to Alignment Specifications in the Specifications for optimal alignment settings.
- If the caster and camber values are not within specification, go to the next step.
- 3.NOTE: Do not hold the stabilizer link boot with any tool, as damage to the boot will occur.NOTE: Use the hex-holding feature to prevent the stud from turning while removing the nuts.
Remove and discard the stabilizer bar link lower nuts.
- 5.
Remove the 4 stabilizer bar bracket nuts, 2 stabilizer bar brackets and position the stabilizer bar aside.

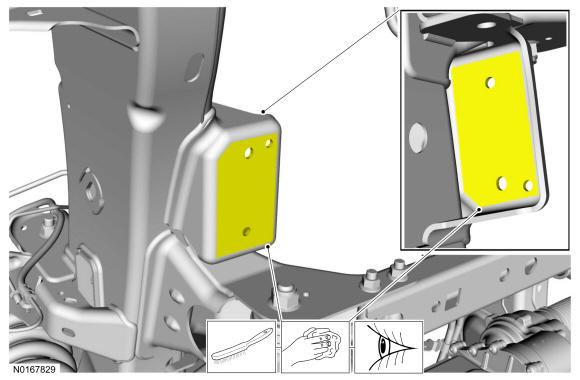

- 9.
To adjust the caster and camber, refer to the following chart.- Adjustments that require moving the front and the rear of the lower arm should be made equally.
Adjustment Front of Lower Arm Rear of Lower Arm Increase caster In Out Decrease caster Out In Increase camber In In Decrease camber Out Out Increase caster and camber simultaneously In - Decrease caster and camber simultaneously Out -
- Adjustments that require moving the front and the rear of the lower arm should be made equally.
- 10.
With the weight of the vehicle resting on the wheel and tire assemblies, hold the front cam bolt and tighten the nut to 350 Nm (258 lb-ft).
- 11.
With the weight of the vehicle resting on the wheel and tire assemblies, hold the rear cam bolt and tighten the nut to 350 Nm (258 lb-ft).
- 14.
Position the stabilizer bar, install the 2 stabilizer bar brackets and the 4 stabilizer bar bracket nuts.- Tighten the nuts to 55 Nm (41 lb-ft).
- 15.NOTE: If equipped.

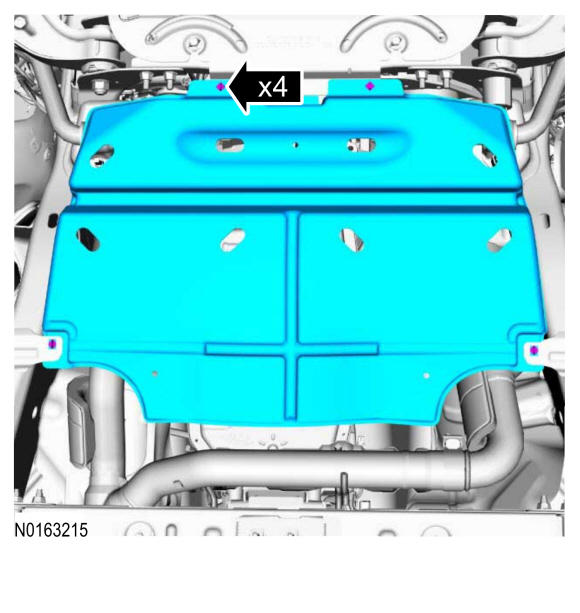

Install the underbody splash shield and the underbody splash shield retainers.
- 16.NOTE: Do not hold the stabilizer link boot with any tool, as damage to the boot will occur.NOTE: Use the hex-holding feature to prevent the stud from turning while installing the nuts.
Install the 2 stabilizer bar link lower nuts.
- Tighten the nuts to 80 Nm (59 lb-ft).
- 17.
Check and, if necessary, adjust the front toe. Refer to Toe Adjustment - Front .
